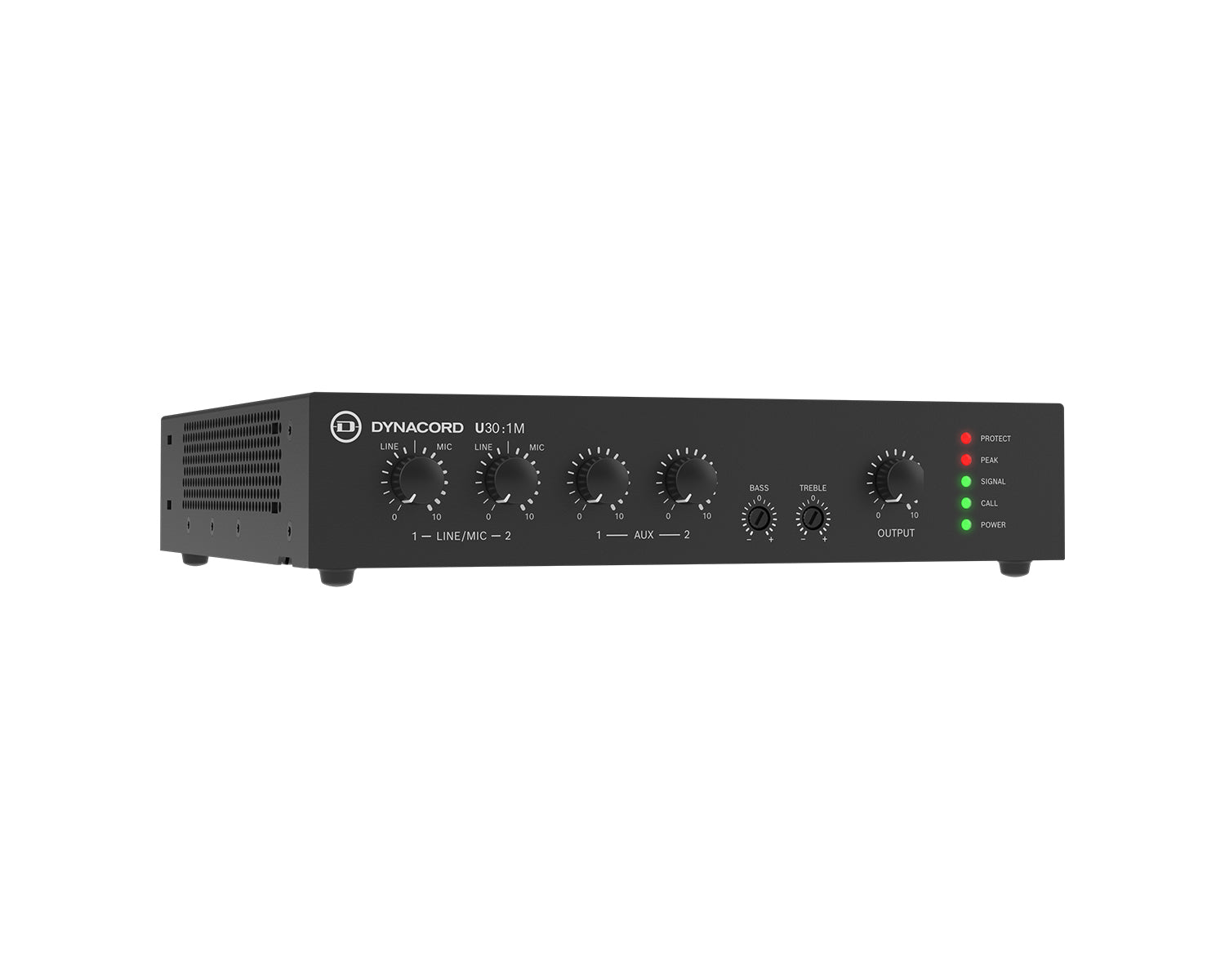

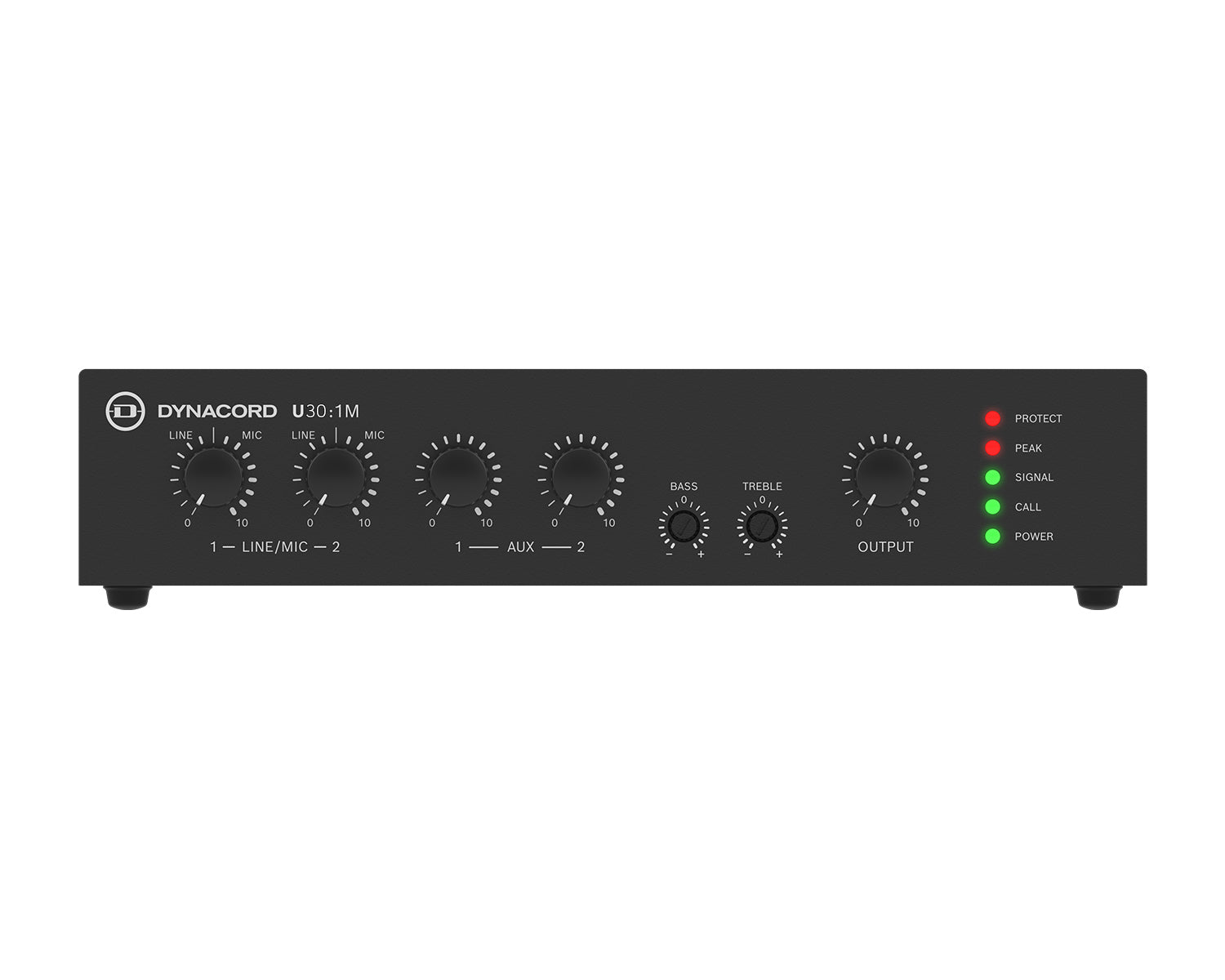

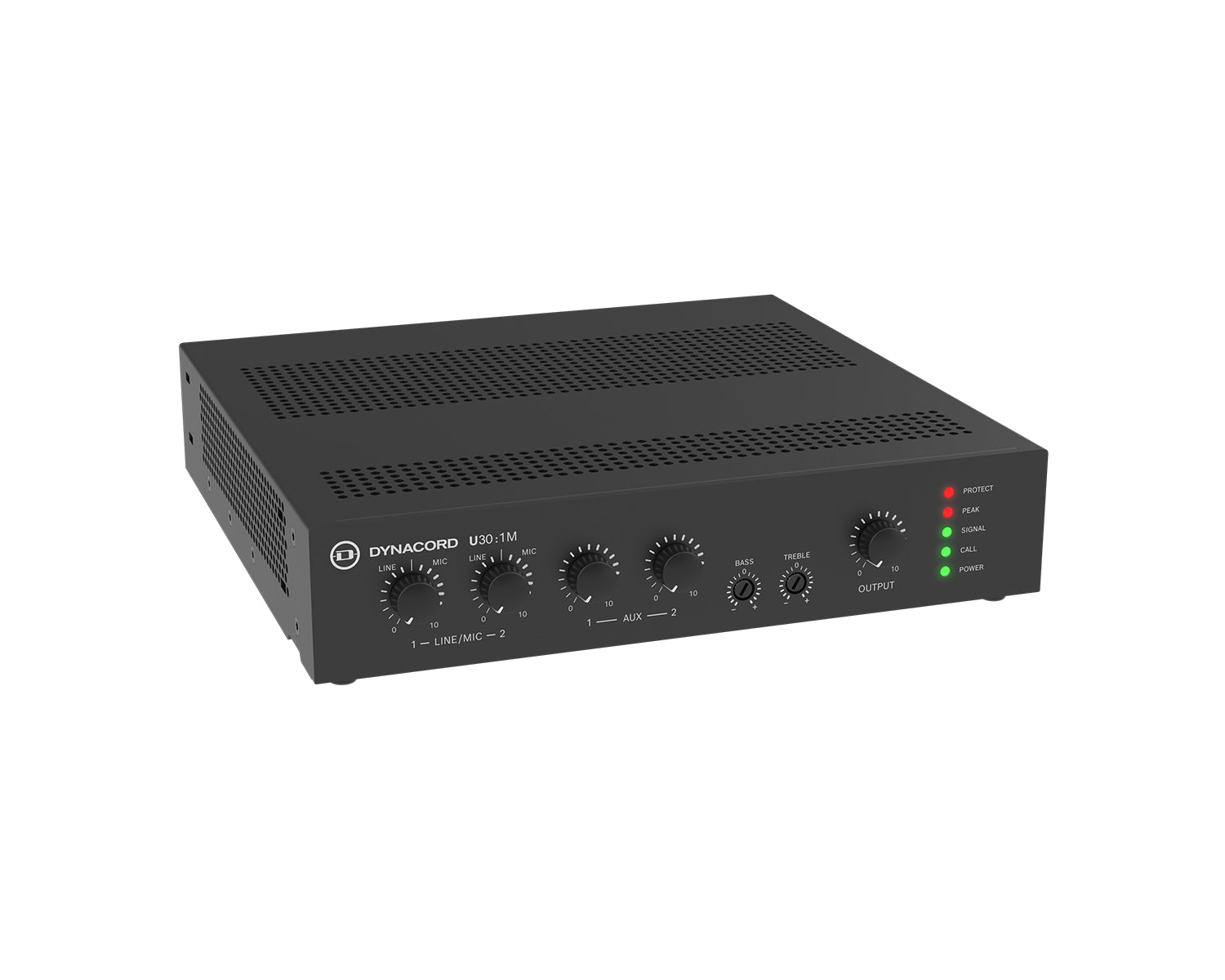

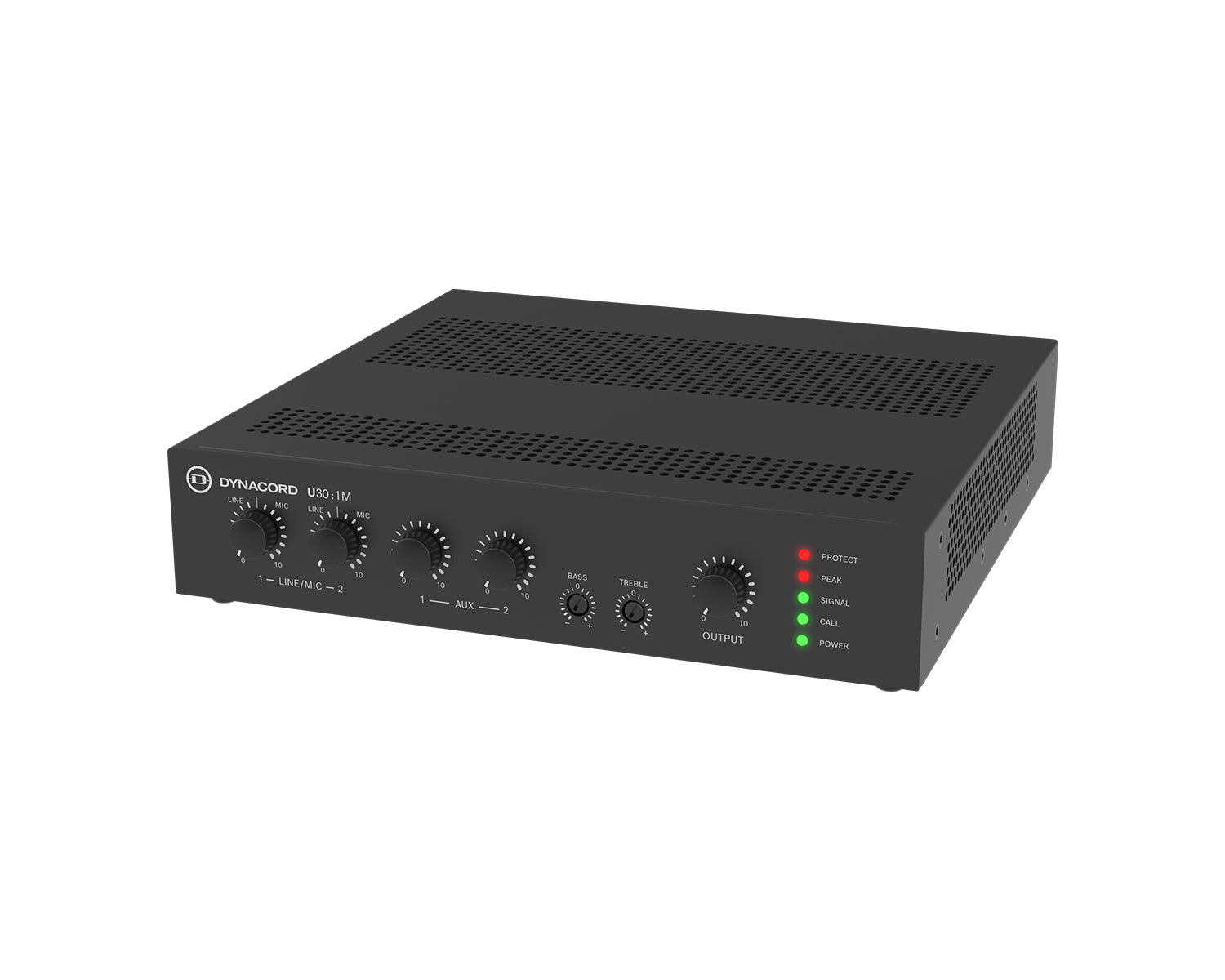

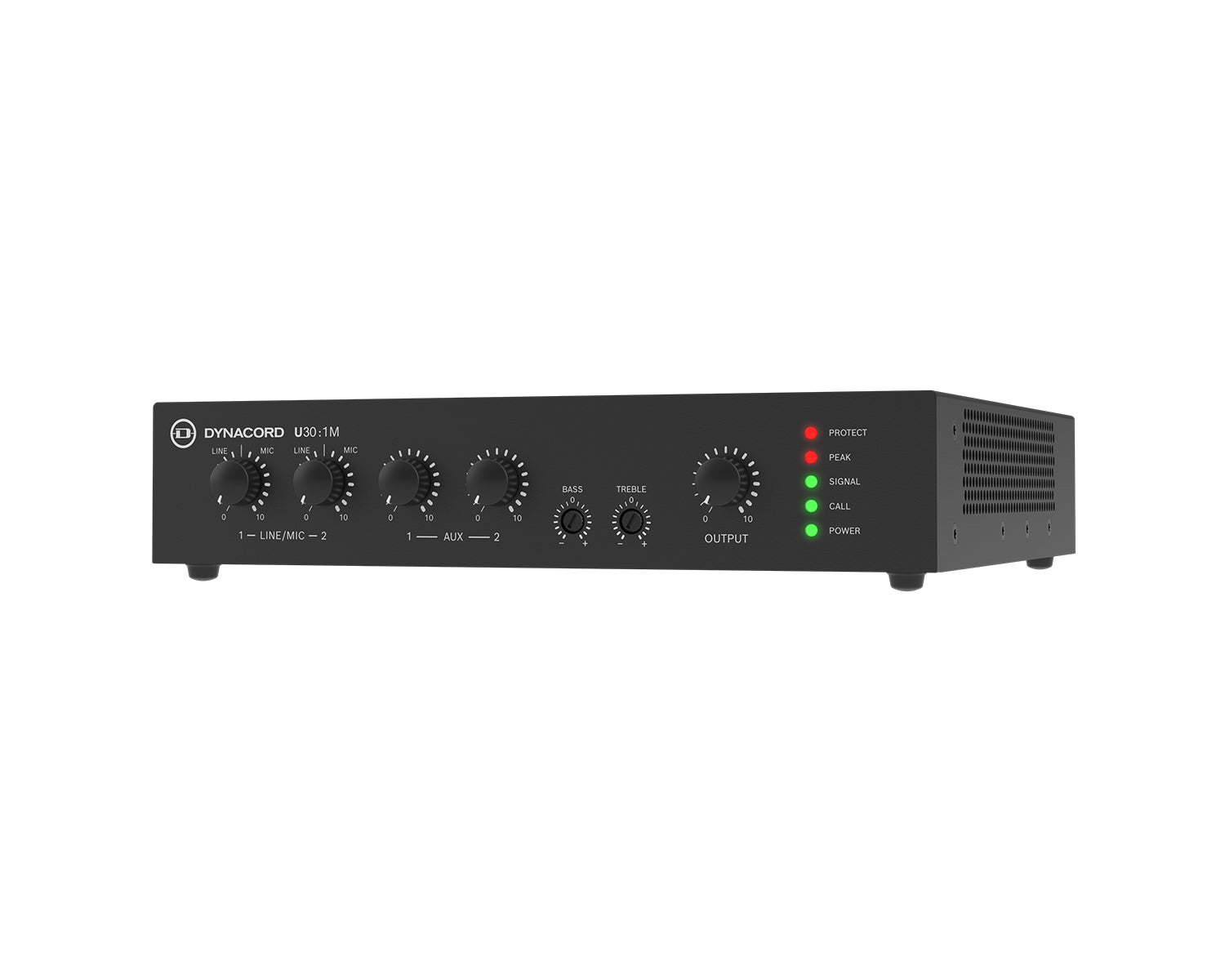

The Dynacord U30:1M is a 30W mixer amplifier with four inputs and a single output that drives 4 ohm, 8 ohm, 70V or 100V loudspeaker lines. It combines mic and music sources with VOX ducking, a chime and an EMG override, for background music and announcements in bars, restaurants, shops, schools, houses of worship and meeting rooms. The 1U half-rack chassis fits two units side by side in one rack space.
30W
4/8 ohm, 70V, 100V
4 + EMG
Inputs
Class D
Output stage
1U half
Rack size
Features
30W rated output into 4 ohms, 8 ohms, 70V or 100V, selected by DIP switch
Two mic/line inputs on balanced XLR with switchable 48V phantom power
Input 1 also on a 5-pin Euroblock with contact-closure override and switchable two-tone chime
VOX ducking on input 2 lowers background music when someone speaks (0 to -45 dB, adjustable threshold)
Two RCA line inputs, each summed to mono
EMG override input, line level or 100V
Bass and treble shelving (±12 dB) and a switchable 120 Hz high-pass filter
Remote standby via a 2-pin contact closure

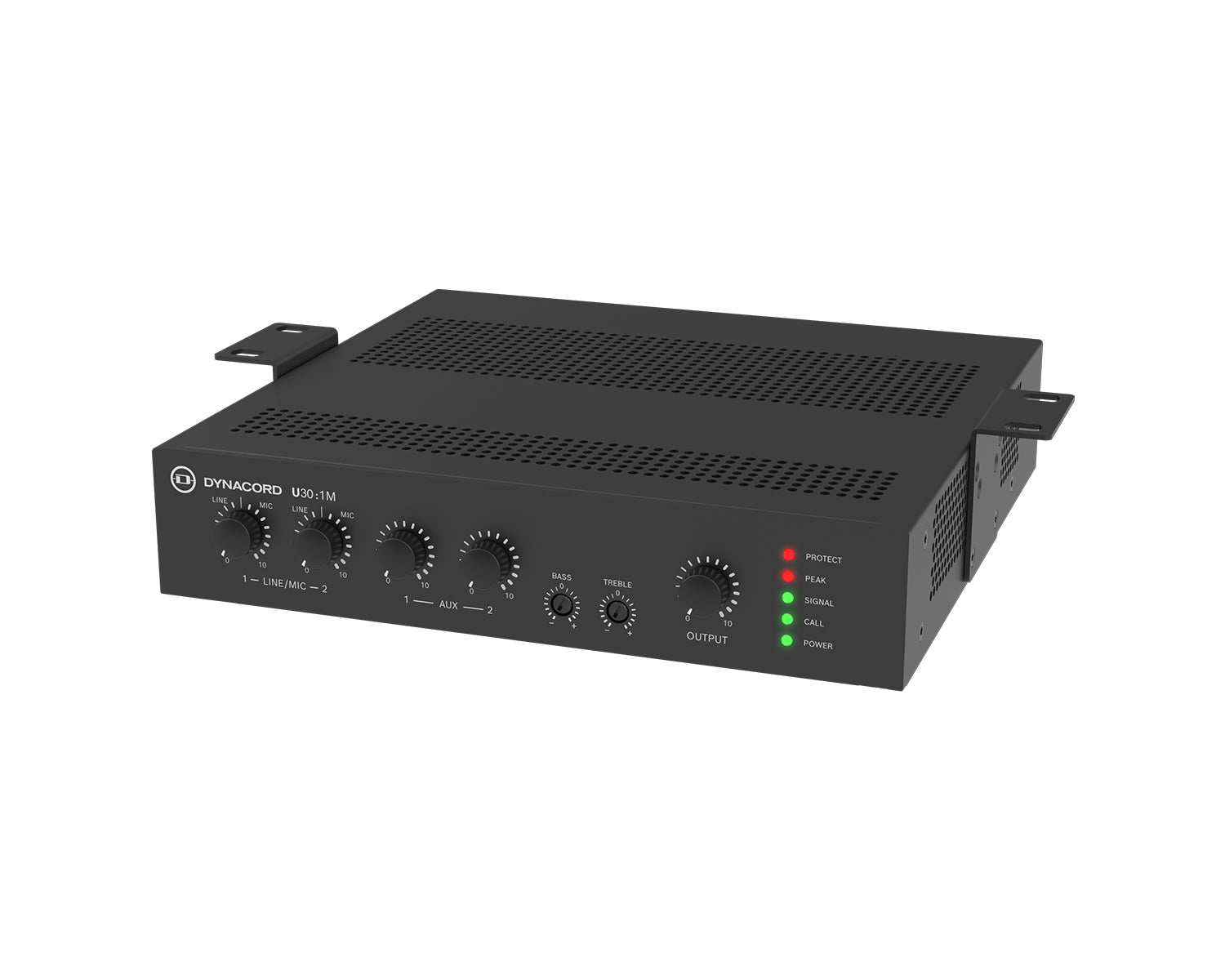

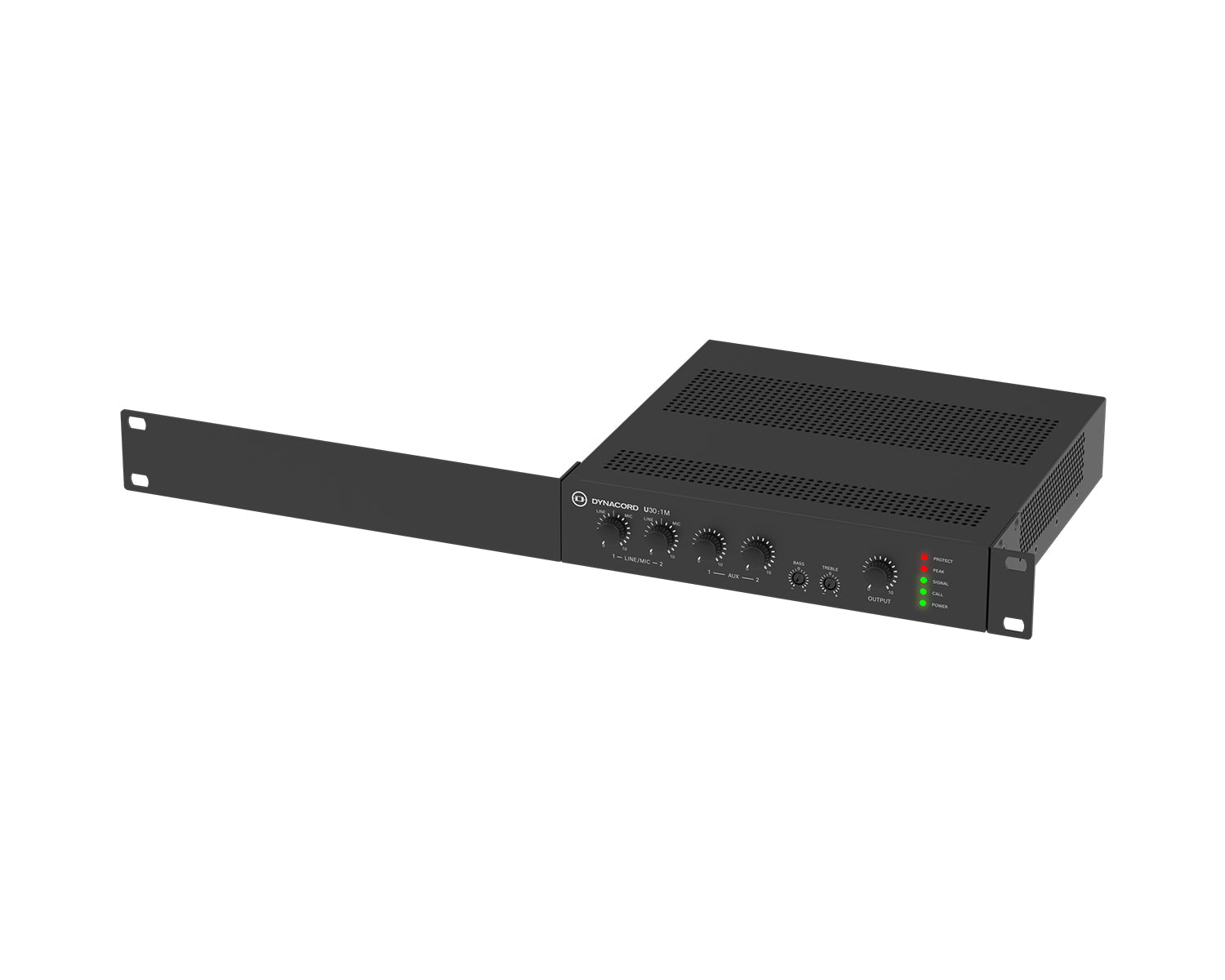

Half-rack, 1U chassis; brackets included for single or side-by-side rack mounting, desktop or under-counter use
Specifications
| Rated output power | 30W into 4 ohms, 8 ohms, 70V or 100V |
| Maximum output voltage (1 kHz, no load) | 4 ohm: 12 Vrms, 8 ohm: 16 Vrms, 70V: 87 Vrms, 100V: 118 Vrms |
| Output stage | Class D |
| Frequency response, any input to output | 70 Hz to 22 kHz (-3 dB) |
| Fixed low cut | 70 Hz, 12 dB/oct |
| Switchable high-pass | 120 Hz, 12 dB/oct |

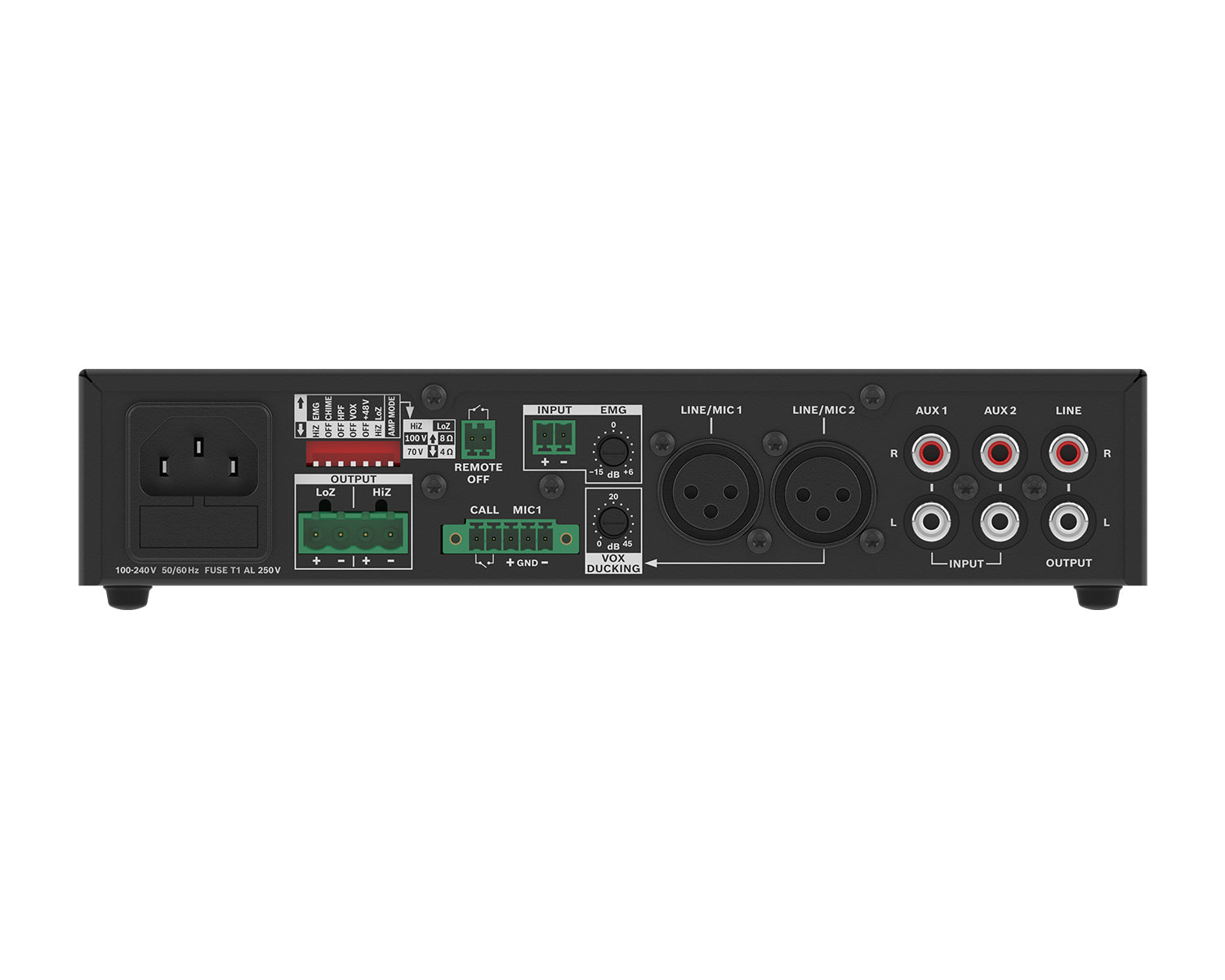

| Inputs | 2x mic/line (XLR, input 1 also 5-pin Euroblock), 2x RCA line (summed mono), 1x EMG (2-pin) |
| Mic sensitivity | -68 dBu (300 µV), all controls at maximum |
| Signal-to-noise ratio | ≥98 dB (A-weighted) |
| Speaker output | 4-pin Euroblock (2 pins low impedance, 2 pins 70V/100V) |
| Mains | 100 to 240 V AC, 50/60 Hz, 100 VA |
| Power consumption | Standby 0.6W, idle 6W |
| Dimensions (H x W x D) | 44.2 x 218 x 217.7 mm, 1U half-rack |
| Weight | 2.26 kg (2.72 kg with brackets) |
