The Dynacord VWP is a wall-mounted controller with a 1.77 inch colour display and push-button rotary encoder, for the Dynacord VZX-8 zone processor. It gives staff control of level, mute, zone, source and media playback, with PIN lock and user profiles to limit access. It suits bars, restaurants, retail, hotels and meeting spaces running a VZX-8 system.
1.77in
Colour display
Up to 16
Per VZX-8
RJ45
Powered by bus
≤1.3W
Power draw
Requires a Dynacord VZX-8The VWP is powered and connected by the VZX-8 accessory bus and does not work on its own.

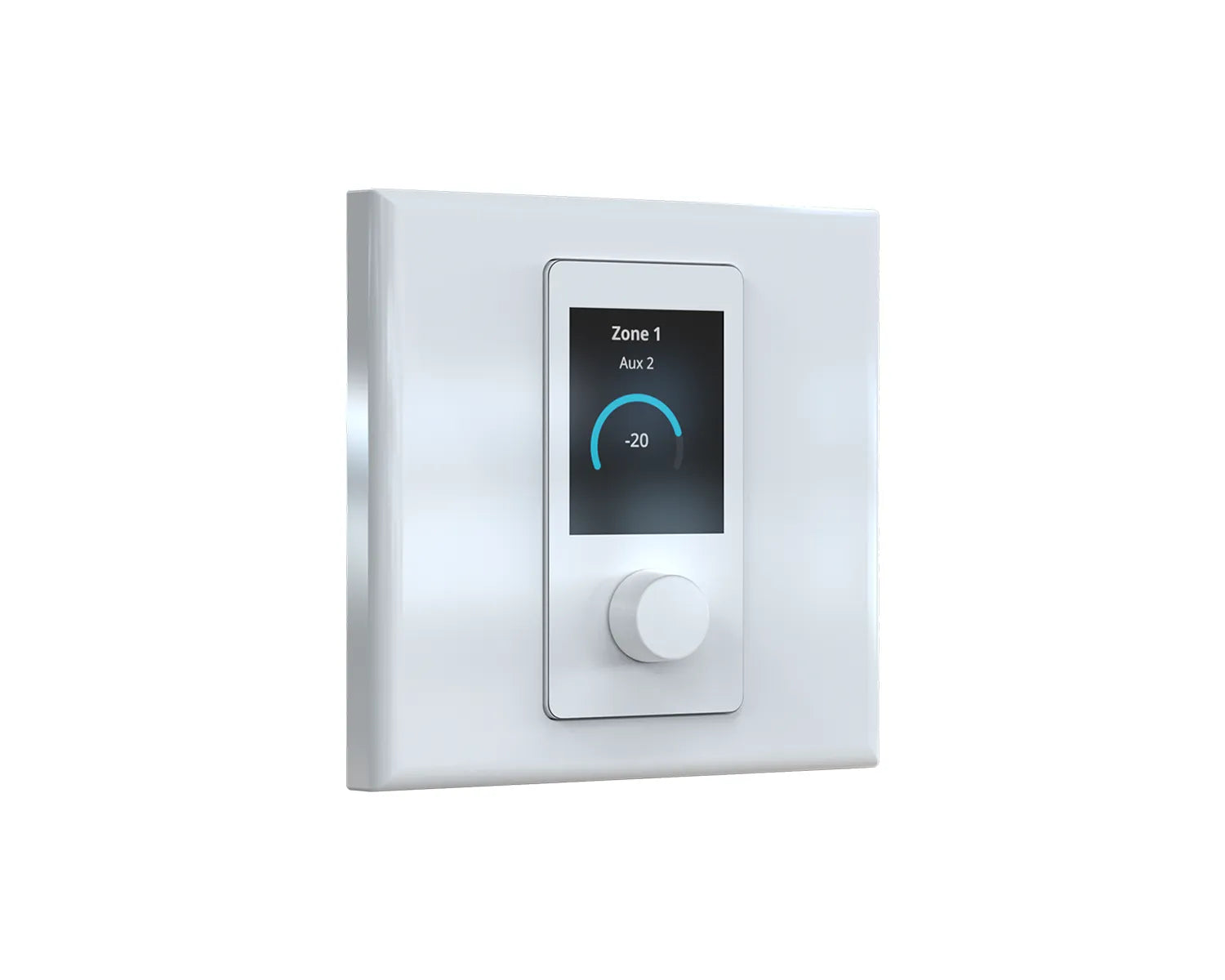

Wall plate and back boxNeeds a 1-gang Decora-style wall plate (not included) and a round back box at least 60 mm diameter and 60 mm deep.
Features

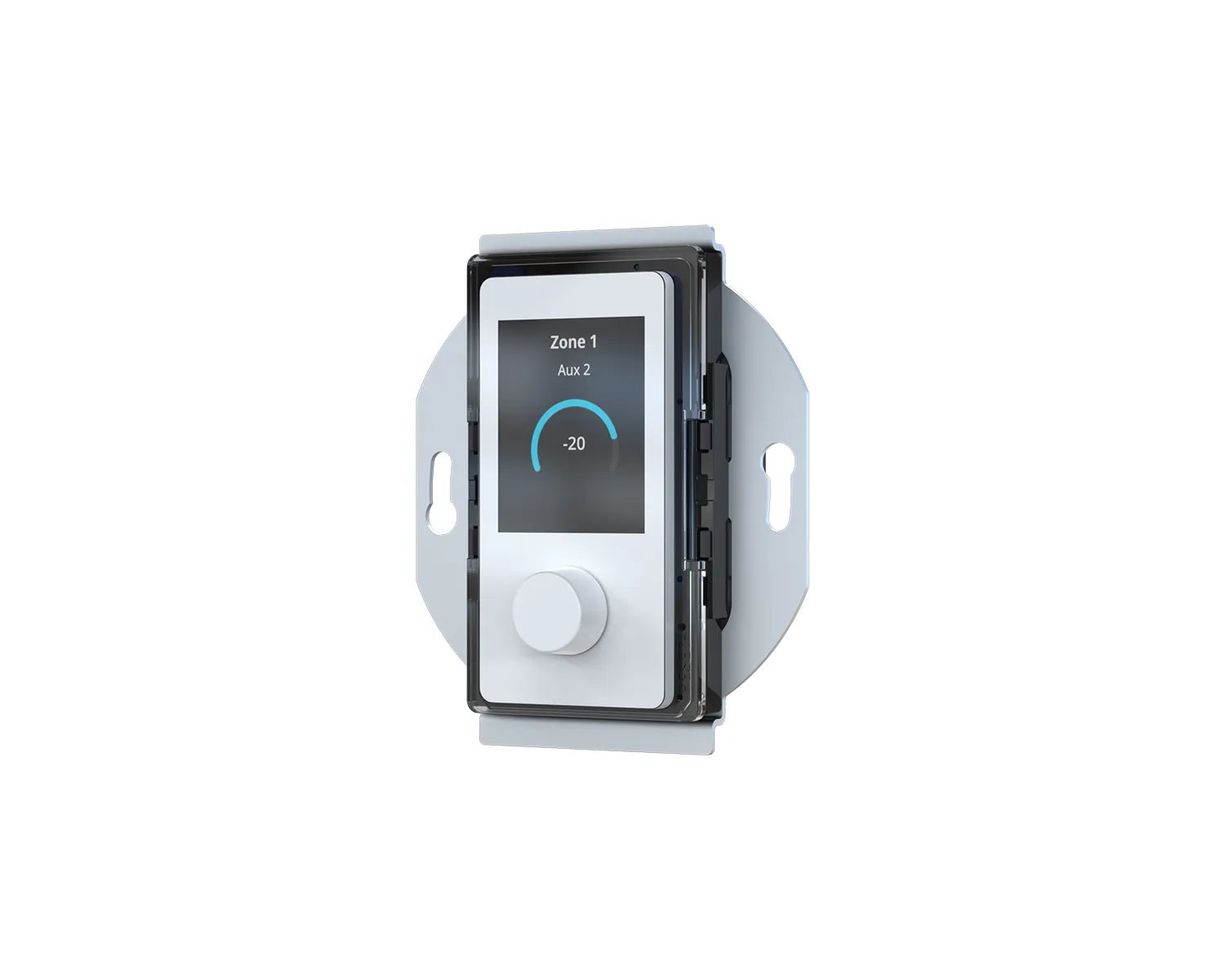

1.77 inch colour TFT display, 160 x 128 pixels
Rotary encoder with push button, 24 detents, continuous rotation
Controls level, mute, zone, source and media player
4-digit PIN lock and multiple user profiles
Unicode text, over 150 languages
Connects and draws power over RJ45; daisy-chain from the VZX-8 accessory ports

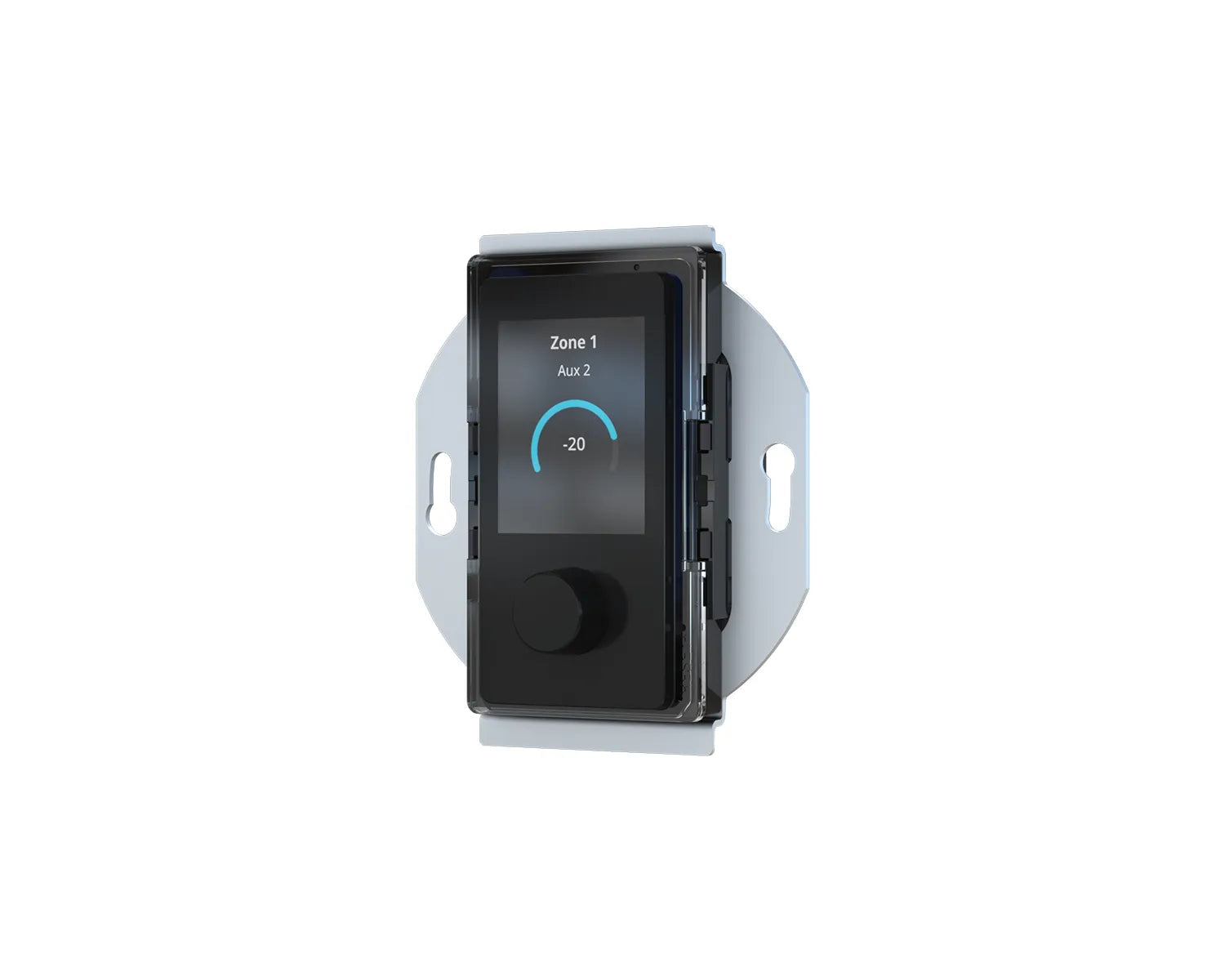

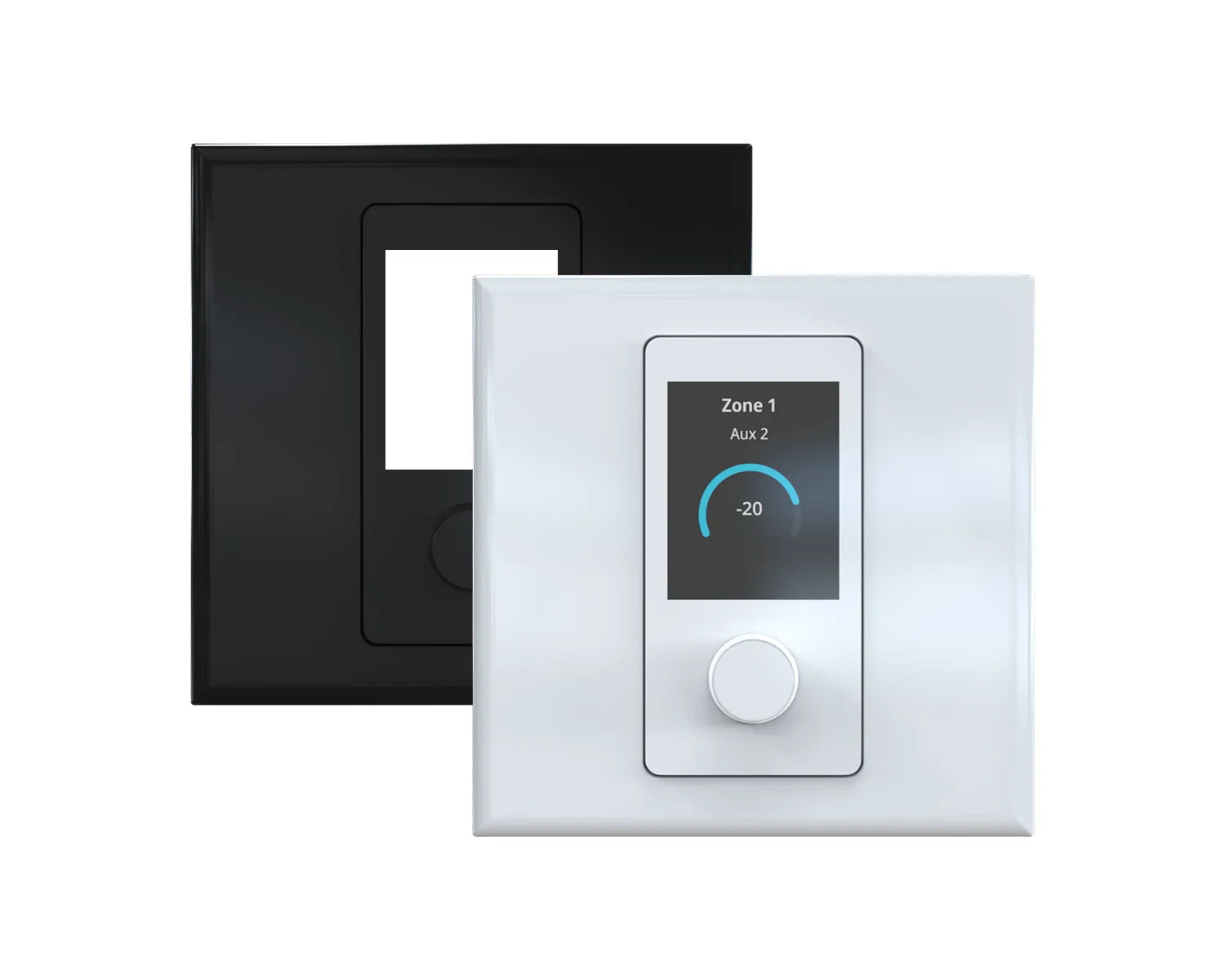

White front panel supplied, changeable to black
Specifications
| Display | 1.77 in colour TFT, 160 x 128 pixels, 480 cd/m² |
| Control | Push-button encoder, 24 detents, 360° continuous |

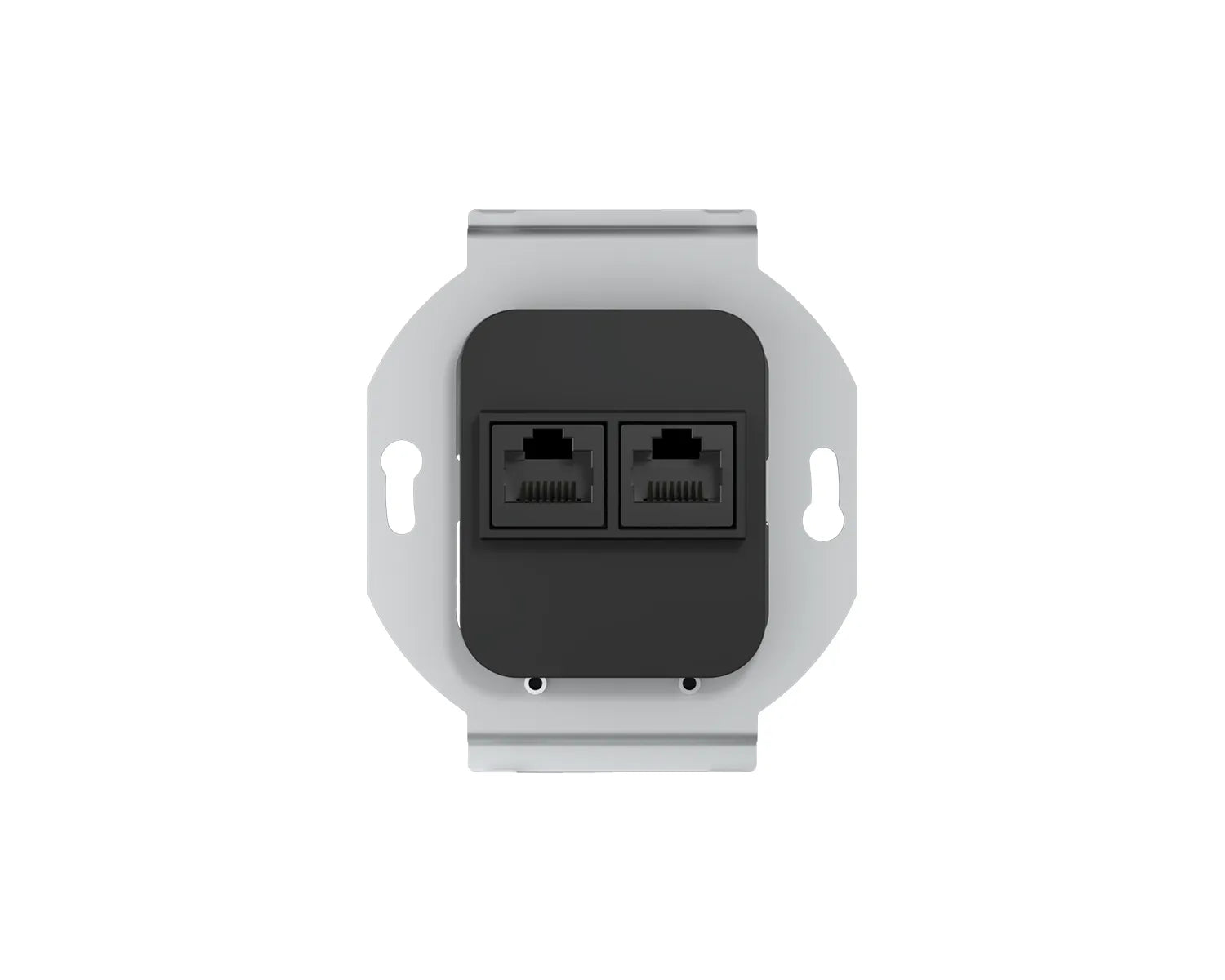

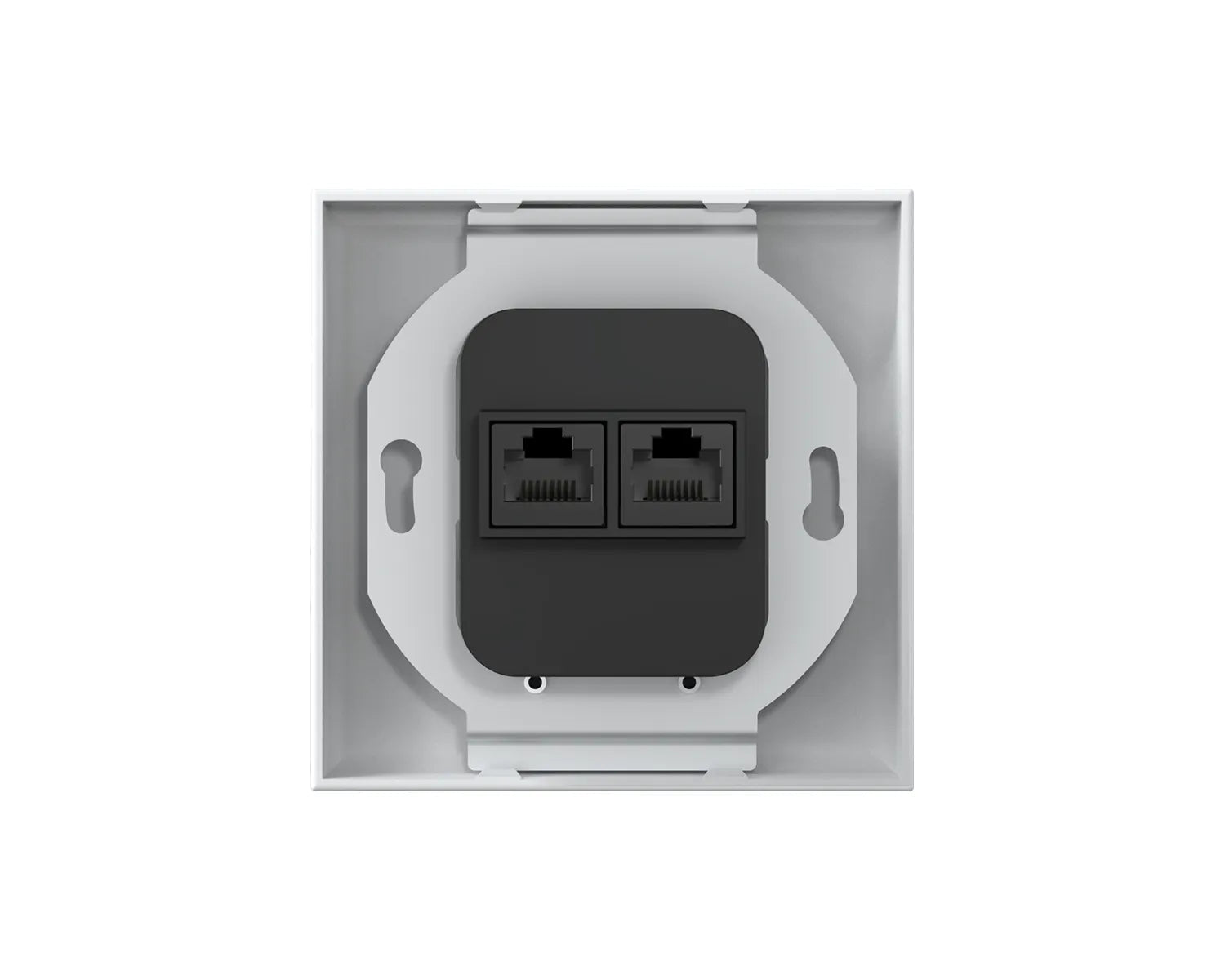

| Connections | 2x RJ45 (in, out for daisy chain) |
| Power | VZX-8 accessory bus, ≤1.30W |
| Maximum per system | 16 per VZX-8 (16 accessories in total) |
| Mounting | Wall, round back box 60 mm diameter, ≥60 mm deep |
| Colour | White, changeable to black |
| Operating conditions | 5 to 40°C, 15 to 93% RH non-condensing |
| Dimensions (H x W x D) | 86.3 x 86.3 x 42 mm |
| Weight | 100 g |
