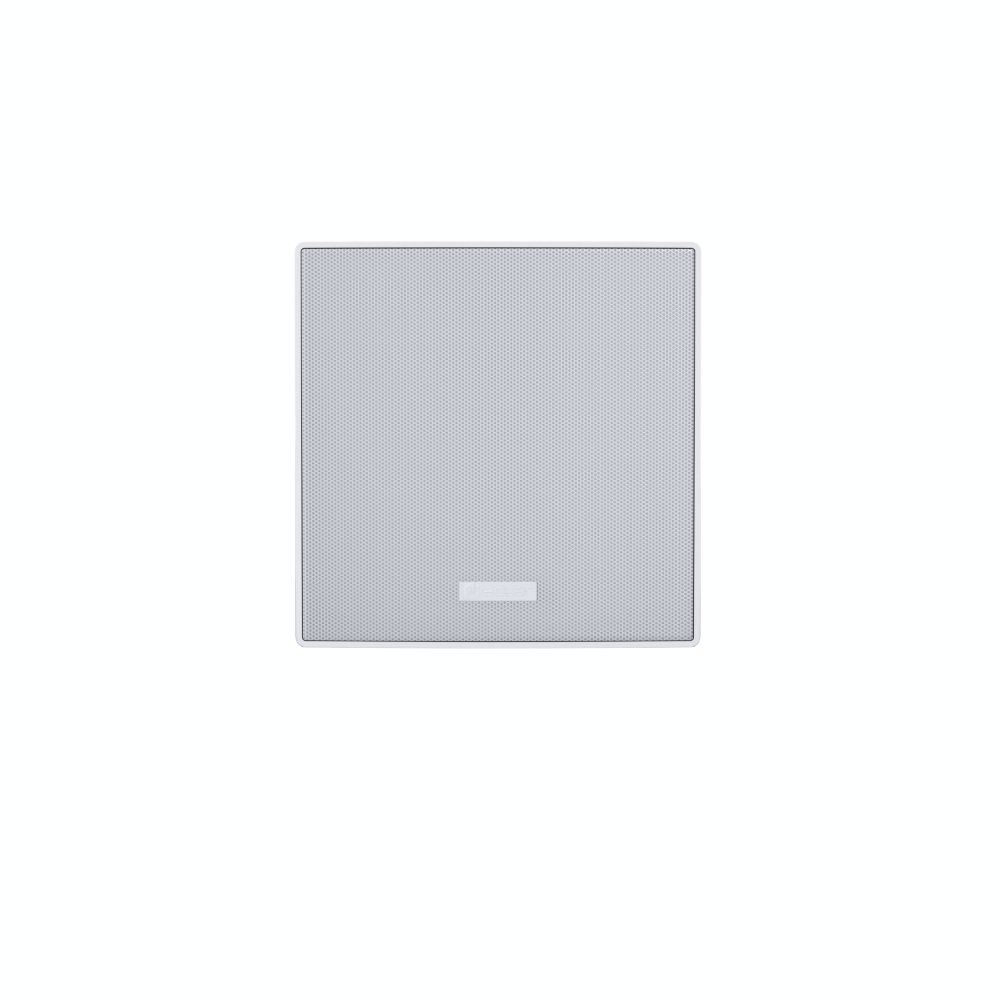

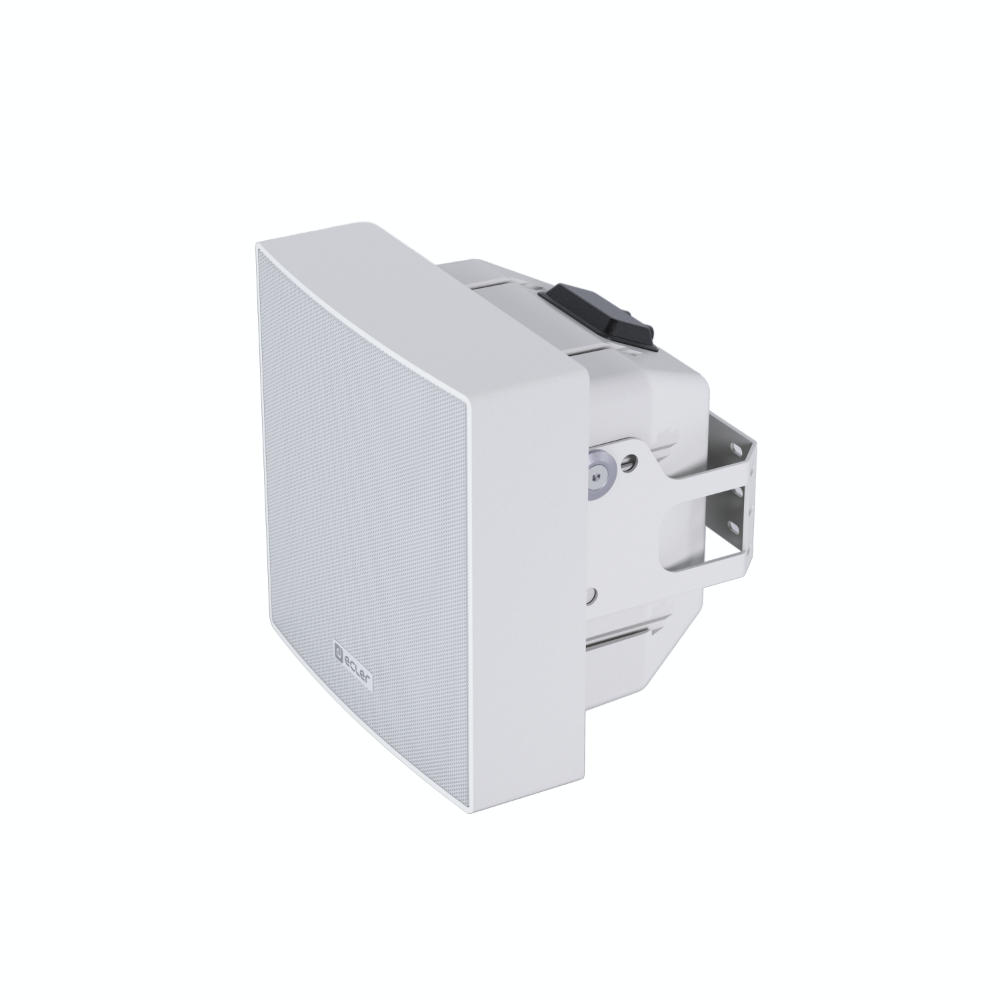

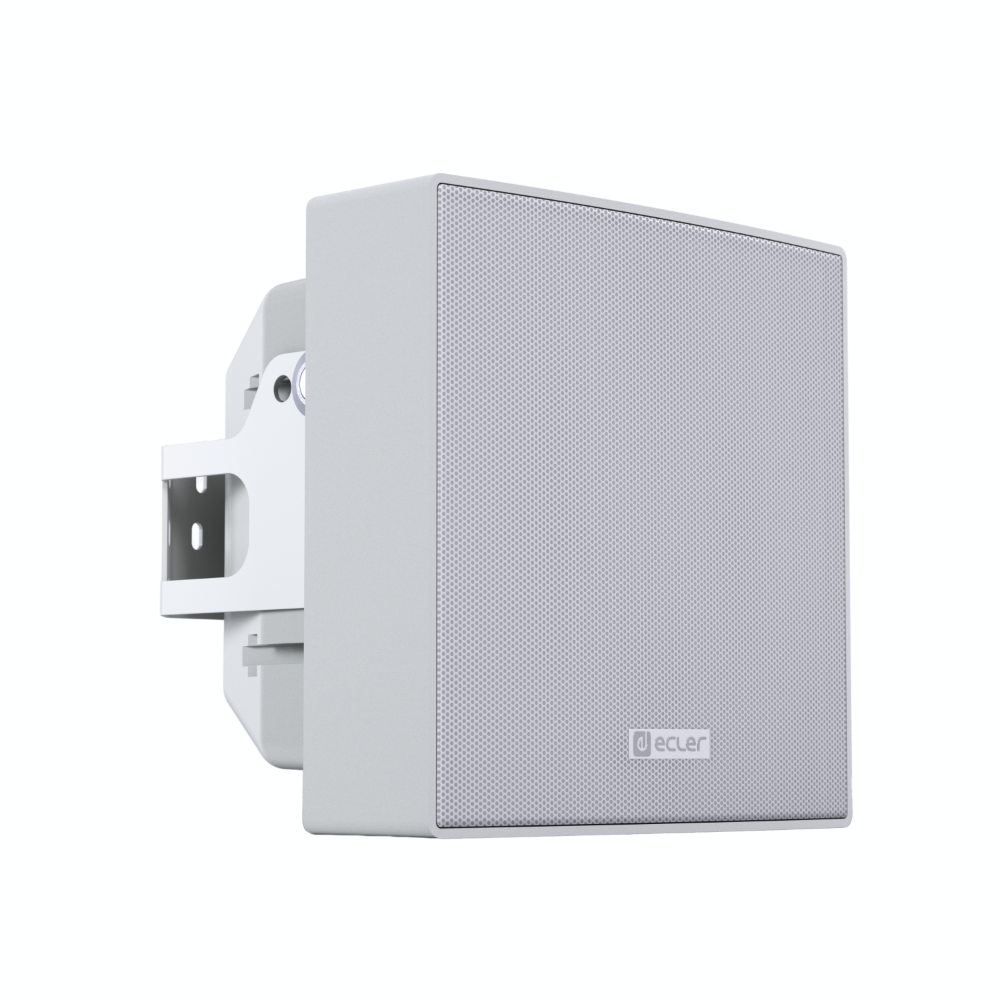

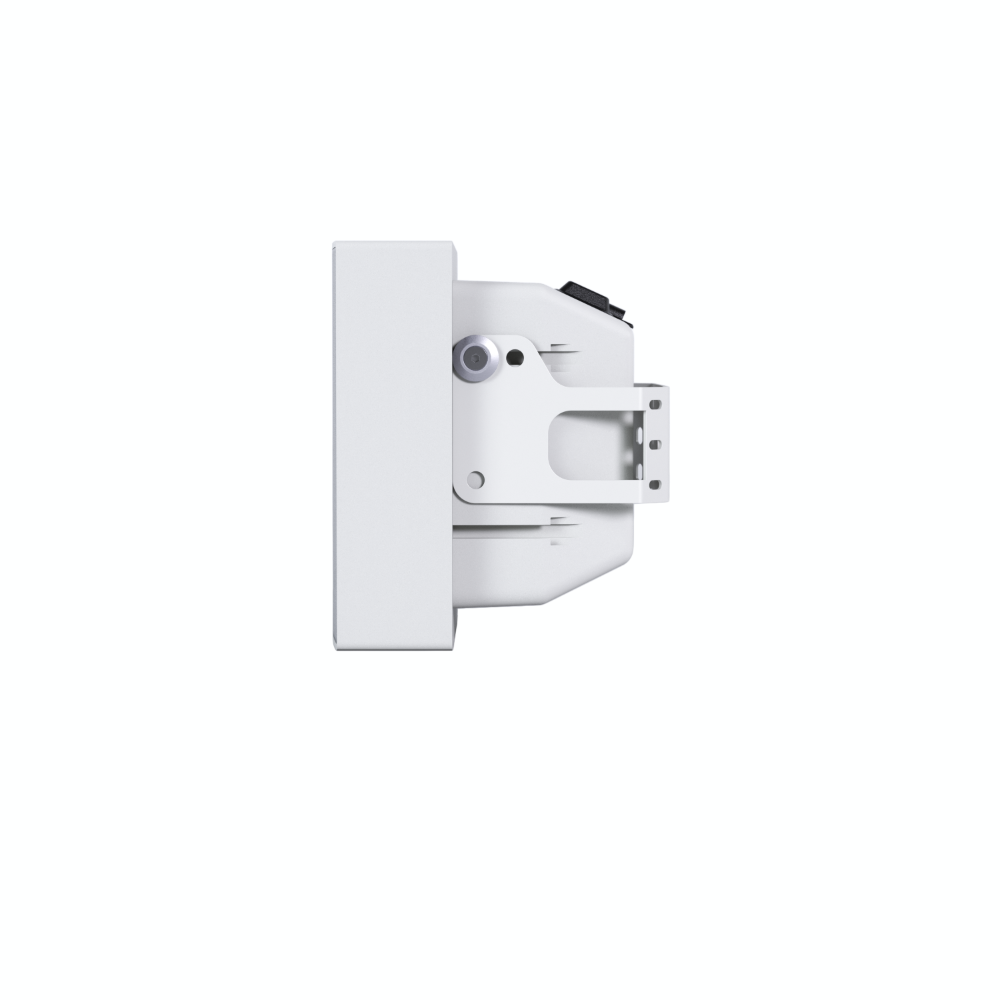

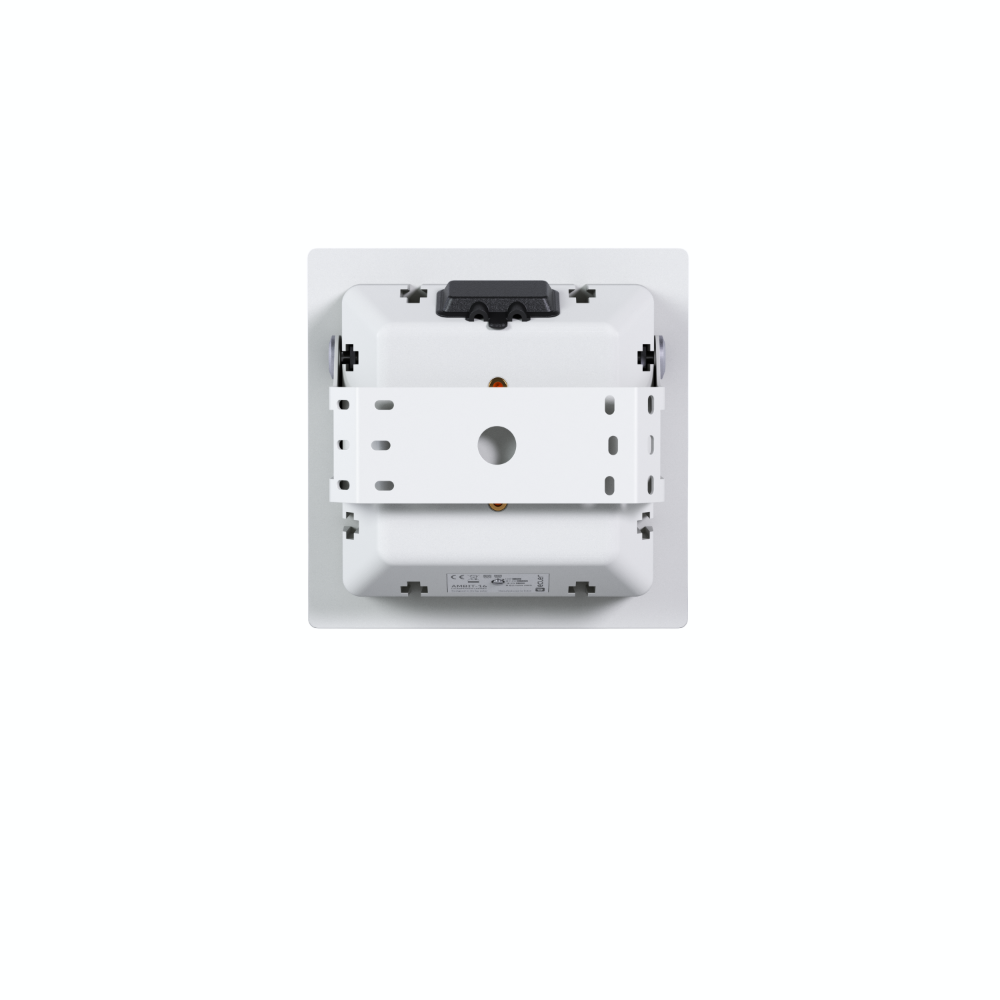

Ecler AMBIT 16 6.5" Installation Speaker 100V IP54 White (Pair)

Product code: 194274

£204.00 inc VAT
£170.00 ex VAT

SKU: ECL0004

9 in stock

9 available online
Delivered by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
1 Year Manufacturer Warranty Included

About this Product

Connection: 100V line (taps 30 / 15 / 7.5 / 5W) or low impedance (8Ω).

The Ecler AMBIT 16 is a 2-way coaxial surface mount speaker with a 6.5 inch woofer and 1 inch tweeter, and this listing is for a pair in white. Each speaker has a built-in transformer with 100V taps up to 30W plus an 8 ohm position, and an IP54 rated, UV resistant cabinet for indoor or sheltered outdoor use. It suits bars, restaurants, retail, gyms, offices and covered terraces.

6.5in + 1in
2-way coaxial
IP54
Indoor and outdoor
30W
Max 100V tap
91 dB
Sensitivity 1W/1m

Features

Supplied as a pair
2-way coaxial design: 6.5 inch woofer with 1 inch tweeter
100V taps at 30W, 15W, 7.5W and 5W; 70V taps at 15W, 7.5W, 3.75W and 2.5W
8 ohm position, 50W RMS
IP54 rated ABS cabinet with aluminium grille and anti-UV treatment to limit colour fade
Spring-loaded input terminals with waterproof rubber cover
Wall mount hardware, safety sling, screws and wrench included
White finish (RAL 9016)

Specifications

Ecler AMBIT 16 6.5″ Installation Speaker 100V IP54 White (Pair) specifications
Frequency range 97 Hz to 20 kHz (-10 dB)
Coverage 143° x 140° (H x V)
Power handling 50W RMS, 200W peak (8 ohms)
Sensitivity 91 dB (1W/1m)
Maximum SPL 108 dB continuous, 114 dB peak
100V taps 30W, 15W, 7.5W, 5W
70V taps 15W, 7.5W, 3.75W, 2.5W
Recommended amplifier 100W RMS (8 ohm use)
Drivers 6.5 in woofer, 1 in tweeter
Connection Spring-loaded terminals
Mounting Surface, ceiling or corner via wall bracket
Environmental IP54
Materials ABS cabinet, aluminium grille
Dimensions (W x H x D) 210 x 210 x 160 mm
Weight 2.75 kg
Operating temperature -20°C to 70°C
Colour White (RAL 9016)
Quantity 2 speakers

Full features

  • ABS 2-way architectural loudspeaker
  • 6,5" woofer / 1" tweeter
  • Built–in audio transformer for 100V applications
  • 8Ω and 70/100V operation selector
  • Available in black (RAL 9005) and white (RAL 9016) colours
  • Spring loaded input terminals
  • IP54 rated
  • Anti UV cabinet avoids colour degradation in case of direct sunlight exposition
  • Waterproof rubber cover for connectors included

System

  • Effective Freq. Range: 97Hz-20kHz (-10dB)
  • Coverage angle / Dispersion: 143°x140° (HxV)
  • Power handling: 50W RMS / 200W Peak
  • Sensitivity: 91dB (1W/1m)
  • Maximum SPL: 108dB continuous / 114dB peak
  • Power options (Hi Z Multi-tap): 100V: 5W / 7.5W / 15W / 30W
    70V: 2.5W / 3.75W / 7.5W / 15W
  • Recommended amplifier power: 100W RMS

Transducers

  • Ways: 2-ways full range
  • Low frequency driver: 6,5" woofer
  • High frequency driver: 1" tweeter
  • Nominal impedance: 8Ω

Physical

  • Connection type: Spring loaded input terminals
  • Installation options: Surface, ceiling, corner (wall mount)
  • Environmental: IP54 rated
  • Enclosure material: ABS plastic
  • Grille material: Aluminium
  • Operating temperature: Min: -20°C ; -4°F
    Max: 70°C ; 158°F
  • Operating humidity: <85% HR
  • Storage temperature: Min: -20°C ; -4°F
    Max: 70°C ; 158°F
  • Storage humidity: <90% HR
  • Included accessories: Includes on-wall hardware, safety sling, screws and wrench for fast installation,  and waterproof rubber cover for connectors.
  • Finished colour: White (RAL 9016) or black (RAL 9005)
  • Dimensions: 210 x 210 x 160mm / 8.27 x 8.27 x 6.30 in (WxHxD)
  • Weight: 2.75kg / 6.06 lb
  • Pieces per box: 2
  • Shipping dimensions: 420 x 272 x 465mm / 16.54 x 10.71 x 18.31 (WxHxD)
  • Shipping weight: 6.10kg / 13.45 lb
