Rated 4.9 (120 reviews)

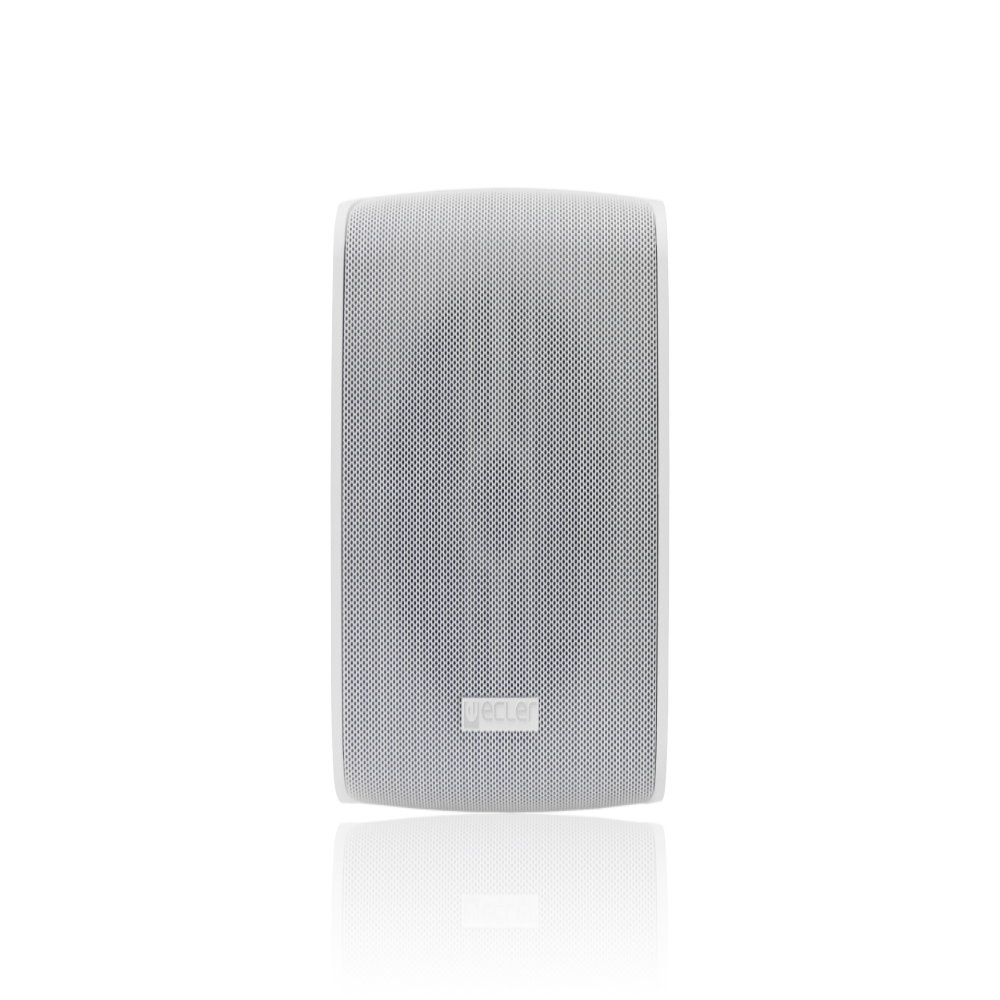

The Ecler eMOTUS 5O16 is the 16 ohm low-impedance version of the eMOTUS 5OD outdoor speaker, with a 5 inch woofer and coaxial 1 inch tweeter in an IP65 rated cabinet. This listing is for a pair of speakers in white. There is no 100V transformer, so it runs from a standard low-impedance amplifier and suits outdoor terraces, beer gardens, gyms, leisure centres and shop fronts.
16 ohm
Low impedance
IP65
Outdoor rated
40W
RMS handling
150°
Coverage (H x V 150°)
Not for 100V linesThis 16 ohm model has no line transformer. For a 100V distributed system choose the eMOTUS 5OD 100V version.
Features
Supplied as a pair
2-way design: 5 inch woofer with 1 inch coaxial tweeter
16 ohm nominal impedance, 40W RMS
IP65 rated ABS cabinet with aluminium grille

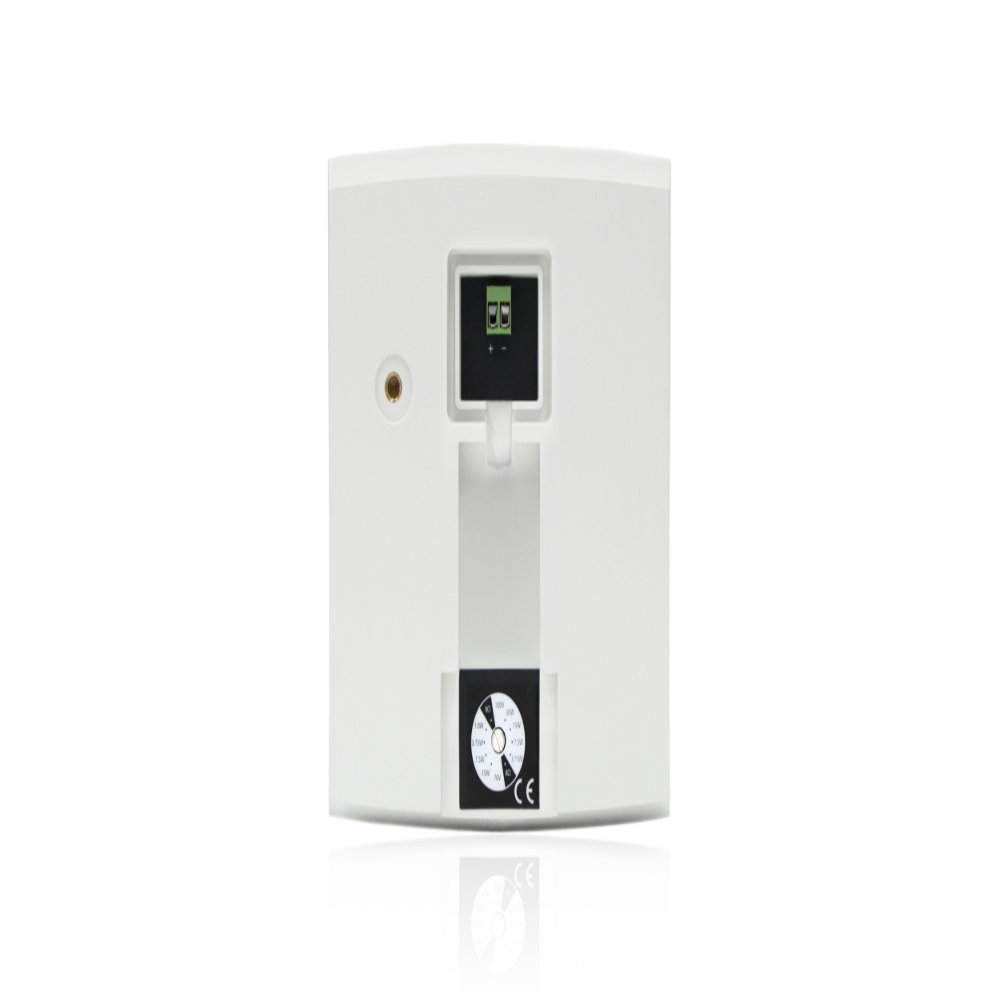

Rubber rear cover protects the Euroblock connection
Wall bracket, security steel cable and adhesive desktop feet included
White finish (RAL 9003)
Specifications
| Frequency range | 80 Hz to 20 kHz (-10 dB) |
| Coverage | 150° x 150° (H x V) |
| Power handling | 40W RMS, 160W peak |
| Nominal impedance | 16 ohms |
| Sensitivity | 86 dB (1W/1m) |
| Maximum SPL | 102 dB continuous, 108 dB peak |
| Recommended amplifier | 80W RMS |
| Drivers | 5 in woofer, 1 in coaxial tweeter |
| Connection | 2-pin Euroblock |
| Environmental | IP65 |
| Materials | ABS cabinet, aluminium grille |
| Dimensions (W x H x D) | 173 x 180 x 180 mm |
| Weight | 1.75 kg |
| Operating temperature | -20°C to 70°C |
| Colour | White (RAL 9003) |
| Quantity | 2 speakers |
