Rated 4.9 (120 reviews)

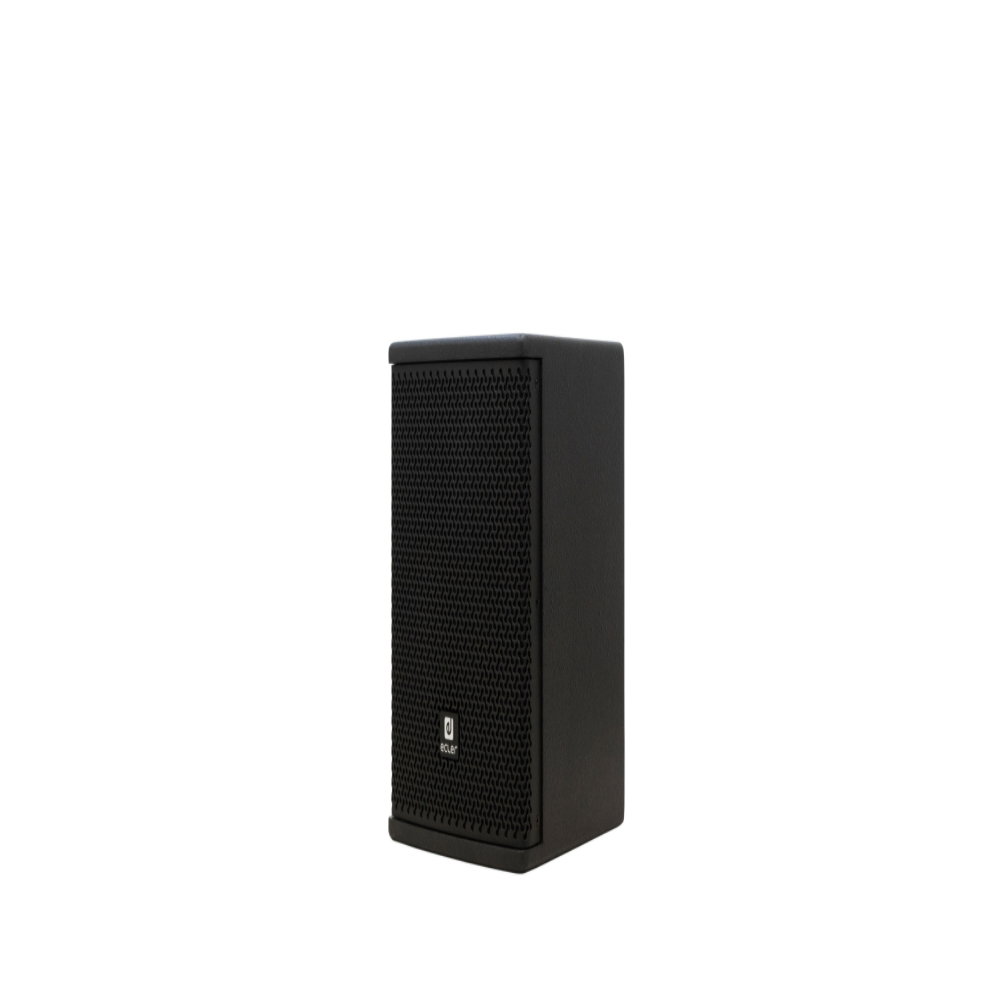

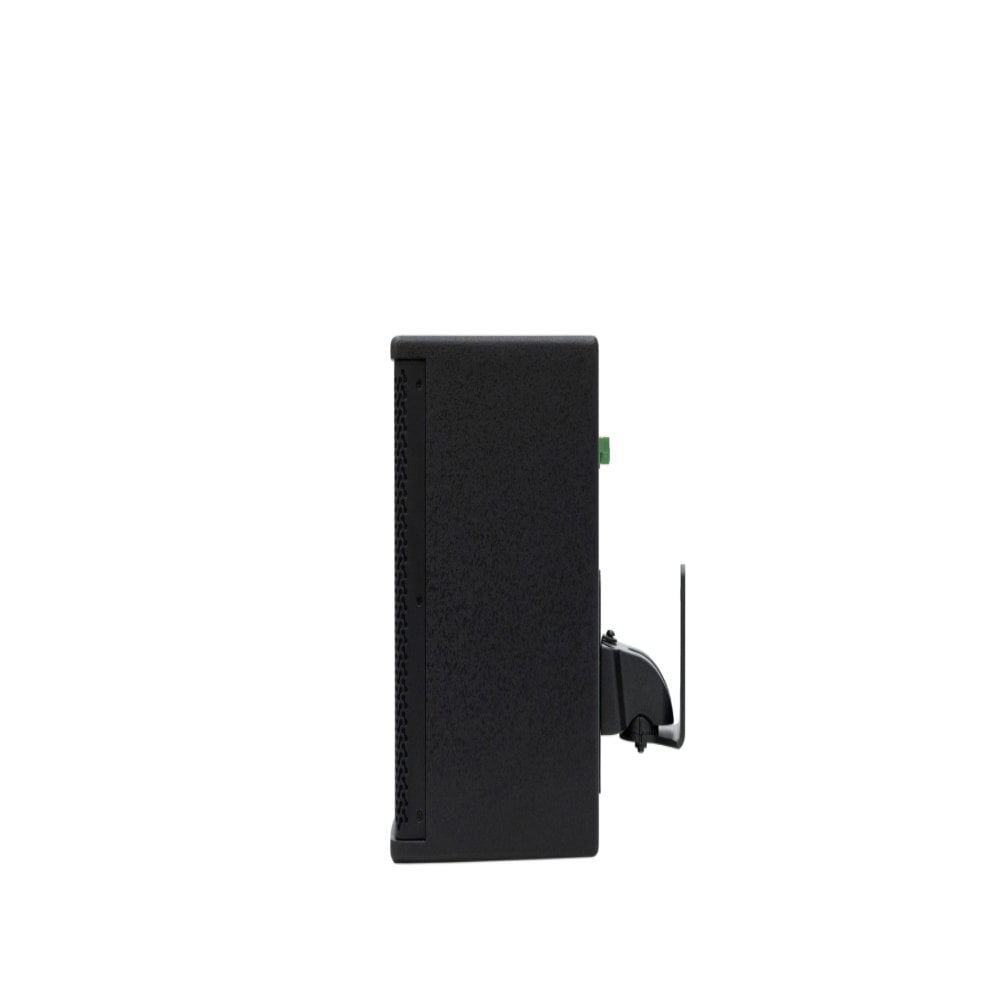

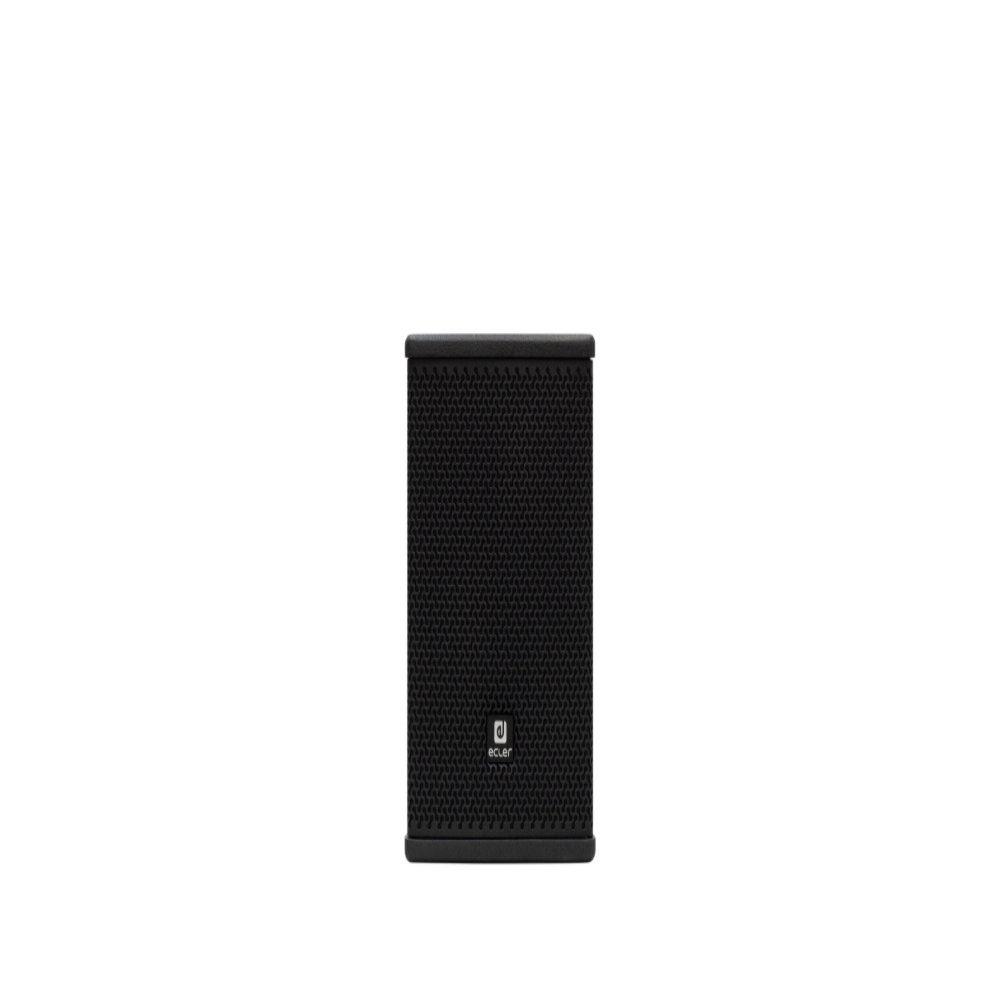

The Ecler ARQIS 105i is a 2-way passive installation speaker in an MDF cabinet with a 5.25 inch woofer and 1 inch tweeter, rated at 70W RMS at 8 ohms. It comes with the VEASY wall bracket, which gives pan and tilt adjustment and fixes with a single screw. It suits bars, restaurants, hotel lounges, retail and meeting rooms that need full-range music from a compact wall speaker. Sold as a single unit in black.
5.25in
2-way
70W
RMS at 8 ohms
150° x 130°
Coverage (H x V)
VEASY
Bracket included
8 ohm onlyARQIS i series cabinets have no line transformer, so they need a low-impedance amplifier output and cannot go on a 100V line. Ecler recommends a high-pass protection filter on the amplifier or processor.
Features
2-way design: 5.25 inch woofer with 1 inch tweeter
70W RMS, 280W peak at 8 ohms

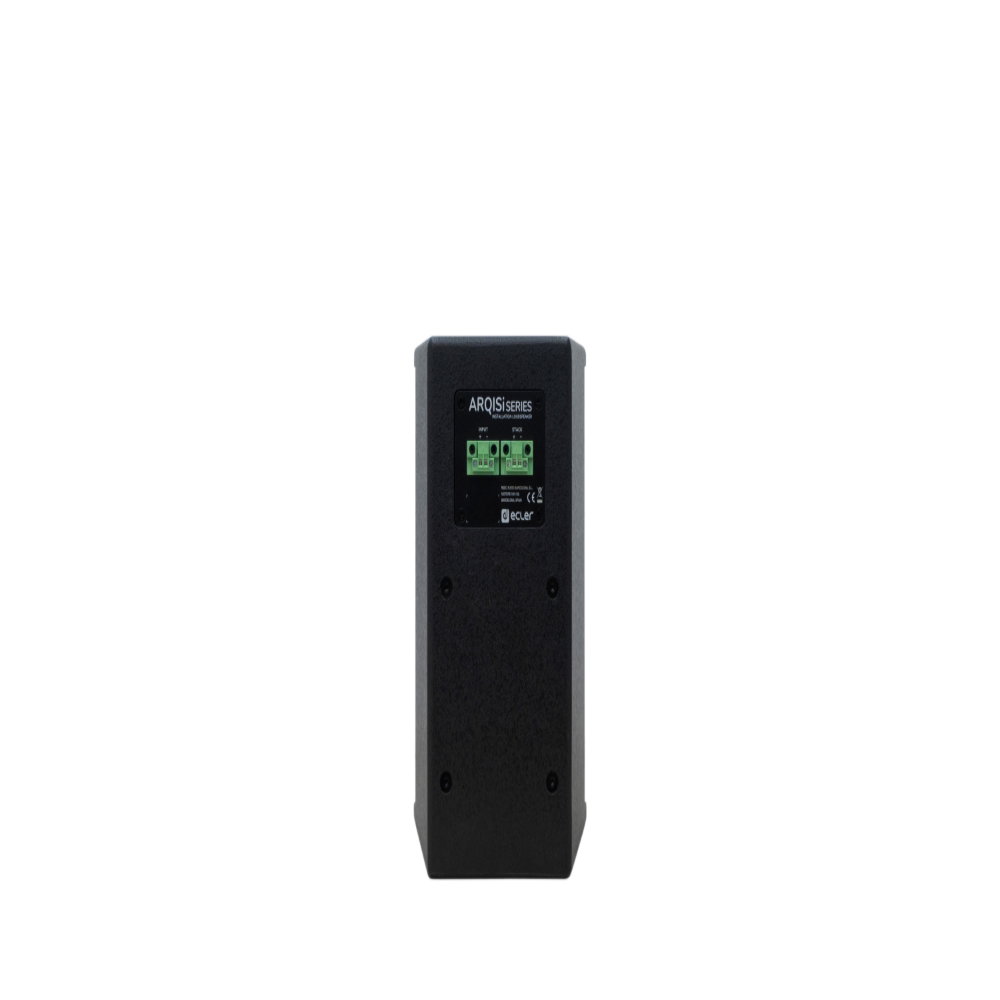

Double Euroblock input/link connector with locking screws

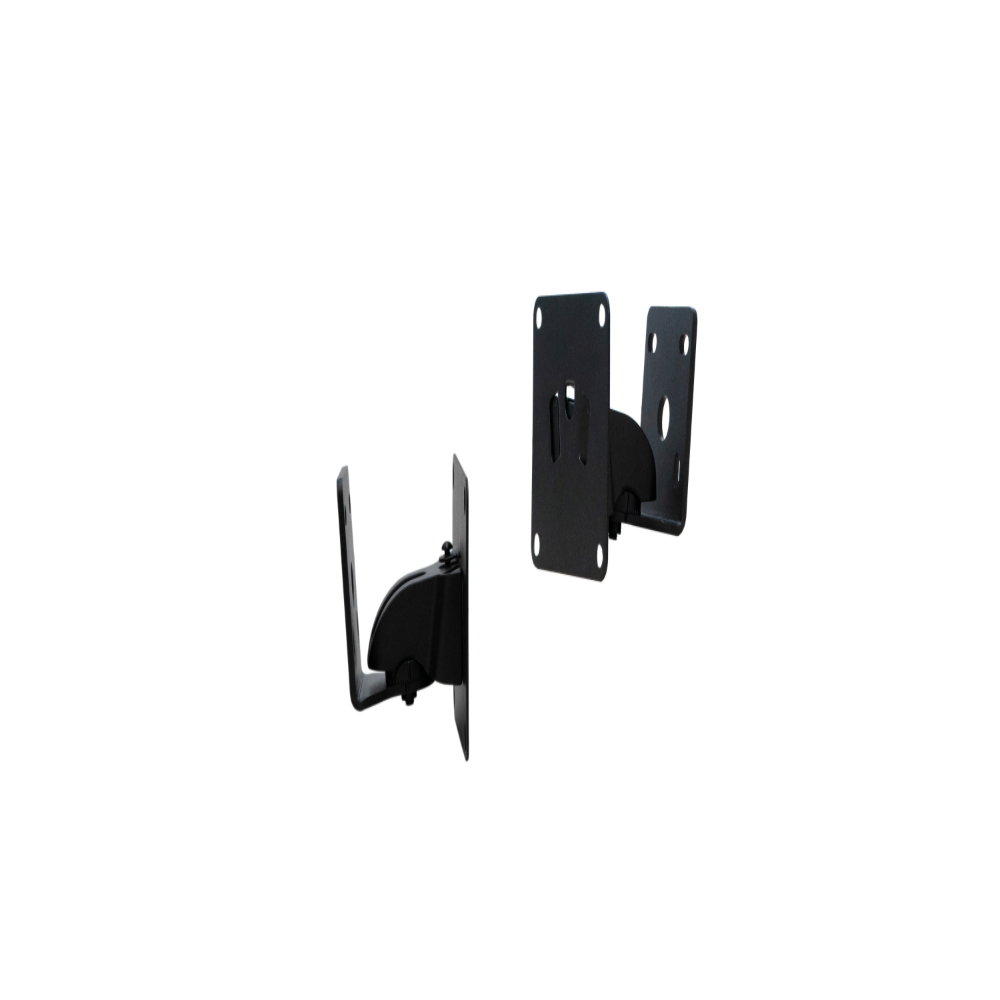

VEASY pan and tilt wall bracket included (VESA compatible), with markings to repeat speaker angles
Metal safety sling included
MDF cabinet with steel grille
Black finish (RAL 9005)
Specifications
| Frequency range | 80 Hz to 20 kHz (-10 dB) |
| Coverage | 150° x 130° (H x V) |
| Power handling | 70W RMS, 280W peak |
| Nominal impedance | 8 ohms |
| Sensitivity | 89 dB (1W/1m) |
| Maximum SPL | 107 dB continuous, 113 dB peak |
| Recommended amplifier | 140W RMS |
| Crossover | 3.2 kHz |
| Recommended high-pass | 80 Hz, 12 dB/octave minimum |
| Connection | 2 x Euroblock |
| Rigging points | 4 x M6 |
| Environmental | IP31 |
| Dimensions (W x H x D) | 186 x 280 x 210 mm |
| Weight | 3.6 kg |
| Included | VEASY wall bracket, 3, 4 and 6 mm Allen keys |
| Operating temperature | -20°C to 70°C |
| Colour | Black (RAL 9005) |
