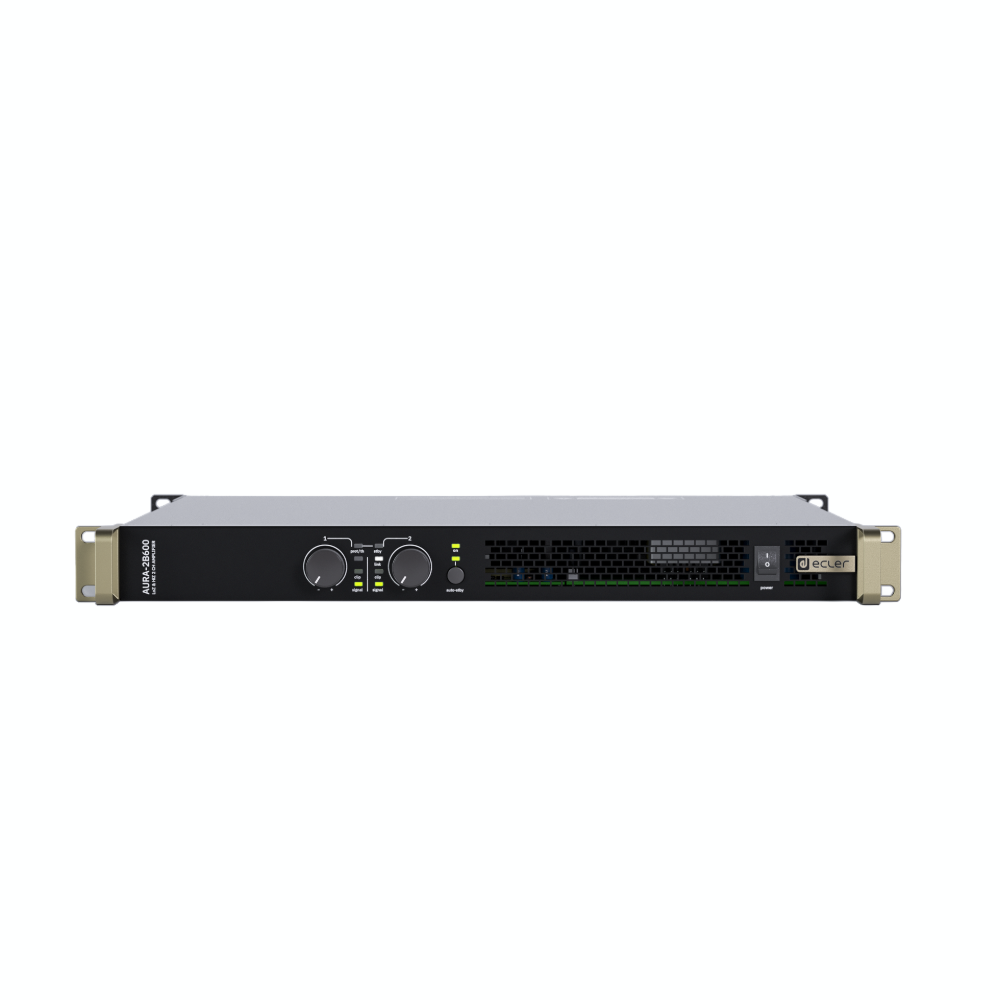

The Ecler AURA-2B600 is a two-channel Class D installation amplifier rated at 2x 600W into 4 ohms. The outputs switch between low impedance (2, 4 or 8 ohms) and 70V or 100V line, or can be bridged, so one 1U unit can drive either direct-coupled speakers or a long 100V line. It is used for background music and paging in bars, restaurants, hotels, retail, gyms and schools.
2x 600W
Into 4 ohms
600W
Per channel at 100V
1300W
Bridged, 4 ohms
1U
Rack height
Features
Two channels, 2x 600W into 4 ohms, 300W per channel into 8 ohms, 800W into 2 ohms
Output mode set per pair of channels by rear DIP switch: low impedance, 70V or 100V line, or bridge
Bridged output of 1300W into 4 ohms or 900W into 8 ohms
Link switch per input routes input 1 to other channels
Front panel level knobs, which can be locked or bypassed from rear panel switches
Auto standby when no signal is present, plus front panel standby button
Protection against DC, HF, short circuit and over-temperature, with clip limiter
Universal mains supply with power factor correction
Locking Euroblock connectors for inputs and outputs
Specifications
| Channels | 2 in, 2 out |
| Output power, all channels driven (1% THD) | 8 ohm: 300W, 4 ohm: 600W, 2 ohm: 800W, 100V/70V: 600W per channel |
| Bridged output | 4 ohm: 1300W, 8 ohm: 900W |
| Amplifier technology | Class D |
| Voltage gain | 34 dB |
| Input sensitivity | 0 dBV (1 Vrms) |
| Input impedance | 20 kohm, balanced |
| Maximum input level | +18 dBV (+20.2 dBu) |
| Frequency response | 15 Hz to 30 kHz |
| THD+N | <0.01% |
| Signal-to-noise ratio | 100 dBA |
| Crosstalk | >70 dB |
| Damping factor | >150 |
| Input connectors | 3-pin Euroblock, balanced, 3.5 mm pitch |
| Output connectors | 2-pin Euroblock, 7.62 mm pitch |
| Mains | 100 to 240V AC, 50/60 Hz, IEC C14 inlet, PFC >0.92 |
| Power draw at 230V | 1/8 power into 4 ohms: 226.2W; idle: 62.4W; standby: 2.2W |
| Efficiency | 79% |
| Cooling | 2 fans, 58 dBA maximum |
| Operating temperature | -10 to 50°C |
| Dimensions (W x H x D) | 484 x 44 x 411.6 mm, 1U rack |
| Weight | 6.7 kg |
