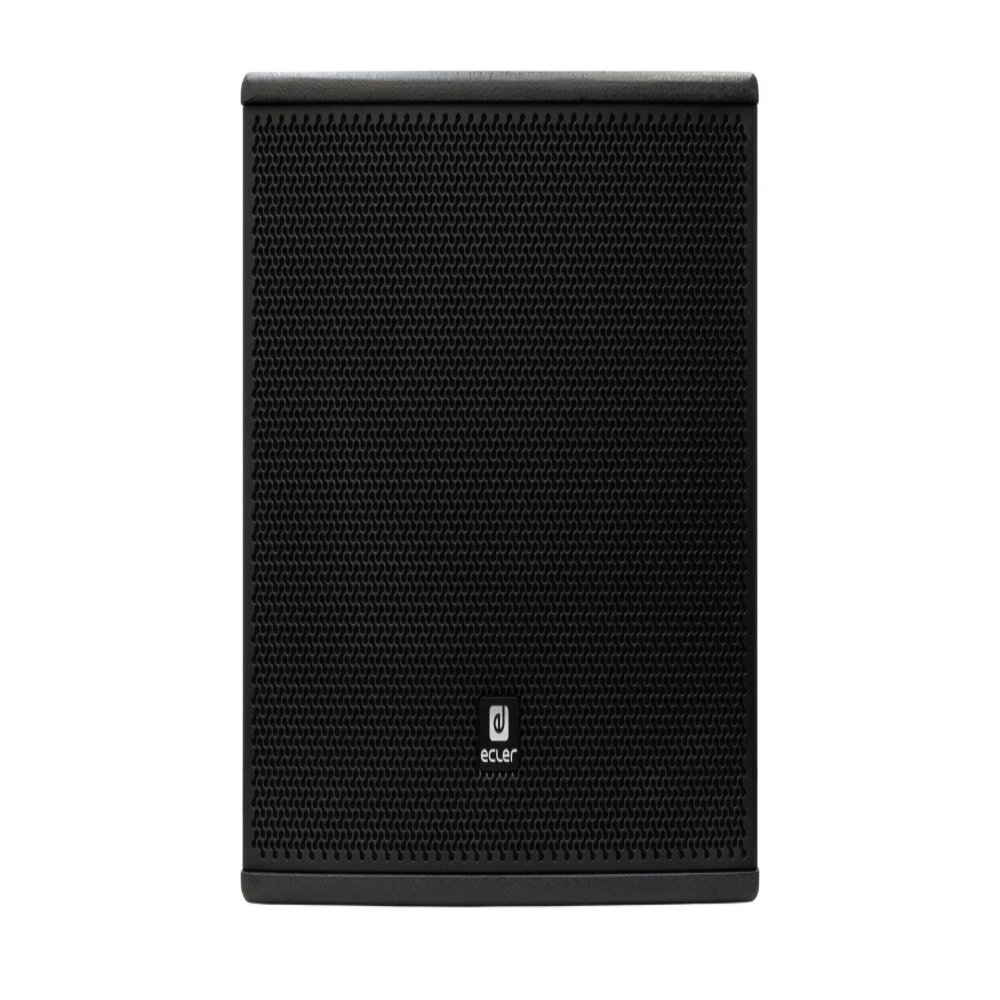

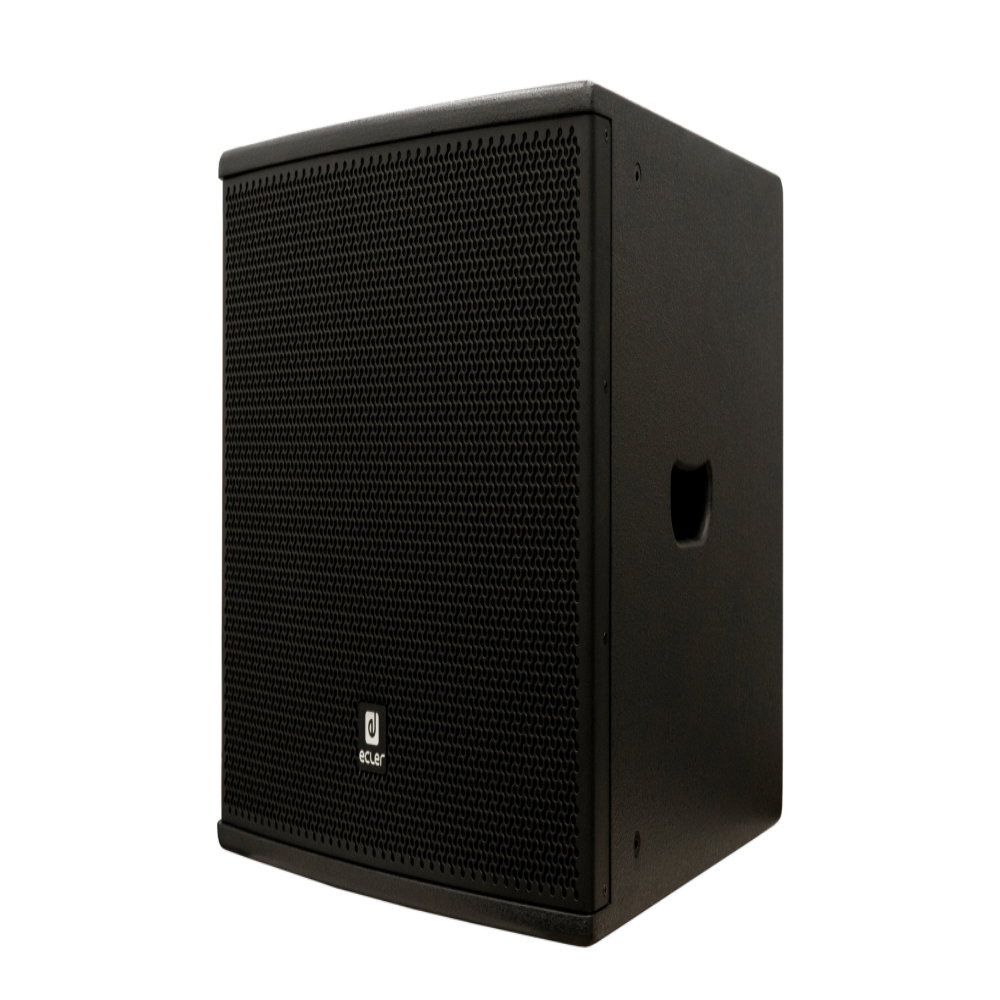

Ecler ARQIS SB15i 15" Installation Subwoofer Black

Product code: 194872

£801.00 inc VAT
£667.50 ex VAT

SKU: ECL0024

2 in stock

2 available online
FREE delivery by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
1 Year Manufacturer Warranty Included

About this Product

Connection: Low impedance (8Ω).

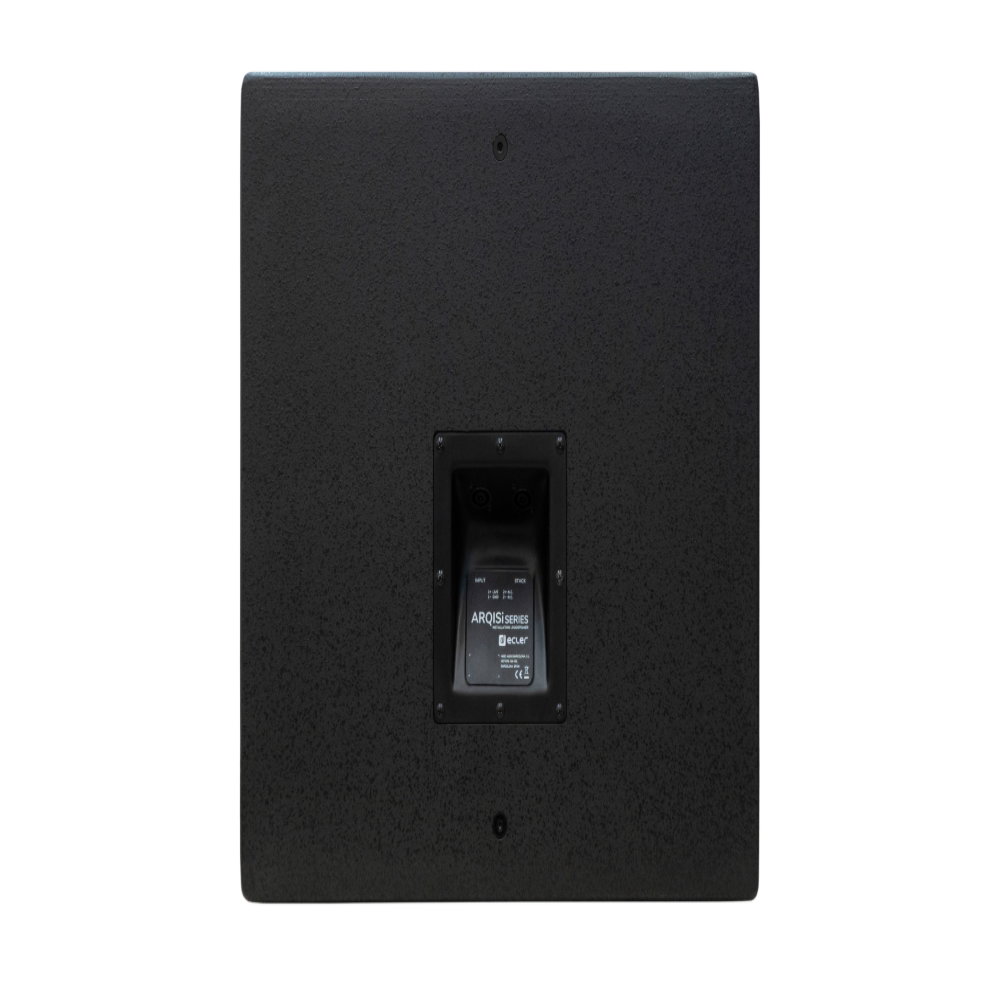

The Ecler ARQIS SB15i is a passive 15 inch installation subwoofer in a plywood cabinet, rated at 600W RMS at 8 ohms. It has twin Speakon connectors for input and link and 12 M8 rigging points, plus a 35 mm top-hat socket for pole mounting an ARQIS 110i or 112i above it. It is the low-frequency partner for ARQIS 110i and 112i speakers in bars, clubs, function rooms, gyms and live music venues. Sold as a single unit in black.

15in
Subwoofer
600W
RMS at 8 ohms
31 Hz
Low frequency (-10 dB)
131 dB
Max SPL peak
8 ohm onlyNo line transformer: drive from a low-impedance amplifier output, preferably through a controller that provides the crossover. Ecler recommends a 40 Hz high-pass protection filter.

Features

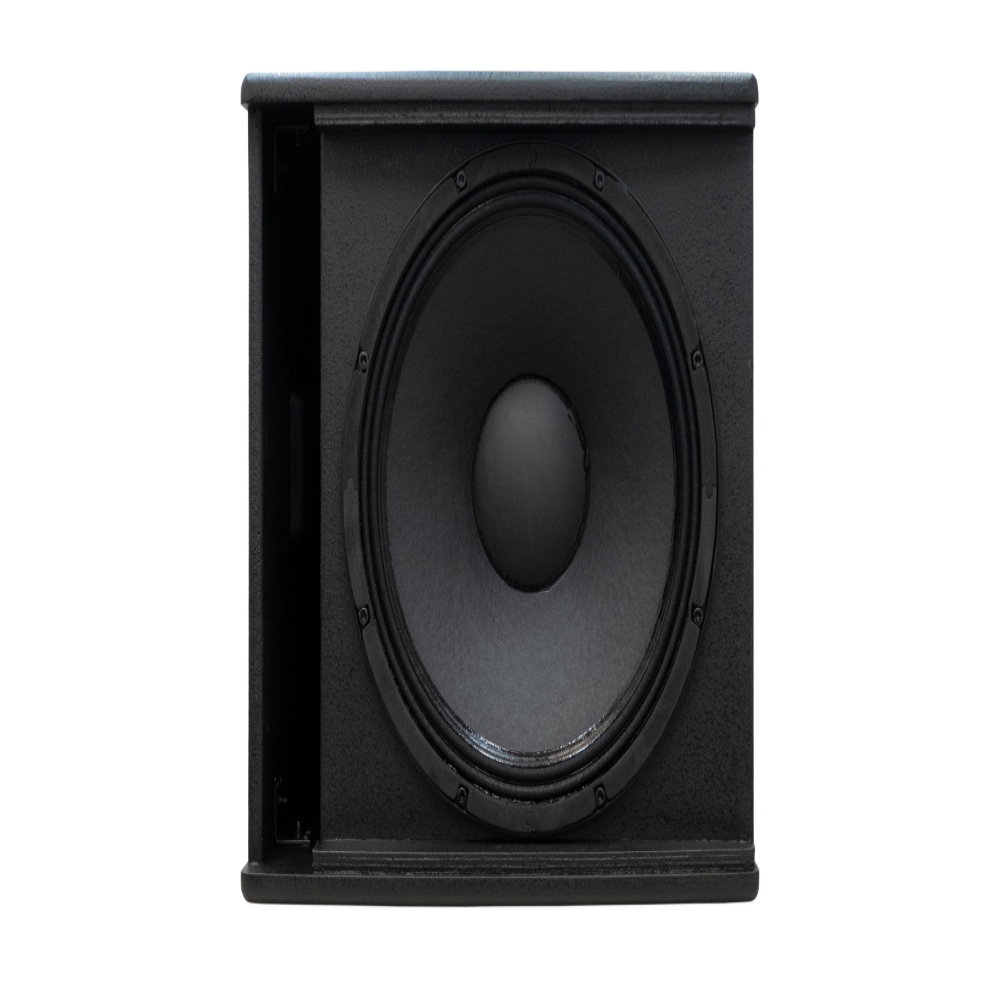

Single 15 inch woofer
600W RMS, 2400W peak at 8 ohms
2 x Speakon input/link connectors
12 x M8 rigging points
35 mm top-hat pole socket for mounting a satellite speaker
Plywood cabinet with steel grille; rubber feet included
Black finish (RAL 9005)

Specifications

Ecler ARQIS SB15i 15″ Installation Subwoofer Black specifications
Frequency range 31 Hz to 3 kHz (-10 dB)
Power handling 600W RMS, 2400W peak
Nominal impedance 8 ohms
Sensitivity 97 dB (1W/1m)
Maximum SPL 125 dB continuous, 131 dB peak
Recommended amplifier 1200W RMS
Recommended high-pass 40 Hz, 12 dB/octave minimum
Connection 2 x Speakon (+1/-1)
Rigging points 12 x M8
Environmental IP31
Dimensions (W x H x D) 534 x 460 x 525 mm
Weight 32 kg
Included 4 rubber feet, 4 screws
Operating temperature -20°C to 70°C
Colour Black (RAL 9005)

Full features

  • Subwoofer, 1-way architectural loudspeaker
  • 600WRMS @ 8Ω
  • 1 x 15" low frequency woofer
  • Double INPUT/STACK connector, Speakon© type
  • 35mm top-hat mount socket, for pole mount combinations with ARQIS110i, ARQIS112i, etc.
  • 12 x M8 cabinet flying points.
  • Available in black (RAL 9005) colour
  • EASE files available

System

  • Effective Freq. Range: 31Hz-3kHz (-10dB)
  • Power handling: 600W RMS / 2400W Peak
  • Sensitivity: 97dB (1W/1m)
  • Maximum SPL: 125dB continuous / 131dB peak
  • Recommended amplifier power: 1200W RMS

Transducers

  • Ways: 1-way subwoofer
  • Driver: LF 15" woofer
  • Nominal impedance: 8Ω

Filters

  • Low-Pass filter selector: TBC
  • Recommended High-Pass protection filter: 40Hz with minimum 12dB / octave filter

Physical

  • Connection type: 2 x Speakon® (+1, -1)
  • Installation options: Surface, wall, desktop
  • Environmental: IP31
  • Enclosure material: Plywooden
  • Grille material: Steel
  • Grille fixing system: Screw fixation
  • Flying points: 12 x M8
  • Operating temperature: Min: -20°C ; -4°F
    Max: 70°C ; 158°F
  • Operating humidity: <85% HR
  • Storage temperature: Min: -20°C ; -4°F
    Max: 70°C ; 158°F
  • Storage humidity: <90% HR
  • Included accessories: 4 x rubber feet, 4 x screws
  • Finished colour: Black (RAL 9005)
  • Dimensions: 534 x 460 x 525mm / 21.02 x 18.11 x 20.67 in. (WxHxD)
  • Weight: 32kg / 70.54 lb
  • Pieces per box: 1 piece
  • Shipping dimensions: 624 x 555 x 610mm / 24.57 x 21.85 x 24.02 in. (WxHxD)
  • Shipping weight: 36.2kg / 79.8 lb
