The Ecler VICSB8 is an 8 inch in-ceiling subwoofer, for open-back installation. It has a built-in crossover and a 70V/100V transformer with taps up to 60W, or runs at 8 ohms at 80W RMS, so it can be added to a 100V line alongside VIC ceiling speakers. It adds low-end to background music in restaurants, bars, hotel lounges, retail and gyms. Sold as a single unit.
8in
Ceiling subwoofer
60W
Max 100V tap
38 Hz
Low frequency (-10 dB)
246 mm
Cut-out
Features
Single 8 inch polypropylene woofer
Built-in crossover
100V taps at 60W, 30W, 15W and 7.5W; 70V taps from 60W down to 3.75W
8 ohm low-impedance setting, 80W RMS

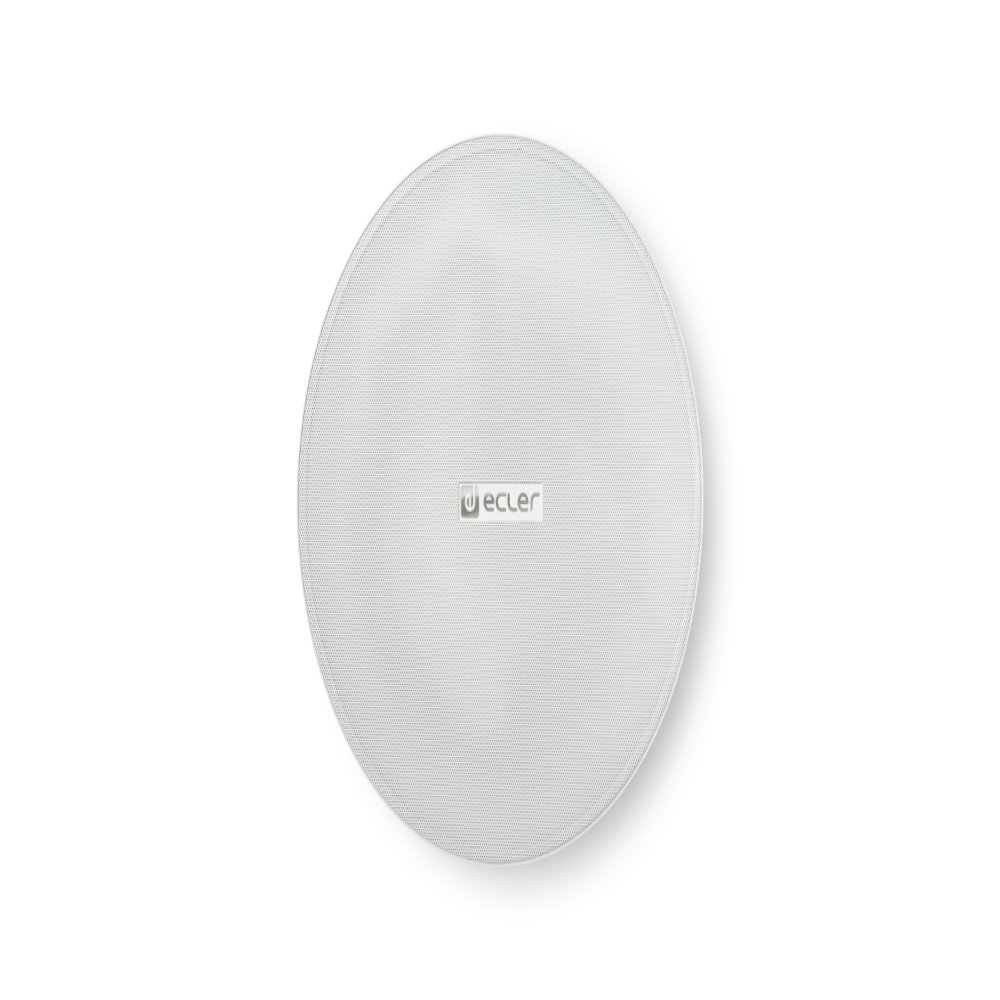

Magnetic, paintable metal alloy grille matching the VIC full-range models
IPX4 rated
White finish (RAL 9010)
Specifications
| Frequency range | 38 Hz to 180 Hz (-10 dB) |
| Power handling | 80W RMS, 320W peak (8 ohms) |
| Sensitivity | 78 dB (1W/1m) |
| Maximum SPL | 97 dB continuous, 103 dB peak |
| 100V taps | 60W, 30W, 15W, 7.5W, 8 ohms |
| 70V taps | 60W, 30W, 15W, 7.5W, 3.75W, 8 ohms |
| Recommended amplifier | 160W RMS (8 ohm use) |
| Driver | 8 in woofer |
| Environmental | IPX4 |
| Outer diameter | 282 mm |
| Cut-out diameter | 246 mm |
| Depth required | 135 mm |
| Ceiling thickness | 10 to 50 mm |
| Weight | 3.2 kg |
| Operating temperature | -20°C to 70°C |
| Colour | White (RAL 9010) |
