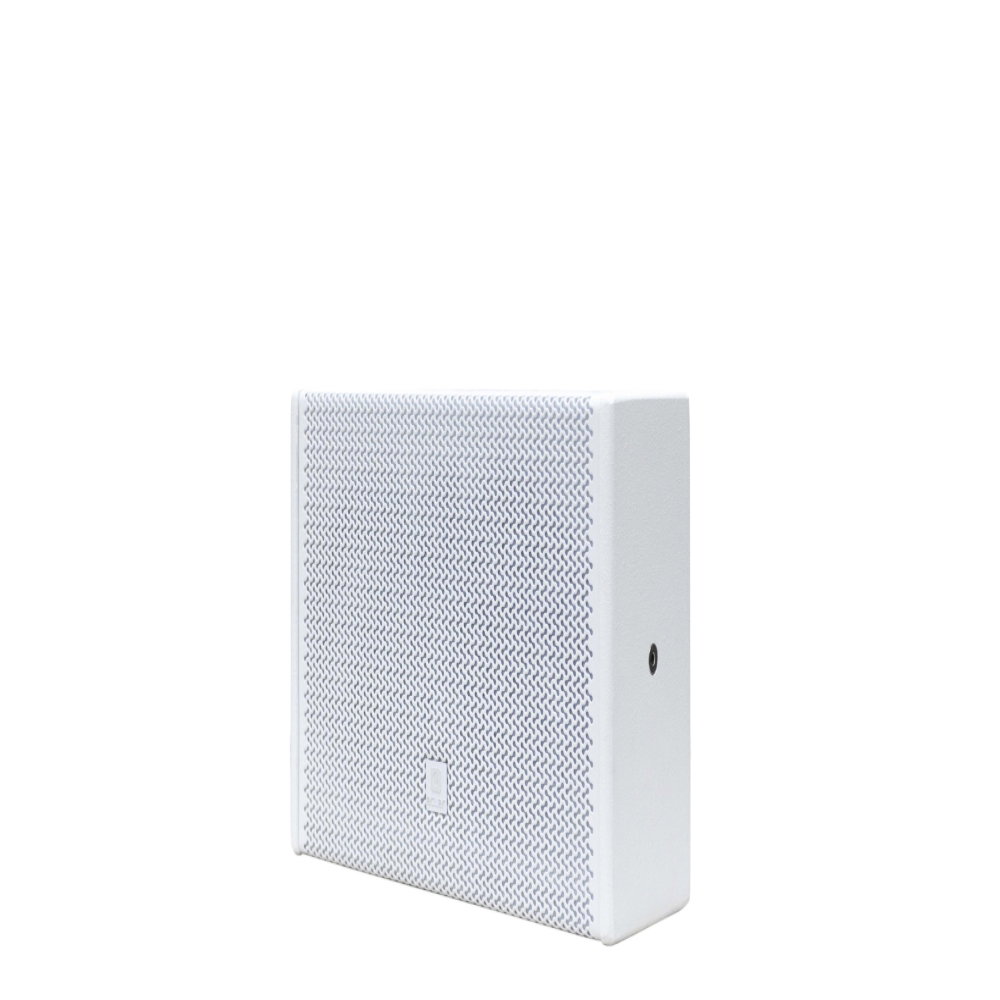

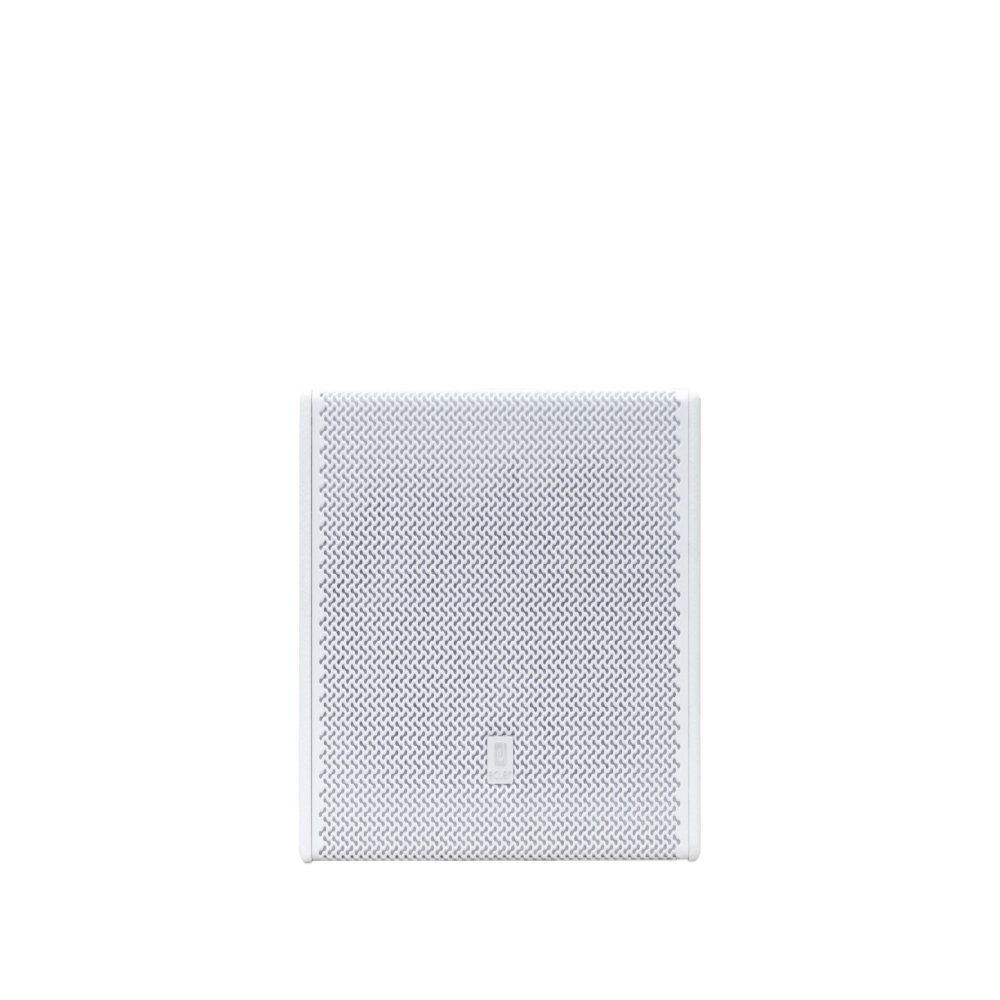

Ecler ARQIS SB6Ti 6.5" Slimline Installation Subwoofer with Passive Radiator 100V White

Product code: 195211

£464.00 inc VAT
£386.67 ex VAT

SKU: ECL0026

3 in stock

3 available online
FREE delivery by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
1 Year Manufacturer Warranty Included

About this Product

Connection: 100V line (taps 120 / 60W) or low impedance (8Ω).

The Ecler ARQIS SB6Ti is a slim wall-mount subwoofer with a 6.5 inch driver and a 6.5 inch passive radiator in a 130 mm deep MDF cabinet. Unlike the other ARQIS subwoofers it has a 70V/100V transformer with 120W and 60W taps as well as an 8 ohm setting, plus a switchable internal low-pass filter, so it can share a 100V line with ceiling or wall speakers. It adds bass in restaurants, bars, hotel lounges, retail and gyms where floor space is limited. Sold as a single unit in white.

6.5in
Plus passive radiator
130 mm
Cabinet depth
120W
Max 100V tap
50 Hz
Low frequency (-10 dB)

Features

6.5 inch driver with 6.5 inch passive radiator
70V/100V transformer with 120W and 60W taps, plus 8 ohm setting at 120W RMS
Internal low-pass filter: off, 120 Hz or 150 Hz

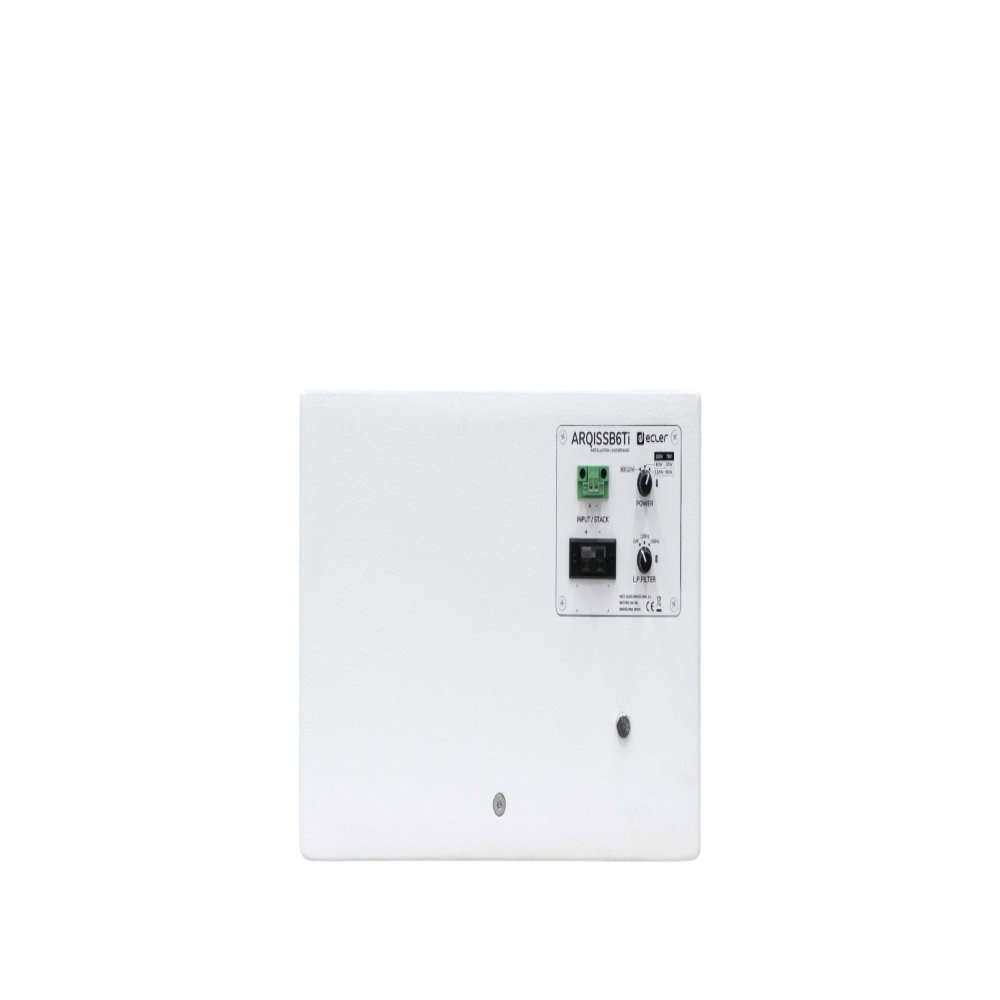

Euroblock connector and spring-loaded terminals

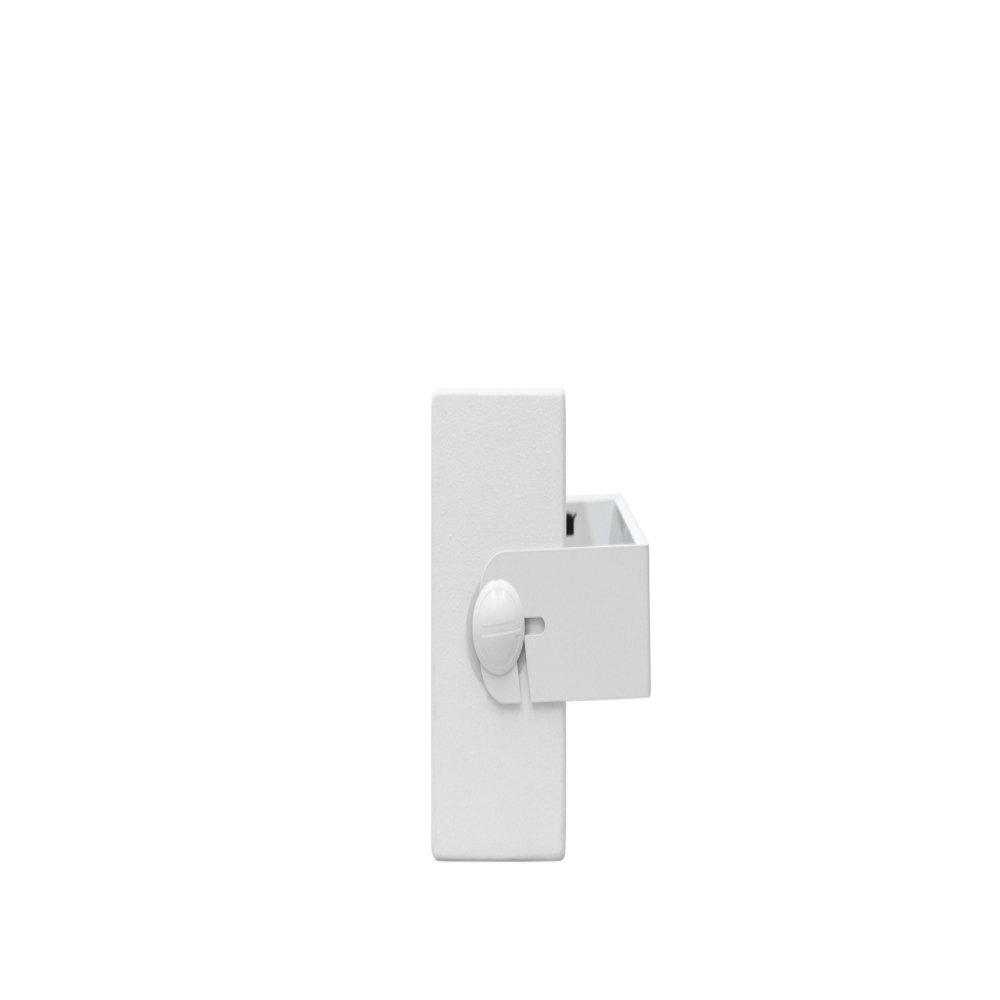

U wall bracket included; 2 x M8 rigging points
130 mm deep MDF cabinet with steel grille
White finish (RAL 9003)

Specifications

Ecler ARQIS SB6Ti 6.5″ Slimline Installation Subwoofer with Passive Radiator 100V White specifications
Frequency range 50 Hz to 1.5 kHz (-10 dB)
Power handling 120W RMS, 480W peak (8 ohms)
70V/100V taps 120W, 60W, 8 ohms
Sensitivity 86 dB (1W/1m)
Maximum SPL 107 dB RMS, 113 dB peak
Recommended amplifier 250W RMS (8 ohm use)
Low-pass filter Off, 120 Hz, 150 Hz
Recommended high-pass 55 Hz, 12 dB/octave minimum
Connection Euroblock and spring-loaded terminals
Rigging points 2 x M8
Environmental IP31
Dimensions (W x H x D) 390 x 250 x 130 mm
Weight 8.2 kg
Included U-bracket, 5 and 6 mm Allen keys
Operating temperature -20°C to 70°C
Colour White (RAL 9003)

Full features

  • 6,5" subwoofer + 6,5" passive radiator
  • Ready for 70/100V installations: power selector 60/120W & 8Ω
  • Euroblock connector and spring-loaded input terminals
  • LPF cut-off frequency selection: OFF/ 120Hz / 150Hz
  • U Wall-mount hardware included
  • Available in black (RAL 9005) and white (RAL9003) colour
  • EASE files available

System

  • Effective Freq. Range: 50Hz–1,5kHz (-10dB)
  • Power handling: 120W RMS / 480W Peak
  • Sensitivity: 86dB (1W/1m)
  • Maximum SPL: 107dB RMS / 113dB peak
  • Power options (Hi Z Multi-tap): 70V/100V line transformer: 120W / 60W / 8Ω
  • Recommended amplifier power: 250W RMS

Transducers

  • Ways: 1-way subwoofer
  • Driver: 6,5" subwoofer + 6,5" passive radiator
  • Nominal impedance: 8Ω

Filters

  • Low-Pass filter selector: OFF/ 120Hz / 150Hz
  • Recommended High-Pass protection filter: 55Hz with minimum 12dB / octave filter

Physical

  • Connection type: Euroblock + spring loaded input terminals
  • Power type selector: TBC
  • Installation options: Surface, wall, desktop
  • Environmental: IP31
  • Enclosure material: MDF
  • Grille material: Steel
  • Grille fixing system: Screw fixation
  • Flying points: 2 x M8
  • Operating temperature: Min: -20°C ; -4°F
    Max: 70°C ; 158°F
  • Operating humidity: <85% HR
  • Storage temperature: Min: -20°C ; -4°F
    Max: 70°C ; 158°F
  • Storage humidity: <90% HR
  • Included accessories: U Bracket / 5mm Allen Key / 6mm Allen Key
  • Finished colour: White (RAL 9003) or Black (RAL 9005)
  • Dimensions: 390 x 250 x 130mm / 15.35 x 9.84 x 5.12 in. (WxHxD)
  • Weight: 8.2kg / 18.07 lb
  • Pieces per box: 1 piece
  • Shipping dimensions: 535 x 535 x 470mm / 21.06 x 21.06 x 18.50 in. (WxHxD)
  • Shipping weight: 10.2kg / 22.48 lb
