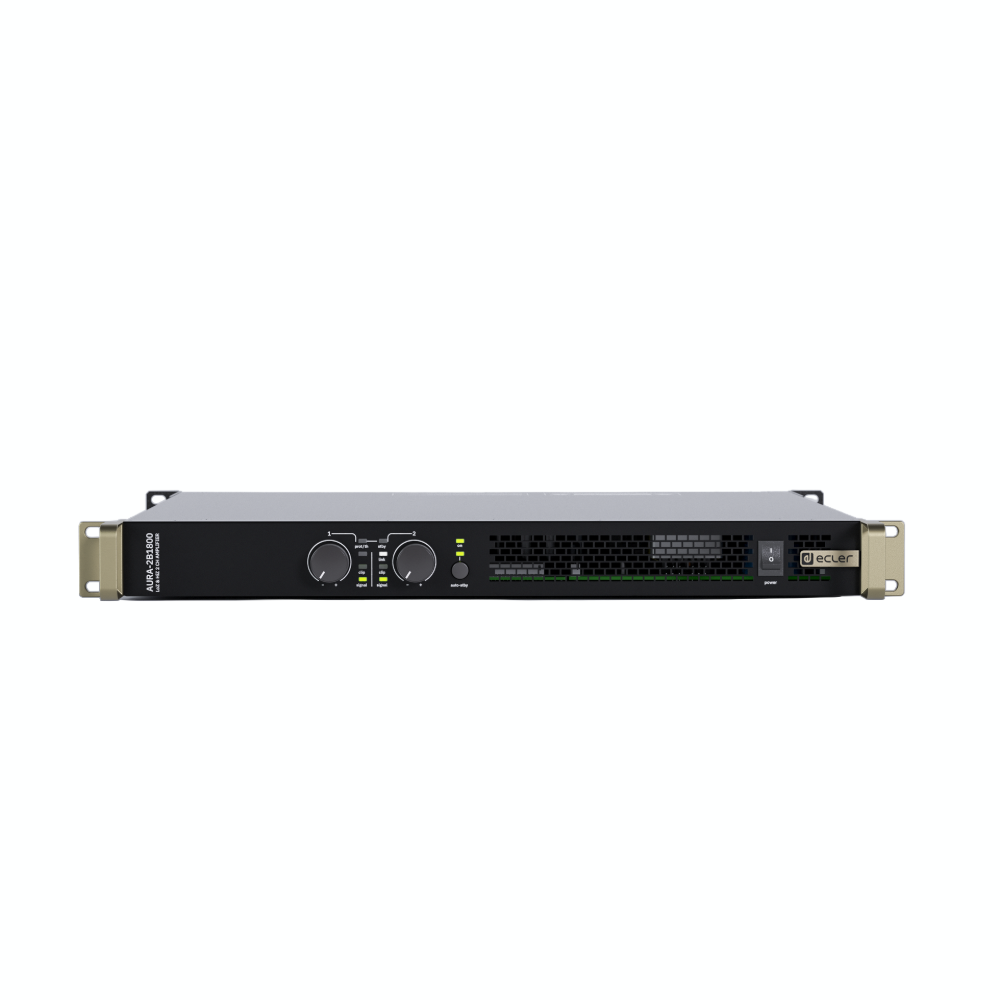

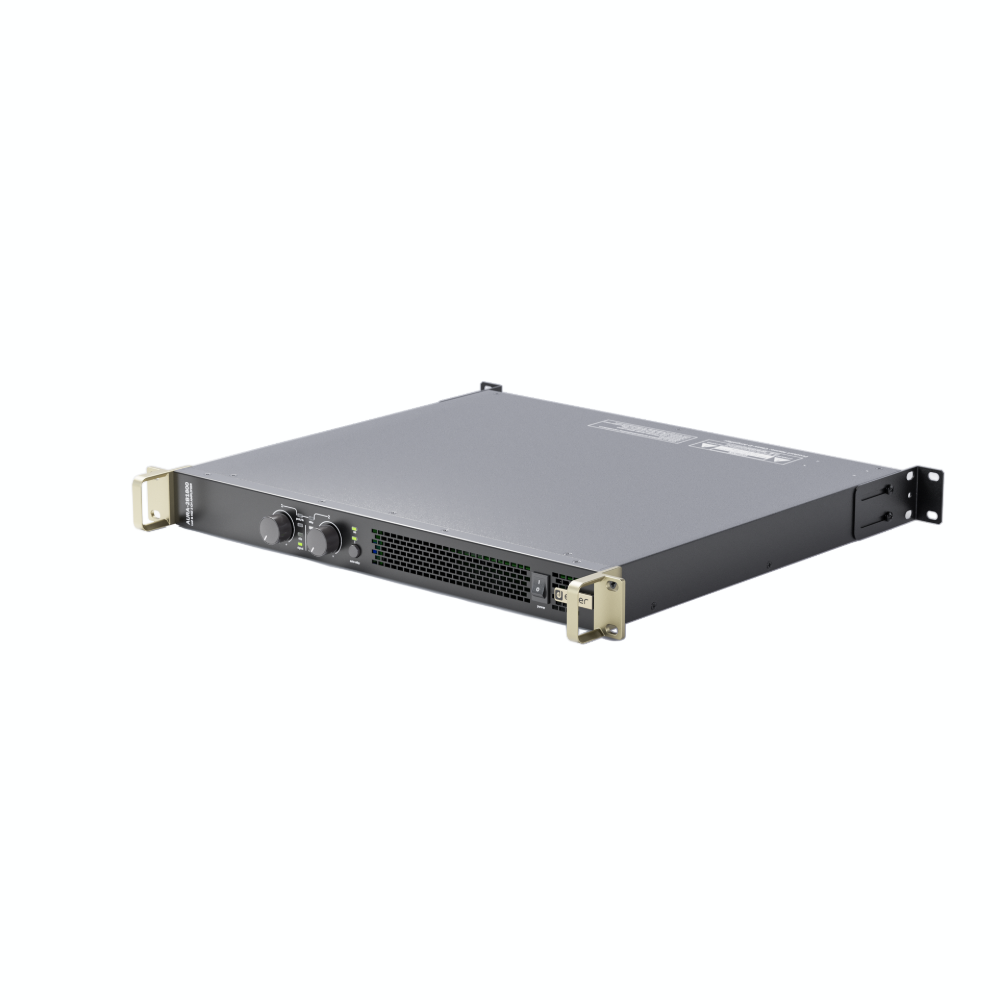

The Ecler AURA-2B1800 is the highest-power two-channel model in the AURA range, rated at 2x 1800W into 4 ohms and 2x 2400W into 2 ohms. Outputs can also run 70V or 100V lines at 1800W per channel, or be bridged for 4600W into 4 ohms, from a 1U chassis. It is aimed at large 100V systems and high-output low impedance installs in clubs, bars, sports halls, function rooms and places of worship.
2x 1800W
Into 4 ohms
2x 2400W
Into 2 ohms
1800W
Per channel at 100V
1U
Rack height
Features
Two channels, 2x 1800W into 4 ohms, 1000W per channel into 8 ohms, 2400W into 2 ohms

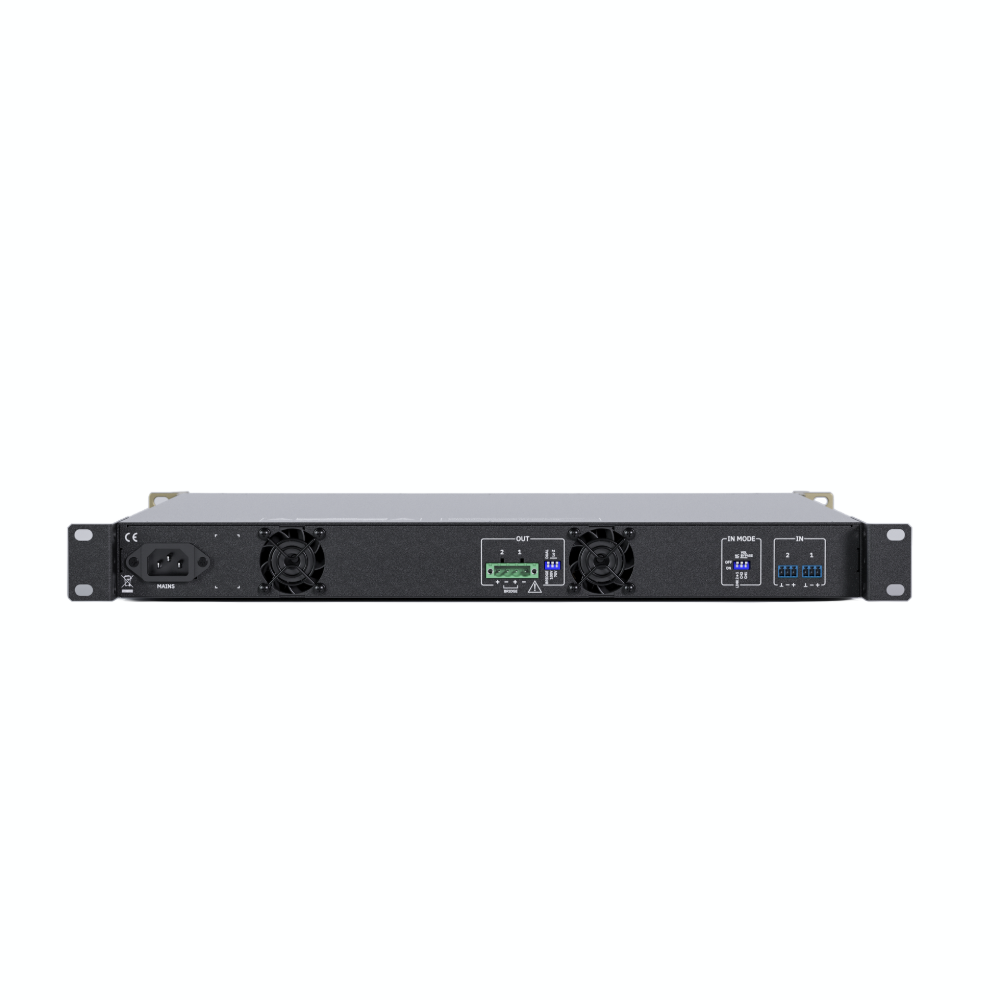

Output mode set per pair of channels by rear DIP switch: low impedance, 70V or 100V line, or bridge
Bridged output of 4600W into 4 ohms or 3400W into 8 ohms
Link switch per input routes input 1 to other channels
Front panel level knobs, which can be locked or bypassed from rear panel switches
Auto standby when no signal is present, plus front panel standby button
Protection against DC, HF, short circuit and over-temperature, with clip limiter
Universal mains supply with power factor correction
Locking Euroblock connectors for inputs and outputs
Specifications
| Channels | 2 in, 2 out |
| Output power, all channels driven (1% THD) | 8 ohm: 1000W, 4 ohm: 1800W, 2 ohm: 2400W, 100V/70V: 1800W per channel |
| Bridged output | 4 ohm: 4600W, 8 ohm: 3400W |
| Amplifier technology | Class D |
| Voltage gain | 36 dB |
| Input sensitivity | 0 dBV (1 Vrms) |
| Input impedance | 20 kohm, balanced |
| Maximum input level | +20.4 dBV (+22.6 dBu) |
| Frequency response | 15 Hz to 30 kHz (-3 dB, 1W) |
| THD+N | <0.1% (1 kHz, 0.1W to full power) |
| Signal-to-noise ratio | 106 dBA |
| Crosstalk | >80 dB (1 kHz) |
| Input connectors | 3-pin Euroblock, balanced, 3.5 mm pitch |
| Output connectors | Euroblock |
| Mains | 100 to 240V AC, 50/60 Hz, IEC C14 inlet, PFC >0.95 (above 500W output) |
| Power draw at 230V | 1/8 power into 4 ohms: 603.3W; idle: 65.4W; standby: 2.8W |
| Efficiency | 83% (1/4 power into 4 ohms) |
| Cooling | 2 fans, 57 dBA maximum |
| Auto standby | Threshold -40 dB, 90 seconds |
| Included | EU power cord with UK, US and CN adapters, Euroblock connectors, rear rack kit, rubber feet |
| Operating temperature | -20 to 40°C |
| Dimensions (W x H x D) | 484 x 44 x 411.6 mm, 1U rack |
| Weight | 7.55 kg |
