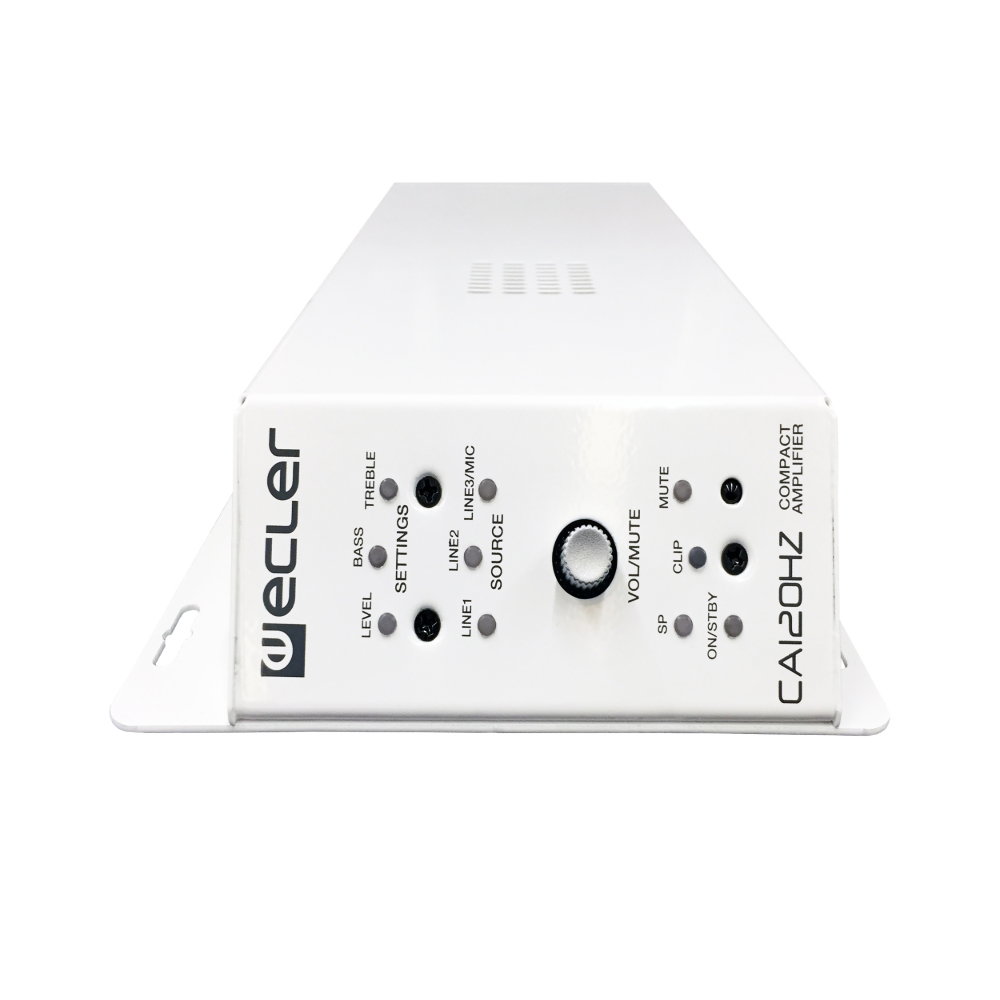

The Ecler CA120HZ is the 70V/100V line version of the CA120 micro amplifier, giving a single mono output of 96W for driving many ceiling or wall speakers over long cable runs. It has a microphone/line input, two stereo line inputs summed to mono, tone controls, and control by IR remote, 0 to 10V Ecler wall panel or RS-232. Typical uses are classrooms, shops, cafés, offices and corridors.
96W
At 100V
70/100V
Line output
RS-232
Control port
Fanless
Cooling

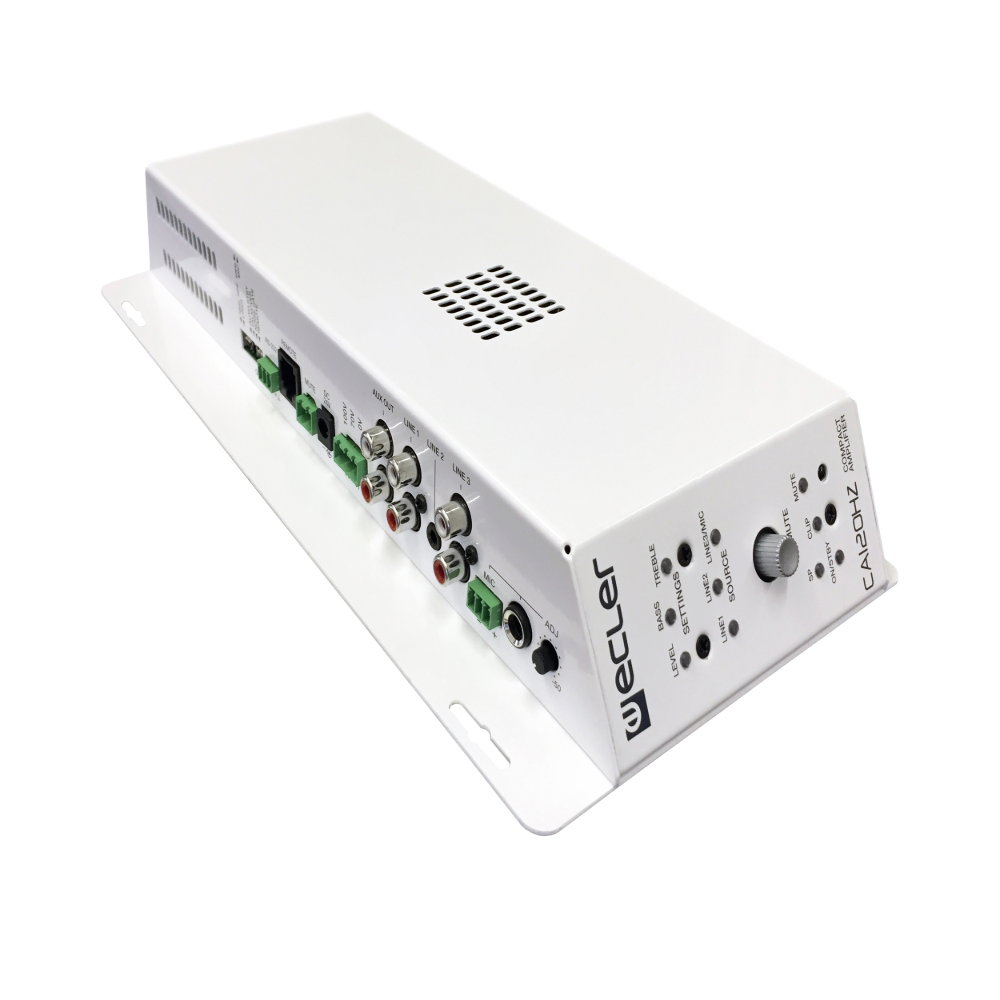

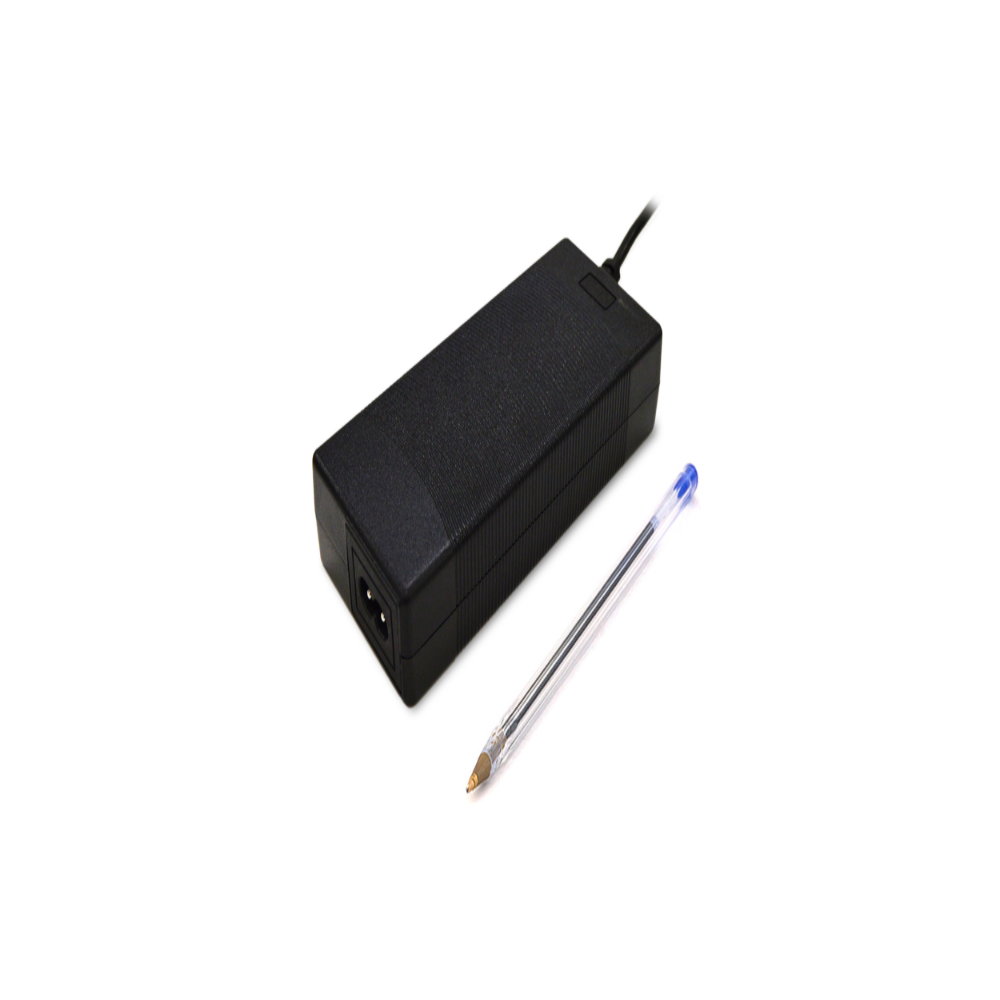

Mounting and powerPowered by an external universal 24V DC supply. Designed to sit on a wall or under a shelf, table or cupboard rather than in a rack.
Output powerEcler’s rated output for this model is 96W at 100V (100 ohm load). The output is mono only: stereo sources are summed.
Features
1x 96W mono output for 70V or 100V speaker lines, with 50 Hz or 70 Hz high-pass filter
1 microphone/line input (balanced Euroblock or jack) with phantom power, noise gate and talkover priority
2 unbalanced stereo line inputs on minijack or dual RCA
Bass and treble controls
Auxiliary line output for linking to another amplifier
Rotary encoder for local control, IR remote control supplied
0 to 10V remote port for Ecler WPaVOL or WPaVOL-SR wall panels (volume and input or preset selection)
RS-232 port for EclerCOMM software and the CA-NET protocol
Mute input triggered by a dry contact, for example from a fire alarm system
Auto standby after 120 seconds without signal; fanless convection cooling
Specifications
| Output power (1% THD) | 96W at 100V (100 ohm load) |
| Output | Mono, 70V or 100V line; L+R summed |
| High-pass filter | 50 Hz or 70 Hz |

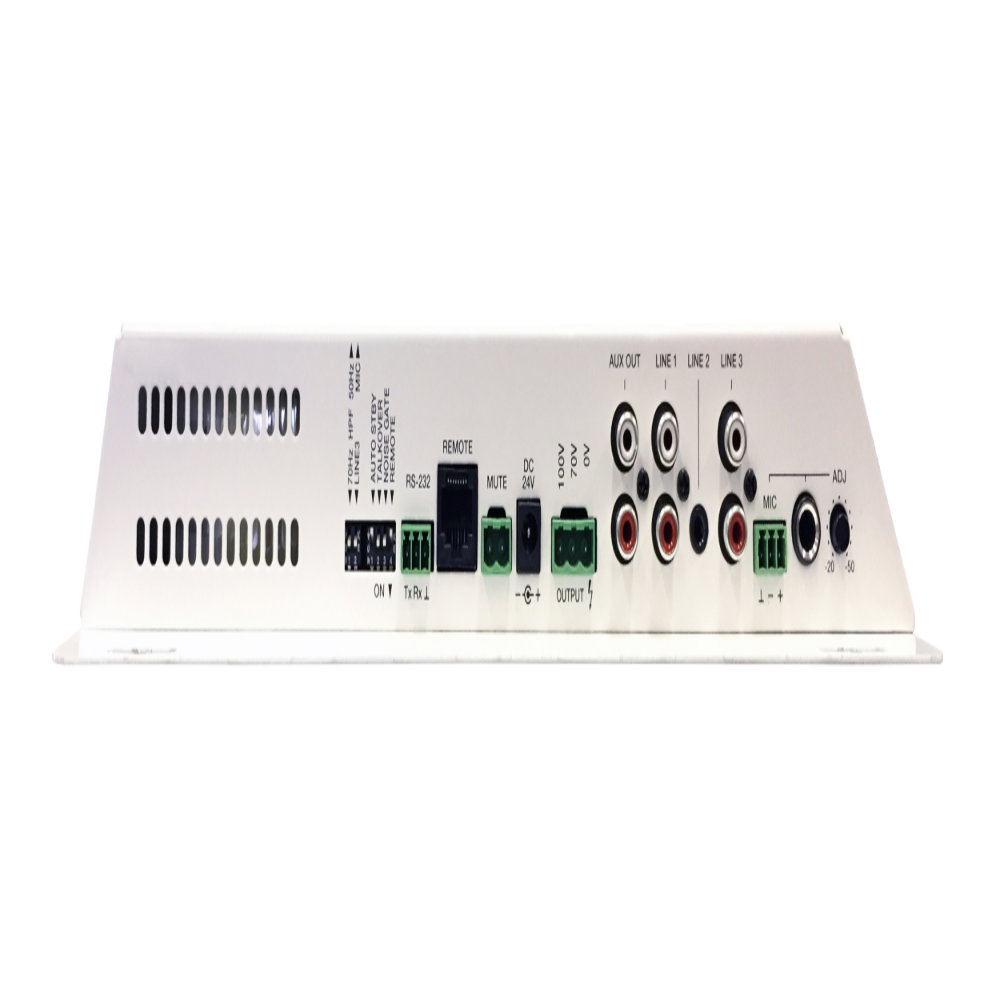

| Inputs | 1 mic/line (balanced Euroblock or jack), 2 stereo line (minijack or dual RCA) |
| Input sensitivity | Line: 0 dBV (-6 dBV internally selectable); mic: -20 to -50 dBV |
| Input impedance | Line: >8 kohm; mic: >1 kohm |
| Frequency response | 50 Hz to 30 kHz (-3 dB) |
| THD+N | Speaker out: <0.09%; aux out: <0.02% |
| Signal-to-noise ratio | Line: >70 dB; mic: >50 dB |
| Control | IR remote, 0 to 10V remote port, RS-232, mute contact |
| Power | External 24V DC supply, 100 to 240V AC |
| Standby consumption | <2.5W |
| Dimensions (W x H x D) | 160 x 48 x 325 mm |
| Weight | 2.92 kg |
| Included | REVO-IR remote control |
