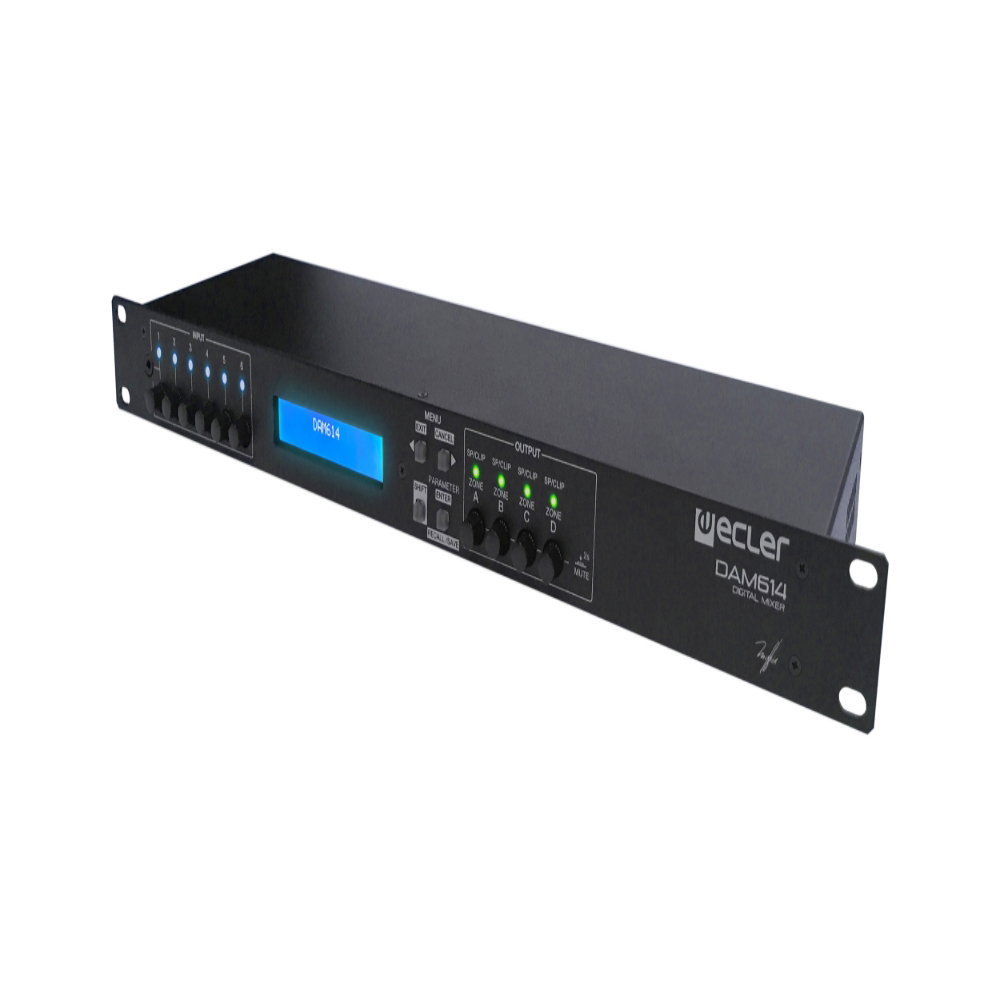

The Ecler DAM614 is a 1U digital zone mixer with 6 inputs and 4 outputs, where each output has its own mix and can run as an independent mono zone or be paired for stereo. Inputs 3 to 6 accept microphones with phantom power, and the DSP adds EQ, crossovers, ducking, noise gates and feedback suppression. It is used for small multi-zone systems in bars, restaurants, cafés, shops and gyms.
6 x 4
Inputs x zones
4
Mic/line inputs
24-bit
48 kHz DSP
1U
Rack height
Remote controlThe 4 remote ports are analogue 0 to 10V volume controls on RJ-45, for Ecler WPa series wall panels such as WPaVOL. Ecler lists the MPAGE4 paging station as an optional accessory.
PowerRuns from an external 17.5V DC supply.
Features

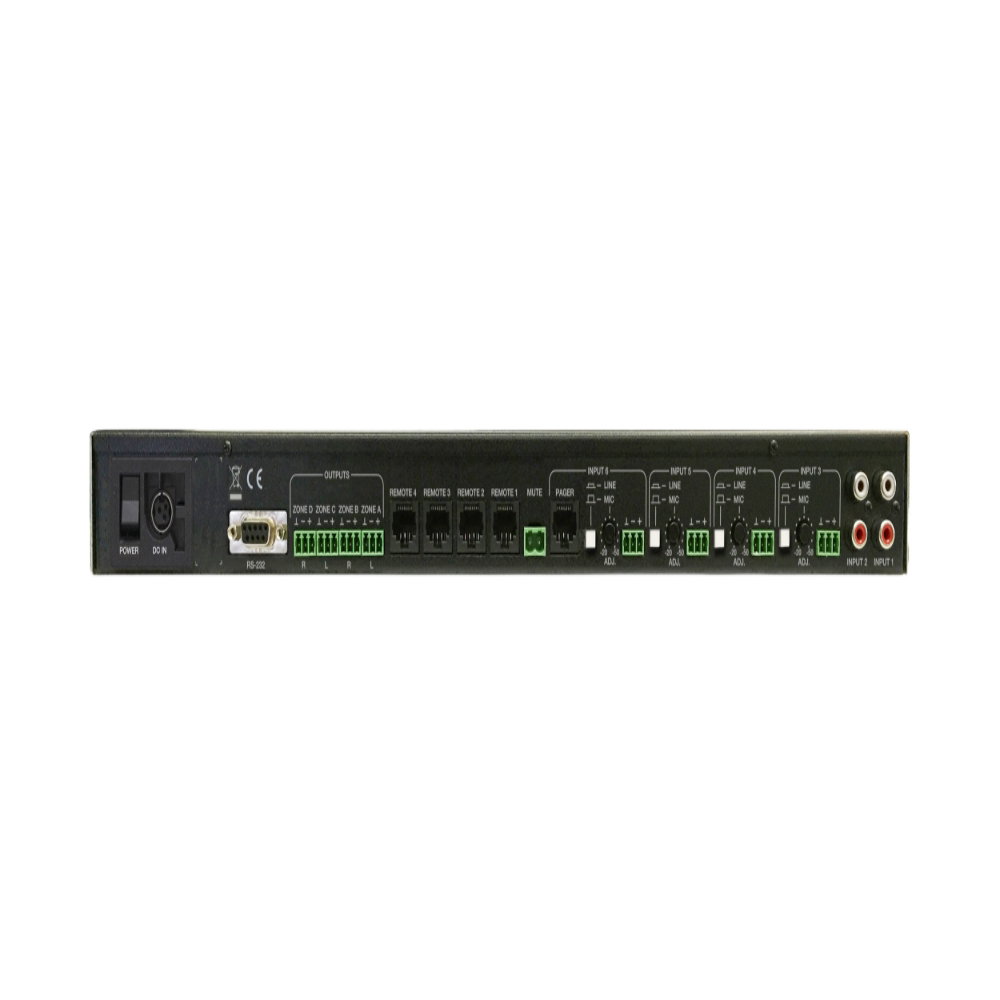

2 stereo line inputs (RCA, with duplicate minijack on input 1) and 4 balanced mic/line inputs
4 balanced line outputs, used as mono zones or stereo pairs

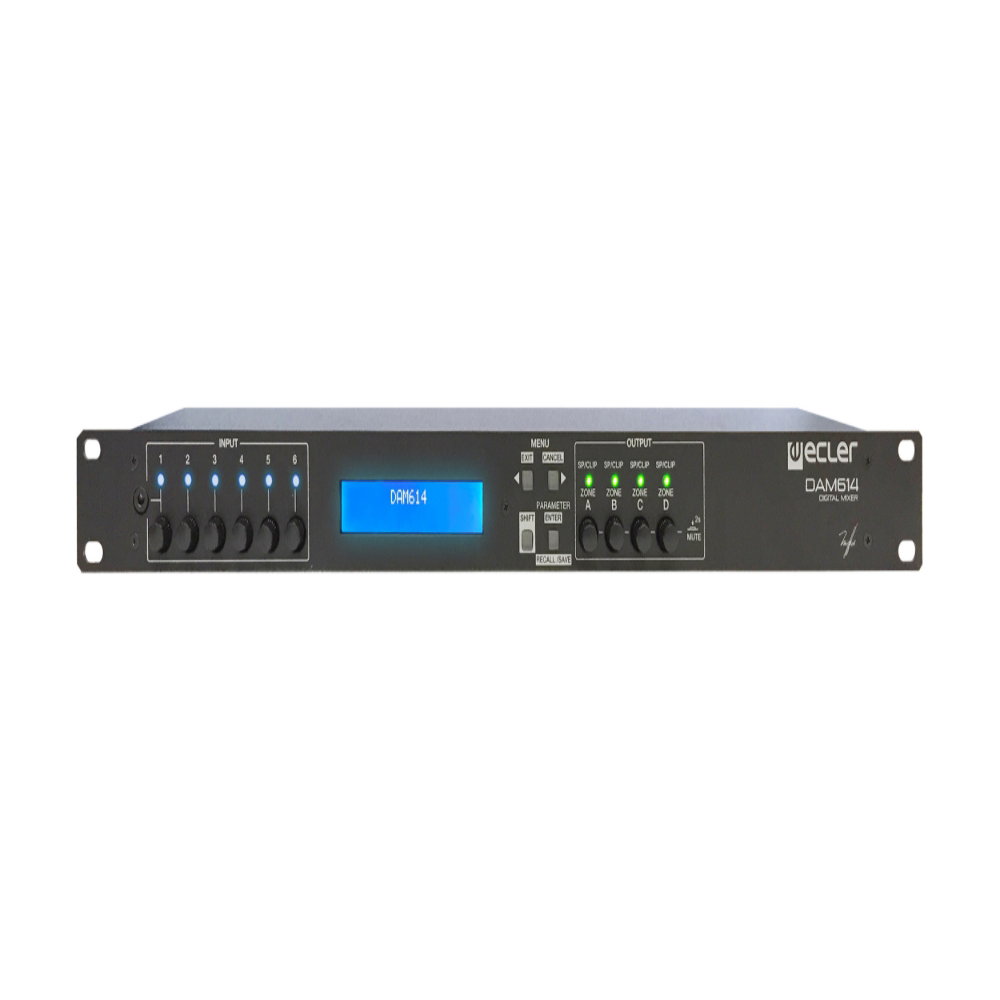

Independent mix per output zone with front panel level controls for every input and output
10-band graphic EQ and crossover filters per output; delay on 2 outputs
High-pass filter, noise gate and feedback suppressor on mic/line inputs
Two-level priority paging and ducking triggered from mic/line inputs
LCD and front panel keys for setup
4 remote control ports (0 to 10V) and a mute input
RS-232 port for EclerCOMM software and the CA-NET protocol
Specifications
| Inputs | IN1-2: stereo line, RCA; IN3-6: mic/line, balanced terminal block |
| Input sensitivity | IN1-2: 0 / -6 dBV (jumper); IN3-6: -20 to -50 dBV |
| Input impedance | IN1-2: >13 kohm; IN3-6: >24 kohm balanced |
| Phantom power | IN3-6: +17.5V DC (internal jumper) |
| Outputs | 4 line, balanced terminal block, 300 ohm |
| DSP | 24-bit / 48 kHz |
| Frequency response | <10 Hz to 20 kHz (+0 / -0.5 dB) |
| Crosstalk | >90 dB (20 Hz to 20 kHz) |
| Remote control | 4x 0 to 10V on RJ-45, 1x mute |
| Serial | RS-232 |
| Power | External 17.5V DC supply, 100 to 240V AC; 12W |
| Dimensions (W x H x D) | 482.6 x 44 x 120 mm, 1U rack |
| Weight | 2.0 kg |
