Rated 4.9 (120 reviews)
The Ecler eIC52MS is a 2-way 5 inch ceiling speaker built for rooms with high humidity or extreme temperatures. It has a 5 inch woofer and 1 inch tweeter, is IP54 rated and works at 8 ohms with 20W RMS handling. Typical uses are bathrooms, changing rooms, spas, pool areas, kitchens and cold stores. Sold as a single unit.
5in + 1in
2-way
IP54
Humidity resistant
8 ohm
Low impedance
125 mm
Cut-out
8 ohm onlyThere is no 100V transformer, so this speaker must be driven from a low-impedance amplifier output.
Features
2-way design: 5 inch woofer with 1 inch tweeter
20W RMS at 8 ohms
IP54 rated, rated for 90 to 95% humidity and -25°C to 70°C

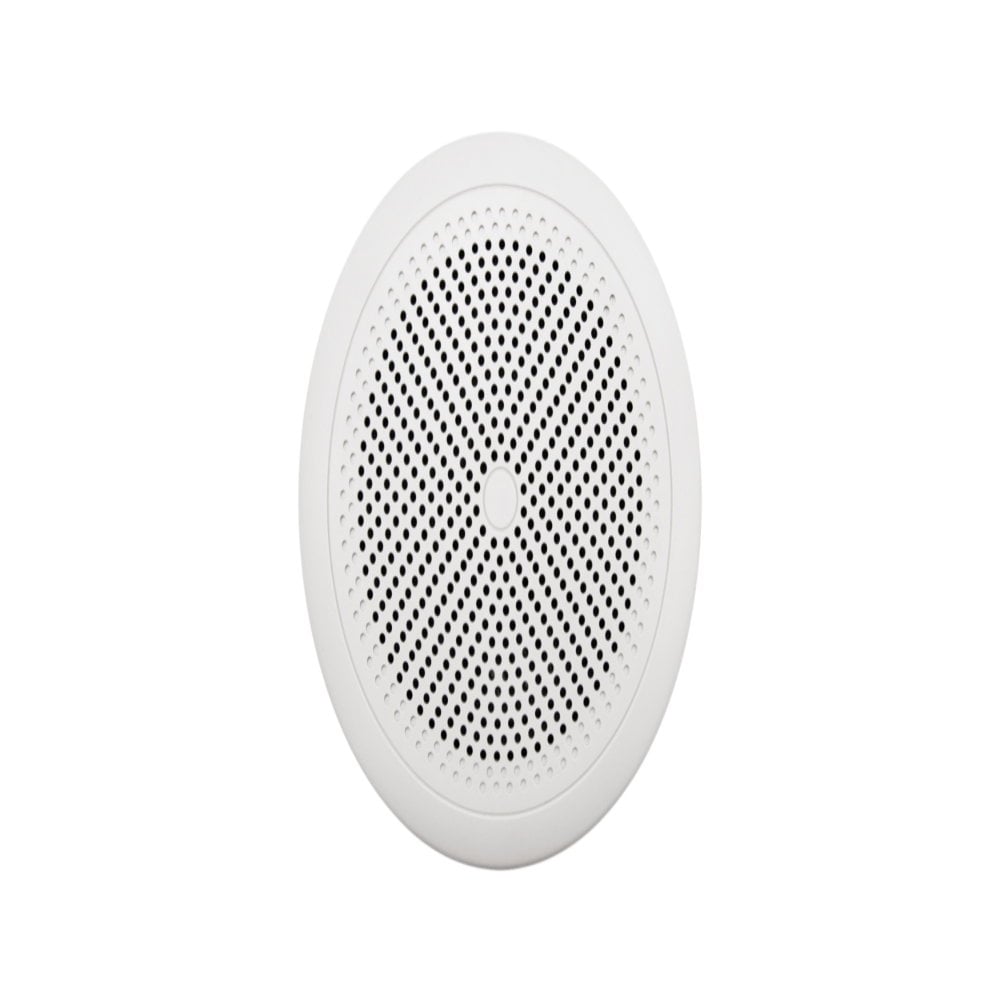

Grille fixed with four screws

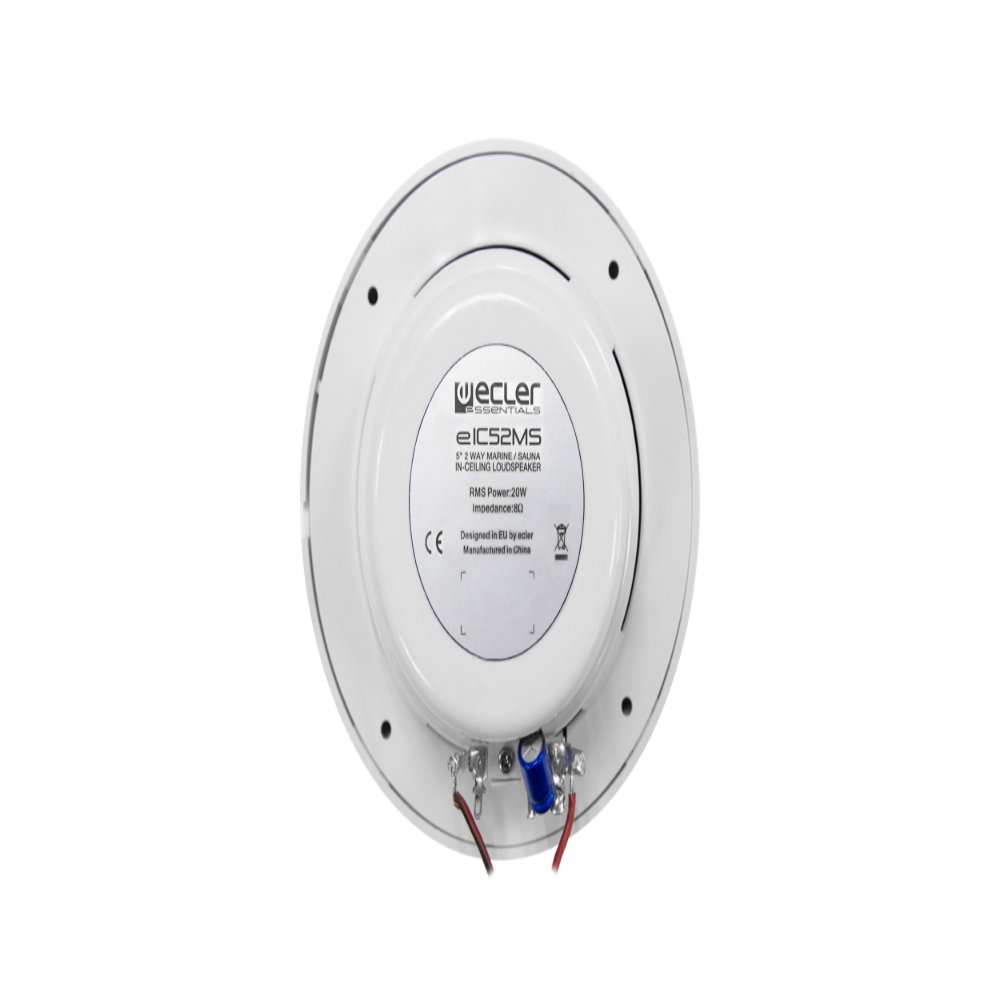

Faston male input terminals (4.8 mm positive, 2.8 mm negative)
In-ceiling or in-wall mounting
White finish (RAL 9016)
Specifications
| Frequency range | 83 Hz to 20 kHz (-10 dB) |
| Coverage | 155° x 155° (H x V) |
| Power handling | 20W RMS, 80W peak |
| Nominal impedance | 8 ohms |
| Sensitivity | 91 dB (1W/1m) |
| Maximum SPL | 104 dB continuous, 110 dB peak |
| Recommended amplifier | 40W RMS |
| Drivers | 5 in woofer, 1 in tweeter |
| Connection | Faston 4.8 mm (+) and 2.8 mm (-) |
| Environmental | IP54 |
| Outer diameter | 165 mm |
| Cut-out diameter | 125 mm |
| Depth required | 79 mm |
| Weight | 0.7 kg |
| Operating conditions | -25°C to 70°C, up to 90 to 95% humidity |
| Colour | White (RAL 9016) |
