Ecler eMOTUS 3OD 3" Outdoor Installation Speaker 100V IP65 White (Pair)

Product code: 194964

£155.00 inc VAT
£129.17 ex VAT

SKU: ECL0057

5 in stock

5 available online
Delivered by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
1 Year Manufacturer Warranty Included

About this Product

Connection: 100V line (taps 15 / 7.5 / 5 / 2.5W) or low impedance (8Ω).

The Ecler eMOTUS 3OD is a small full-range outdoor loudspeaker with a single 3 inch driver in an IP65 rated cabinet, and this listing is for a pair in white. Each speaker has a transformer with 100V taps up to 15W and an 8 ohm position. It is used for background music and announcements on terraces, in gardens, gyms, leisure centres, shops and bars, wall mounted or free standing on a shelf or desk.

3in
Full range
IP65
Outdoor rated
15W
Max 100V tap
196°
Horizontal coverage

Features

Supplied as a pair
Single 3 inch full-range driver
100V taps at 15W, 7.5W, 5W and 2.5W; 70V taps at 7.5W, 3.75W, 2.5W and 1.25W
8 ohm position for low-impedance amplifiers, 25W RMS
IP65 rated ABS cabinet with aluminium grille

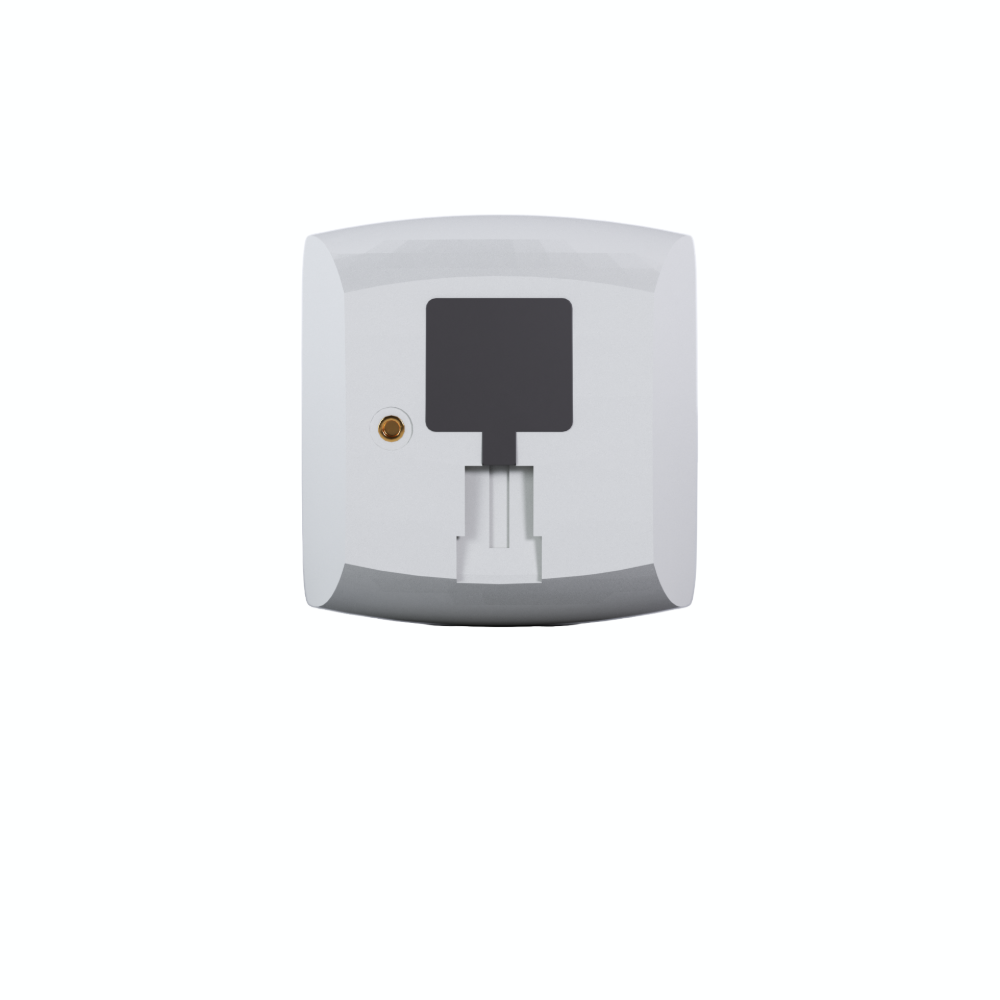

Rubber rear cover protects the Euroblock connection
Wall bracket, security steel cable and adhesive desktop feet included
White finish (RAL 9003)

Specifications

Ecler eMOTUS 3OD 3″ Outdoor Installation Speaker 100V IP65 White (Pair) specifications
Frequency range 120 Hz to 20 kHz (-10 dB)
Coverage 196° x 187° (H x V)
Power handling 25W RMS, 100W peak (8 ohms)
Sensitivity 85 dB (1W/1m)
Maximum SPL 99 dB continuous, 105 dB peak
100V taps 15W, 7.5W, 5W, 2.5W, 8 ohms
70V taps 7.5W, 3.75W, 2.5W, 1.25W, 8 ohms
Recommended amplifier 50W (8 ohm use)
Driver 3 in full range
Connection 2-pin Euroblock
Environmental IP65
Materials ABS cabinet, aluminium grille
Dimensions (W x H x D) 132 x 134.5 x 115.5 mm
Weight 1.3 kg
Operating temperature -20°C to 70°C
Colour White (RAL 9003)
Quantity 2 speakers

Full features

  • 3" woofer
  • 25WRMS @ 8Ω
  • Power selector: 2.5W/5W/7.5W/15W @ 100V / 1.25W/2.5W/3.75W/7.5W @ 70V
  • Outdoor design
  • IP65 rated
  • Rubber cover to protect rear connections
  • Includes wall bracket and security steel cable
  • Includes adhesive legs for positioning the loudspeakers on a desktop
  • Available in black (RAL9005) and white (RAL9003) colour

System

  • Effective Freq. Range: 120Hz - 20kHz (-10dB)
  • Coverage angle / Dispersion: 196°x187° (HxV)
  • Power handling: 25W RMS / 100W Peak
  • Sensitivity: 85dB (1W/1m)
  • Maximum SPL: 99dB continuous / 105dB peak
  • Power options (Hi Z Multi-tap): 2.5W/5W/7.5W/15W @ 100V and 8Ω
    1.25W/2.5W/3.75W/7.5W @ 70V and 8Ω
  • Recommended amplifier power: 50W

Transducers

  • Ways: 1-way
  • Low frequency driver: 3" woofer
  • Nominal impedance: 8Ω

Physical

  • Connection type: 2-terminal Euroblock connector (Input)
  • Power type selector: Selectable transformer tap
  • Installation options: Surface (wall mount), desktop
  • Environmental: IP65 rated
  • Enclosure material: ABS plastic
  • Grille material: Aluminium
  • Mounting system: ABS bracket
  • Operating temperature: Min: -20°C ; -4°F
    Max: 70°C ; 158°F
  • Operating humidity: <85% HR
  • Storage temperature: Min: -20°C ; -4°F
    Max: 70°C ; 158°F
  • Storage humidity: <90% HR
  • Included accessories: Wall-mount bracket, adhesive legs, back rubber cover & security steel cable
  • Optional accessories: Ecler CEILY and GROUNDY brackets
  • Finished colour: White (RAL 9003) or black (RAL 9005)
  • Dimensions: 132x134.5x115.5mm / 5.20x5.30x4.55 in. (WxHxD)
  • Weight: 1.3kg. / 2.87 lb.
  • Pieces per box: 2
