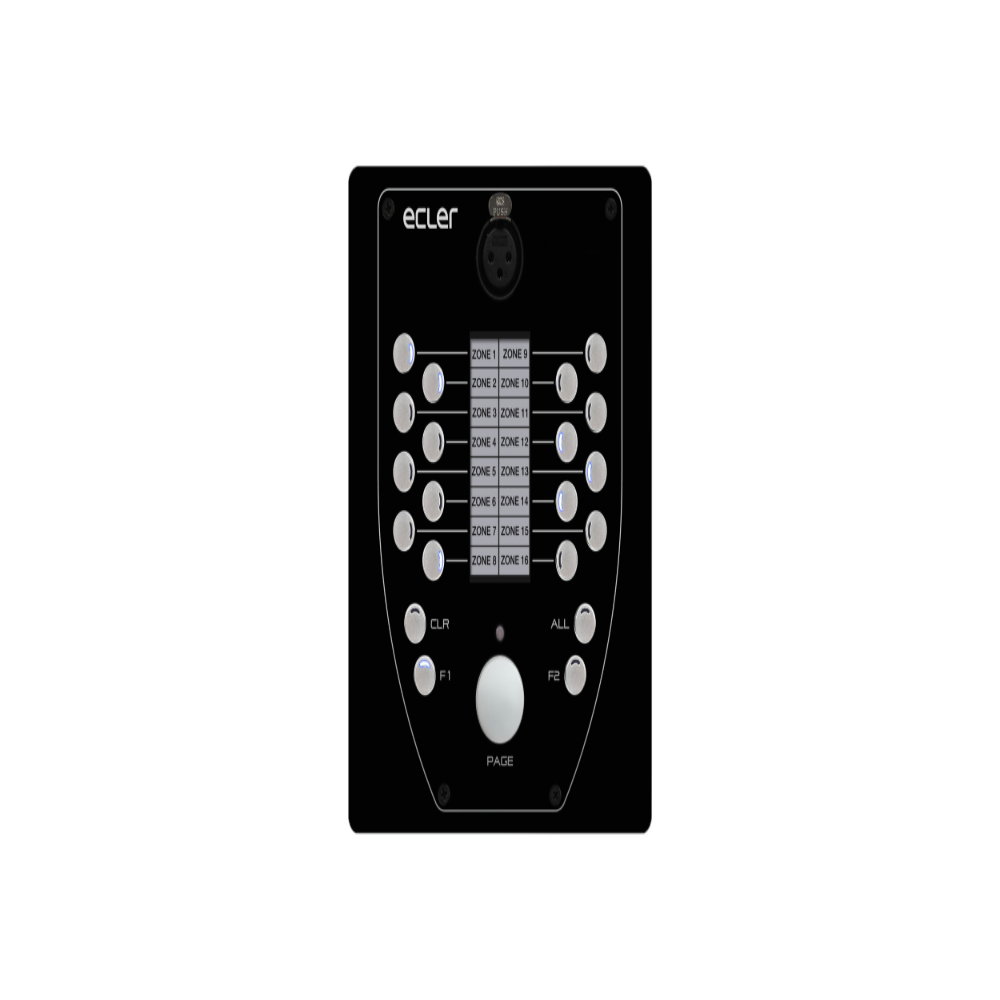

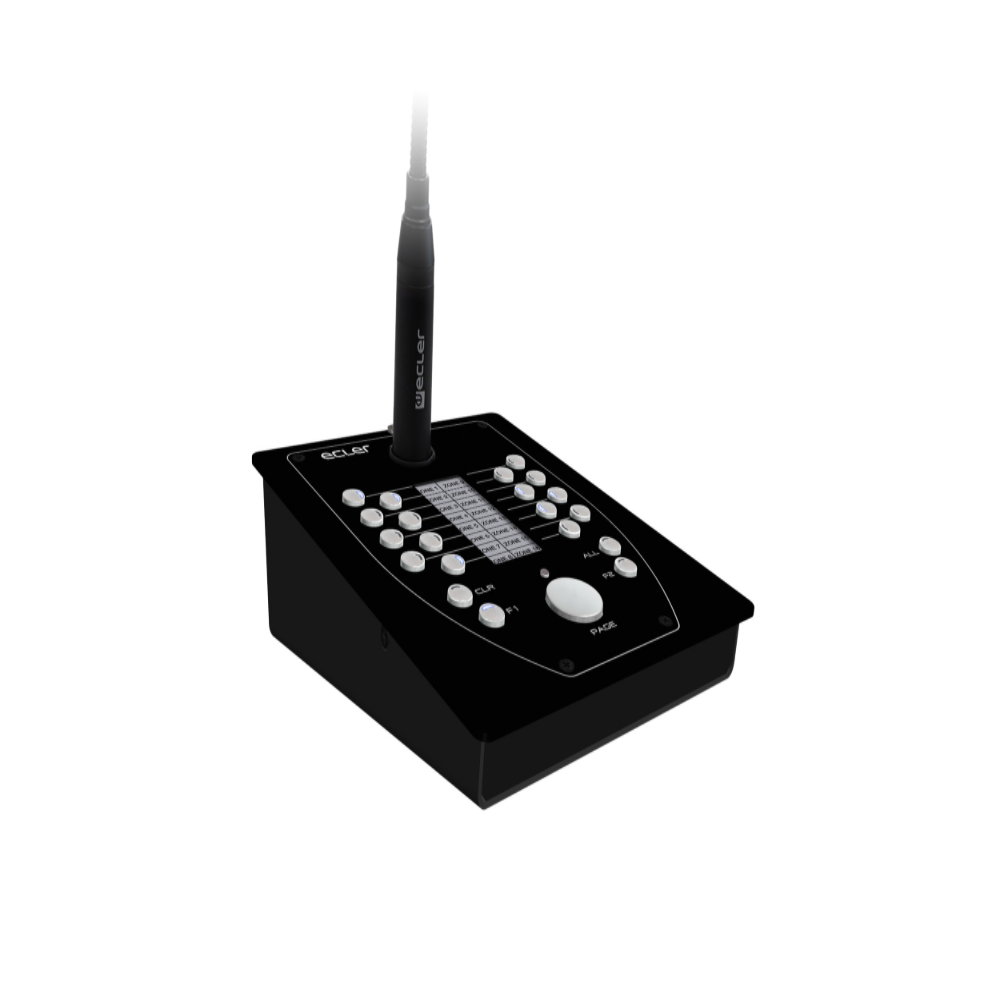

Ecler eMPAGE 16-Zone Paging Station for HUB and MIMO

Product code: 194986

£515.00 inc VAT
£429.17 ex VAT

SKU: ECL0071

2 in stock

2 available online
FREE delivery by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
1 Year Manufacturer Warranty Included

About this Product

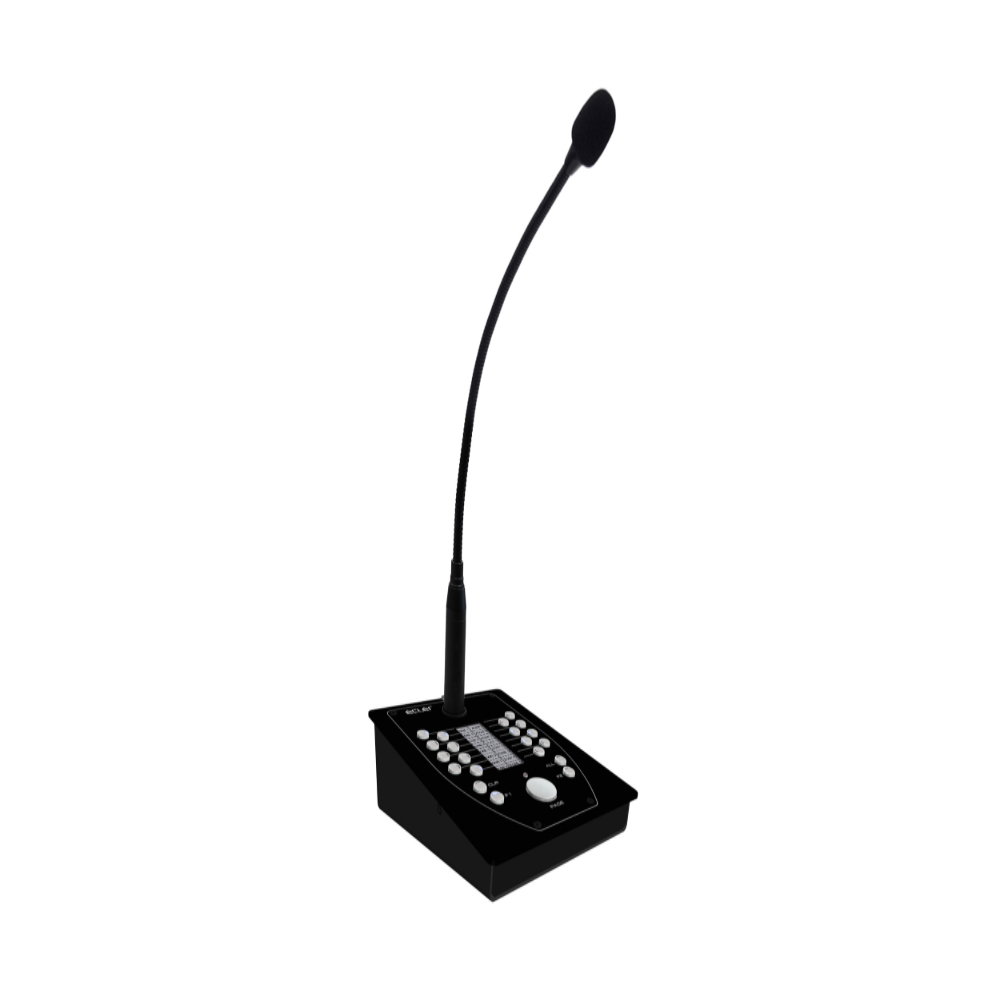

The Ecler eMPAGE is a desktop paging station for up to 16 zones, with a removable gooseneck condenser microphone and an e-ink display that labels each zone key. It connects to a HUB zone mixer or compatible MIMO matrix over a single Cat-5 cable carrying audio, control and power. It is used for announcements in hotels, restaurants, retail, gyms, schools and offices.

16
Paging zones
E-ink
Zone labels
Cat-5
Single cable
2
Per HUB
CompatibilityWorks with Ecler HUB series zone mixers and MIMO88, MIMO88SG and MIMO1212SG matrices. It does not work on its own. Up to 2 eMPAGE units can be used on one HUB.

Features

16 zone selection keys with LED status, plus ALL, CLEAR and PAGE keys
F1 and F2 keys for programmable zone groups
Electronic ink display showing zone names
Removable gooseneck condenser microphone on XLR
Audio, control and power over one Cat-5 cable, point to point
Zones, chimes, priorities and keys programmed from the HUB web application
Input for optional 24V DC backup supply (WP24-PSU)

Specifications

Ecler eMPAGE 16-Zone Paging Station for HUB and MIMO specifications
Paging zones 16
Microphone Gooseneck condenser (eMCN1), unidirectional, removable, XLR
Frequency response 50 Hz to 18 kHz (-10 dB)
Display Electrophoretic (e-ink), 296 x 128 pixels
Connection RJ-45, Cat-5 or better; RS-485 or CAN (internal jumper)
Power 12V DC from RJ-45, or 24V DC backup input (min 80 mA)
Dimensions (W x H x D) 150 x 50 x 180 mm, excluding microphone
Weight 0.9 kg
Included Microphone windscreen, RJ-45 to Euroblock adapter

Full features

  • 20 mechanical keys with integrated LED status indicator (paging zone selection management)
  • 1 mechanical key with adjacent LED indicator (message activation, PAGE key)
  • Electronic ink display (shows paging zone names)
  • Gooseneck microphone, with standard XLR connector
  • Management of up to 16 paging zones
  • RJ45 connector for single CAT5 or higher cabling (point-to-point), including power, audio output signal (picked up by the microphone) and digital control bus between the HUB unit and the eMPAGE station
  • Connector for backup power supply (optional)
  • Two eMPAGE units, with different or equal priority levels, can work simultaneously on the same HUB zoner
  • Programming of paging station(s) functionality from the web application embedded in the HUB: enabled paging zones, chime melodies, priorities, programmable keys, etc.

System

  • Number of output channels: 1 (picked up by the microphone)
  • Number of paging zones: 16

Mic Inputs

  • Microphone type: Removable gooseneck condenser microphone (eMCN1)
  • Polar pattern: Unidirectional
  • Frequency response: 50Hz – 18KHz (-10dB)
  • Phantom power: 48VDC, always ON
  • Input connection type: XLR female conection type

Screen/Display

  • Resolution: 296x128 Pixels
  • Display: Active Matrix Electrophoretic Display
  • Touch-panel: No

Monitoring And Control

  • LED indicators: Green LED on All and Clear keys, Bicolor LED on other keys
  • Buttons: Paging zone selection keys, PAGE key, F1, F2, All & Clear keys

Connectivity

  • Ethernet: 1 RJ45 connector, cable: Cat-5 or better. Supports PoE
  • Programing and control: RS485 and CAN, internally selectable by JUMPER

Electrical

  • Power supply: Optional, 24VDC (min. 80mA)
    Recommended external power supply: Ecler WP24-PSU
  • PoE: Yes
  • AC mains requirement: From RJ45 remote input: 12VDC
    From External Input: 24VDC (With WP24-PSU backup power supply)
  • Max power consumption: From RJ45 remote input: 180mA
    From External Input: 180mA

Physical

  • Type: Paging station
  • Installation options: Desktop
  • Operating temperature: Min: -10°C ; 14°F
    Max: 40°C ; 104°F
  • Operating humidity: <85% HR
  • Storage temperature: Min: -10°C ; 14°F
    Max: 40°C ; 104°F
  • Storage humidity: <90% HR
  • Included accessories: Windscreen for Microphone,  jumper for internal connection and RJ45 to Euroblock adapter
  • Dimensions: 150 x 50 x 180mm / 5.91 x 1.97 x 7.09 in. (WxHxD) (microphone excluded)
  • Weight: 0.9kg / 1.98 lb
