Ecler eIC51FM 4.5" Fast-Mount Ceiling Speaker

Product code: 194997

£19.00 inc VAT
£15.83 ex VAT

SKU: ECL0053

2 in stock

2 available online
Delivered by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
1 Year Manufacturer Warranty Included

About this Product

Connection: 100V line (taps 6 / 3W).

The Ecler eIC51FM is a low-cost 100V ceiling speaker with a 4.5 inch full-range driver and spring clamps for quick fitting. Its transformer offers 6W and 3W taps on a 100V line, enough for background music and paging in offices, corridors, shops, schools and waiting areas. Sold as a single unit.

4.5in
Full range
6W
Max 100V tap
145 mm
Cut-out
157°
Coverage

Features

4.5 inch full-range paper cone driver with ferrite magnet
100V taps at 6W and 3W; 70V taps at 3W and 1.5W, selected by colour-coded connection

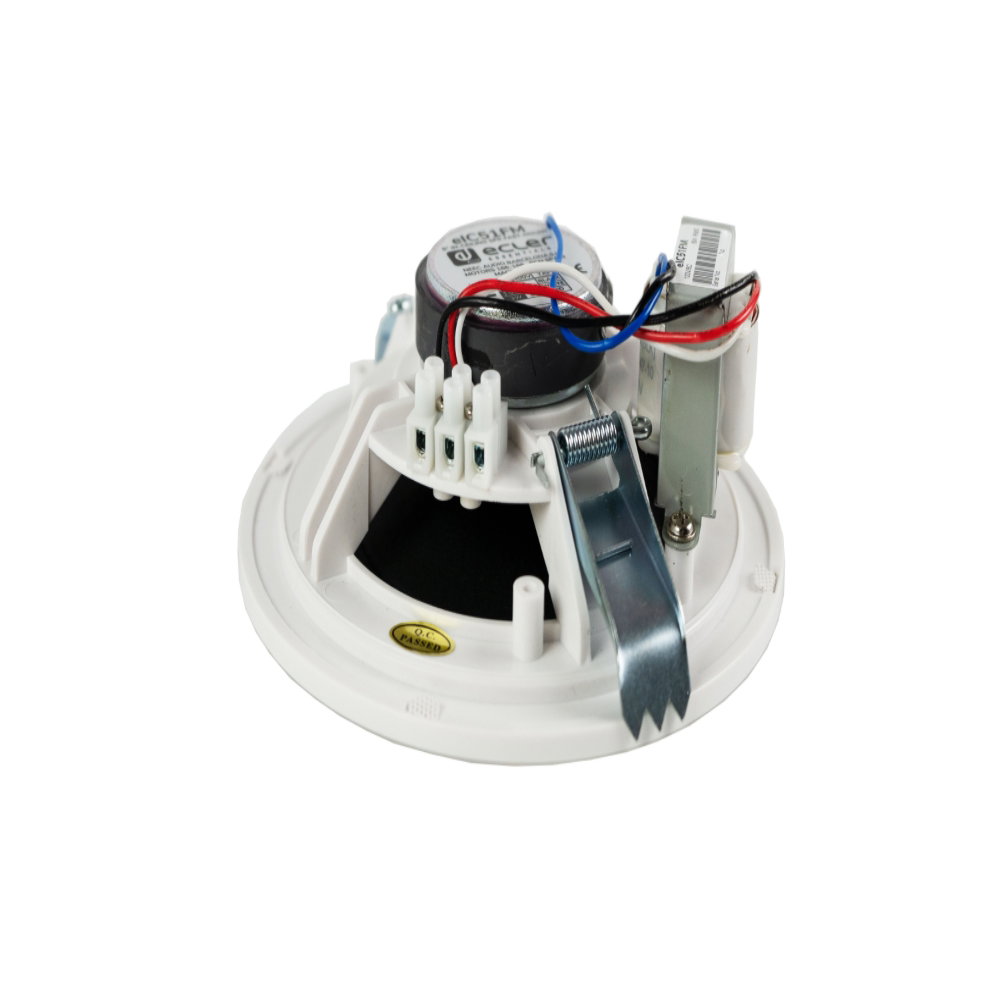

Spring clamps for fast fitting
Screw terminals
ABS basket with powder coated steel grille
White finish (RAL 9016)

Specifications

Ecler eIC51FM 4.5″ Fast-Mount Ceiling Speaker specifications
Frequency range 115 Hz to 17 kHz (-10 dB)
Coverage 157° x 157° (H x V)
Power handling 6W RMS, 24W peak
Sensitivity 91 dB (1W/1m)
Maximum SPL 99 dB continuous, 105 dB peak
100V taps 6W, 3W
70V taps 3W, 1.5W
Driver 4.5 in full range
Connection Screw terminals
Environmental IP50
Outer diameter 160 mm
Cut-out diameter 145 mm
Depth required >54 mm
Ceiling thickness Up to 55 mm
Weight 0.5 kg
Operating temperature -20°C to 70°C
Colour White (RAL 9016)

Full features

  • Easy and fast mounting
  • One-way, full range
  • 4,5" woofer
  • 6WRMS
  • Power options 100V: 3 / 6W
  • Power options 70V: 1,5 / 3W
  • Screw terminals
  • ABS plastic basket, powder coated iron grille
  • Available in white colour (RAL 9016)
  • EASE Address file available

System

  • Effective Freq. Range: 115Hz-17kHz (-10dB)
  • Coverage angle / Dispersion: 157°x157° (HxV)
  • Power handling: 6W RMS / 24W Peak
  • Sensitivity: 91dB (1W/1m)
  • Maximum SPL: 99dB continuous / 105dB peak
  • Power options (Hi Z Multi-tap): 100V: 6W / 3W
    70V: 3W / 1,5W
  • Recommended amplifier power: 12W RMS

Transducers

  • Ways: 1-way full range
  • Driver: 4.5" woofer, ferrite magnet and paper cone
  • Nominal impedance: 8Ω

Physical

  • Connection type: Screw terminals
  • Power type selector: Color code connection (rear panel)
  • Installation options: In-ceiling, in-wall
  • Environmental: IP50 rated
  • Enclosure material: ABS plastic
  • Grille material: Powder coated iron
  • Mounting system: Spring clamps
  • Operating temperature: Min: -20°C ; -4°F
    Max: 70°C ; 158°F
  • Operating humidity: <85% HR
  • Storage temperature: Min: -20°C ; -4°F
    Max: 70°C ; 158°F
  • Storage humidity: <90% HR
  • External diameter: 160mm / 6.3"
  • Recommended cut out diameter: 145mm / 5.7”
  • Required depth: >54mm / 2.1”
  • Ceiling thickness: No limit min
    55mm / 2.17" max
  • Finished colour: White (RAL 9016)
  • Weight: 0,5kg / 1.1 lb
  • Pieces per box: 1 unit
  • Shipping dimensions: 178 x 178 x 63mm / 7.0 x 7.0 x 2.5 in. (WxHxD)
  • Shipping weight: 0.75kg / 1.7 lb
