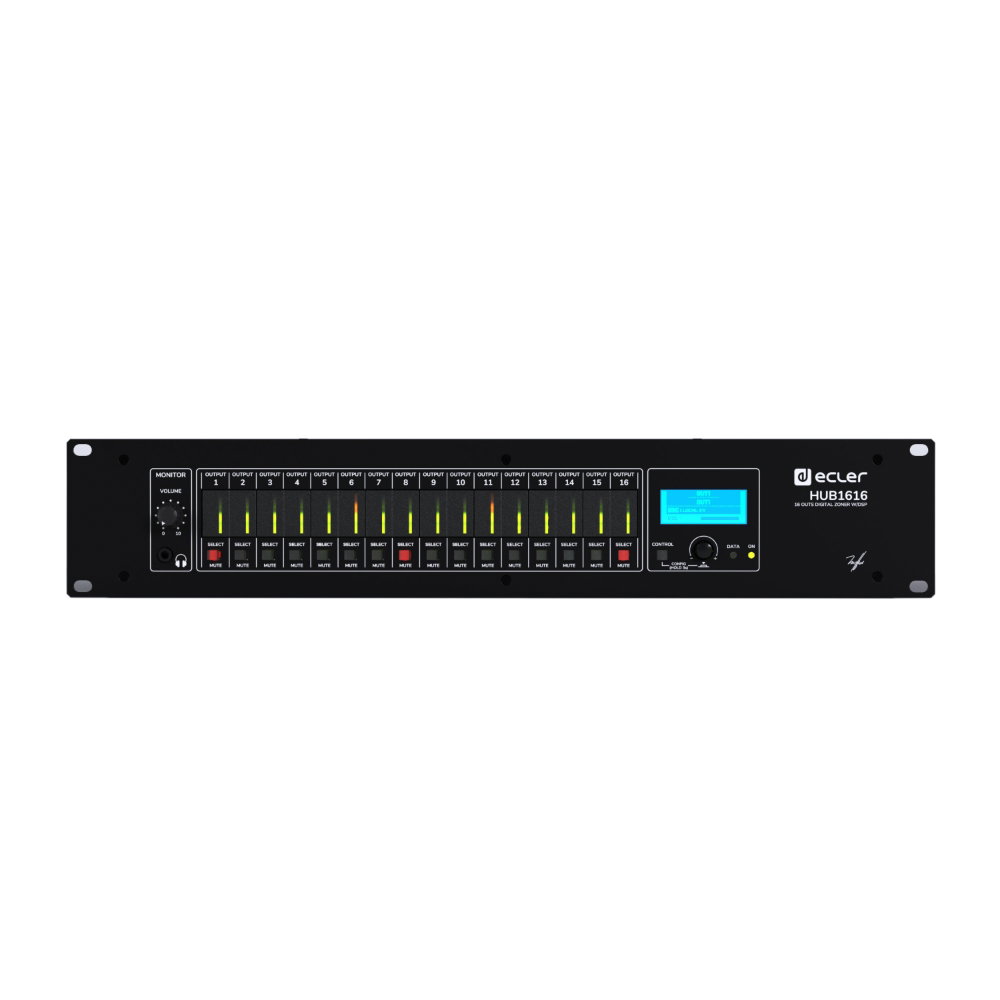

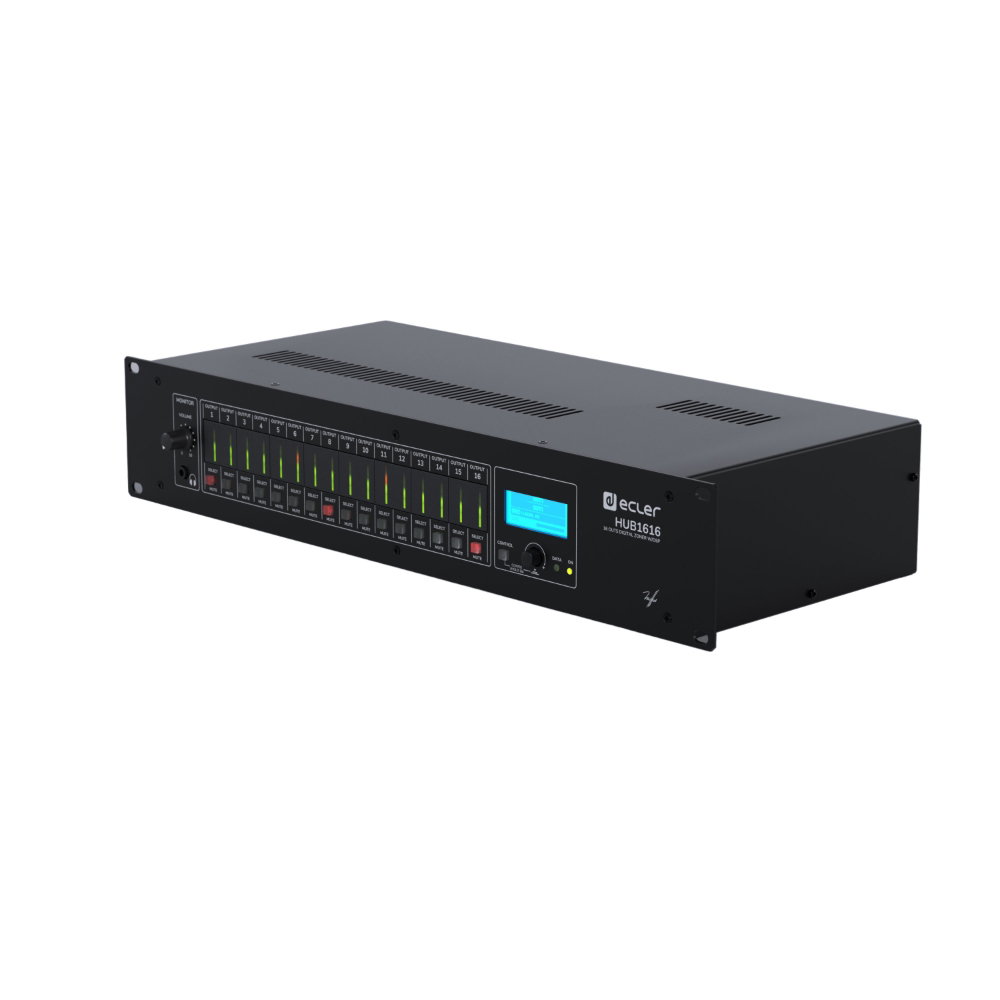

The Ecler HUB1616 is a 2U digital zone mixer with 16 inputs and 16 zone outputs and built-in DSP, replacing the eMIMO1616. It takes 4 line sources, 4 mic/line inputs with phantom power and 8 remote inputs from Ecler wall panels, and is set up from a web browser. It suits larger multi-zone background music and paging systems in hotels, bars, restaurants, retail, gyms, offices and schools.
16 x 16
Inputs x zones
8
Wall controllers
2
Paging stations
2U
Rack height
Remote inputsThe 8 remote inputs are on RJ-45 and are fed from eMCONTROL1 wall controllers paired with WPa audio panels such as WPaMIX-T. They are not standard line inputs.
Features

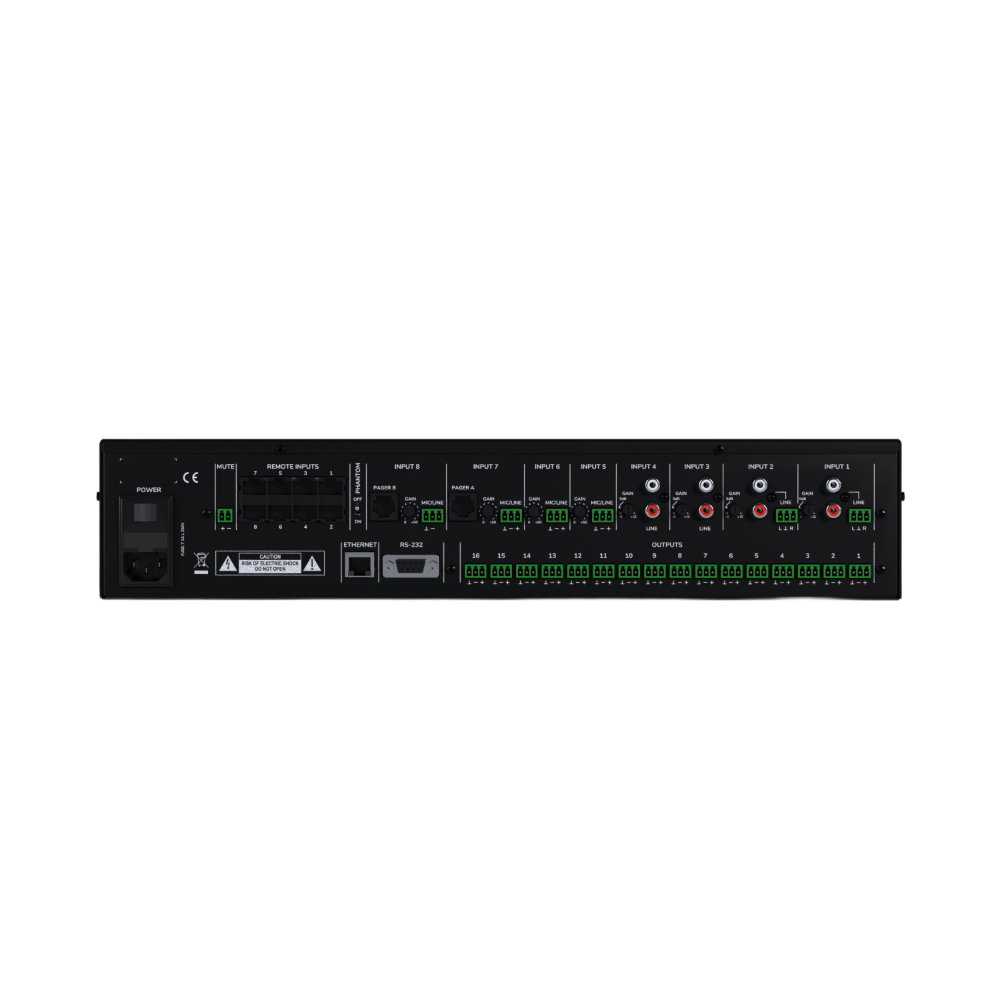

4 line inputs (RCA, inputs 1 and 2 also on Euroblock), 4 balanced mic/line inputs with 48V phantom, 8 remote inputs on RJ-45
16 balanced line outputs on Euroblock
Configured from HANGAR, a web application built into the unit, using a standard browser
Per-zone control of source, volume, mute and 3-band tone
Up to 8 eMCONTROL1 wall controllers and up to 2 eMPAGE paging stations
End-user control from the Ecler Pilot app for Android and iOS
Four priority levels with ducking and paging
DSP including 8-band graphic EQ, crossover filters, delay, compressor/limiter and frequency shifter
Third-party control with TP-NET over RS-232 (DB9) or UDP
Mute input for a dry contact acting on selected outputs; headphone monitor for any of the 16 outputs
Specifications
| Inputs | 4 line (RCA, unbalanced), 4 mic/line (Euroblock, balanced), 8 remote (RJ-45, balanced) |
| Outputs | 16 line, 3-pin Euroblock, balanced |
| Input sensitivity | Line: +5 to -15 dBV; mic/line: 0 to -50 dBV; remote: 0 dBV |
| Phantom power | +48V DC on mic/line inputs (rear switch) |
| Maximum input and output level | 12 dBV |
| Converters | 24-bit, 48 kHz; dynamic range AD 111 dB, DA 115 dB |
| DSP | 32/64-bit floating point, latency <1.5 ms |
| Frequency response | <10 Hz to 20 kHz (+0 / -0.5 dB) |
| THD+N | <0.005% (1 kHz, 1 Vrms) |
| Crosstalk | >90 dB (20 Hz to 20 kHz) |
| Control | Ethernet RJ-45, RS-232 (DB9), RS-485 remote bus, mute input |
| Auxiliary DC output | +12V DC, 0.6A max |
| Power | 100 to 240V AC, IEC C14; 20W |
| Dimensions (W x H x D) | 482.6 x 88 x 200 mm, 2U rack |
| Weight | 3.66 kg |
