Ecler IC6i 6.5" Ceiling Speaker 100V Black (Pair)

Product code: 194496

£115.00 inc VAT
£95.83 ex VAT

SKU: ECL0033

6 in stock

6 available online
Delivered by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
1 Year Manufacturer Warranty Included

About this Product

Connection: 100V line (taps 15 / 7.5 / 5 / 2.5W) or low impedance (8Ω).

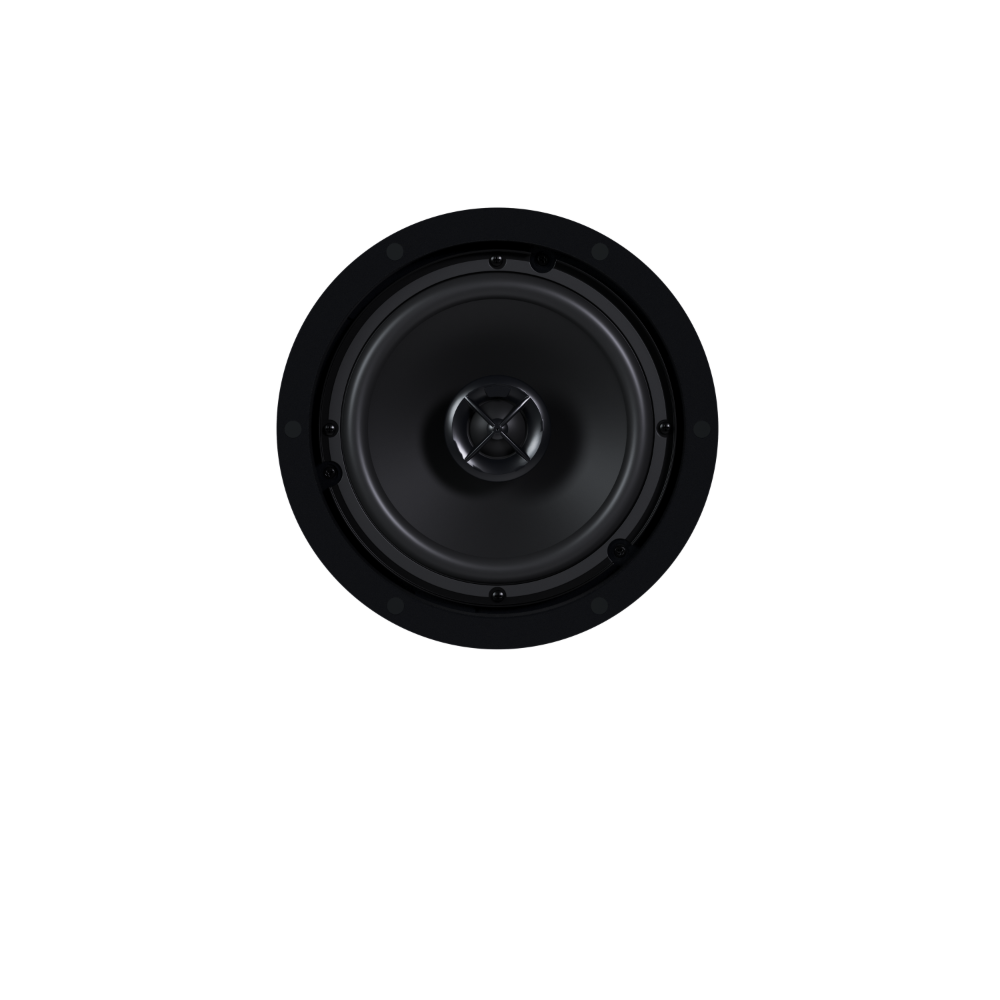

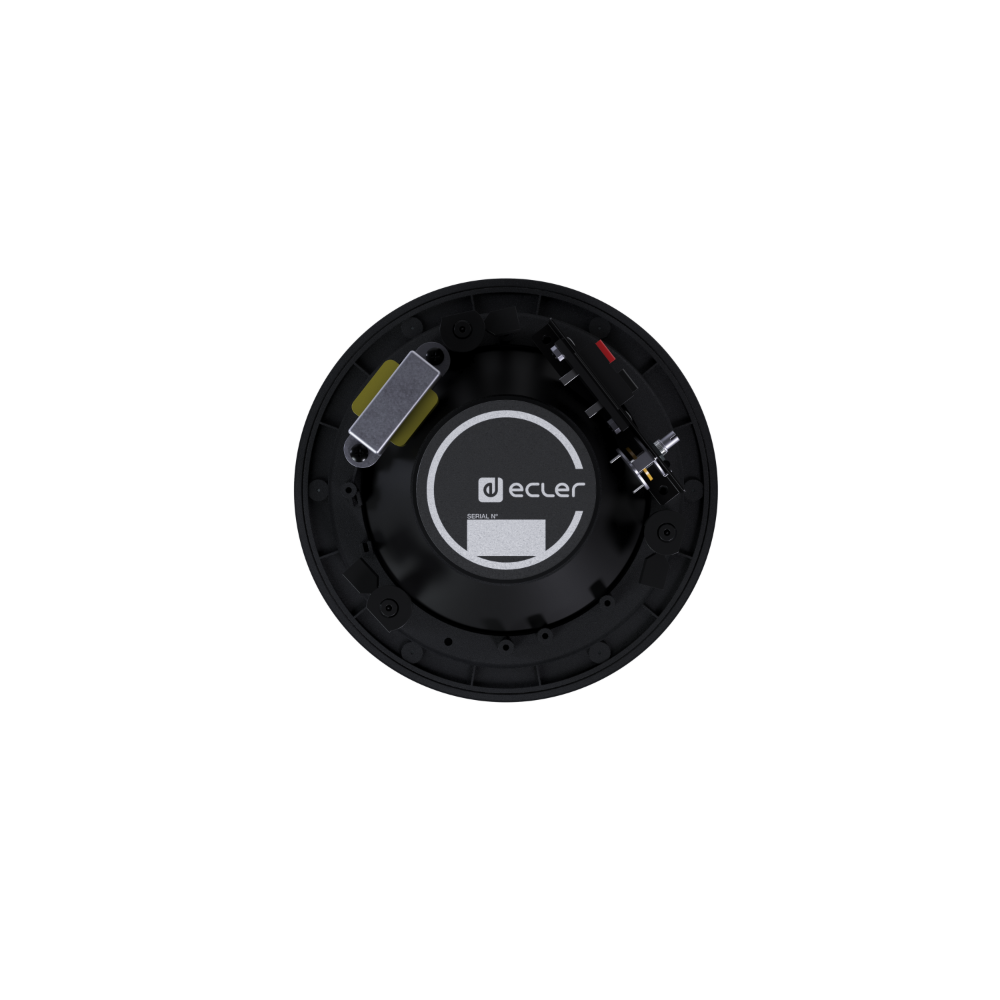

The Ecler IC6i is a 2-way in-ceiling speaker with a 6.5 inch polypropylene woofer and 1 inch tweeter, and this listing is for a pair in black. A built-in transformer gives 100V taps up to 15W, with a low-impedance 8 ohm setting rated at 40W RMS. It is a general-purpose ceiling speaker for background music and paging in shops, restaurants, offices, hotels and schools.

6.5in + 1in
2-way
163°
Conical coverage
15W
Max 100V tap
180 mm
Cut-out
100V taps top out at 15WOn a 100V line the highest tap is 15W. The 40W RMS rating applies only in 8 ohm low-impedance mode.

Features

Supplied as a pair
2-way design: 6.5 inch polypropylene woofer (heat and humidity resistant) with 1 inch tweeter
100V taps at 15W, 7.5W, 5W and 2.5W; 70V taps at 7.5W, 3.75W, 2.5W and 1.25W
8 ohm low-impedance setting, 40W RMS

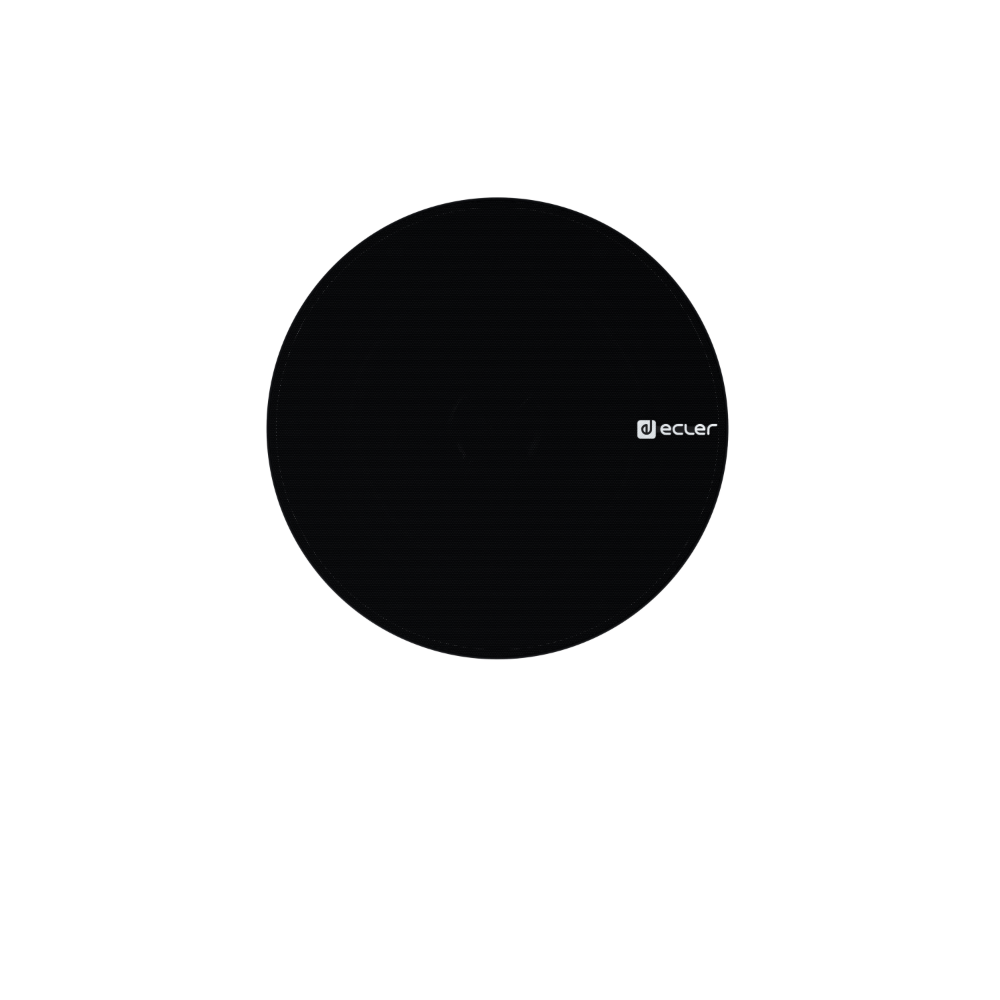

Frameless magnetic grille, removable for painting; Ecler logo can be removed

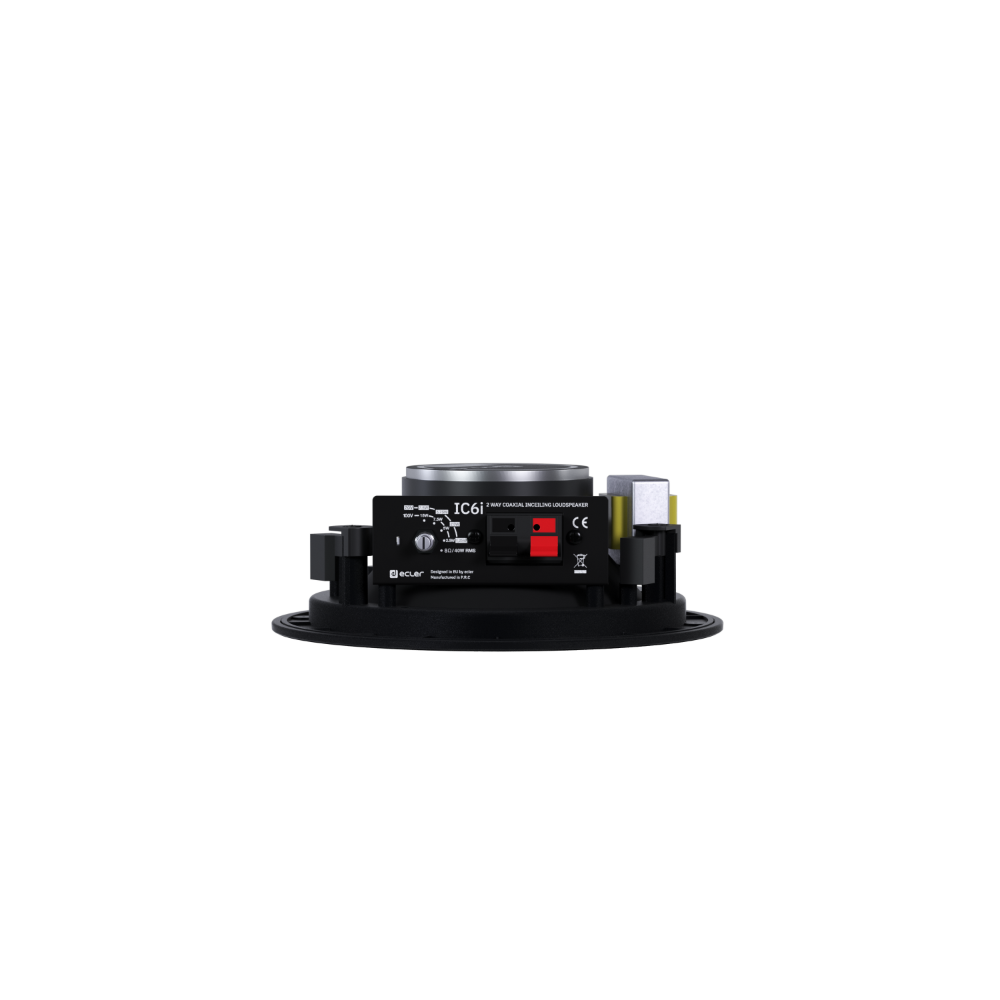

Clip-type terminals with high/low impedance tap selector
Three rotating clamp tabs; cutting template included
Optional IC-TB6 tile bridge for suspended ceilings
Black finish (RAL 9005)

Specifications

Ecler IC6i 6.5″ Ceiling Speaker 100V Black (Pair) specifications
Frequency range 75 Hz to 20 kHz (-10 dB)
Coverage 163° conical
Power handling 40W RMS, 160W peak (8 ohms)
Sensitivity 93 dB (1W/1m)
Maximum SPL 109 dB continuous, 115 dB peak
100V taps 15W, 7.5W, 5W, 2.5W
70V taps 7.5W, 3.75W, 2.5W, 1.25W
Recommended amplifier 80W RMS (8 ohm use)
Drivers 6.5 in woofer, 1 in tweeter
Connection Clip-type terminals
Outer diameter 213 mm
Cut-out diameter 180 mm
Depth required >73 mm
Weight 1.6 kg
Operating temperature -20°C to 70°C
Colour Black (RAL 9005)
Quantity 2 speakers

Full features

  • Two-way ABS speaker, 40WRMS.
  • 6.5" woofer / 1" tweeter.
  • Built-in audio transformer for 70/100V use.
  • Polypropylene woofer that resists heat and humidity.
  • Frameless Magnetic grill.
  • Front grill may be removed for painting.
  • The Ecler logo is removable.
  • Clip-type input terminals and low impedance / high impedance power tap selector.
  • Cutting template included.
  • Support system with 3 rotating tabs.
  • Available in black (RAL9005) or white (RAL9003) finish.
  • EASE files available.

System

  • Effective Freq. Range: 75Hz-20kHz (-10dB)
  • Coverage angle / Dispersion: 163° conical
  • Power handling: 40W RMS / 160W Peak
  • Sensitivity: 93dB (1W/1m)
  • Maximum SPL: 109dB continuous / 115dB peak
  • Power options (Hi Z Multi-tap): 100V: 2.5 / 5 / 7.5 / 15W
    70V: 1.25 / 2.5 / 3.75 / 7.5W
  • Recommended amplifier power: 80W RMS

Transducers

  • Ways: 2-ways full range
  • Low frequency driver: 6.5" Woofer
  • High frequency driver: 1" Tweeter
  • Nominal impedance: 8Ω

Physical

  • Connection type: Clip-Type input terminals
  • Installation options: In-ceiling / In-wall
  • Enclosure material: ABS plastic
  • Grille material: Iron
  • Grille fixing system: Magnets
  • Mounting system: 3 rotating tabs
  • Operating temperature: Min: -20°C ; -4°F
    Max: 70°C ; 158°F
  • Operating humidity: <85% HR
  • Storage temperature: Min: -20°C ; -4°F
    Max: 70°C ; 158°F
  • Storage humidity: <90% HR
  • External diameter: 213mm / 8.39in.
  • Internal diameter: 178mm / 7.01in.
  • Recommended cut out diameter: 180mm / 7.09in.
  • Required depth: >73mm / >2.87in.
  • Included accessories: Cutting template
  • Optional accessories: Ecler IC-TB6
  • Finished colour: White (RAL 9003) / Black (RAL 9005)
  • Dimensions: 213 x 213 x 72mm. / 8.39 x 8.39 x 2.83 in. (WxHxD)
  • Weight: 1.6 Kg / 3.53 lb
  • Pieces per box: 2
  • Shipping dimensions: 265x260x255mm. / 10.43x10.24x10.04 in. (WxHxD)
  • Shipping weight: 4kg / 8.82 lb
