Ecler VIC6 Premium 6" Ceiling Speaker 100V White Grille (Pair)

Product code: 194506

£183.00 inc VAT
£152.50 ex VAT

SKU: ECL0047

6 in stock

6 available online
Delivered by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
1 Year Manufacturer Warranty Included

About this Product

Connection: 100V line (taps 40 / 20 / 10 / 5W) or low impedance (8Ω).

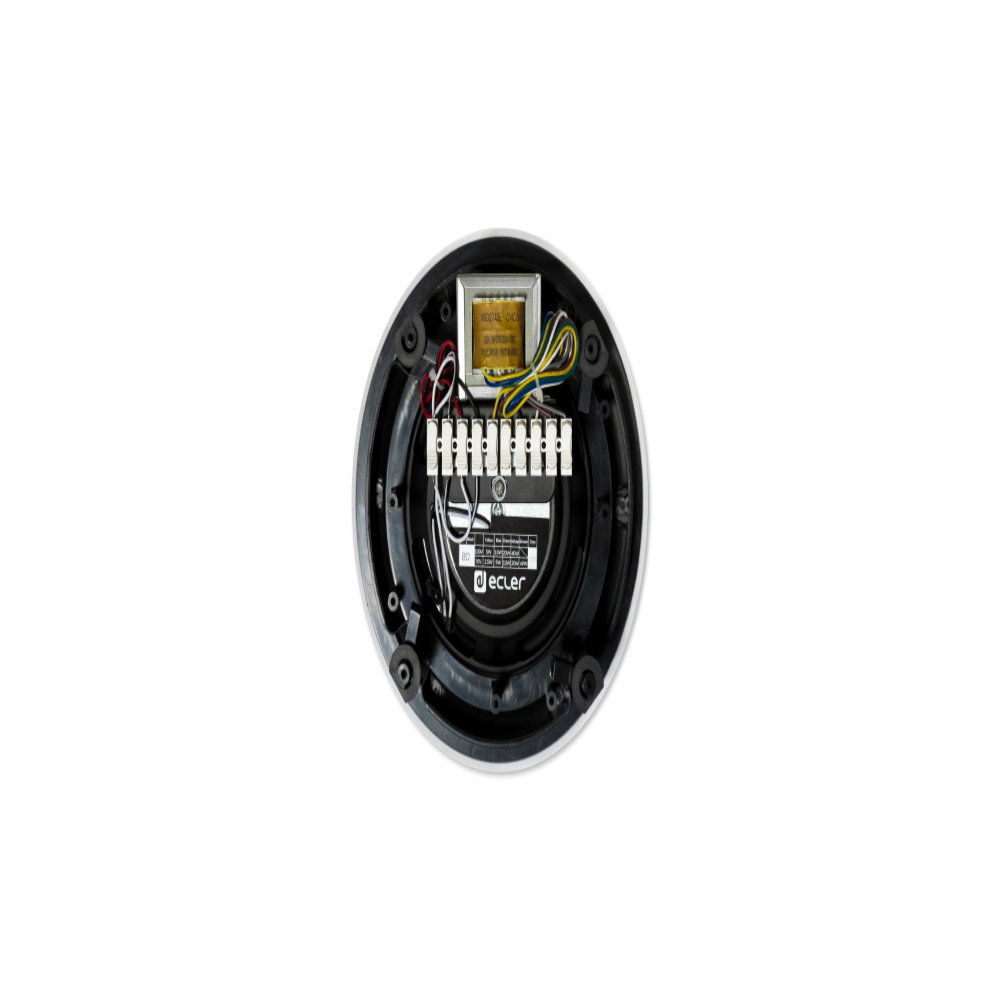

The Ecler VIC6 is a 2-way in-ceiling speaker with a 6.5 inch polypropylene woofer and a steerable 0.5 inch tweeter, and this listing is for a pair. Each speaker has a 70V/100V transformer with taps up to 40W plus an 8 ohm setting, and a magnetic, paintable grille. It is used in restaurants, hotels, bars, retail and offices where a clean ceiling finish matters.

6.5in + 0.5in
2-way
40W
Max 100V tap
124°
Conical coverage
206 mm
Cut-out

Features

Supplied as a pair

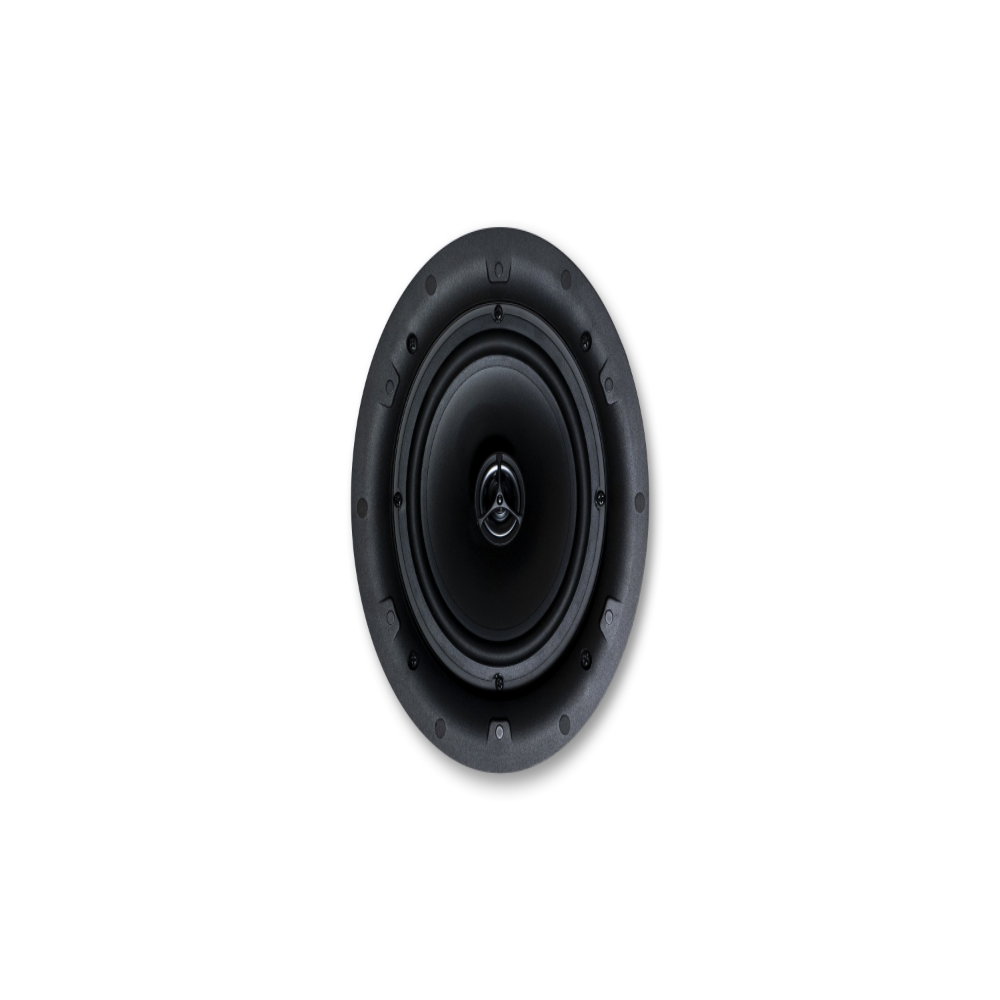

6.5 inch polypropylene woofer with steerable 0.5 inch tweeter
100V taps at 40W, 20W, 10W and 5W; 70V taps from 40W down to 2.5W
8 ohm low-impedance setting, 40W RMS

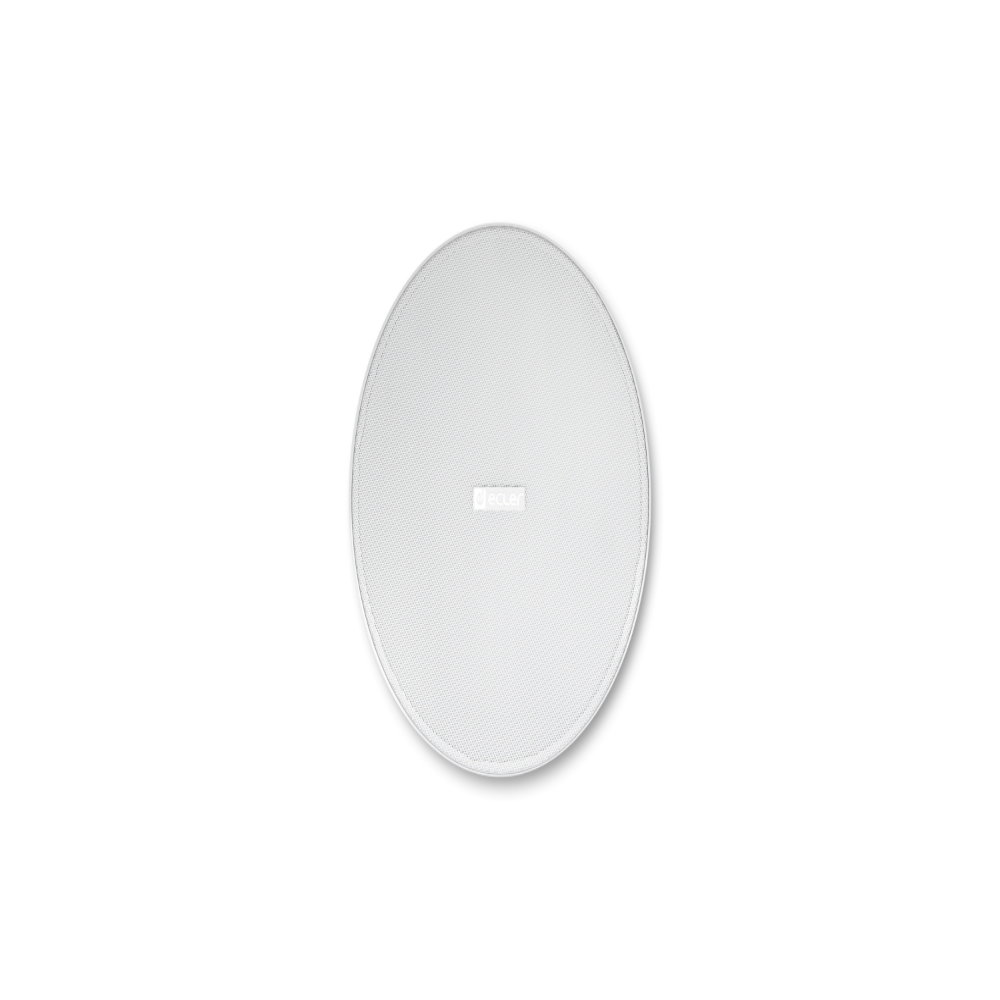

Magnetic, paintable metal alloy grille
IPX4 rated
White finish (RAL 9010)

Specifications

Ecler VIC6 Premium 6″ Ceiling Speaker 100V White Grille (Pair) specifications
Frequency range 61 Hz to 20 kHz (-10 dB)
Coverage 124° conical
Power handling 40W RMS, 160W peak (8 ohms)
Sensitivity 89 dB (1W/1m)
Maximum SPL 105 dB continuous, 111 dB peak
100V taps 40W, 20W, 10W, 5W, 8 ohms
70V taps 40W, 20W, 10W, 5W, 2.5W, 8 ohms
Recommended amplifier 80W RMS (8 ohm use)
Drivers 6.5 in woofer, 0.5 in steerable tweeter
Environmental IPX4
Outer diameter 232 mm
Cut-out diameter 206 mm
Depth required 110 mm
Ceiling thickness 10 to 50 mm
Weight 1.8 kg
Operating temperature -20°C to 70°C
Colour White (RAL 9010)
Quantity 2 speakers

Full features

  • 2-way false ceiling loudspeaker
  • 6.5” polypropylene woofer
  • 0,5” steerable tweeter
  • 40WRMS @ 8 ohm
  • 100V/70V in-line connection: 40 / 20 / 10 / 5 / 2,5W
  • Paintable magnetic metal alloy grille
  • Sensitivity (1W/1m): 89dB SPL
  • Dimensions (ØxD): 232x105mm
  • Available in white (RAL9010) finish
  • Weight: 1.8kg

System

  • Effective Freq. Range: 61Hz-20kHz (-10dB)
  • Coverage angle / Dispersion: 124° conical
  • Power handling: 40W RMS / 160W Peak
  • Sensitivity: 89dB (1W/1m)
  • Maximum SPL: 105dB continuous / 111dB peak
  • Power options (Hi Z Multi-tap): 100V: 40W / 20W / 10W / 5W / 8Ω
    70V: 40W / 20W / 10W / 5W / 2,5W / 8Ω
  • Recommended amplifier power: 80W RMS

Transducers

  • Ways: 2-ways
  • Low frequency driver: 6,5" woofer
  • High frequency driver: 0,5" steerable tweeter
  • Nominal impedance: 8Ω

Physical

  • Installation options: Ceiling
  • Environmental: IPX4 rated
  • Grille material: Magnetic, paintable metal alloy
  • Operating temperature: Min: -20°C ; -4°F
    Max: 70°C ; 158°F

  • Operating humidity: <85% HR
  • Storage temperature: Min: -20°C ; -4°F
    Max: 70°C ; 158°F

  • Storage humidity: <90% HR
  • External diameter: 232mm / 9.13"
  • Internal diameter: 205mm / 8.07"
  • Recommended cut out diameter: 206mm / 8,11"
  • Required depth: 110mm / 4.33"
  • Ceiling thickness: 10mm / 0.39" min
    50mm / 1.97" max
  • Finished colour: White (RAL 9010)
  • Dimensions: 232 x 105mm / 8.07 x 4.13 in. (ØxD)
  • Weight: 1.8kg / 3.97 lb
  • Pieces per box: Pair
  • Shipping dimensions: 250 x 260 x 250mm / 9.84 x 10.24 x 9.84 in. (WxHxD)
  • Shipping weight: 4.0kg / 8.82 lb
