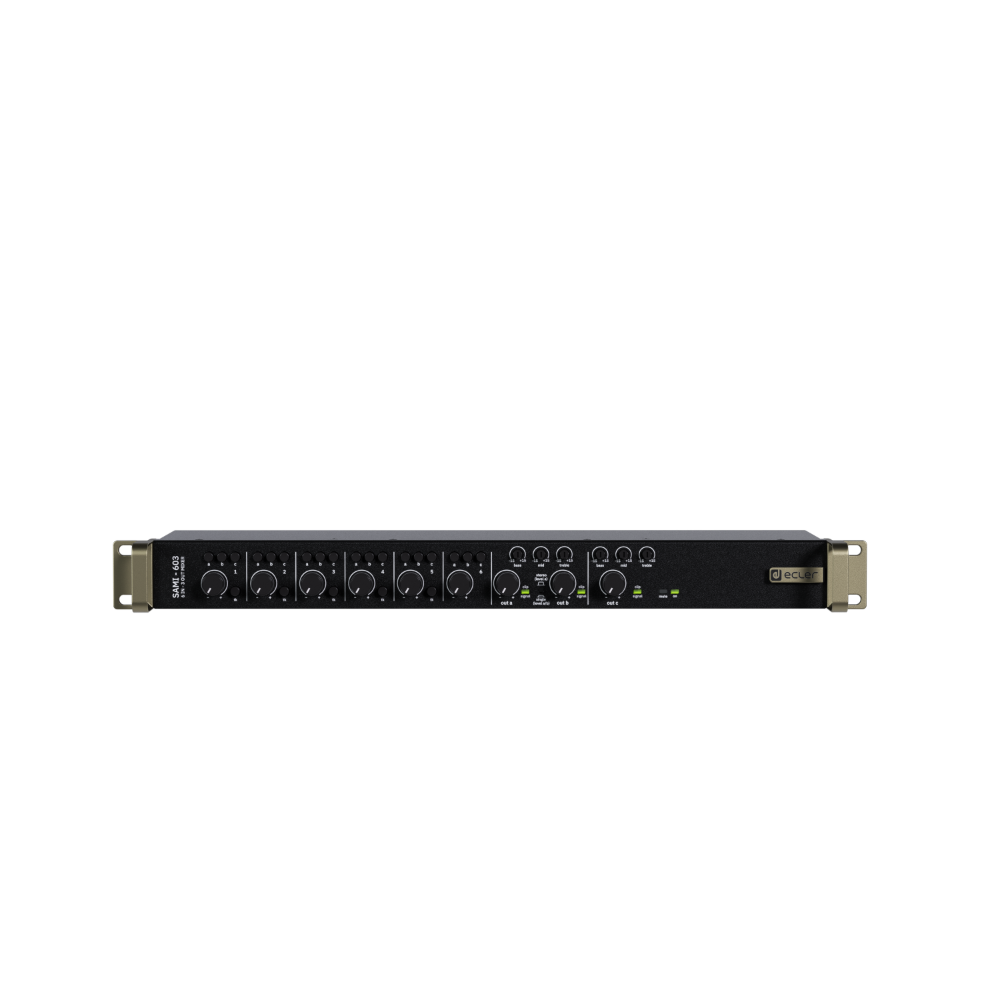

Ecler SAMI603 6-Channel Mic/Line Rack Mixer 3 Outputs

Product code: 195354

£445.00 inc VAT
£370.83 ex VAT

SKU: ECL0086

1 in stock

1 available online
FREE delivery by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
1 Year Manufacturer Warranty Included

About this Product

The Ecler SAMI603 is a 1U analogue installation mixer with 6 inputs and three zone outputs: A and B as a stereo pair or two mono zones, plus a separate mono C output. Each input can be routed to any of the outputs, with tone controls for A/B and C, talkover and a mute input. It is used for small two- or three-zone systems in bars, restaurants, shops, gyms and schools.

6
Inputs
3
Zone outputs
Talkover
Mic priority
1U
Rack height

Features

1 mic input, 4 mic/line inputs and 1 stereo line input
Outputs A and B as stereo or 2x mono, plus mono output C, each with its own mix
Input routing switches to zones A, B and C
Separate 3-band tone controls for outputs A/B and output C
Talkover switchable on inputs 1 to 5
AUX/REC output on RCA
Talkover ducks the music by 30 dB when a microphone is used
+18V phantom power on microphone inputs; mic sensitivity adjustable on the rear panel
Mute input triggered by a dry contact (NO/NC), for fire alarm and safety systems
Passive cooling; external power supply included

Specifications

Ecler SAMI603 6-Channel Mic/Line Rack Mixer 3 Outputs specifications
Inputs 1 mic, 4 mic/line (mic: 3-pin Euroblock; line: RCA), 1 stereo line (RCA)
Input sensitivity Line: 0 dB; mic: -35 dB; adjust ±15 dB
Input impedance Line: 50 kohm; mic: >1 kohm
Outputs A/B stereo or 2x mono, C mono (3-pin Euroblock, 600 ohm); AUX/REC (RCA, 10 kohm)
Frequency response Line: 10 Hz to 50 kHz; mic: 10 Hz to 30 kHz (-1 dB)
THD+N Line: <0.005%; mic: <0.04%
Signal-to-noise ratio Line: >100 dB; mic: >85 dB
Tone control 2x 3-band: bass 100 Hz, mid 2 kHz, treble 10 kHz, ±15 dB
Talkover -30 dB, 2 seconds
Power External ±17.5V DC supply (included), 100 to 240V AC; 6.3W
Dimensions (W x H x D) 482.5 x 44 x 153.7 mm, 1U rack
Weight 2 kg

Full features

  • 6 input channels, 3 outputs 19” installation mixer
  • 4 MIC/LINE stereo inputs
  • 1 LINE stereo input
  • 1 MIC input
  • 1 stereo output or 2 x mono output (A and B outputs)
  • 1 mono output (C output)
  • Independent inputs routing for zones A, B, C
  • 1 AUX/REC output
  • Independent 3-band EQ control for outputs A/B and output C
  • MUTE remote control input enabled by external dry contact closure for connecting fire detection systems and other safety devices.
  • Switchable talkover function, from IN1 to IN5 over A, B, C outputs

Analogue Audio Input Ports

  • Number of input ports: 4, MIC/LINE
    1, MIC
    1, LINE STEREO
  • Connection type: MIC: 3-pin Euroblock
    LINE: RCA
  • Input sensitivity: LINE 2-5: 0dB
    LINE 6: 0dB/-6dB (internally selectable)
    MIC 1-5 BAL: -35dB
  • Input sensitivity adjust: MIC/LINE: ±15dB
  • Input impedance: LINE 2-5: 50kΩ
    LINE 6: 50kΩ
    MIC 1-5 BAL: >1kΩ
  • CMRR: MIC: >60dB @ 1kHz
  • Phantom voltage: +18VDC

Analogue Audio Output Ports

  • Number of output ports: 1 main mix output
    1 main mono output
    1 AUX/REC output
  • Connection type: Main: 3-pin Euroblock
    AUX/REC: RCA
  • Output type: 1 STEREO/2 MONO main mix output
    1 MONO main mix output
    1 STEREO AUX/REC
  • Nominal output level: OUT: 0dB/+6dB (internally selectable)
    AUX/REC: 0dB/+6dB (follows MAIN OUT, when AUX OUT=POST)
  • Output impedance: OUT: 600Ω
    AUX/REC: 10kΩ

Signal

  • Frequency response: LINE: 10Hz-50kHz -1dB
    MIC BAL: 10Hz-30kHz -1dB
  • THD + Noise: LINE: <0.005%
    MIC BAL: <0.04%
  • Signal noise ratio: LINE: >100dB
    MIC BAL: >85dB

Device Control

  • Tone Control: 2 x 3-way tone control (For section A/B and C)
  • Tone Frequency Cut: BASS: 100Hz ±15dB
    MID: 2kHz ±15dB
    TREBLE: 10kHz ±15dB
  • Talkover: TIME: 2 seconds
    EFFECT: -30dB
  • Control Buttons: Power ON, Talkover, LINE/MIC, L+R (input), Gain knob, Volume knob, Output destination switches, STEREO (level a)/Single (level a/b), MONO/STEREO
  • Status Indicators: Power ON LED, MUTE LED, SP/CLIP LEVEL LED

Remote Control Connections

  • GPIs: MUTE control port NO/NC

Electrical

  • Power supply: ±17.5VDC External PSU
  • AC mains requirement: 100-240V @ 50-60Hz (External PSU: 17.5VDC)
  • AC mains connector: IEC inlet connector
  • Power consumption: 13.9VA / 6.3W
  • Cooling: Passive

Physical

  • Operating temperature: Min: -10°C ; 14°F
    Max: 40°C ; 104°F
  • Operating humidity: <85% HR
  • Storage temperature: Min: -10°C ; 14°F
    Max: 40°C ; 104°F
  • Storage humidity: <90% HR
  • Installation options: 19" rack format (1RU)
  • Included accessories: ±17.5VDC multi-plug PSU, EuroBlocks,
    Rubber Foot, Mini Jumpers
  • Dimensions: 482.5 x 44 x 153.7mm  /  19 x 1.73 x 6.05 in (WxHxD)
  • Weight: 2kg  /  4.41 lb
  • Shipping dimensions: 560 x 60 x 295mm  / 22.05 x 2.36 x 11.61 in (WxHxD)
  • Shipping weight: 2.7kg  /  5.95 lb
