The Ecler VIC6X is the VIC6 2-way ceiling speaker supplied with a plastic back can and tile bridge, and this listing is for a pair. Each speaker has a 6.5 inch polypropylene woofer, a steerable 0.5 inch tweeter and a 70V/100V transformer with taps up to 40W plus an 8 ohm setting. The enclosed back can makes it the choice for suspended ceilings in offices, retail, hotels and restaurants where the void is open or dusty.
6.5in + 0.5in
2-way
40W
Max 100V tap
166°
Conical coverage

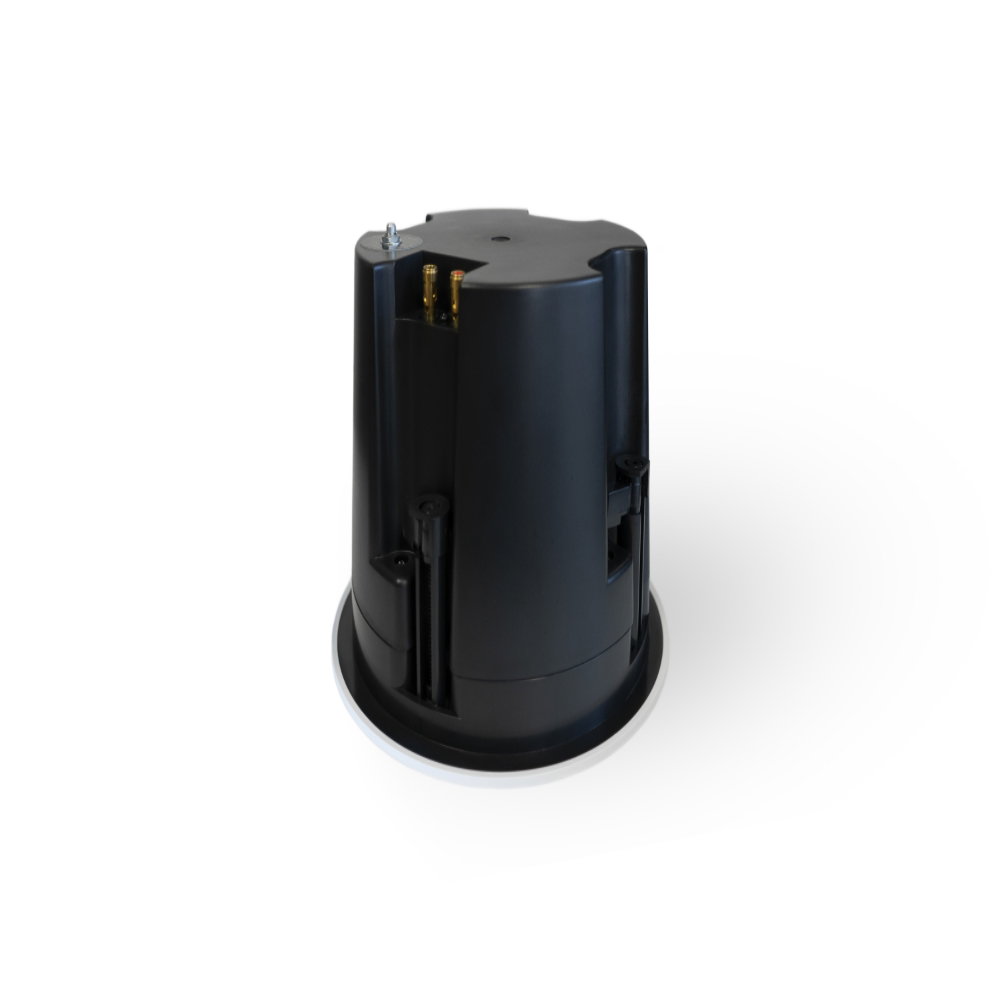

Back can
Plus tile bridge
Features
Supplied as a pair

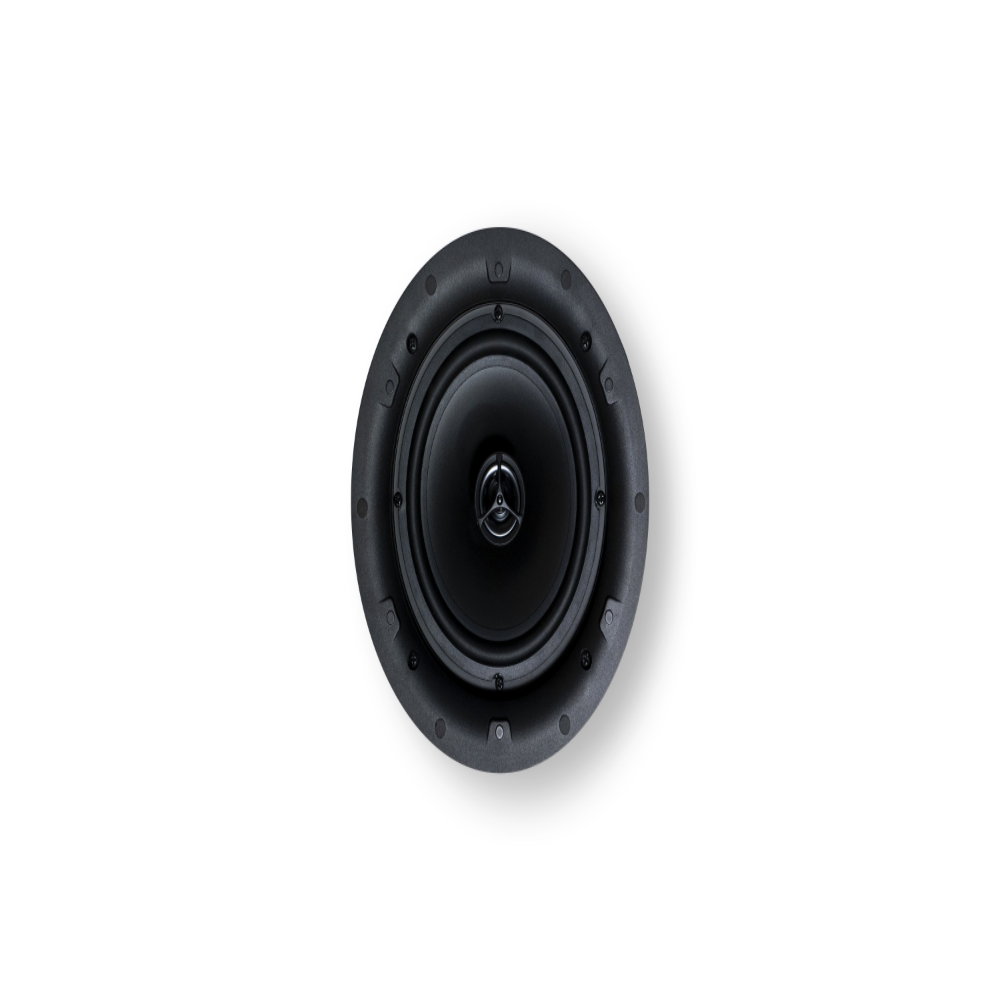

6.5 inch polypropylene woofer with steerable 0.5 inch tweeter
100V taps at 40W, 20W, 10W and 5W; 70V taps from 40W down to 2.5W
8 ohm low-impedance setting, 40W RMS

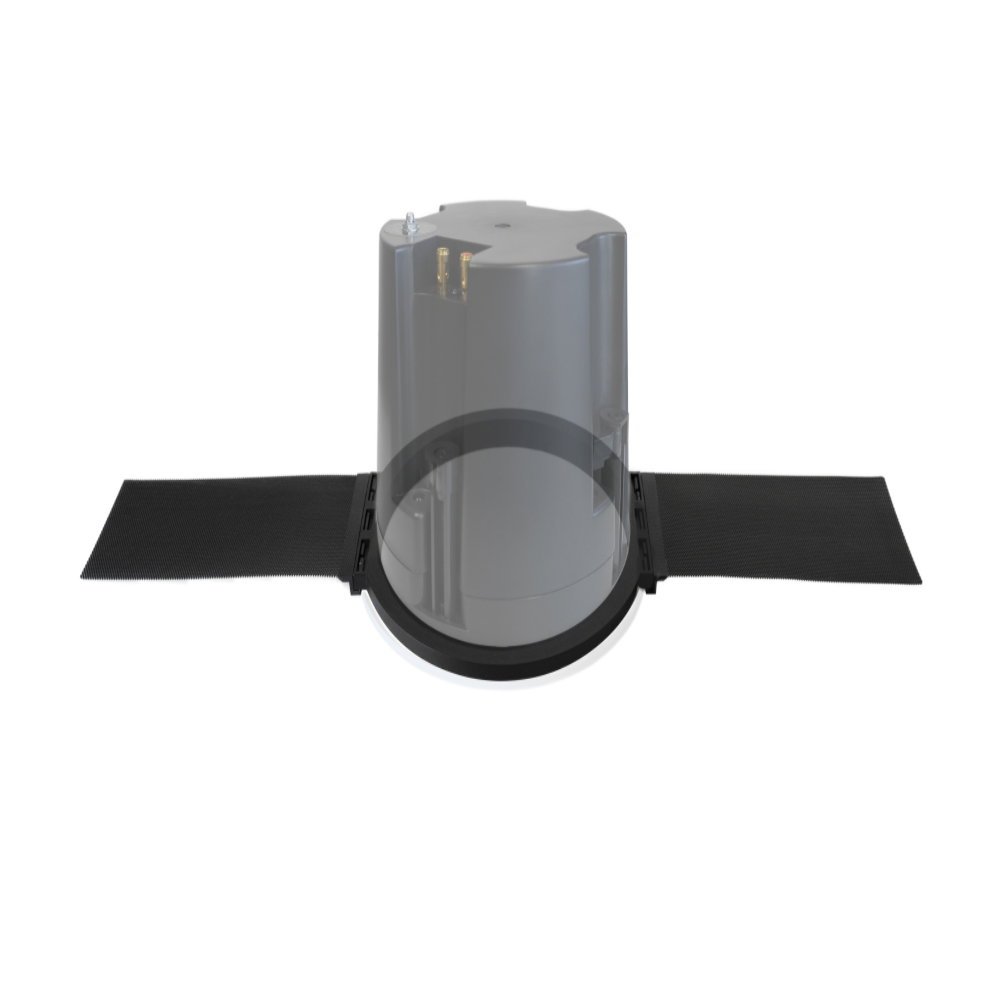

Plastic back can and tile bridge included for suspended ceilings

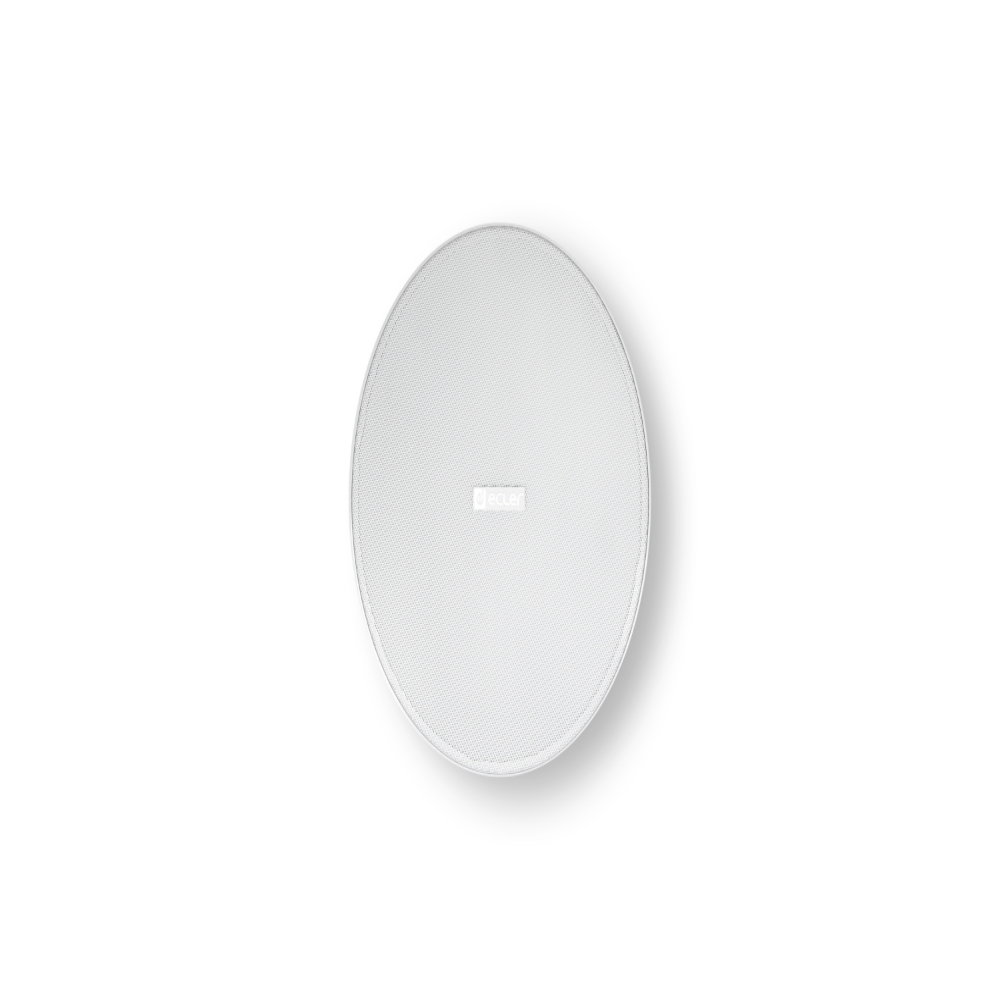

Magnetic, paintable metal alloy grille
IPX4 rated
White finish (RAL 9010)
Specifications
| Frequency range | 85 Hz to 20 kHz (-10 dB) |
| Coverage | 166° conical |
| Power handling | 40W RMS, 160W peak (8 ohms) |
| Sensitivity | 91 dB (1W/1m) |
| Maximum SPL | 107 dB continuous, 113 dB peak |
| 100V taps | 40W, 20W, 10W, 5W, 8 ohms |
| 70V taps | 40W, 20W, 10W, 5W, 2.5W, 8 ohms |
| Recommended amplifier | 80W RMS (8 ohm use) |
| Drivers | 6.5 in woofer, 0.5 in steerable tweeter |
| Environmental | IPX4 |
| Outer diameter | 232 mm |
| Cut-out diameter | 206 mm |
| Depth required | 170 mm |
| Ceiling thickness | 10 to 50 mm |
| Weight | 2.3 kg |
| Included | Back can and tile bridge |
| Operating temperature | -20°C to 70°C |
| Colour | White (RAL 9010) |
| Quantity | 2 speakers |
