Ecler VIC8X Premium 8" Ceiling Speaker with Back Can and Bridge 100V White Grille (Pair)

Product code: 195145

£414.00 inc VAT
£345.00 ex VAT

SKU: ECL0050

2 in stock

2 available online
FREE delivery by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
1 Year Manufacturer Warranty Included

About this Product

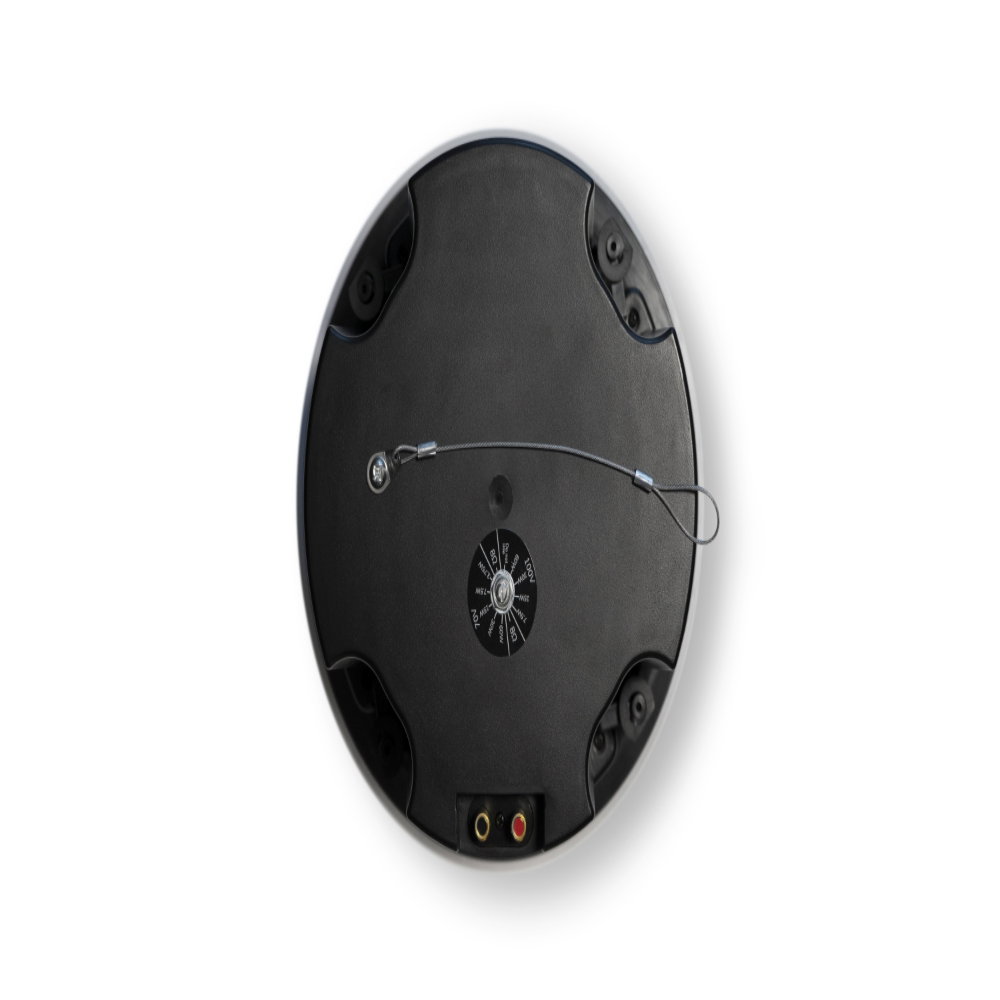

Connection: 100V line (taps 60 / 30 / 15 / 7.5W) or low impedance (8Ω).

The Ecler VIC8X is the VIC8 2-way ceiling speaker supplied with a plastic back can and tile bridge, and this listing is for a pair. Each speaker has an 8 inch polypropylene woofer, a steerable 0.5 inch tweeter and a 70V/100V transformer with taps up to 60W plus an 8 ohm setting. It is intended for suspended ceilings in restaurants, function rooms, retail, gyms and offices that need an enclosed speaker.

8in + 0.5in
2-way
60W
Max 100V tap
163°
Conical coverage
Back can
Plus tile bridge

Features

Supplied as a pair

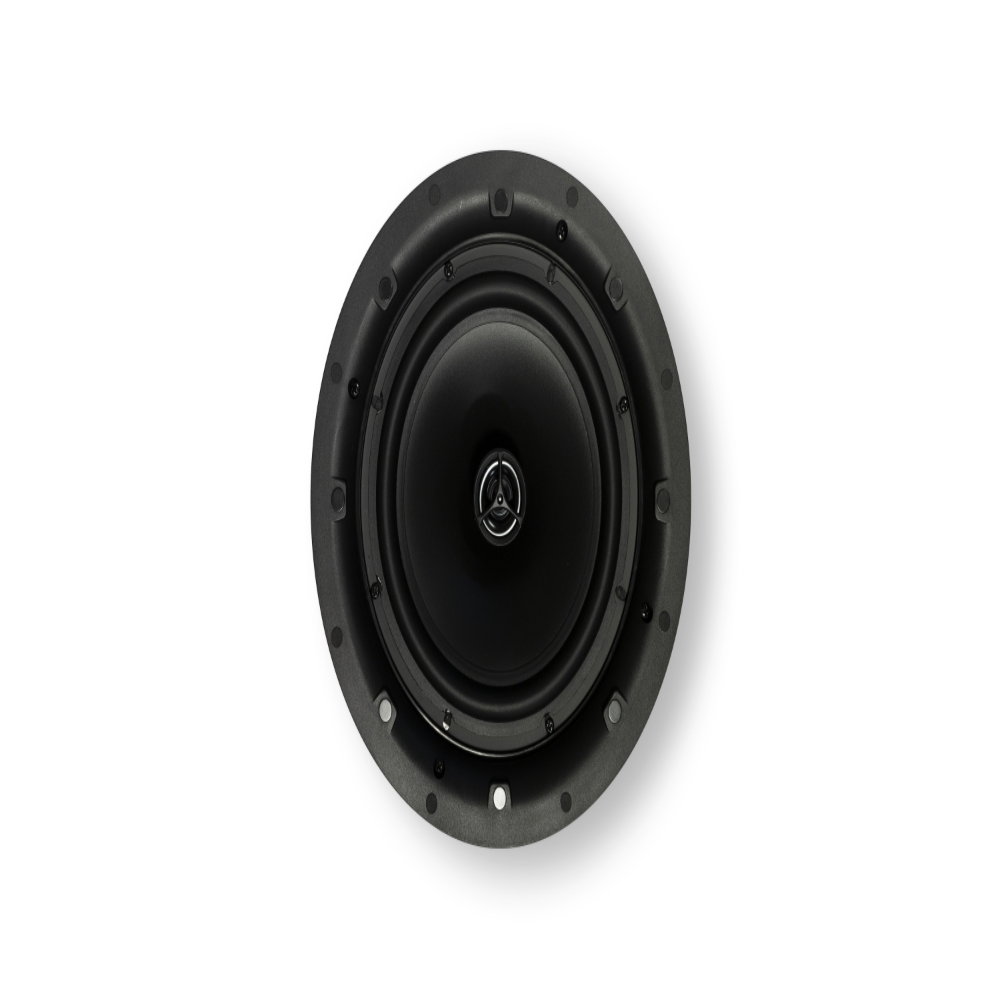

8 inch polypropylene woofer with steerable 0.5 inch tweeter
100V taps at 60W, 30W, 15W and 7.5W; 70V taps from 60W down to 3.75W
8 ohm low-impedance setting, 60W RMS

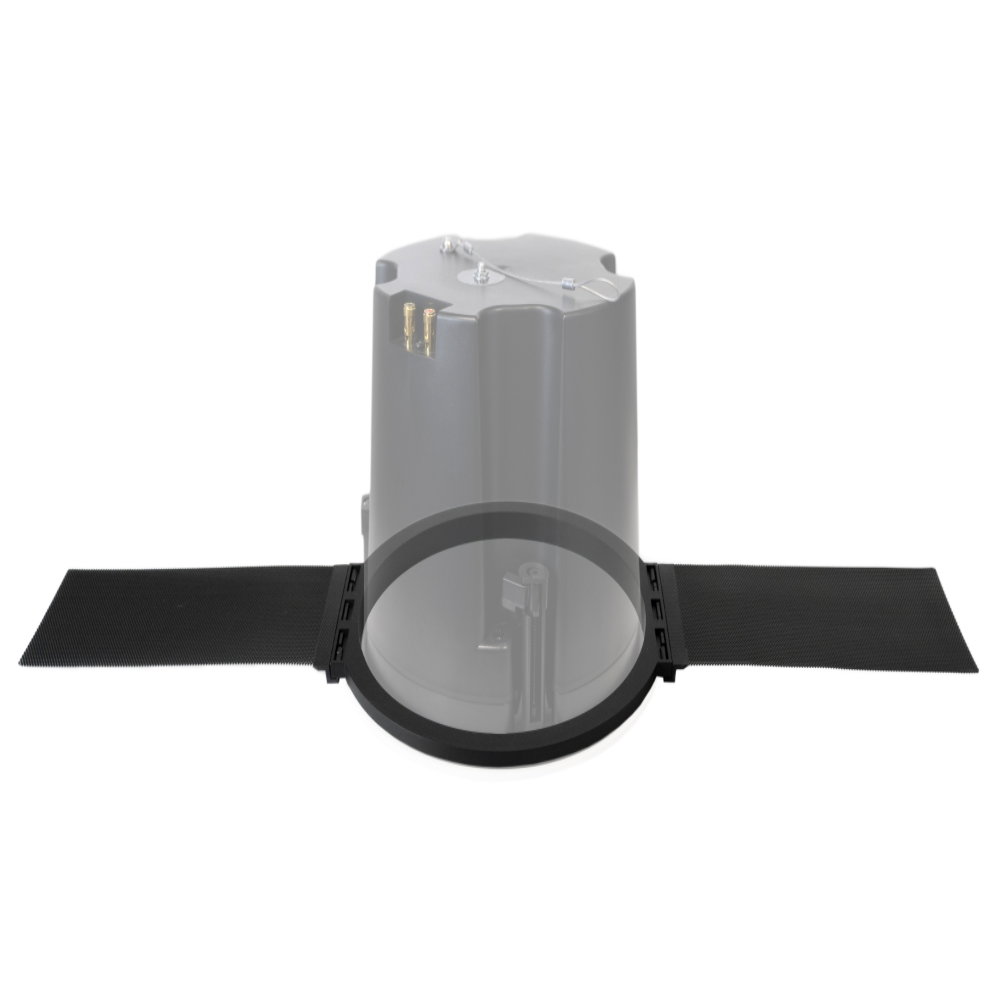

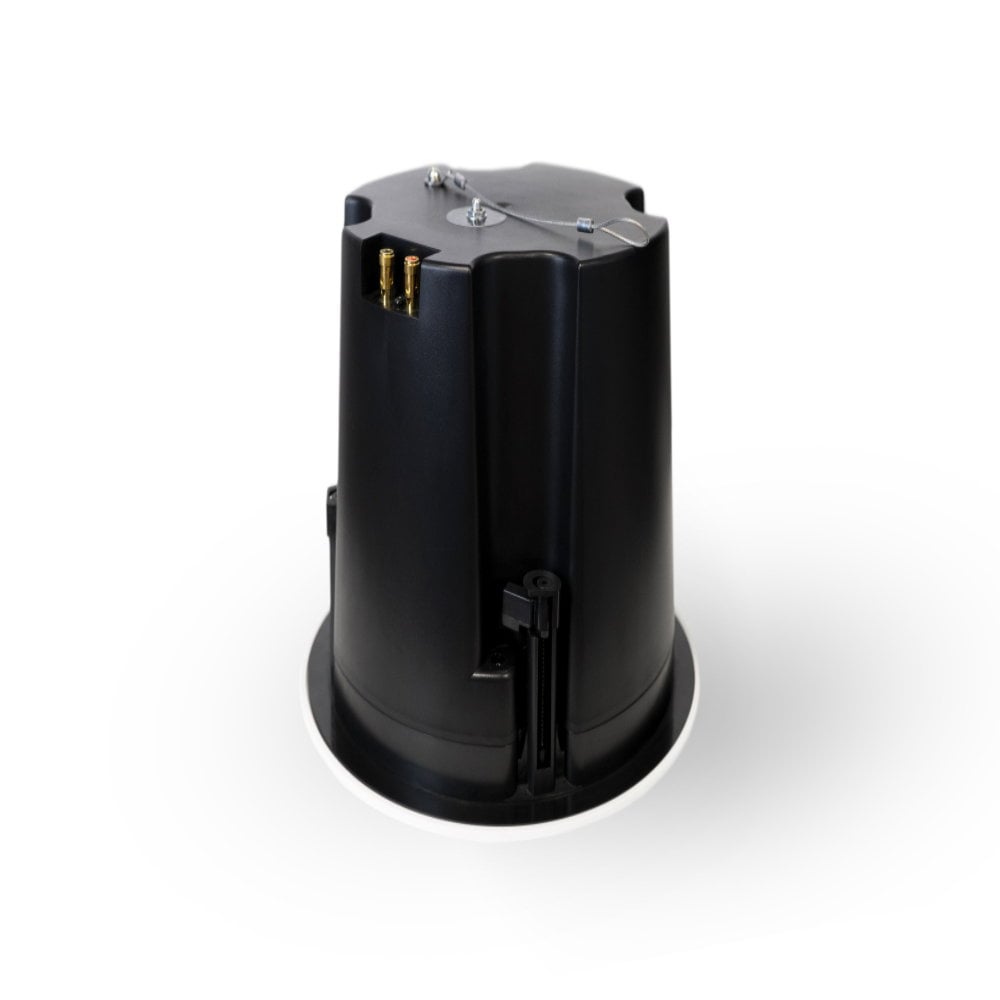

Plastic back can and tile bridge included for suspended ceilings

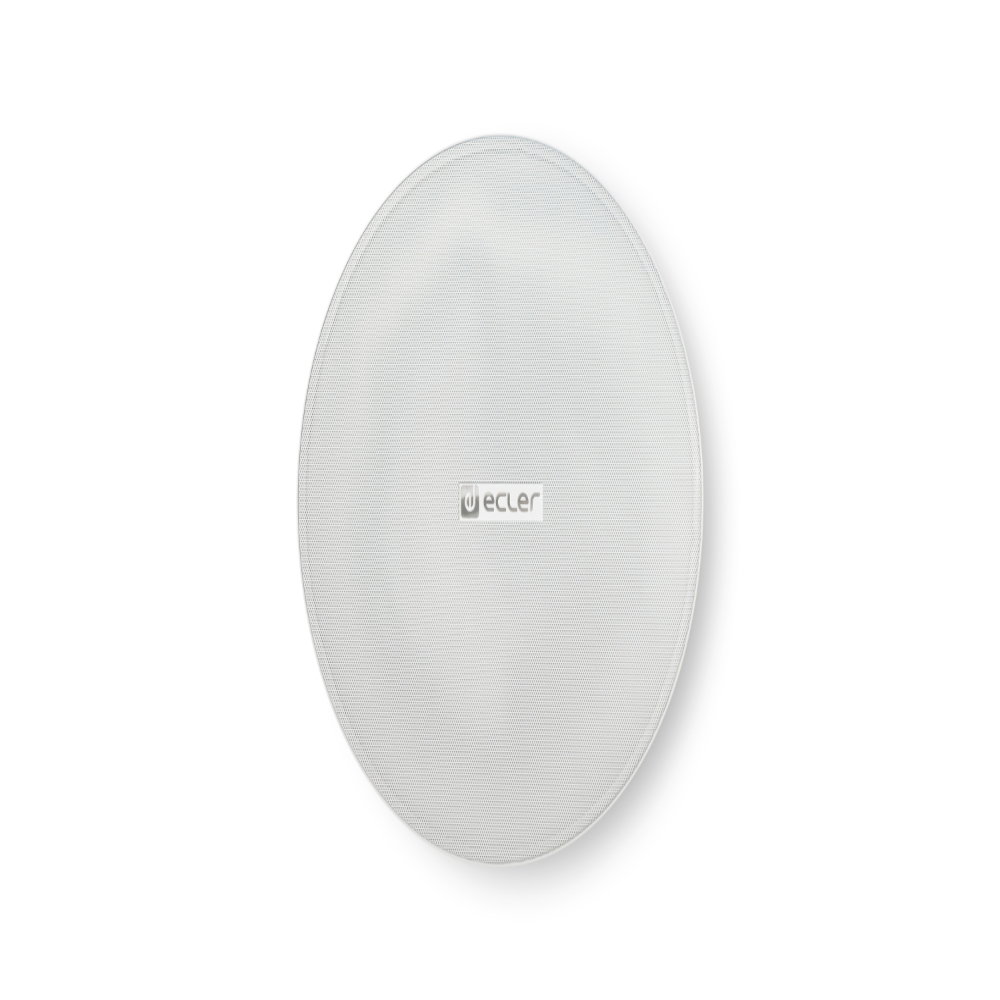

Magnetic, paintable metal alloy grille
IPX4 rated
White finish (RAL 9010)

Specifications

Ecler VIC8X Premium 8″ Ceiling Speaker with Back Can and Bridge 100V White Grille (Pair) specifications
Frequency range 75 Hz to 20 kHz (-10 dB)
Coverage 163° conical
Power handling 60W RMS, 240W peak (8 ohms)
Sensitivity 93 dB (1W/1m)
Maximum SPL 111 dB continuous, 117 dB peak
100V taps 60W, 30W, 15W, 7.5W, 8 ohms
70V taps 60W, 30W, 15W, 7.5W, 3.75W, 8 ohms
Recommended amplifier 120W RMS (8 ohm use)
Drivers 8 in woofer, 0.5 in steerable tweeter
Environmental IPX4
Outer diameter 282 mm
Cut-out diameter 246 mm
Depth required 200 mm
Ceiling thickness 10 to 50 mm
Weight 3.1 kg
Included Back can and tile bridge
Operating temperature -20°C to 70°C
Colour White (RAL 9010)
Quantity 2 speakers

Full features

  • 2-way false ceiling loudspeaker
  • 8” polypropylene woofer
  • 0,5” steerable tweeter
  • Output 60WRMS @ 8 ohm
  • 100V/70V line power selector: 60 / 30 / 15 / 7,5 / 3,75W
  • Sensitivity (1W/1m): 93dB SPL
  • Paintable magnetic metal alloy grille
  • Plastic back cover (back can) included
  • Includes tile bridge anchors for false ceiling mounting
  • Dimensions (ØxD): 282x200mm
  • Available in white (RAL9010) finish
  • Weight: 3.1kg

System

  • Effective Freq. Range: 75Hz-20kHz (-10dB)
  • Coverage angle / Dispersion: 163° conical
  • Power handling: 60W RMS / 240W Peak
  • Sensitivity: 93dB (1W/1m)
  • Maximum SPL: 111dB continuous / 117dB peak
  • Power options (Hi Z Multi-tap): 100: 60W / 30W / 15W / 7,5W / 8Ω
    70: 60W / 30W / 15W / 7,5W / 3,75W / 8Ω
  • Recommended amplifier power: 120W RMS

Transducers

  • Ways: 2 ways
  • Low frequency driver: 8" woofer
  • High frequency driver: 0,5" steerable tweeter
  • Nominal impedance: 8Ω

Physical

  • Installation options: Ceiling
  • Environmental: IPX4 rated
  • Grille material: Magnetic, paintable metal alloy
  • Operating temperature: Min: -20°C ; -4°F
    Max: 70°C ; 158°F
  • Operating humidity: <85% HR
  • Storage temperature: Min: -20°C ; -4°F
    Max: 70°C ; 158°F
  • Storage humidity: <90% HR
  • External diameter: 282mm / 11.10"
  • Internal diameter: 245mm / 9.64"
  • Recommended cut out diameter: 246mm/ 9.69"
  • Required depth: 200mm / 7.9"
  • Ceiling thickness: 10mm / 0.39" min
    50mm / 1.97" max
  • Included accessories: Back-can and tile bridge
  • Finished colour: White (RAL 9010)
  • Dimensions: 282 x 200mm / 11.1 x 7.9 in. (ØxD)
  • Weight: 3.1kg / 6.8 lb
  • Pieces per box: Pair
  • Shipping dimensions: 300 x 240 x 585mm / 11.81 x 9.45 x 23.03 in. (WxHxD)
  • Shipping weight: 7.0kg / 15.43 lb
