Elumen8 Meteor 784 IP65 RGB Pixel LED Batten (ELUM056)

SKU: ELUM056
Elumen8 Meteor 784 IP65 RGB Pixel LED Batten (ELUM056)
Elumen8 Meteor 784 IP65 RGB Pixel LED Batten (ELUM056)
Elumen8 Meteor 784 IP65 RGB Pixel LED Batten (ELUM056)
Elumen8 Meteor 784 IP65 RGB Pixel LED Batten (ELUM056)
Elumen8 Meteor 784 IP65 RGB Pixel LED Batten (ELUM056)
Elumen8 Meteor 784 IP65 RGB Pixel LED Batten (ELUM056)
Elumen8 Meteor 784 IP65 RGB Pixel LED Batten (ELUM056)
Elumen8 Meteor 784 IP65 RGB Pixel LED Batten (ELUM056)
Elumen8 Meteor 784 IP65 RGB Pixel LED Batten (ELUM056)
Elumen8 Meteor 784 IP65 RGB Pixel LED Batten (ELUM056)
Elumen8 Meteor 784 IP65 RGB Pixel LED Batten (ELUM056)
Elumen8 Meteor 784 IP65 RGB Pixel LED Batten (ELUM056)
Elumen8 Meteor 784 IP65 RGB Pixel LED Batten (ELUM056)
Elumen8 Meteor 784 IP65 RGB Pixel LED Batten (ELUM056)
Elumen8 Meteor 784 IP65 RGB Pixel LED Batten (ELUM056)
Elumen8 Meteor 784 IP65 RGB Pixel LED Batten (ELUM056)
Elumen8 Meteor 784 IP65 RGB Pixel LED Batten (ELUM056)
Click to enlarge

    £893.00 inc VAT
    £744.17 ex VAT

    31 available
    Order in 6h 29m 24s for FREE delivery by WednesdayClick & Collect available Tue 1st Sep from us in London ›
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    1 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp
    Optional Add-Ons
    Global Truss Narrow Half Coupler Silver (812) Narrow Half Coupler Silver
    £6.00 inc VAT
    £5.00 ex VAT
    Add to basket
    Global Truss Narrow Half Coupler Black (812-B) Narrow Half Coupler Black
    £6.00 inc VAT
    £5.00 ex VAT
    Add to basket
    Global Truss Half Coupler 750kg Silver (8121) Half Coupler 750kg
    £14.00 inc VAT
    £11.67 ex VAT
    Add to basket
    Global Truss Coupler with Eye Nut Silver (5033) Coupler with Eye Nut
    £14.00 inc VAT
    £11.67 ex VAT
    Add to basket
    Equinox 30cm PVC Coated Safety Wire 50kg 30cm Safety Wire 50kg
    £3.00 inc VAT
    £2.50 ex VAT
    Add to basket
    Equinox 75cm PVC Coated Safety Wire 50kg 75cm Safety Wire 50kg
    £3.00 inc VAT
    £2.50 ex VAT
    Add to basket

    About this Product

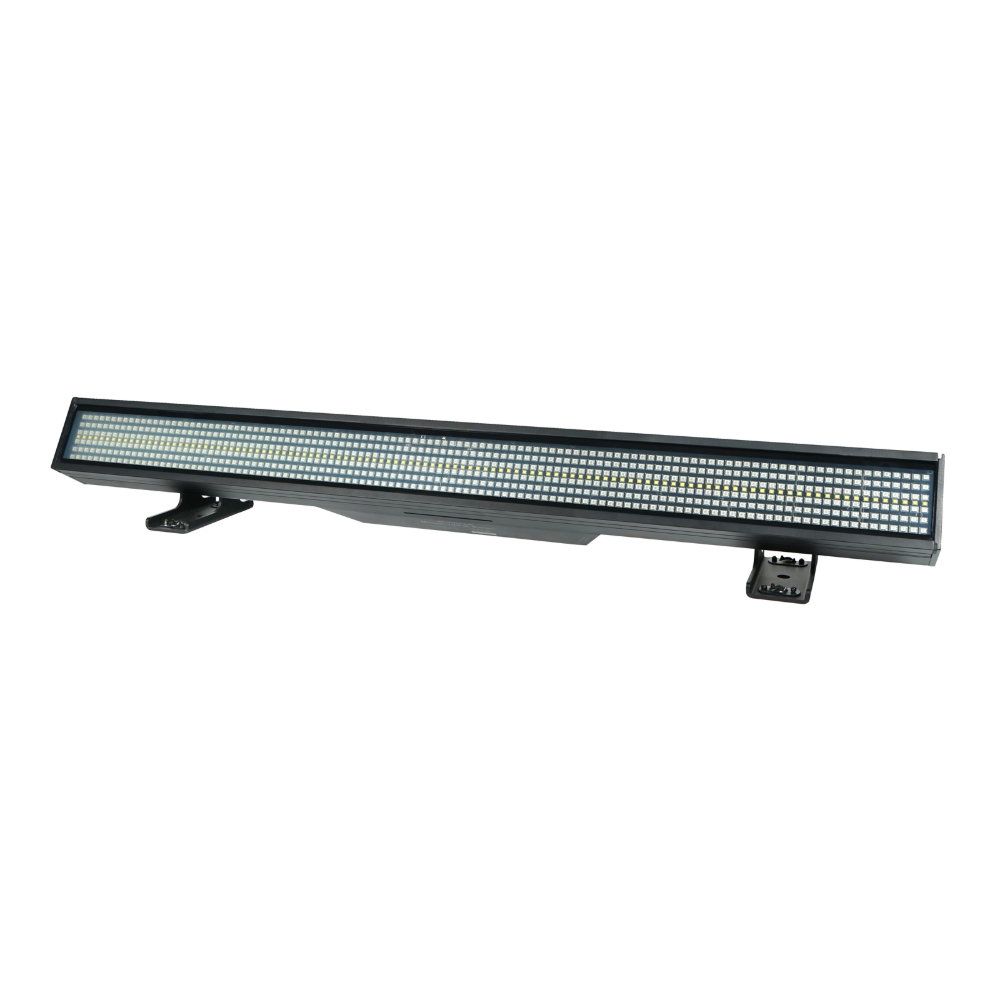

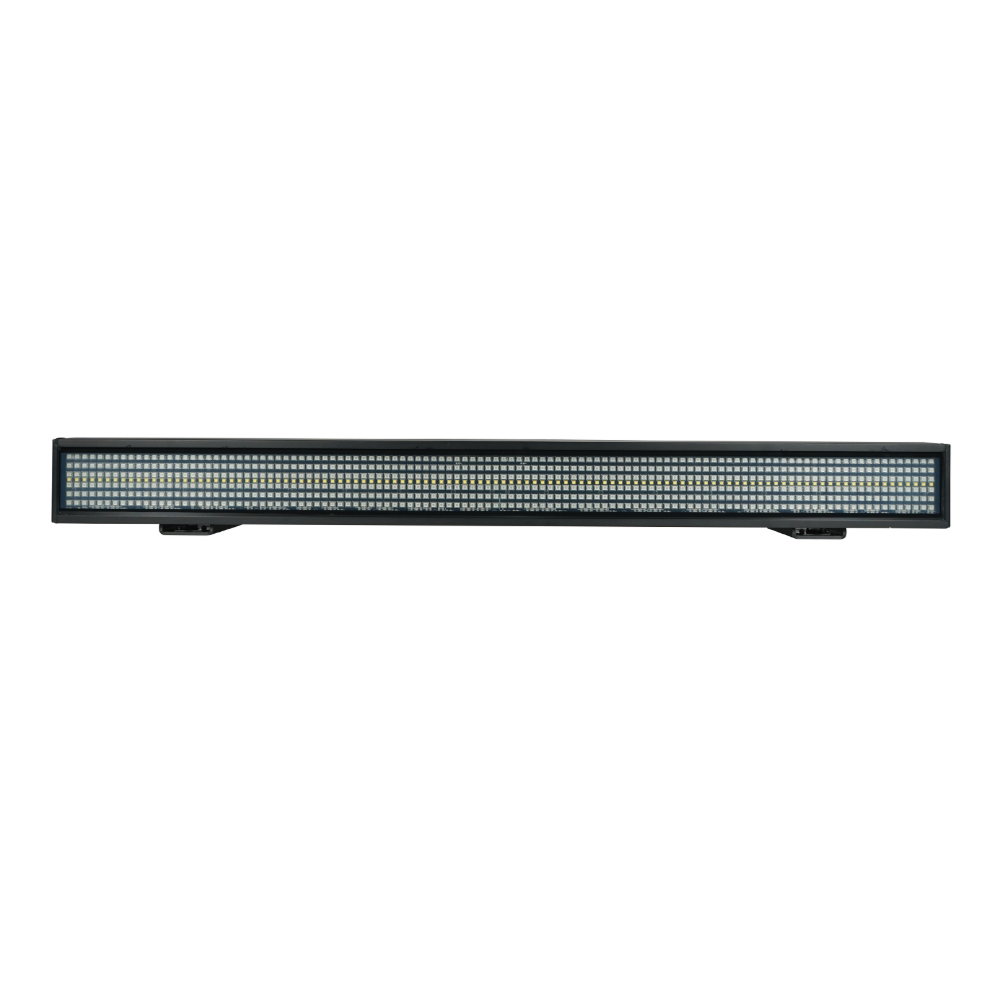

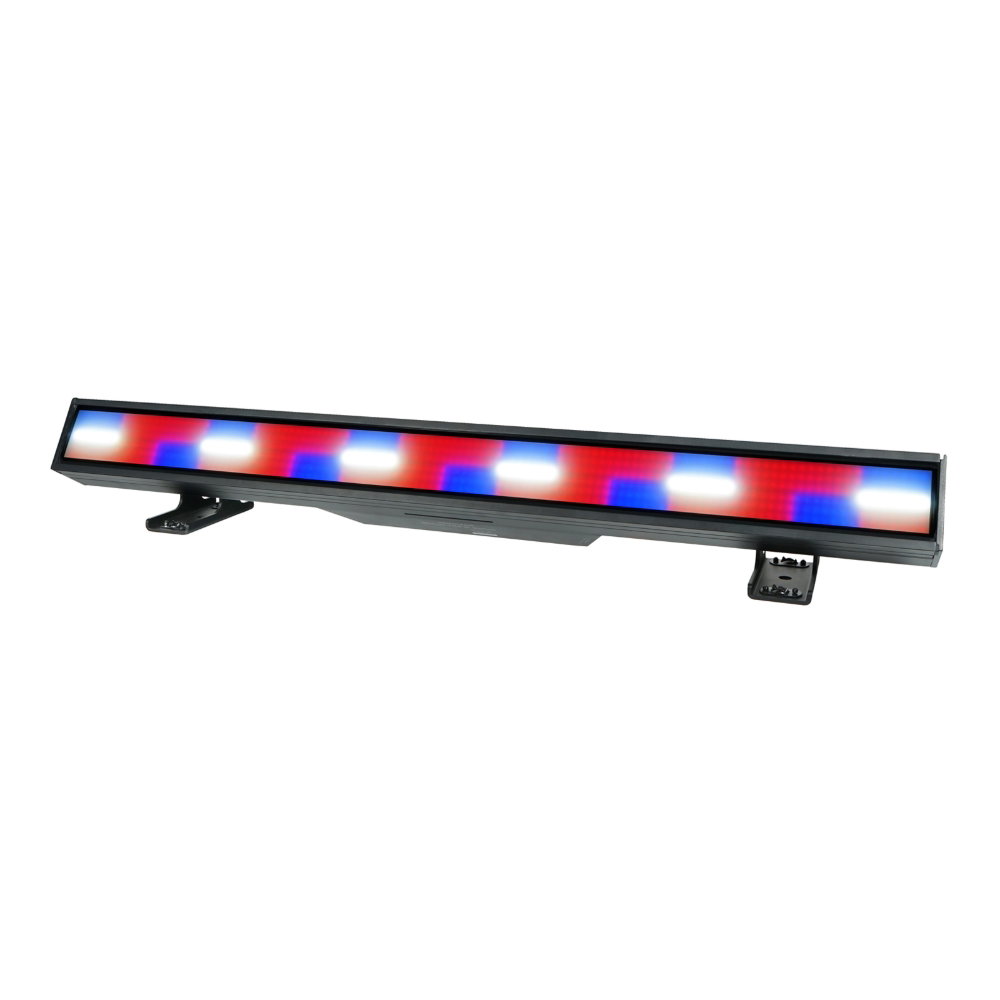

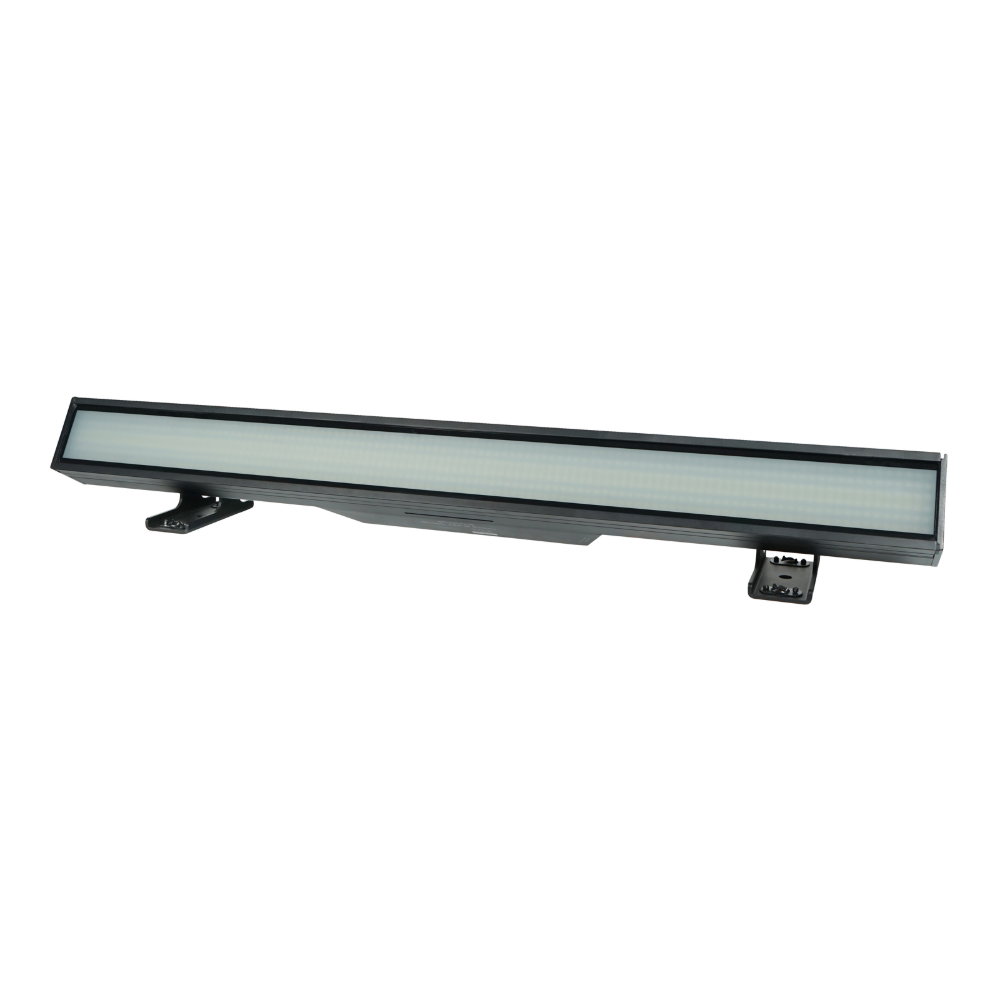

    The Elumen8 Meteor 784 IP is an IP65-rated LED batten that pairs a central cool-white SMD strobe strip with flanking RGB colour-mixing pixels for both intense white bursts and multi-zone colour chases. With a wide beam and tool-free twist-lock joining, it is built for concert and festival stages, touring rigs and permanent outdoor installations.

    784
    LEDs · 672 RGB + 112 CW
    420W
    Power · consumption
    IP65
    IP Rating · indoor + outdoor
    5.9kg
    Weight · per unit
    Features
    672 x 1.5W RGB SMD LEDs plus 112 x 3W cool white SMD LEDs

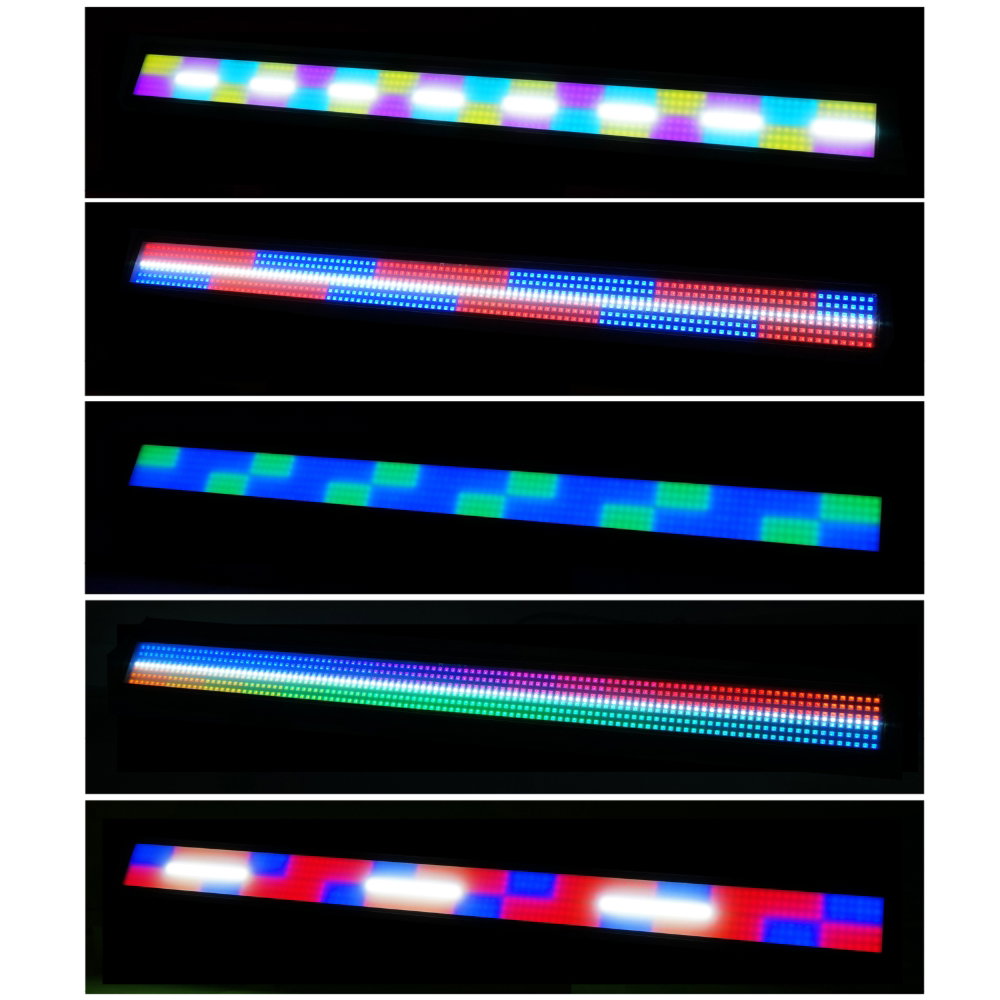

    32 RGB and 16 CW pixel zones, each controlled individually

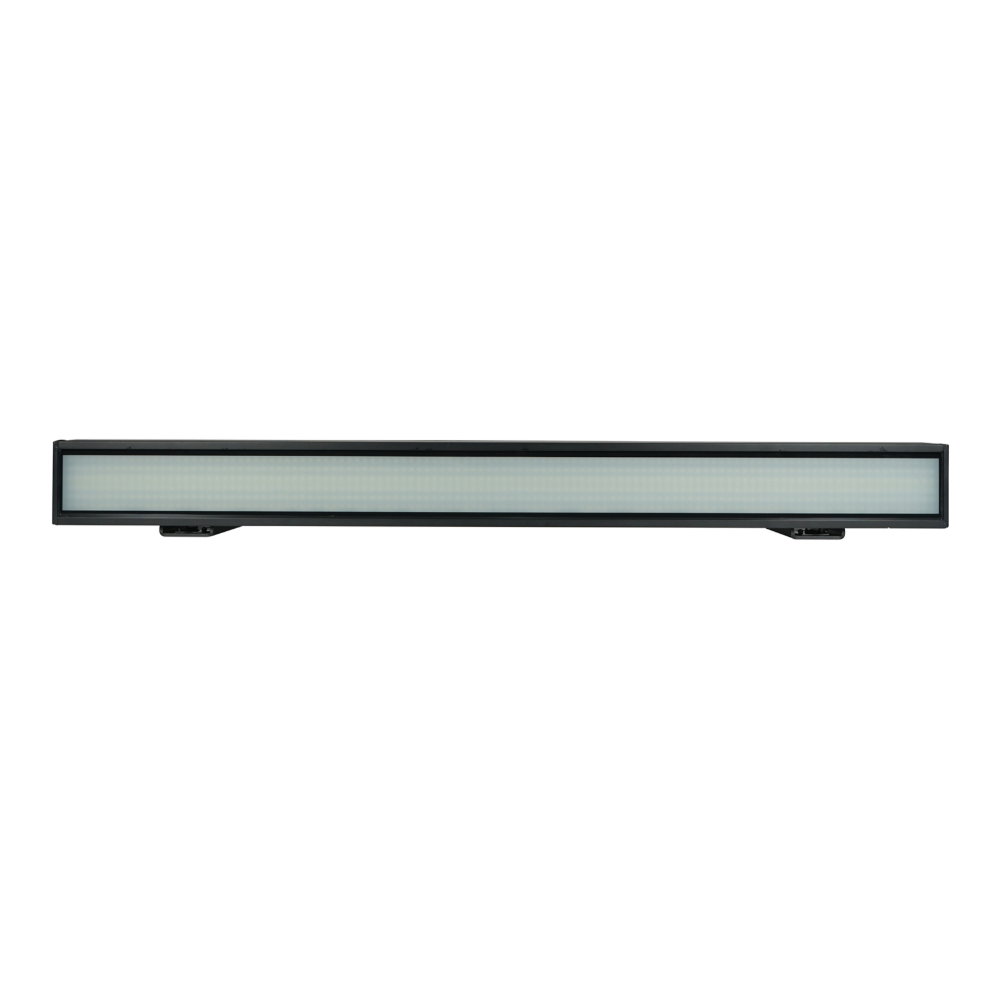

    Intelligent glass switches clear to frost on a DMX channel, no frost filters needed
    DMX, Art-Net and sACN control protocols
    powerCON TRUE1 and IP-rated 5-pin XLR in/out for daisy-chaining
    Tool-free twist-lock joining keeps multiple units in line seamlessly
    0-100% dimming with four curves plus variable strobe

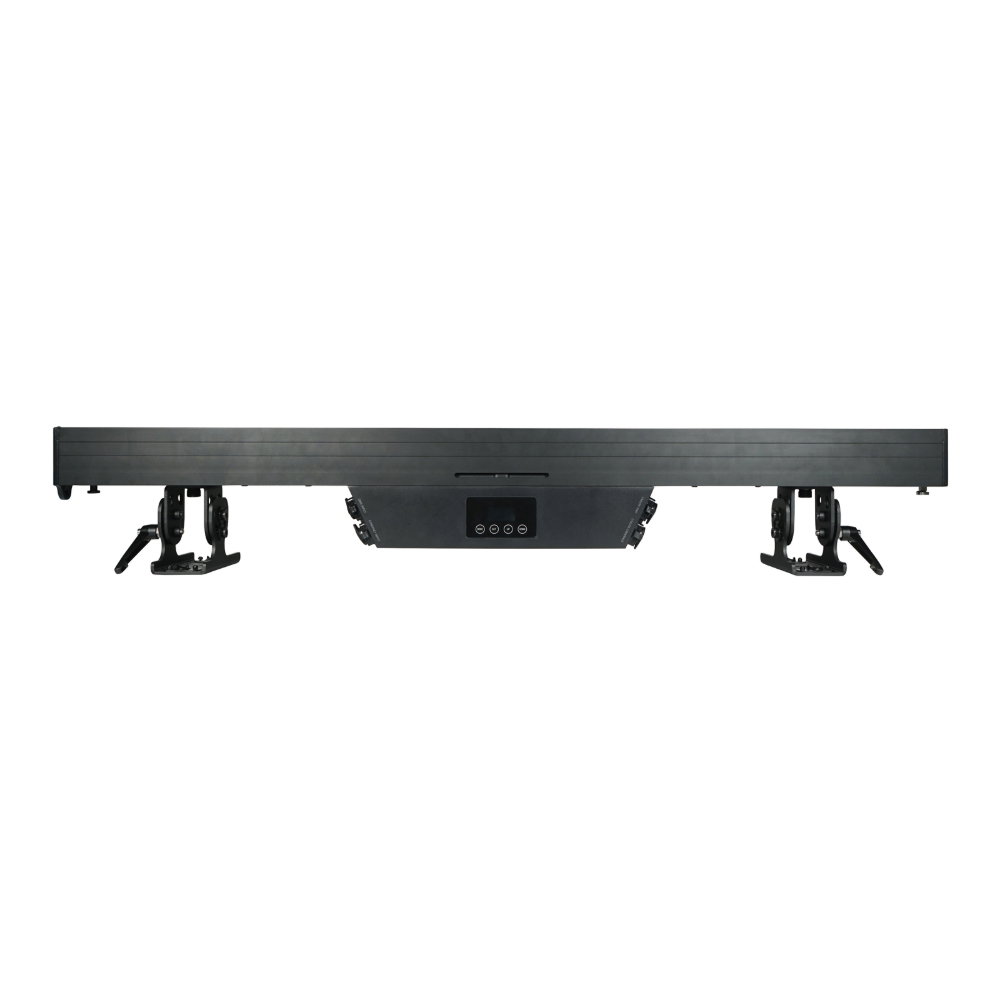

    4-button OLED menu and quick-release omega clamps included

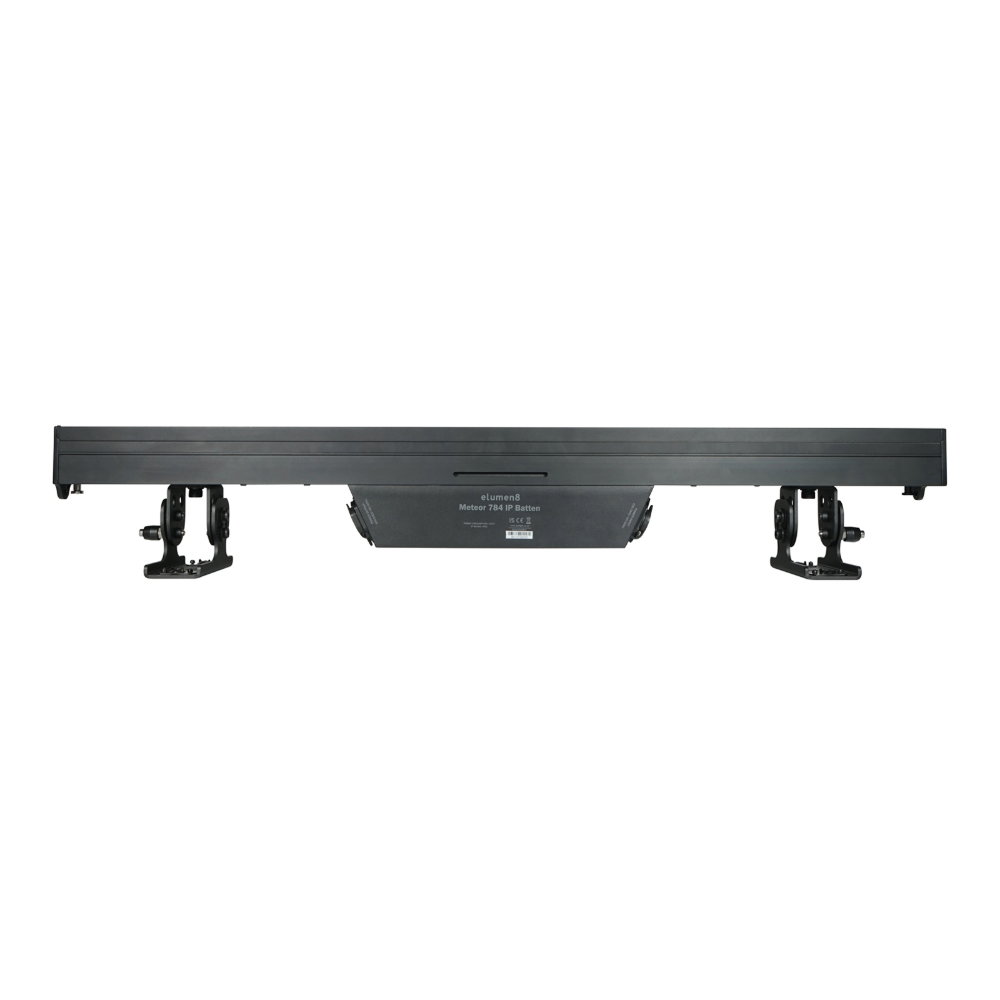

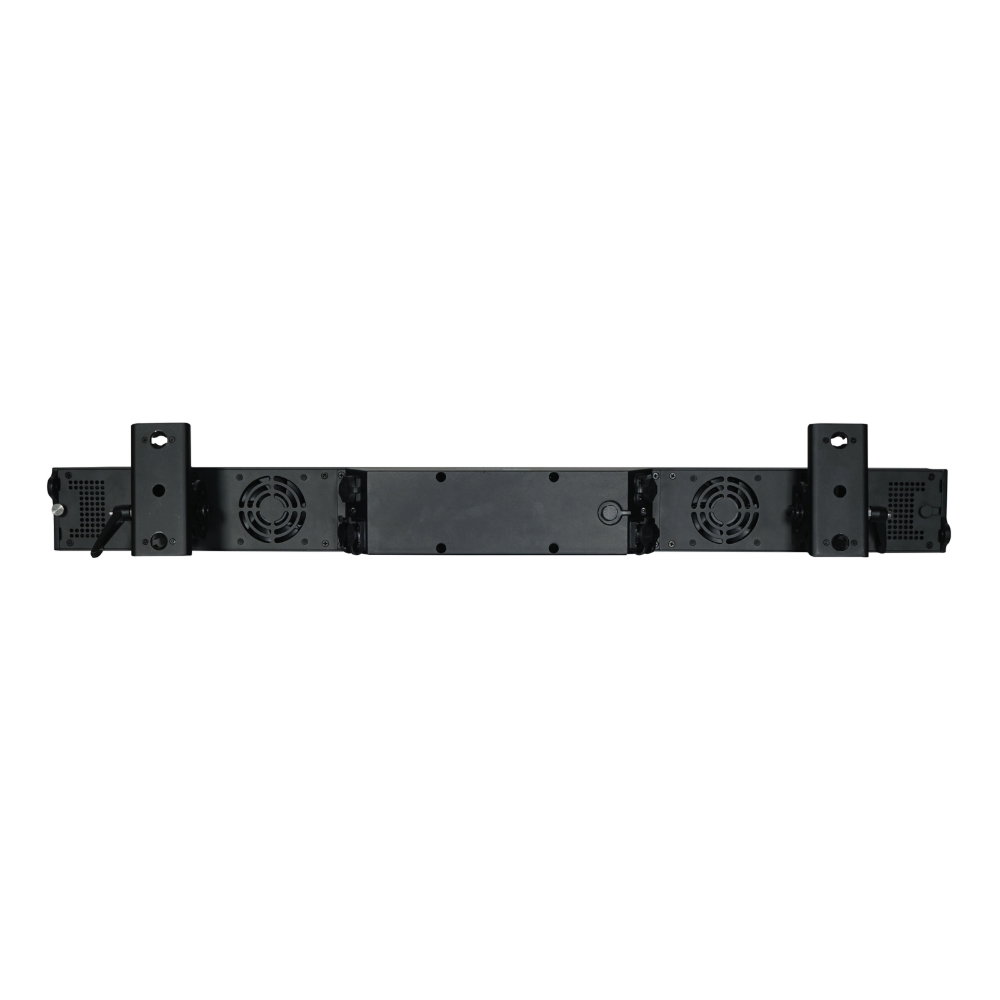

    IP65 housing, fan cooled, supplied with installation brackets
    Specifications
    Brand Elumen8
    LEDs 672 x 1.5W RGB SMD + 112 x 3W cool white SMD
    RGB beam angle 101° (field 149°)
    CW beam angle 108° (field 152°)
    Pixel zones 32 RGB + 16 CW, individually controllable
    Control DMX, Art-Net, sACN
    DMX channels 7 to 121, selectable
    Power consumption 420W
    Power supply 100-240V, 50/60Hz
    IP rating IP65
    Dimensions (H x W x D) 170 x 1000 x 140mm
    Weight 5.9kg
    Warranty 2 years

    Product Reviews

    No reviews yet — be the first to review this product.

    Bought this? It takes a minute.
    Review this product

    Reviews are checked by our team before they appear.

    More Information

    • 2 year warranty
    • 672 x 1.5W SMD LEDs (RGB) plus 112 x 3W SMD LEDs (CW)
    • RGB beam angle: 101° (field angle: 149°)
    • CW beam angle: 108° (field angle: 152°)
    • Pixel zone mapping: 32 x RGB LED zones and 16 x CW LED zones can be controlled individually

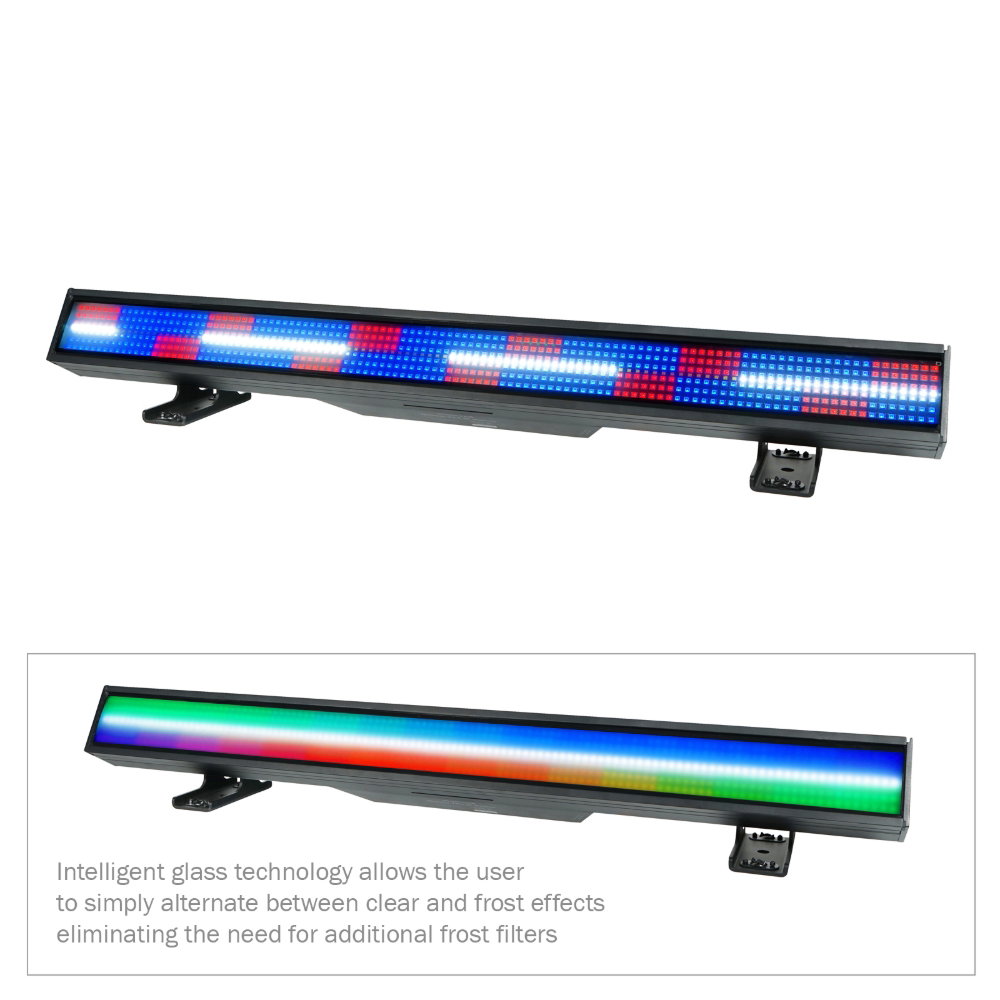

    • Intelligent glass technology allows the user to simply alternate between clear and frost effects eliminating the need for additional frost filters
    • Control protocols: DMX, Art-net and sACN
    • DMX channels: 7/15/17/21/33/39/65/68/70/112/117 or 121 selectable
    • 0 - 100% dimming
    • 4 dimming curves: Linear, square law, inverse square law and S-curve
    • Variable strobe
    • Supplied with installation brackets
    • Multiple units can be seamlessly jointed tool-free
    • 4 button menu with OLED display

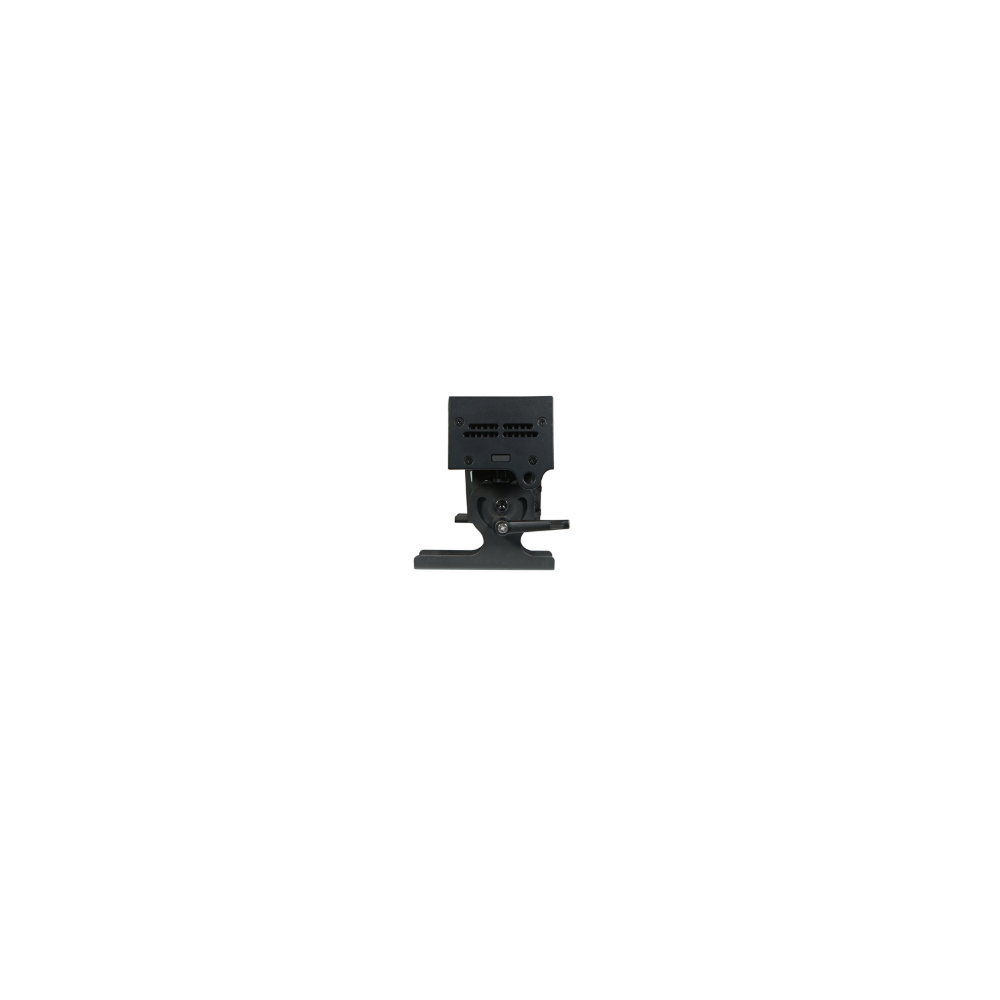

    • Bracket allows for multiple rigging or floor standing applications

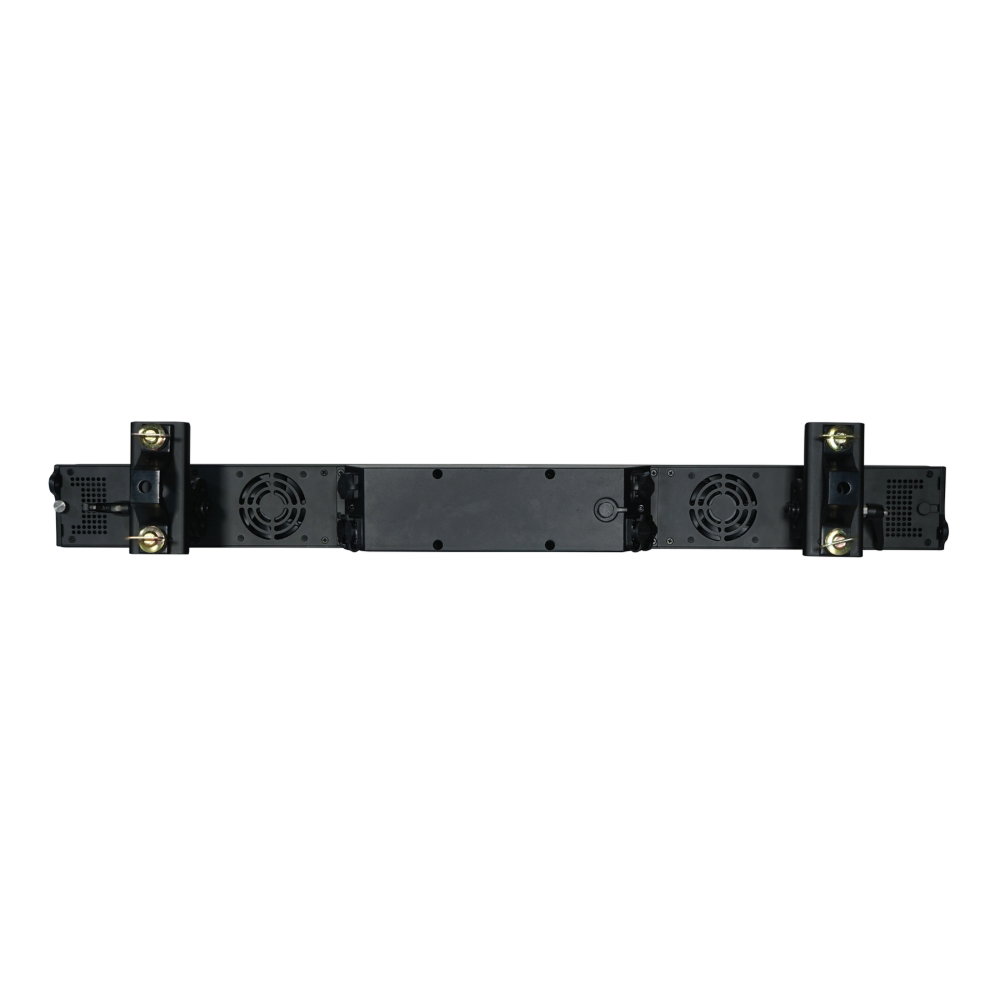

    • Quick release omega clamps included
    • powerCON TRUE1 input/output
    • IP rated 5-Pin XLR input/output

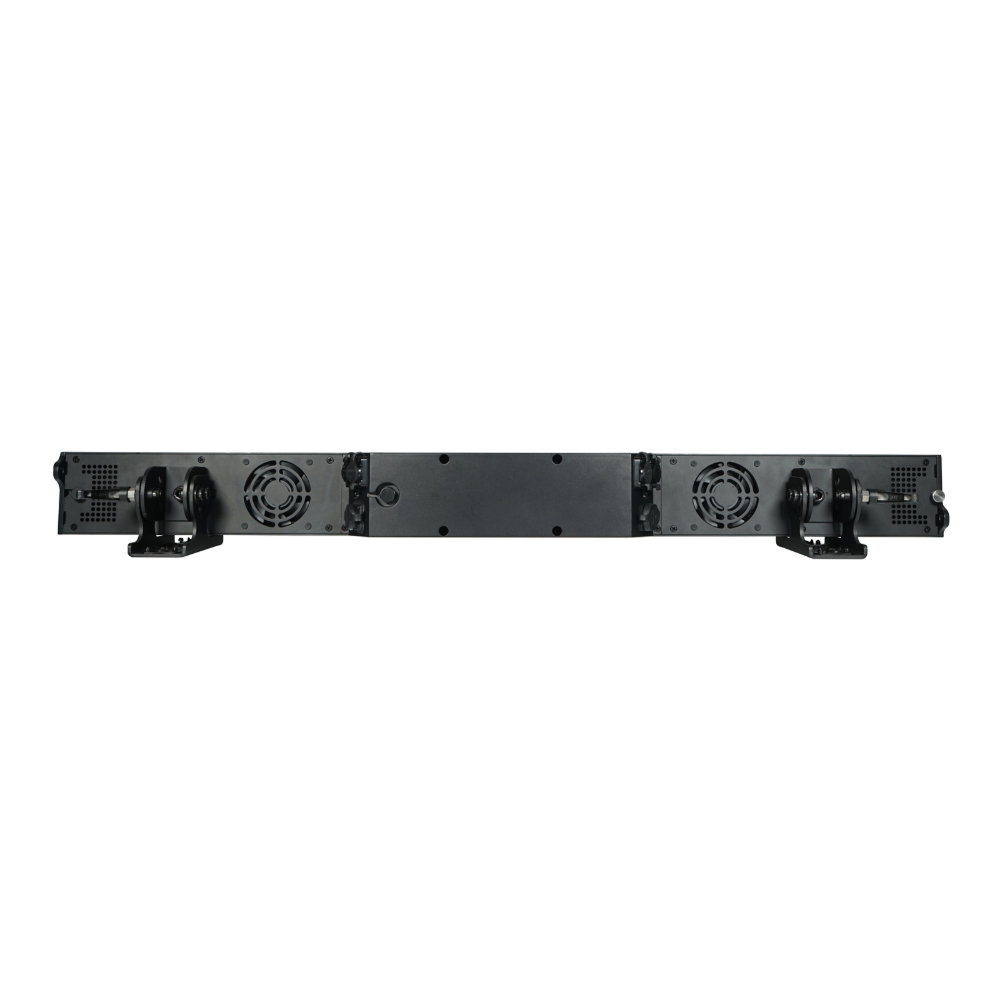

    • Fan cooled
