Formula Sound AVC4 Automatic Volume Control, 2x Stereo 1U

Product code: 187626

£1,064.00 inc VAT
£886.67 ex VAT

SKU: 079

4 in stock (more available subject to additional lead time)

4 available online
More available from supplier in 1–3 weeks
FREE delivery by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
1 Year Manufacturer Warranty Included
Optional Add-Ons

About this Product

The AVC4 is two AVC2s in a single 1U case, for venues that need to hold two stereo systems to their own limits, such as a main room and a bar, or a dance floor and a dining area. Each channel works exactly like an AVC2: it has no effect below its threshold and above it fades the output down in steps, working on average level so the music keeps its dynamics. Each stereo channel is set independently with its own two levels, and everything is sealed behind the supplied tamper-proof cover.

2 x stereo
Channels · Independent
8 steps
Attenuation · to -30 dB
2 levels
Per channel
1U
Rack · 4 kg

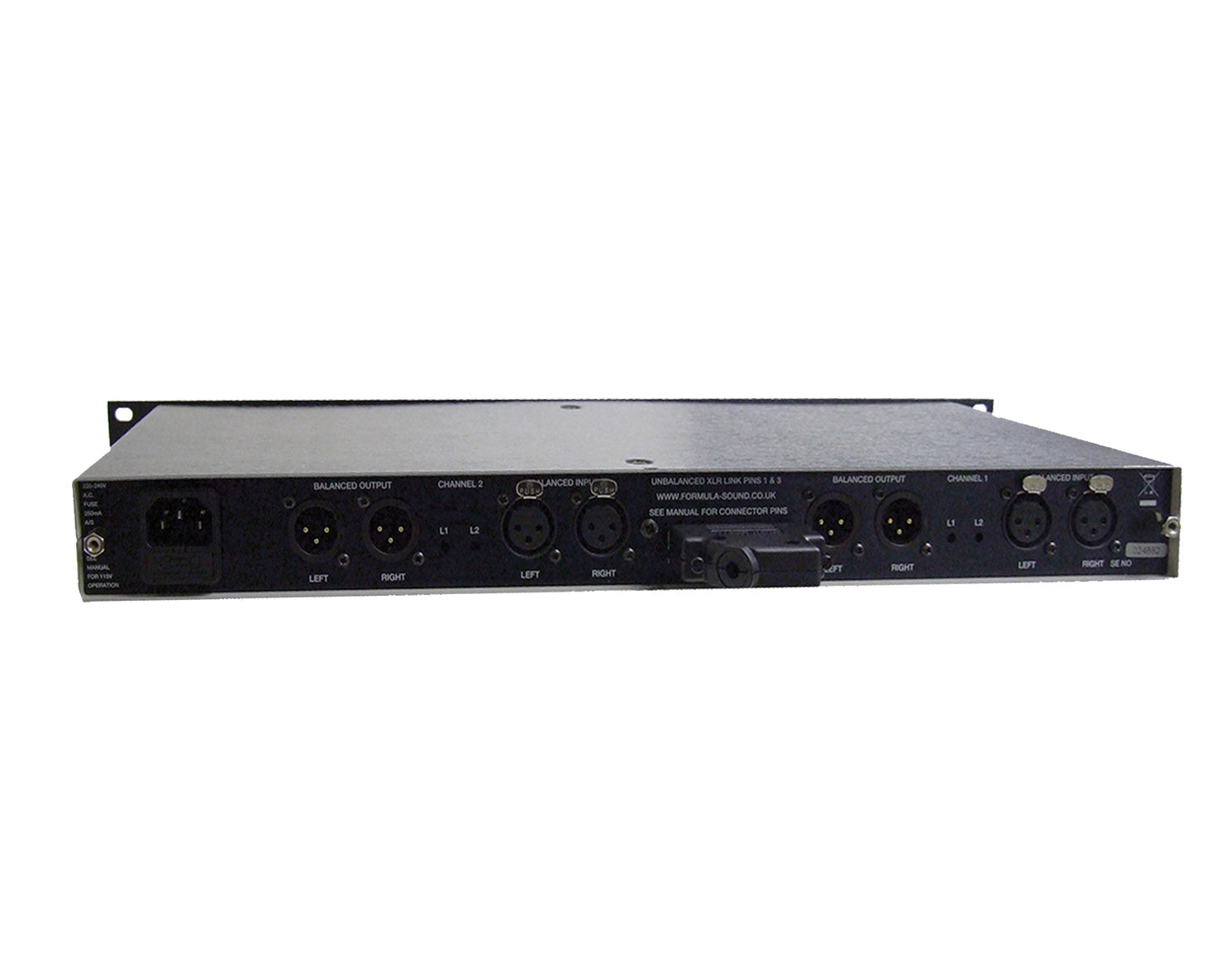

Secure the amplifiersAs with the AVC2, the amplifiers after the AVC4 need to be locked away or their controls secured. Control connections, including the fire alarm mute and remote display drives for two 075R displays, are on a single 25-way D connector; the mating half is supplied.

Features

Two independent stereo channels, each an AVC2 in its own right
Fades between 8 attenuation steps down to -30 dB on average level
Two output levels per channel, selected by switch or time switch
Linear, A-weighted or combined control chain
Per-channel mute (fire alarm), dim -20 dB, warning and clip LED outputs
Remote display drive per channel for the 075R
Single 25-way D connector for all control wiring
Tamper-proof cover supplied

Specifications

Formula Sound AVC4 Automatic Volume Control, 2x Stereo 1U specifications
Type Dual stereo automatic volume control, analogue
Attenuation 8 steps, -3 to -30 dB, per channel
Control weighting Linear, A or both
Audio connectors XLR in and out, electronically balanced
Input impedance 20 kOhm balanced, 10 kOhm unbalanced
Maximum input +22 dBu (clip LED at +20 dBu)
Output 100 Ohm source, 600 Ohm minimum load
Frequency response 20 Hz to 20 kHz
Noise (EIN) Below -90 dBu
Control connections 25-way D-sub (mating half supplied)
Power 240 V or 110 V AC (internal), IEC inlet
Dimensions (W x D x H) 482 x 200 x 44.5 mm, 1U
Weight 4 kg
In the box AVC4, tamper-proof cover, 25-way mating connector
Part number 079

Full features

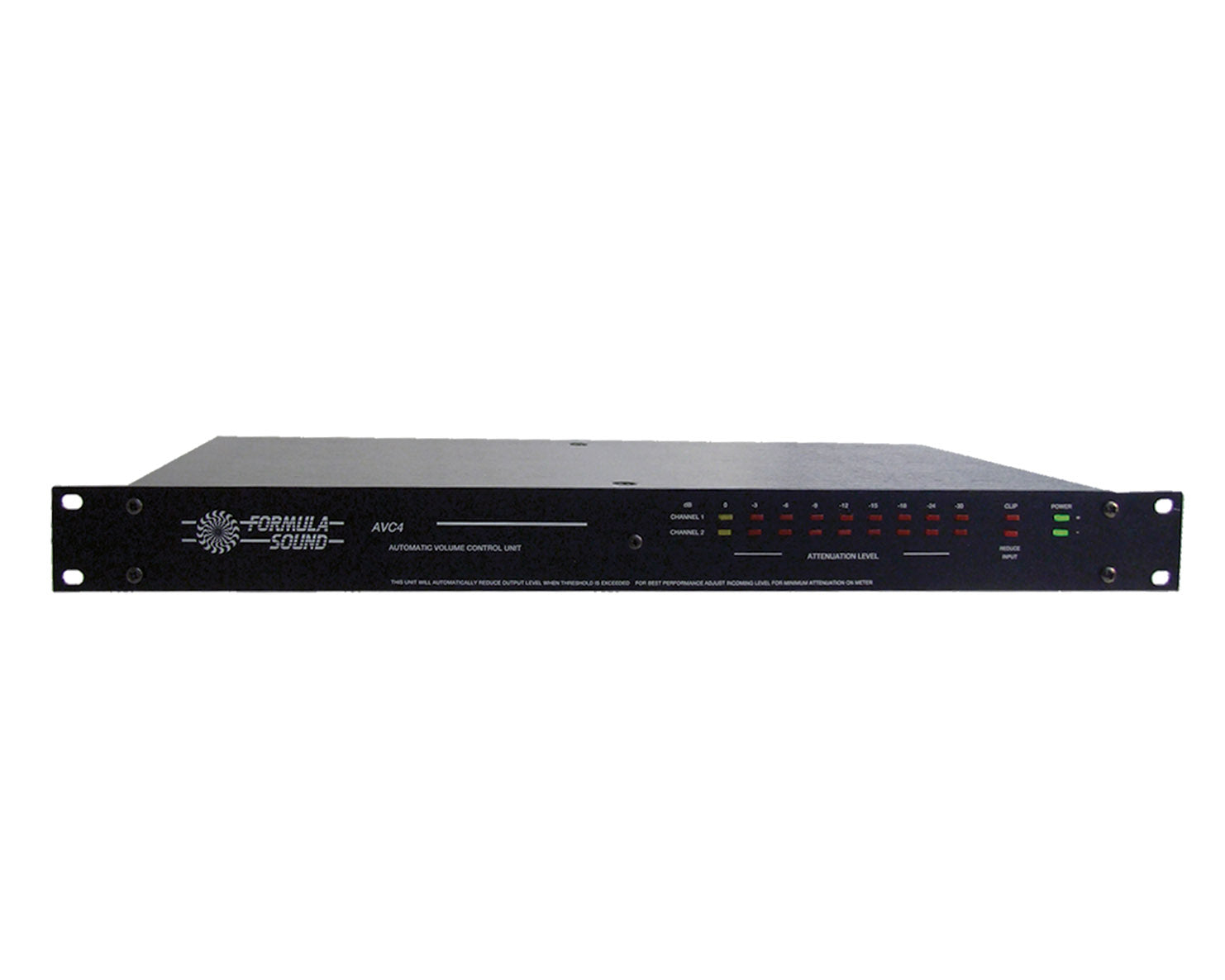

  • A row of 8 LEDs on the front panel show how much attenuation is being held
  • For added security, a panel fastens to the back panel and is supplied as standard
  • An analogue, stereo automatic volume controller
  • The AVC 4 will control the level of 2 stereo channels to a maximum set level
  • The AVC 4 is essentially a dual version of the AVC 2
  • Noise floor <-90db

Full specifications

General

  • Frequency Response: 20 Hz – 20 KHz, +/- 0.5dB
  • Operating threshold range
    • High range Average level adjustable: +5dBu to –2dBu
    • Low range Average level adjustable: -8dBu to –14dBu
  • Attenuator range: -3dB, –6dB, -9dB, -12dB, -15dB, -18dB, -24dB, -30dB
  • Control chain: Standard is combined Linear and A weighting but may be set to either Linear or A weighting.
  • Auxiliary connections 25 way D connector: Each stereo channel has Mute, Dim, Level 2 selection and also clip, warning and remote display drives. Power at +/- 18V is also available limited to 50mA max.
  • Power IEC mains connector:
    • 240V: Mains fuse 250mA anti-surge.
    • 110V: Mains fuse 500mA anti-surge - Internal selection switch.

Physical

  • Finish: Front and Rear panels are black anodised aluminium with silver legend and enclosed by black plastic-coated steel case.
  • Dimensions: Width 19” Depth 8” Height 1.75” (482 x 200 x 44.5mm)
  • Weight: 4 Kg (Out of shipping carton).
