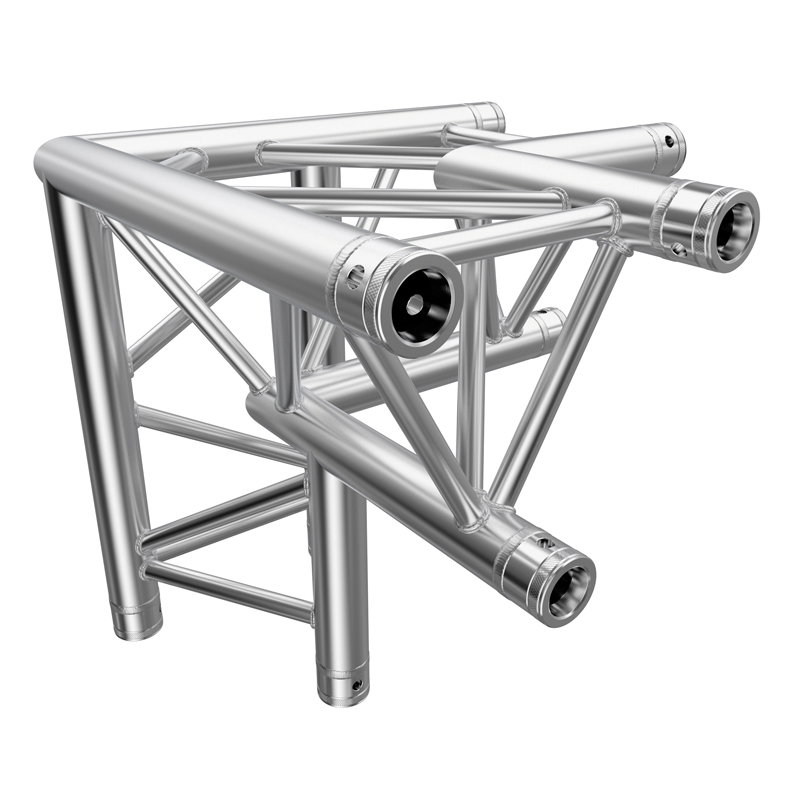

The Global Truss F33 PL 3 Way 90 Degree Corner (right-hand, apex down) is a pre-fabricated three-way junction block for the F33 PL triangular truss system. It joins three lengths of truss at 90 degrees to form corners and branches in three-dimensional structures, with the apex oriented downward and the branch running to the right. It is a core building block for goalposts, box trusses and multi-level rigs in fixed installations and rental work.
F33 PL
Series · 290mm triangular
3 Way
Junction · 90° corner
R/H
Orientation · apex down
Conical
Connection · PL spigot
Handedness mattersThis is the right-hand, apex-down variant. A matching left-hand version (PL-4093-34) is available for the opposite corner of a symmetrical structure. Conical connectors with pins and R-clips are supplied. The PL (conical) connection is not cross-compatible with F33 spigoted truss.
Features
Three-way 90-degree corner junction
Right-hand, apex-down orientation
F33 PL 290mm triangular profile
TUV-certified aluminium welding
3mm main-tube wall thickness

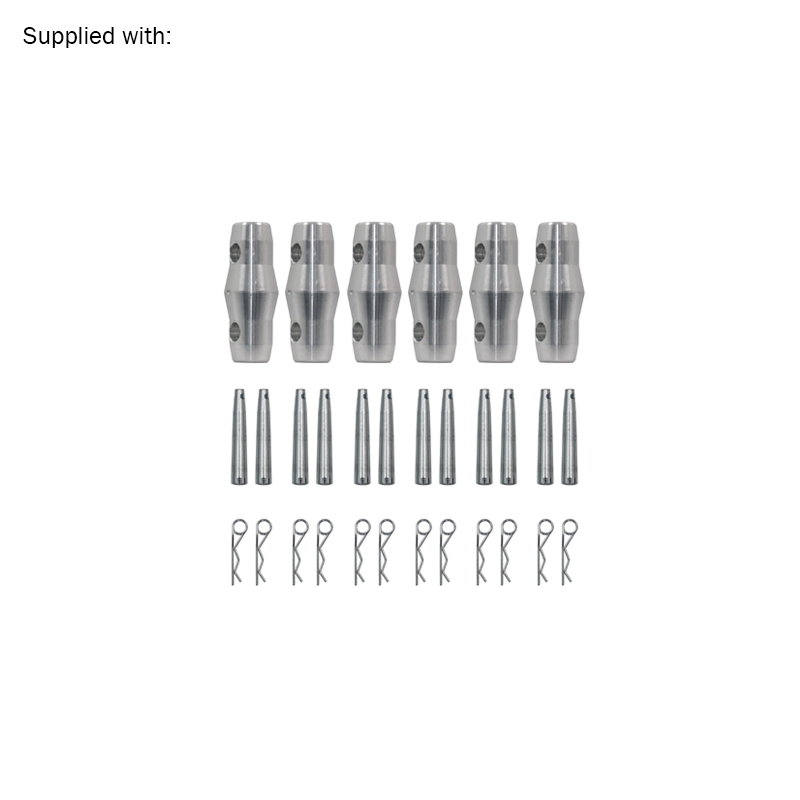

Conical connectors with pins and R-clips supplied
Left-hand counterpart (PL-4093-34) available
Suited to fixed install and rental
Specifications
| Series | Global Truss F33 PL |

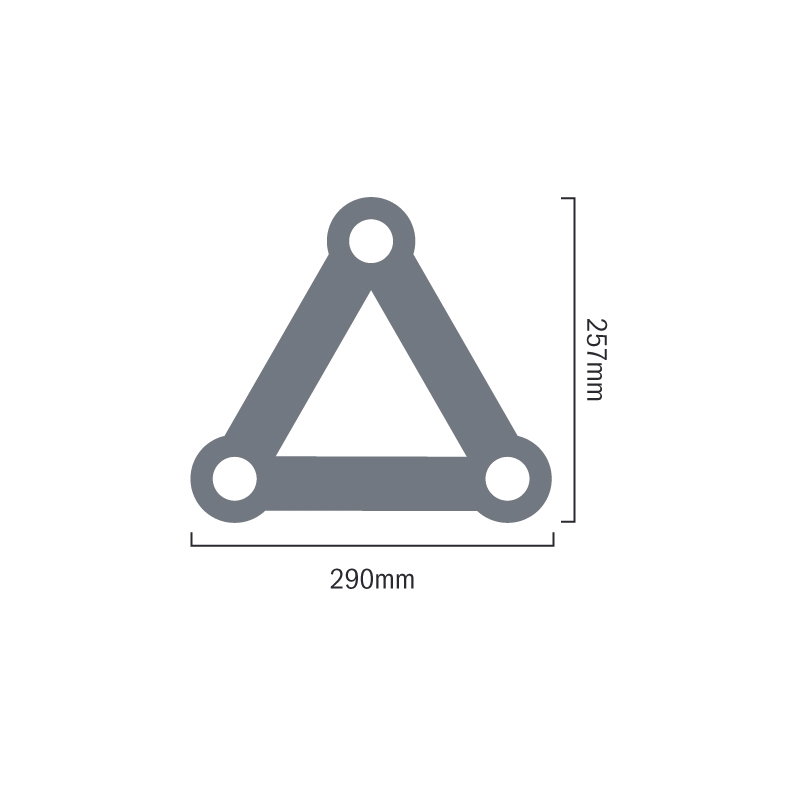

| Profile | Triangular, 290mm |
| Type | 3-way 90° corner, R/H apex down |
| Manufacturer ref | 4093-33PL |
| Wall thickness | 3mm |
| Connection | Conical (PL), pins & R-clips supplied |
| SKU | GL3317 |
