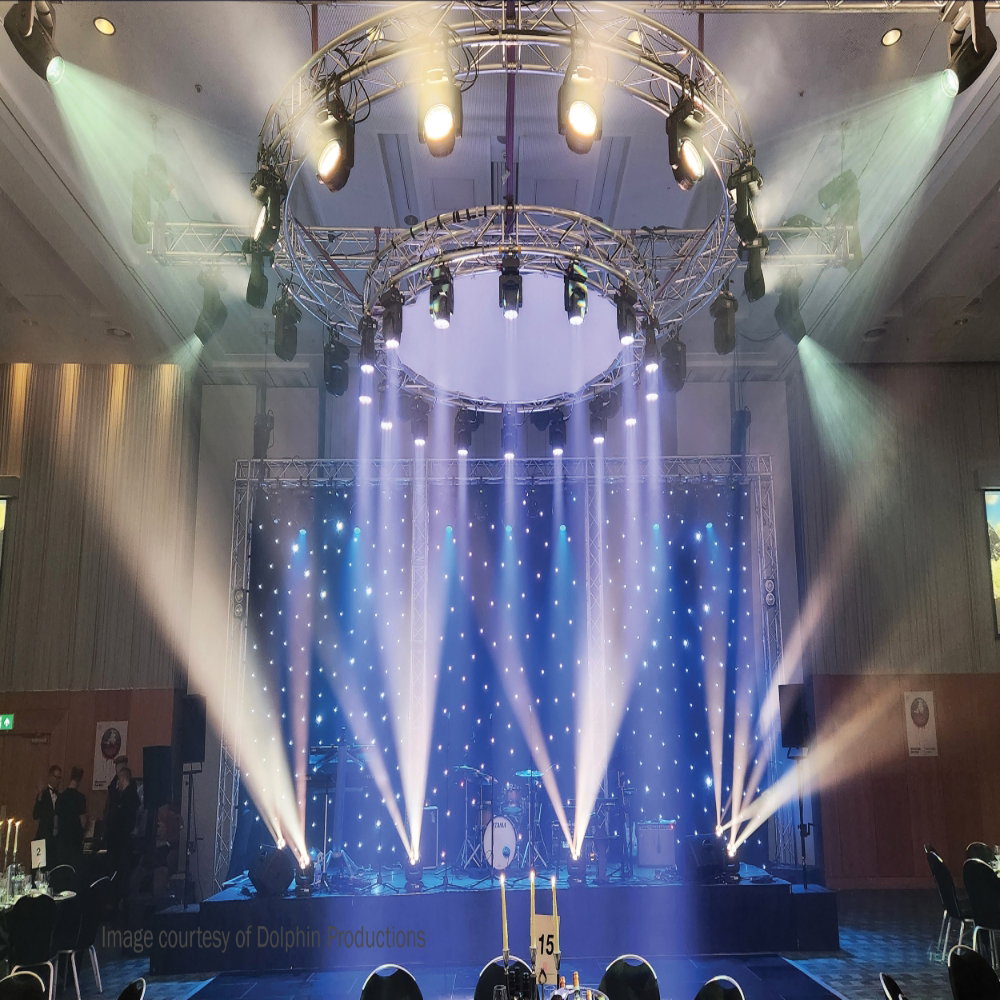

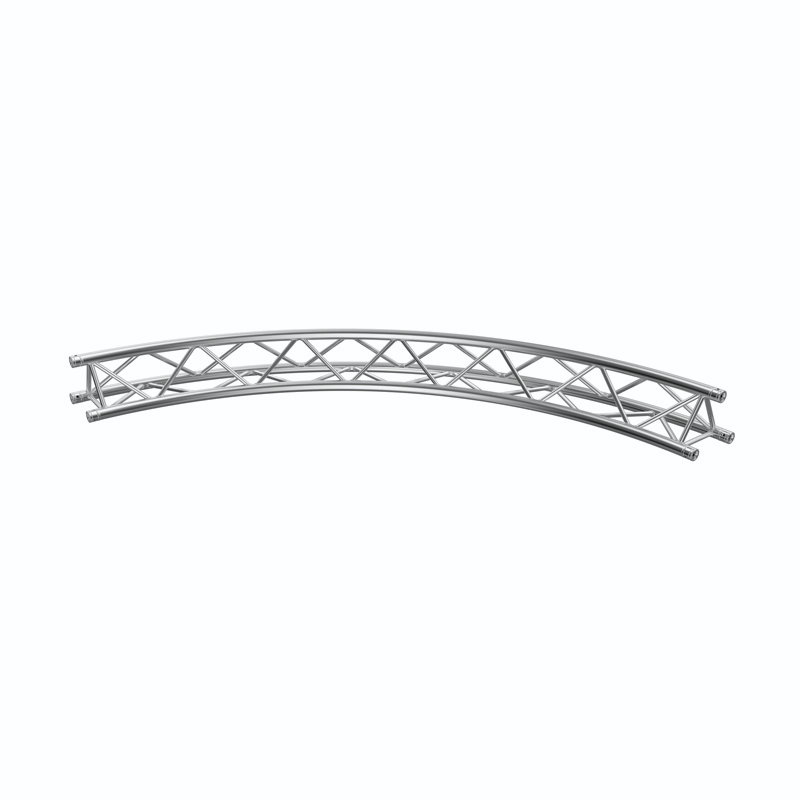

The Global Truss F33 PL 5.0m Circle 45 Degree Segment is a pre-fabricated one-eighth arc section of the F33 PL triangular truss system, curved to build a 5.0m diameter circle. Eight 45-degree segments join to form a full circle, giving a smoother curve than four-piece builds. It is ideal for round lighting rigs, feature bars and central staging in fixed installations, retail displays and rental work.
F33 PL
Series · 290mm triangular
5.0m
Circle Diameter · full circle
45°
Segment · eighth arc
Conical
Connection · PL spigot
Building a full circleEight 45-degree segments combine to form one complete 5.0m diameter circle. Conical connectors with pins and R-clips are supplied with each piece for fast, tool-light assembly. The PL (conical) connection system is not cross-compatible with F33 spigoted truss, so keep mating parts within the PL range.
Features
45-degree eighth-arc segment for 5.0m diameter circles

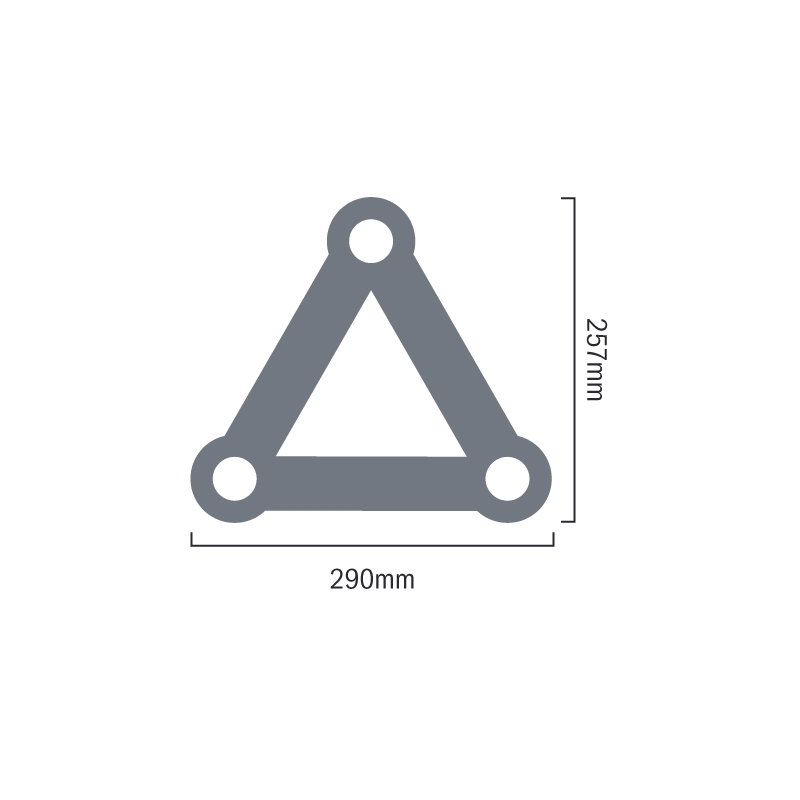

F33 PL 290mm triangular profile
TUV-certified aluminium welding
3mm main-tube wall thickness

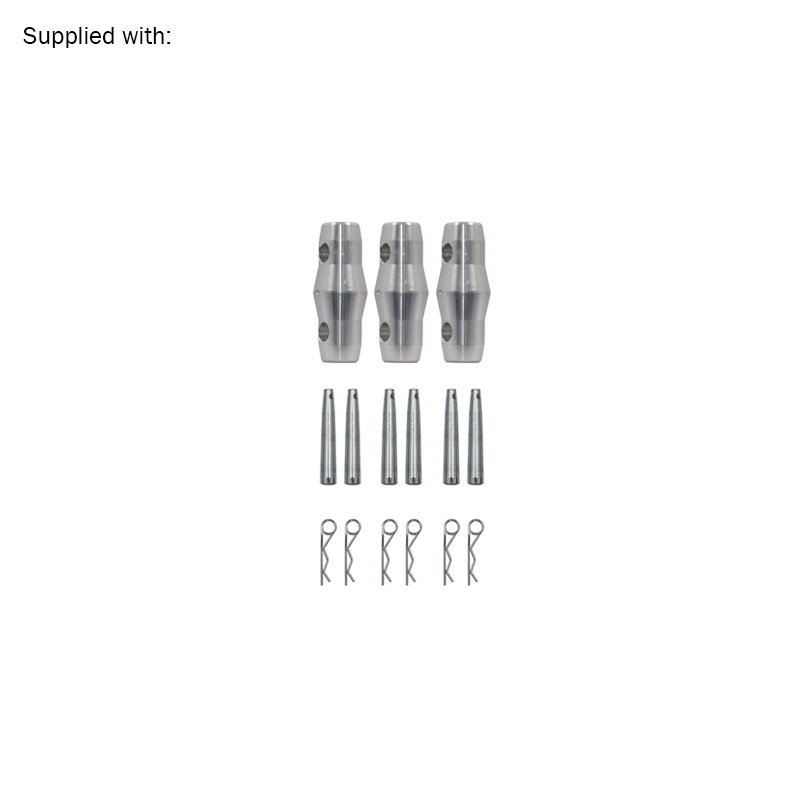

Conical connectors with pins and R-clips supplied
Eight segments make a complete circle
Suited to fixed install, retail and rental
Cross-compatible within the Global Truss F33 PL range
Specifications
| Series | Global Truss F33 PL |
| Profile | Triangular, 290mm |
| Segment | 45° (eighth circle) |
| Circle diameter | 5.0m (8 segments) |
| Wall thickness | 3mm |
| Connection | Conical (PL), pins & R-clips supplied |
| SKU | GL3365 |
