Global Truss

Global Truss F35 PL 3.0m Truss 5 Chord (GL3504)

SKU: GL3504
Global Truss F35 PL 3.0m Truss 5 Chord (GL3504)
Global Truss F35 PL 3.0m Truss 5 Chord (GL3504)
Global Truss F35 PL 3.0m Truss 5 Chord (GL3504)
Click to enlarge

    £593.00 inc VAT
    £494.17 ex VAT

    1 available online
    more expected on 1 Dec 2026
    Delivered by WednesdayOrder by 3pm Monday
    Click & Collect Tuesday ›Collect from our warehouse in Wembley, London
    Please note a £20 specialist delivery surcharge applies to this product due to length.
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    Available lengths
    0.5m1.0m2.0m3.0m
    1 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

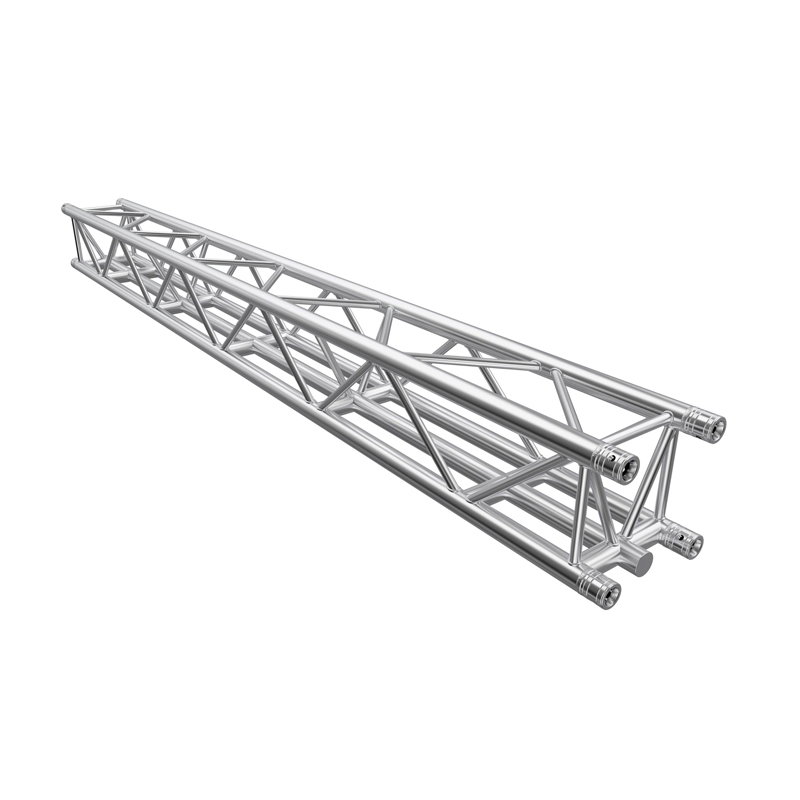

    This 3.0m length is part of the Global Truss F35 PL Series, which builds on the proven 290 x 290mm F34P design by adding a fifth chord along the central bottom face with ladder bracing. That extra chord lets LED screens and lighting fixtures mount directly along the centre, avoiding the slings or braces a standard 4-chord truss would need to balance the load. It is a purpose-built solution for clean, front-loaded video and lighting builds.

    3.0m
    Length · straight

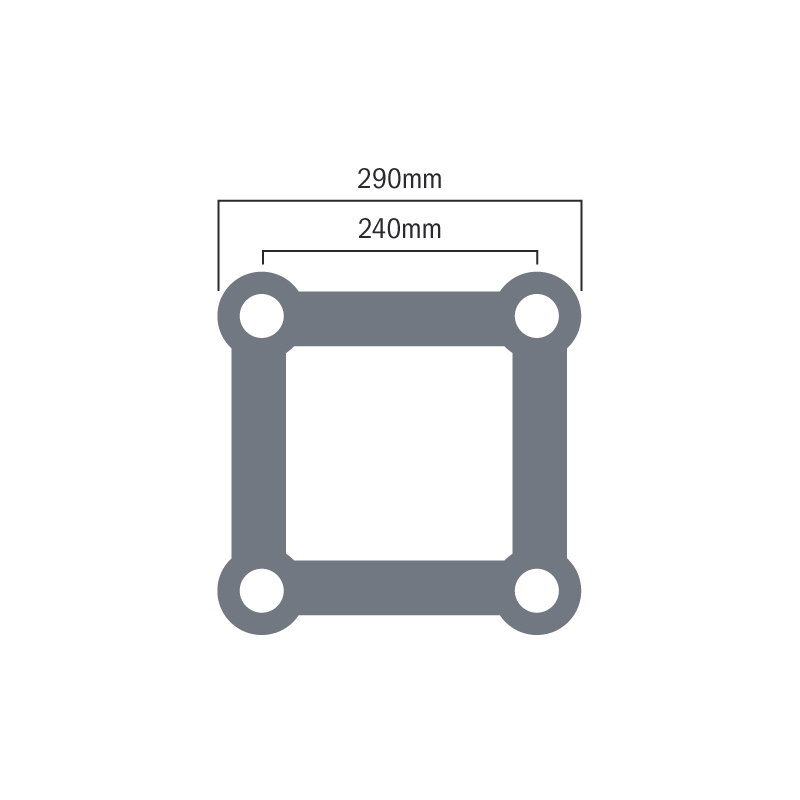

    290 x 290mm
    Profile · 5-chord
    4mm
    Wall Thickness · aluminium
    F35 PL
    Series · conical
    F34 / F34P CompatibilityBecause it is based on the F34P design, the F35 connects to all standard F34 and F34P junctions and sleeve blocks, so existing F34/F34P stock can be used to build the rest of the structure.
    Features
    Fifth central chord for direct LED and fixture mounting
    Ladder horizontal braces add hanging space along the centre
    Avoids slings or braces across the bottom chords
    Cleaner look when hanging LED screens
    290 x 290mm profile, based on the F34P design
    50 x 4mm main tubes, 20mm braces
    Connects to F34 and F34P junctions
    Conical connector system for fast assembly
    Specifications
    Series F35 PL (conical, 5-chord)
    Length 3.0m straight
    Profile 290 x 290mm
    Wall thickness 4mm
    Bracing Ladder horizontal braces, central chord
    Compatibility F34 and F34P junctions and sleeve blocks
    Material Aluminium
    SKU GL3504

    Product Reviews

    No reviews yet — be the first to review this product.

    Bought this? It takes a minute.
    Review this product

    Reviews are checked by our team before they appear.

    More Information

    • Please note: Shipping charges may apply

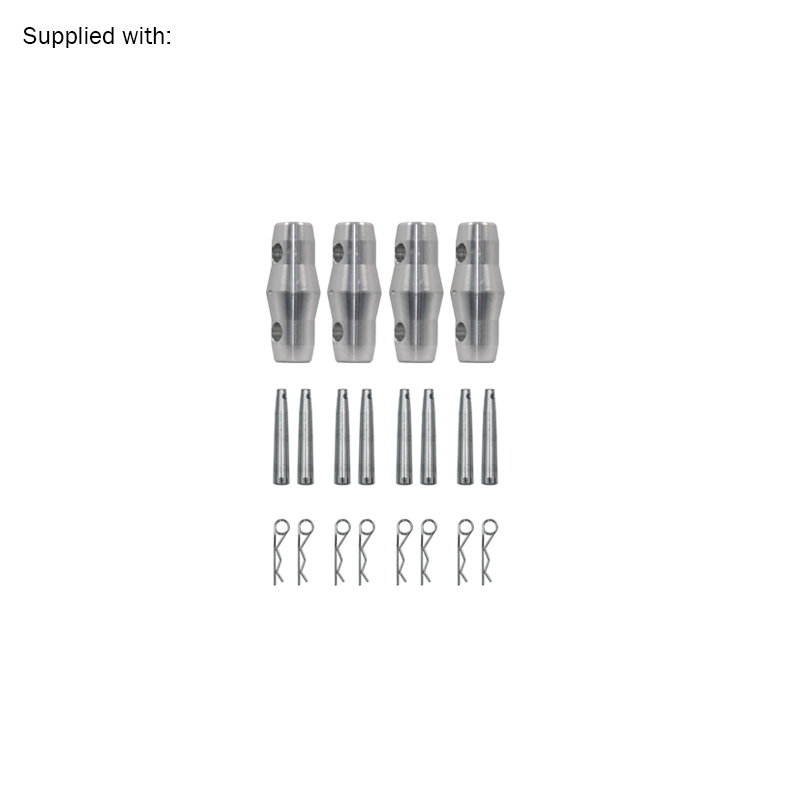

    • Supplied with 4 x Conicals, 8 x Pins and 8 x R-Clips
    • Prolyte H30 Truss compatible
    • 4mm wall thickness aluminium

    Manuals & Downloads

    PDFCertification: F35PL_Structural_ReportPDF
    PDFCertification: GL3504_TDPDF
