Global Truss F45 3.0m Truss 5 Chord (GL45300)

SKU: GL45300
Global Truss F45 3.0m Truss 5 Chord (GL45300)
Global Truss F45 3.0m Truss 5 Chord (GL45300)
Click to enlarge

    £655.00 inc VAT
    £545.83 ex VAT

    4 in stock

    Order in 3h 53m 59s for FREE delivery by Friday
    Please note a £20 specialist delivery surcharge applies to this product due to length.
    Click & collect tomorrow ›
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    1 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

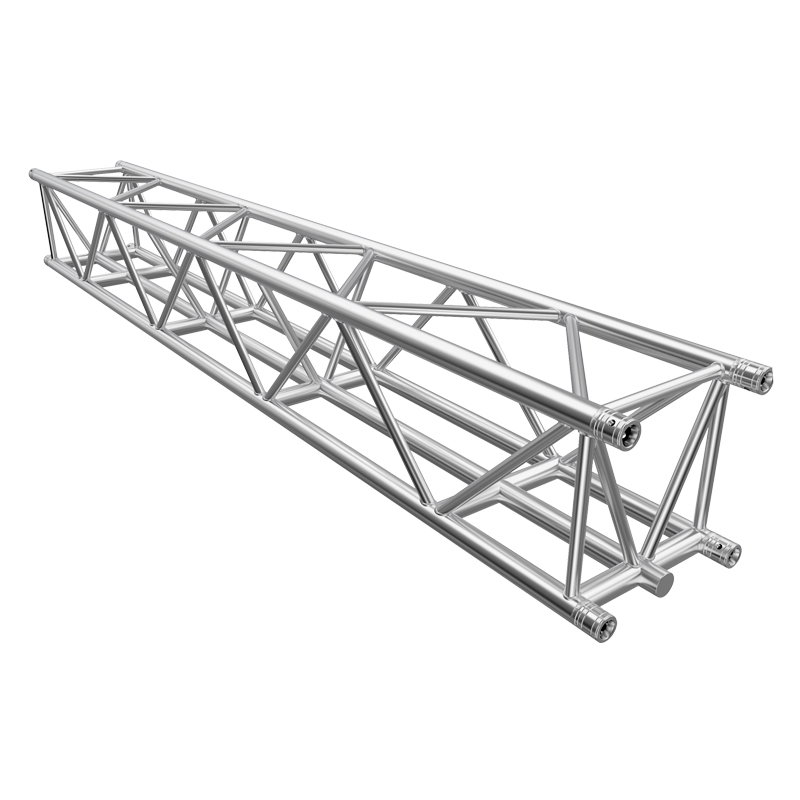

    This 3.0m length is part of the Global Truss F45 Series, which builds on the 400 x 400mm F44P design by adding a fifth chord along one face with ladder bracing. That extra chord lets LED screens and lighting fixtures mount directly to the face, avoiding the slings or braces a standard 4-chord truss would need to balance the load. It is a heavy-duty solution for clean, front-loaded video and lighting builds on larger spans.

    Length
    3.0m
    straight

    Profile
    400 x 400mm
    5-chord

    Wall Thickness
    4mm
    aluminium

    Series
    F45
    5 chord

    F44 / F44P Compatibility

    The 4mm wall thickness keeps the F45 compatible with both the F44 and F44P series, so existing stock does not have to be replaced and F45 lengths can be added when required.

    Features
    ✓Fifth chord along one face for direct LED and fixture mounting
    ✓Ladder horizontal braces add hanging space along the centre
    ✓Avoids slings or braces on a standard 4-chord truss
    ✓Cleaner look when hanging LED screens
    ✓400 x 400mm profile, based on the F44P design
    ✓4mm wall thickness
    ✓Compatible with F44 and F44P series
    ✓Suited to larger-span video and lighting builds

    Specifications
    Series F45 (5-chord)
    Length 3.0m straight
    Profile 400 x 400mm
    Wall thickness 4mm
    Bracing Ladder horizontal braces, central chord
    Compatibility F44 and F44P series
    Material Aluminium
    SKU GL45300

    More Information

    • Please note: Shipping charges may apply

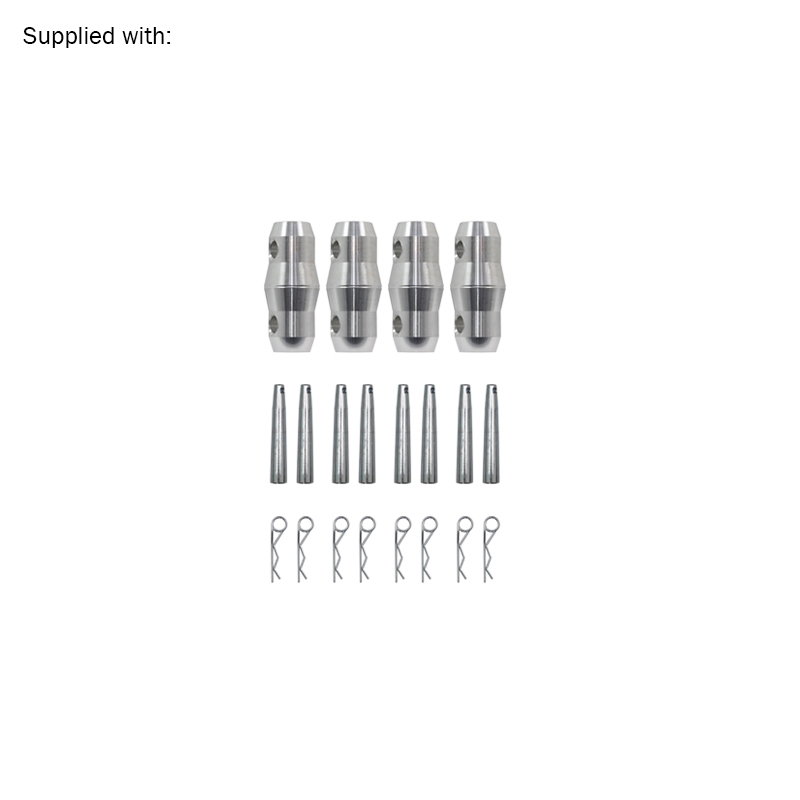

    • Supplied with 4 x Conicals, 8 x Pins and 8 x R-Clips
    • Eurotruss HD44 compatible
    • Superior 4mm wall thickness aluminium

    Manuals & Downloads

    PDFDatasheets & Technical Docs: GL45300_Structural_ReportPDF
