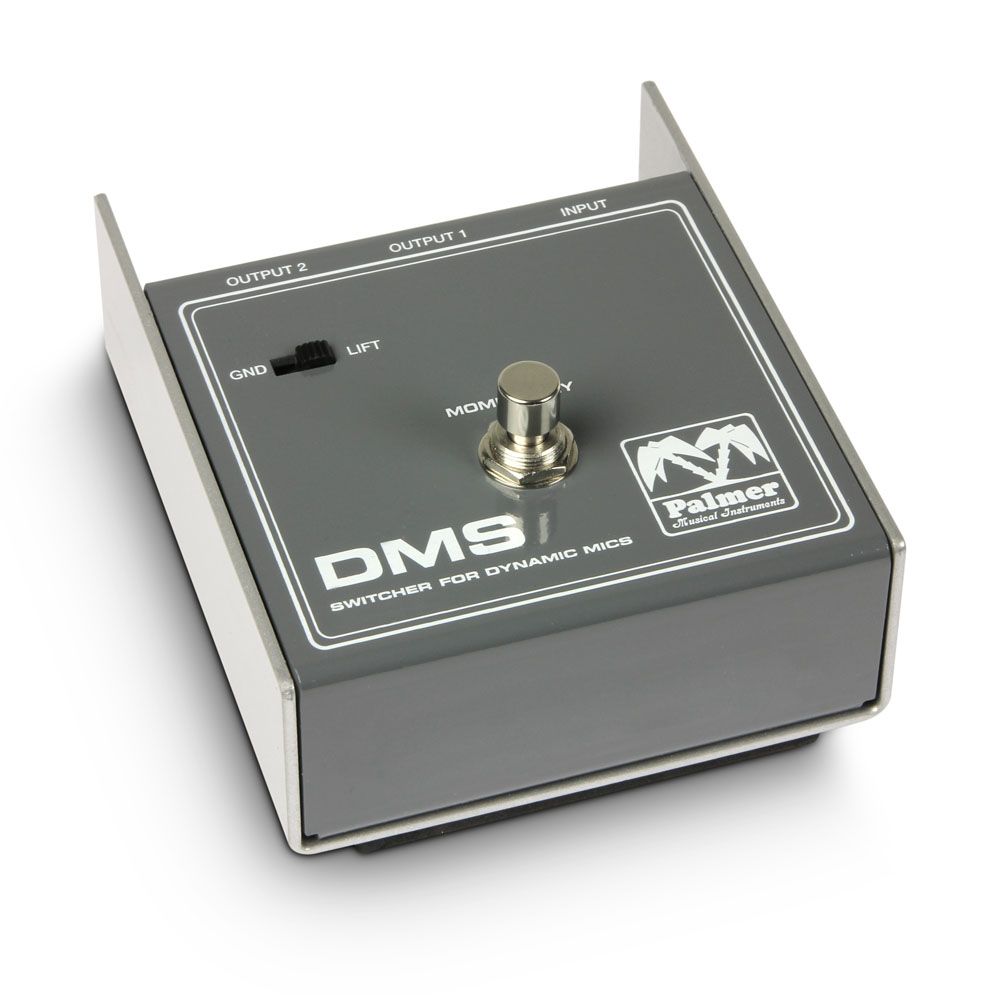

The Palmer DMS (Dynamic Mic Switcher) routes a microphone signal to two footswitch-selectable outputs. The Palmer DMS is a passive unit for dynamic microphones only. The switch is instantaneous and is operated via a footswitch. The DMS provides a wide range of applications :Switch your vocal mic between the FOH and monitor mixing desks to communicate with the monitor mixer or the band on stage. Two different sound configurations: to switch between different effects or sounds on your microphone, e.g. a “telephone effect” or more levels of reverb. Run the outputs of the DMS into two channels of the mixing desk, that you can configure differently. Now you can freely toggle between them on-stage at any time. You can also use the DMS to route the signal to two rooms or zones and select either one.
Features
Controls: ground lift, footswitch, input pad
Output connectors: XLR
Cabinet material: sheet steel
Depth: 120
Cabinet surface: Powder-coated
Height: 60
Input connectors: XLR
Width: 100
Product type: Splitters
Transformer isolated outputs: No
Specifications
| Controls | ground lift, footswitch, input pad |
| Output connectors | XLR |
| Cabinet material | sheet steel |
| Depth | 120 |
| Cabinet surface | Powder-coated |
| Height | 60 |
| Input connectors | XLR |
| Channels | 1 |
| Width | 100 |
| Product type | Splitters |
| Number of inputs | 1 |
| Transformer isolated outputs | No |
| Max. input level | n.a. |
| THRU outputs/channel | 0 |
| Split type | 1 in 2 |
| Max. output level | n.a. |
| Number of split-outputs per canal | 2 |
| Type | passive |
