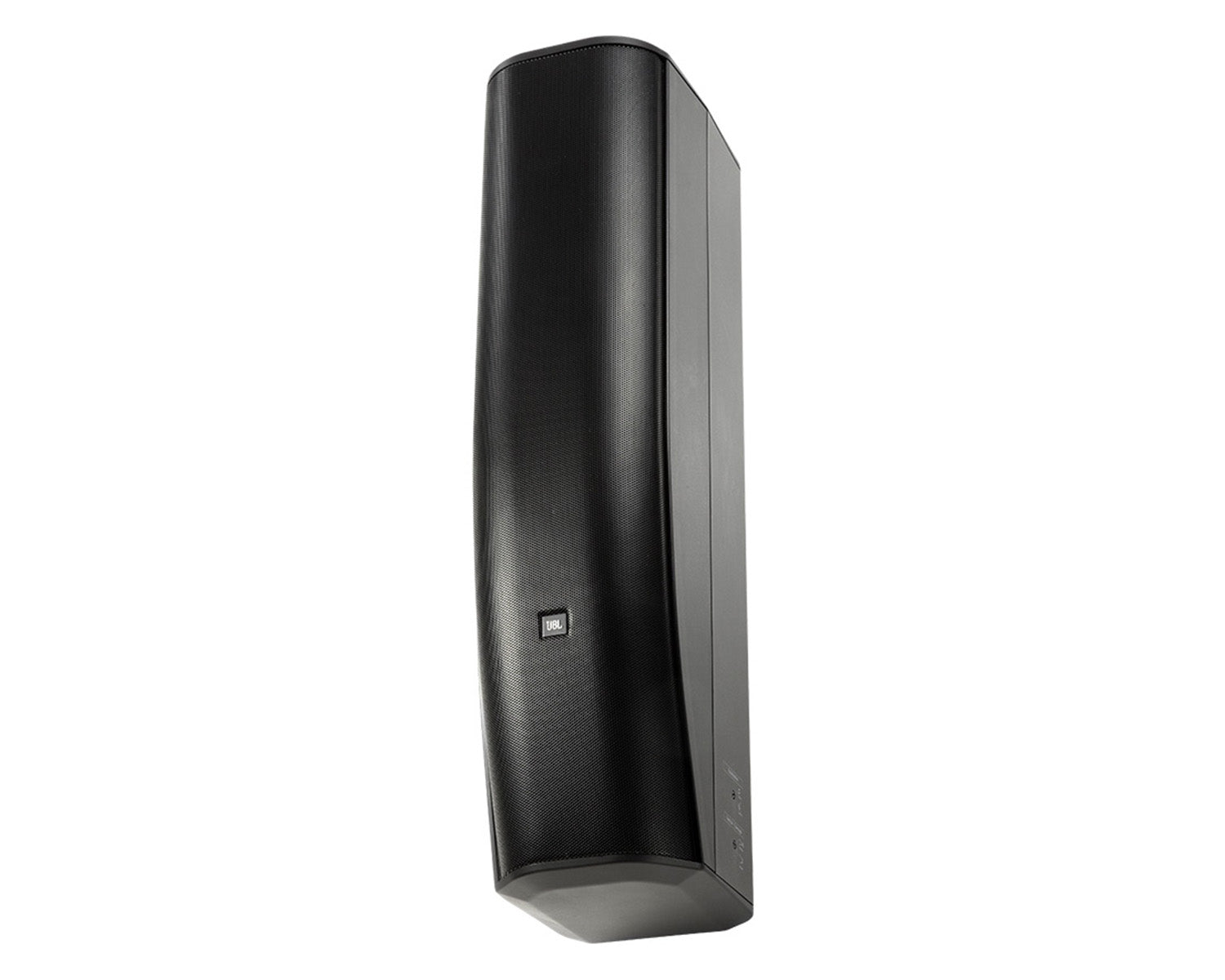

JBL CBT 70J-1 Line Array Column Speaker 4x5" + 16x1" Black

Product code: 191935

£1,493.00 inc VAT
£1,244.17 ex VAT

SKU: CBT 70J-1

11 in stock (more available subject to additional lead time)

11 available online
More available from supplier in 1–3 weeks
FREE delivery by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
1 Year Manufacturer Warranty Included

About this Product

Connection: Low impedance (8Ω).

The JBL CBT 70J-1 is a passive column speaker with four 5in woofers and sixteen 1in tweeters, using Constant Beamwidth Technology for even vertical coverage. Vertical coverage switches between 25° and 45° and voicing between music and speech modes. It suits houses of worship, auditoriums, lecture halls, transport hubs and other reverberant spaces.

4x 5in
+ 16x 1in
25°/45°
Switchable vertical
150°
Horizontal
500W
Power, 2 hrs

Features

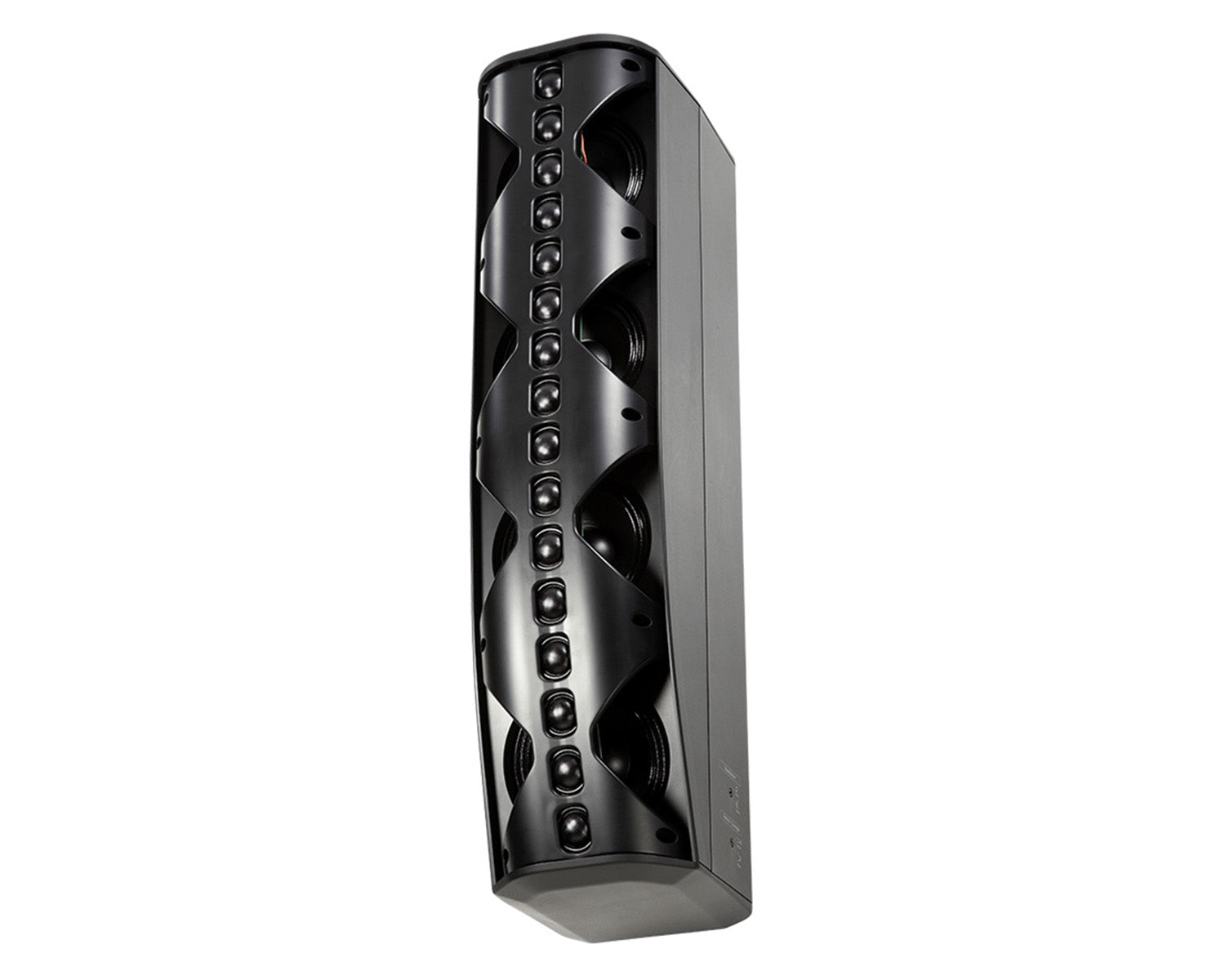

Four 130 mm (5 in) neodymium LF drivers and sixteen 25 mm (1 in) soft dome tweeters, arranged coaxially
Constant Beamwidth Technology using analogue delay and amplitude shading

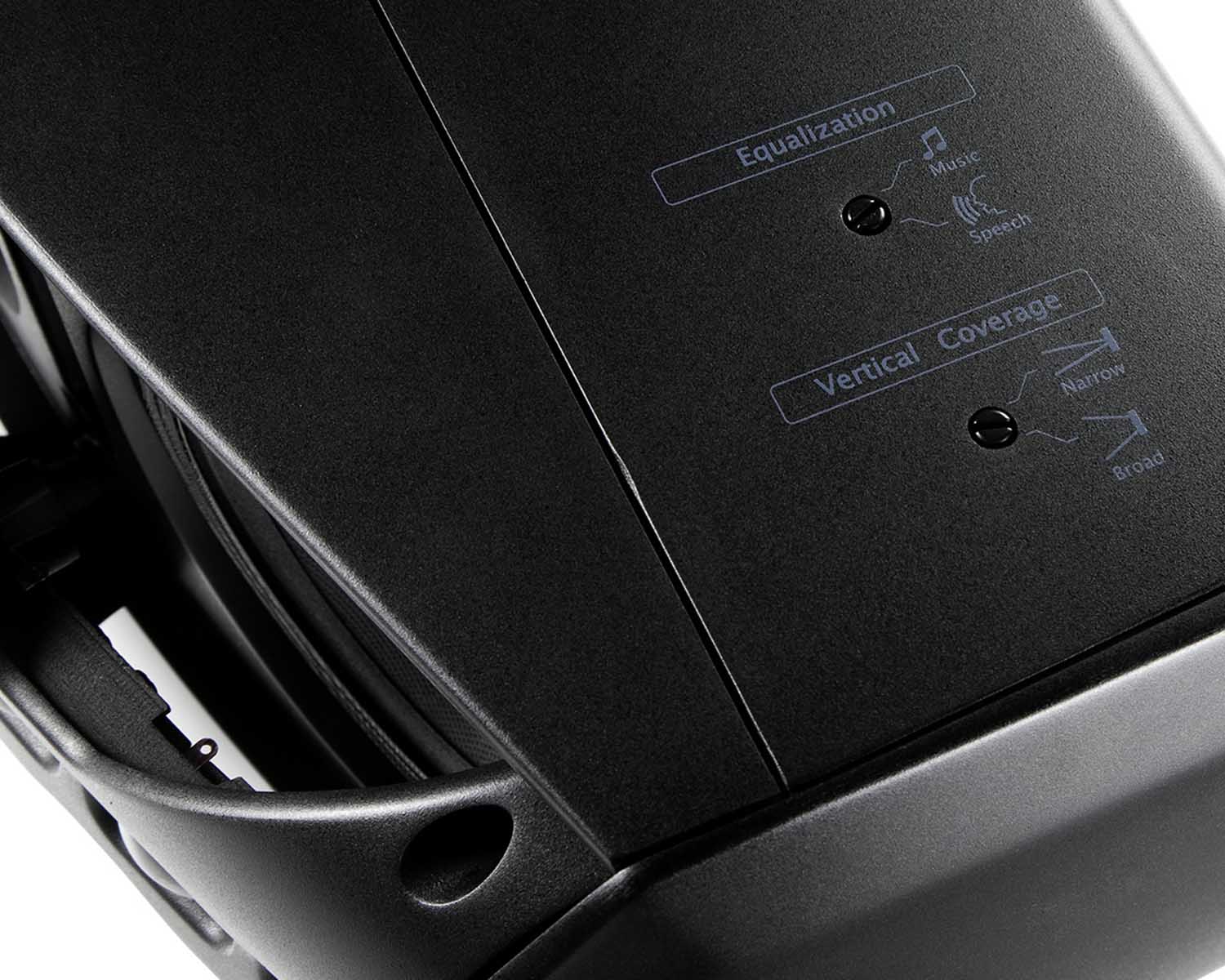

Switchable vertical coverage: 25° narrow for long throw, 45° broad for medium throw
150° horizontal coverage
Switchable music (flat) or speech (presence peak) voicing
Dynamic SonicGuard protection on the HF drivers
IP55 with optional MTC-PC2 panel cover
Pan and tilt wall bracket included (±80° pan, ±15° tilt)
Ten M6 inserts on a 127 x 70 mm pattern for OmniMount 60.0 and similar brackets
Sold individually

Specifications

JBL CBT 70J-1 Line Array Column Speaker 4×5″ + 16×1″ Black specifications
Frequency range (-10 dB) 60 Hz to 20 kHz
Vertical coverage 25° (narrow) or 45° (broad)
Horizontal coverage 150°
Sensitivity (2.83V, 1 m) Narrow: 98 dB speech, 93 dB music; Broad: 96 dB speech, 92 dB music
Maximum SPL Narrow speech 125 dB continuous (131 dB peak)
Power capacity 500W (2000W peak) 2 hrs, 350W (1400W peak) 100 hrs
Nominal impedance 8 ohms
Enclosure Fibreglass reinforced ABS, painted aluminium grille
Environmental IP55 with optional MTC-PC2
Dimensions (H x W x D) 694 x 170 x 237 mm
Weight 9.5 kg

Full features

  • Asymmetrical vertical coverage sends more sound toward far area of room to make front-toback sound levels more consistent.
  • Components: Sixteen 25 mm (1 in) soft dome tweeters and four 125 mm (5 in) high-power LF drivers,
  • arranged coaxially.
  • Patent-pending Constant Beamwidth Technology™ provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing.
  • Vertical pattern coverage switchable between 45° for medium-throw coverage and 25° for
  • long-throw applications.
  • Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode.
  • Dynamic SonicGuard™ overload protection of HF devices
  • Swivel (pan) / tilt wall bracket included.

Full specifications

General

  • Components: Four 130 mm (5 in) LF drivers
  • Sixteen: 25 mm (1 in) HF drivers
  • Frequency Range (-10 dB): 60 Hz – 20 kHz
  • Coverage:
    • Vertical (selectable via switch)
    • Narrow Mode: 25° (2 kHz - 16 kHz) (±10°)
    • Broad Mode: 45° (750 Hz - 16 kHz) (±10°)
    • Horizontal 150° (500 Hz – 8 kHz, ±20°)
  • Sensitivity (2.83V@ 1m):
    • Narrow:
      • (speech mode) 98 dB (1 kHz - 8 kHz)
      • (music mode) 93 dB (300 Hz - 18 kHz)
    • Broad:
      • (speech mode) 96 dB (1 kHz - 8 kHz)
      • (music mode) 92 dB (300 Hz - 18 kHz)
  • Nominal Impedance: 8 ohms
  • Power Capacity:
    • 500 W (2000 W peak), 2 hrs
    • 350 W (1400 W peak), 100 hrs
  • Max SPL:
    • Narrow:
      • (speech mode) 125 dB cont ave (131 peak)
      • (music mode) 120 dB cont ave (126 peak)
    • Broad:
      • (speech mode) 123 dB cont ave (129 peak)
      • (music mode) 119 dB cont ave (125 peak)
  • Transducers
  • Low Frequency Drivers: 4 pcs, 130 mm (5 in) drivers, dual magnet neodymium, 38 mm (1.5 in) voice coil, damped blended textile surround, coated diaphragm for moisture, UV, and salt resistance, shielded.
  • High Frequency Drivers: 16 pcs, 25 mm (1 in) drivers, dual magnet neodymium, encased magnet and coated diaphragm for moisture, UV and salt resistance, shielded.
  • Enclosure: Fiberglass reinforced ABS cabinet, painted aluminum grille
  • Outdoor Capability: IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. UV, moisture and 200-hr ASTM G85 acid-air/salt-spray resistant.
  • Colors: Black or white (-WH)
  • Insert Points: 10 M6 swivel (pan)/tilt (16 mm deep) insert points on back panel.
  • Mounting: Included swivel (pan)/tilt wall bracket provides continuously variable +/-80 degree left-right swivel aiming (at no up/down tilt -- see Bracket Guide for maximum swivel range at various up/down tilt angles), continuously variable +/-15 degree tilt, as well as 5 degree fixed increment points. Ten threaded mounting points located on back panel of cabinet conform to industry standard rectangular 127 x 70 mm (5.0 x 2.75 in) pattern for OmniMount® 60.0 and other compatible third-party brackets. Threaded mounting points can be utilized for suspension.

Physical & Dimensions

  • Height: 694mm
  • Width: 170mm
  • Depth: 237mm
  • Weight: 9.5kg
