JBL Control 65P/T 5.25" Pendant Speaker 100V White

Product code: 191932

£262.00 inc VAT
£218.33 ex VAT

SKU: C65P/T-WH

21 in stock (more available subject to additional lead time)

11 available online
More available from supplier in 1–3 weeks
FREE delivery by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
1 Year Manufacturer Warranty Included

About this Product

Connection: 100V line (taps 60 / 30 / 15W) or low impedance (8Ω).

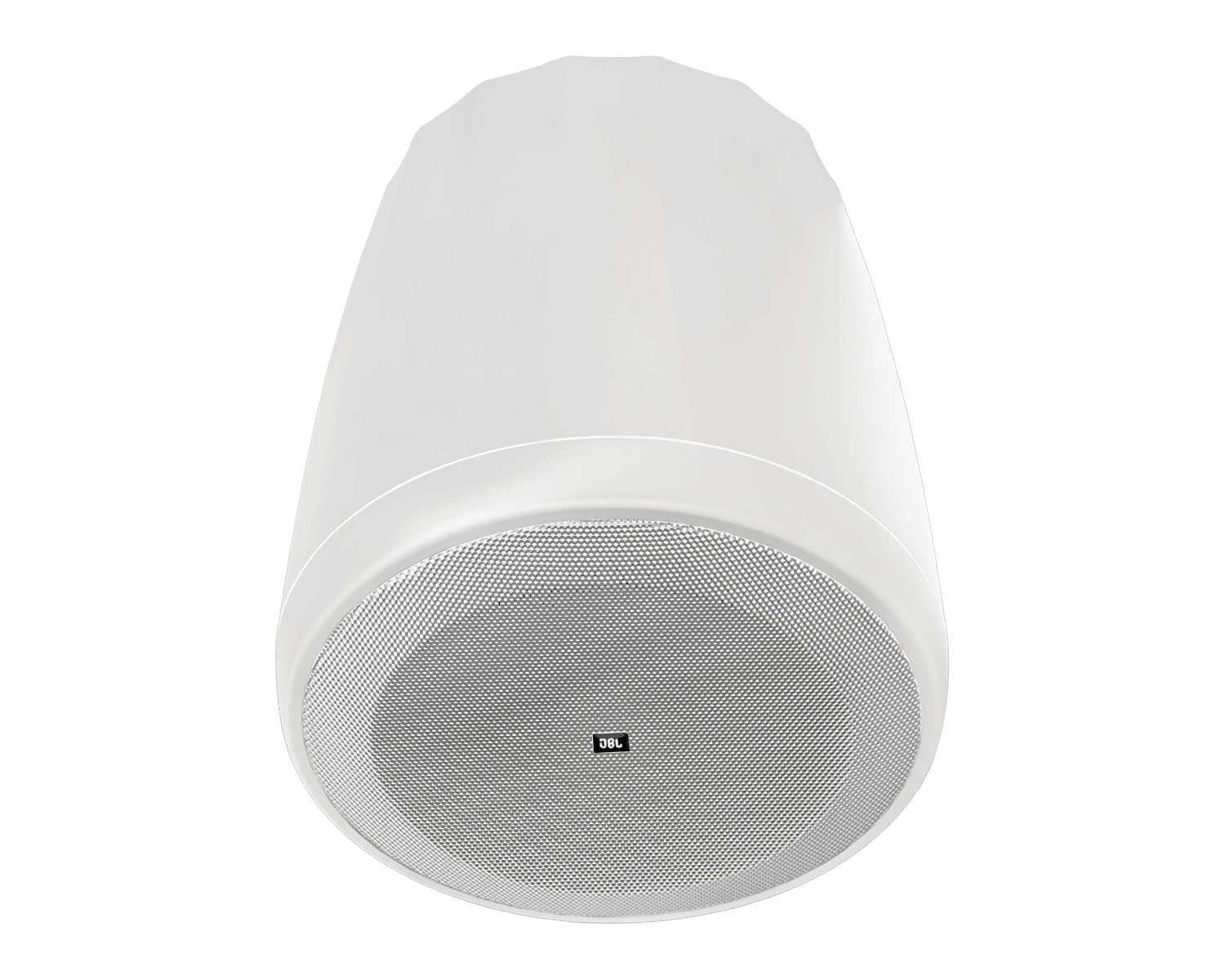

The JBL Control 65P/T is a 5.25in two-way pendant speaker for open or high ceilings where recessed speakers cannot be fitted. It has a 60W transformer for 100V and 70V lines plus an 8 ohm setting, and 120° coverage. Typical uses are retail units, restaurants, bars, gyms, warehouses and atriums. This is the white version.

5.25in
2-way
120°
Conical coverage
60W
Max 100V tap
IP44
Splashproof

Features

130 mm (5.25 in) polypropylene-coated paper cone woofer and 20 mm (0.75 in) soft-dome tweeter
100V taps at 60W, 30W and 15W; 70V taps at 60W, 30W, 15W and 7.5W
8 ohm direct setting, 75W continuous pink noise
120° conical coverage using JBL RBI (Radiation Boundary Integrator)
Two 4.5 m galvanised steel suspension cables with Gripple height adjusters, one as a safety, rated SWL 45 kg
Two paralleled locking euroblock connectors for input and loop-thru, with rubber covers

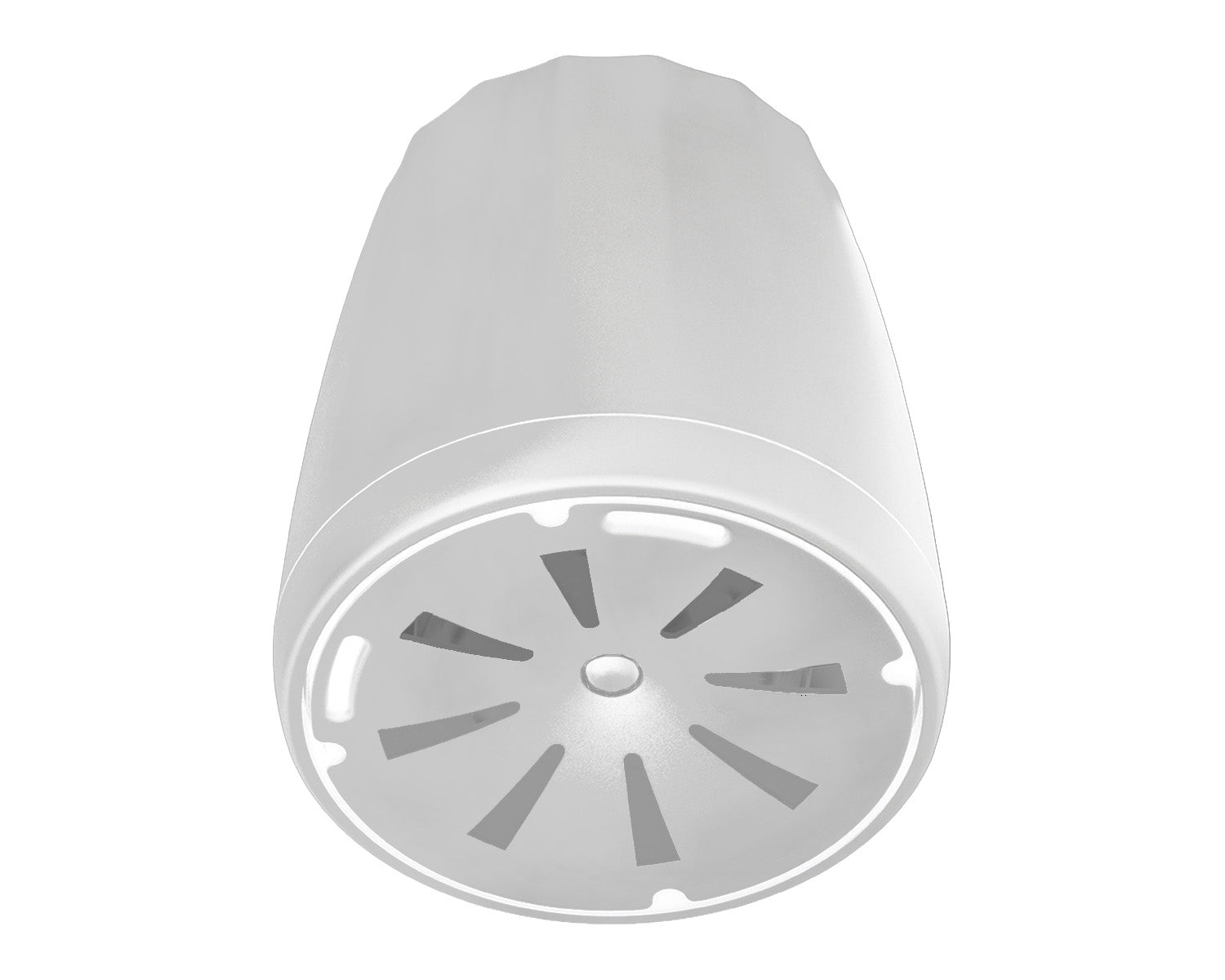

Removable grille and foam for painting
IP44 rated
White finish
Sold individually

Specifications

JBL Control 65P/T 5.25″ Pendant Speaker 100V White specifications
Frequency range (-10 dB) 55 Hz to 20 kHz
Frequency response (±3 dB) 78 Hz to 18 kHz
Power capacity 75W continuous pink noise, 150W continuous programme
Sensitivity 86 dB
Maximum SPL 105 dB continuous, 111 dB peak at 1 m
Coverage 120° conical
Impedance 8 ohms
100V taps 60W, 30W, 15W
70V taps 60W, 30W, 15W, 7.5W
Enclosure High impact polystyrene
Environmental IP44
Dimensions 234 mm diameter, 259 mm to top of cabinet, 279 mm to top of bracket
Weight 3.7 kg

Full features

  • RBI Radiation Boundary Integrator Technology
  • 120° conical coverage
  • 5.25" (130 mm) low-frequency with silk-dome tweeter for high-fidelity sound quality
  • 75 Watts, 8 ohms and 60W multi-tap transformer
  • Black or white

Full specifications

General

  • Frequency Response (-10 dB): 55 Hz – 20 kHz
  • Frequency Range (±3 dB): 78 Hz – 18 kHz
  • Power Capacity:
    • 75 Watts Continuous Pink Noise Power (with 300 Watts peaks)
    • 150 Watts Continuous Program Power
  • Nominal Sensitivity: 86 dB
  • Nominal Coverage Angle: 120° (+20°/-10°)
  • Directivity (Q): 5.3
  • Directivity Index (DI): 7.2 dB
  • Rated Maximum SPL @ 1m: 105 dB continuous pink noise, 111 dB peak
  • Rated Impedance: 8 ohms
  • Transformer Taps:
    • 70V: 60W, 30W, 15W & 7.5W
    • 100V: 60W, 30W, 15W
  • Transformer Insertion Loss: 0.5 dB @ 7.5 W, 0.5 dB @ 15 W, 0.6 dB @ 30 W, 0.7 dB @ 60 W
  • LF Driver:
    • 130 mm (5¼ in) polypropylene-coated paper with pure butyl rubber surround,
    • 25 mm (1 in) copper voice coil, vented fiberglass resin voice coil-former
  • HF Driver: 20 mm (¾ in) textile soft-dome, neodymium magnet assembly, ferro-fluid cooling, aluminum voice coil former
  • Enclosure Material: High impact polystyrene
  • Grille: Zinc-plated steel grille with powder-coat finish, foam backing (removable for painting)
  • Environmental: Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 – splashproof rating.
  • Termination: Two removable locking euro-block 2-pin connectors with screwdown terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included.
  • Suspension: Two identical suspension systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple™ brand adjustable-height cable fasteners for infinitely adjustable height. Cables have SWL rating of 45 kg (99 lb).
  • Safety Agency Ratings: Speaker listed per UL1480, transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple®-brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81.

Physical & Dimensions

  • Diameter: 234mm
  • Height to top of Cabinet: 259mm
  • Height to top of suspension bracket: 279mm
  • Weight: 3.7kg
