JBL COL600 Slim Column Speaker 0.6m IP54 Black

Product code: 191994

£397.00 inc VAT
£330.83 ex VAT

SKU: JBL-COL600-BK

1 in stock (more available subject to additional lead time)

7 available online
More available from supplier in 1–3 weeks
FREE delivery by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
1 Year Manufacturer Warranty Included

About this Product

Connection: 100V line (taps 20 / 10 / 5W) or low impedance (8Ω).

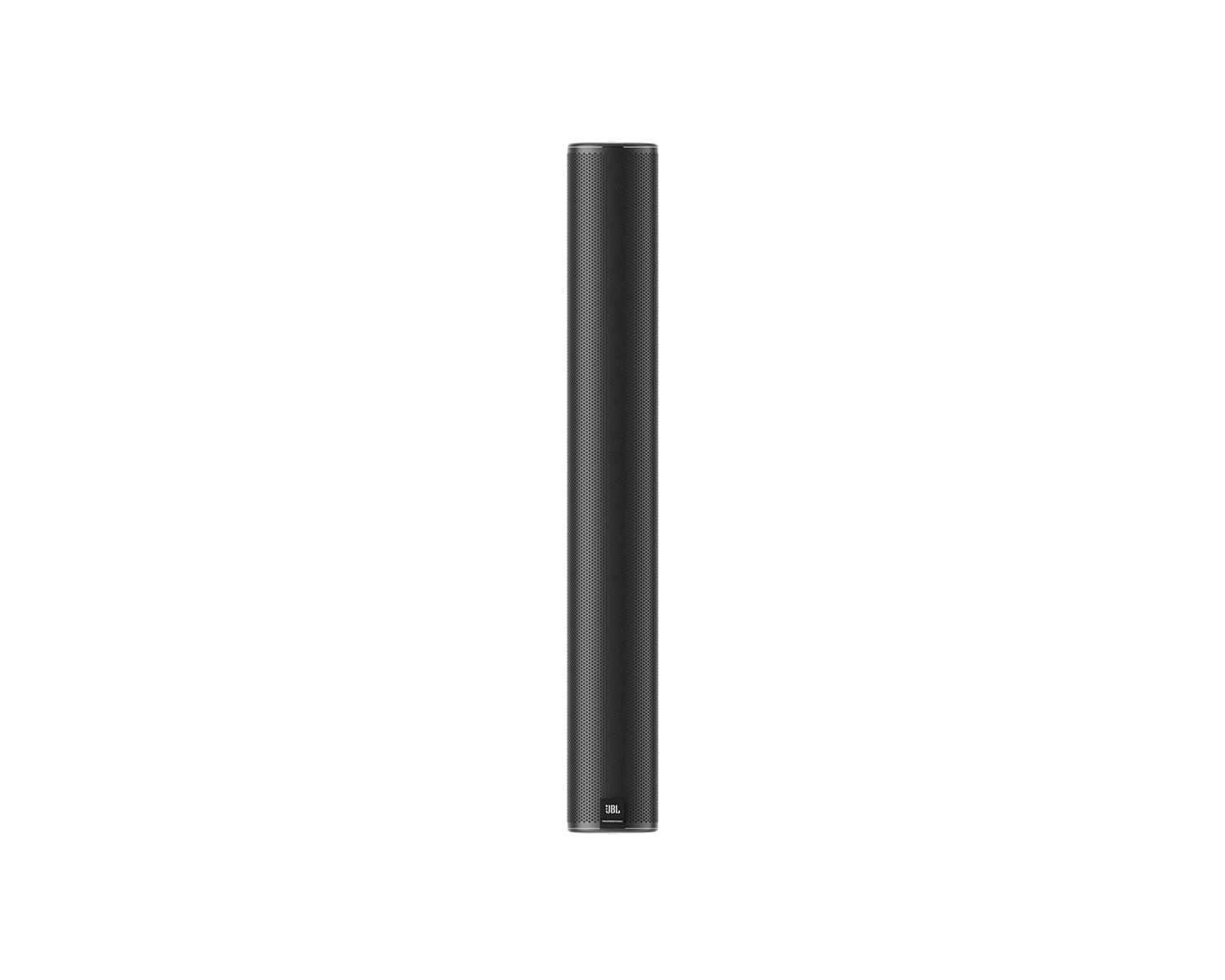

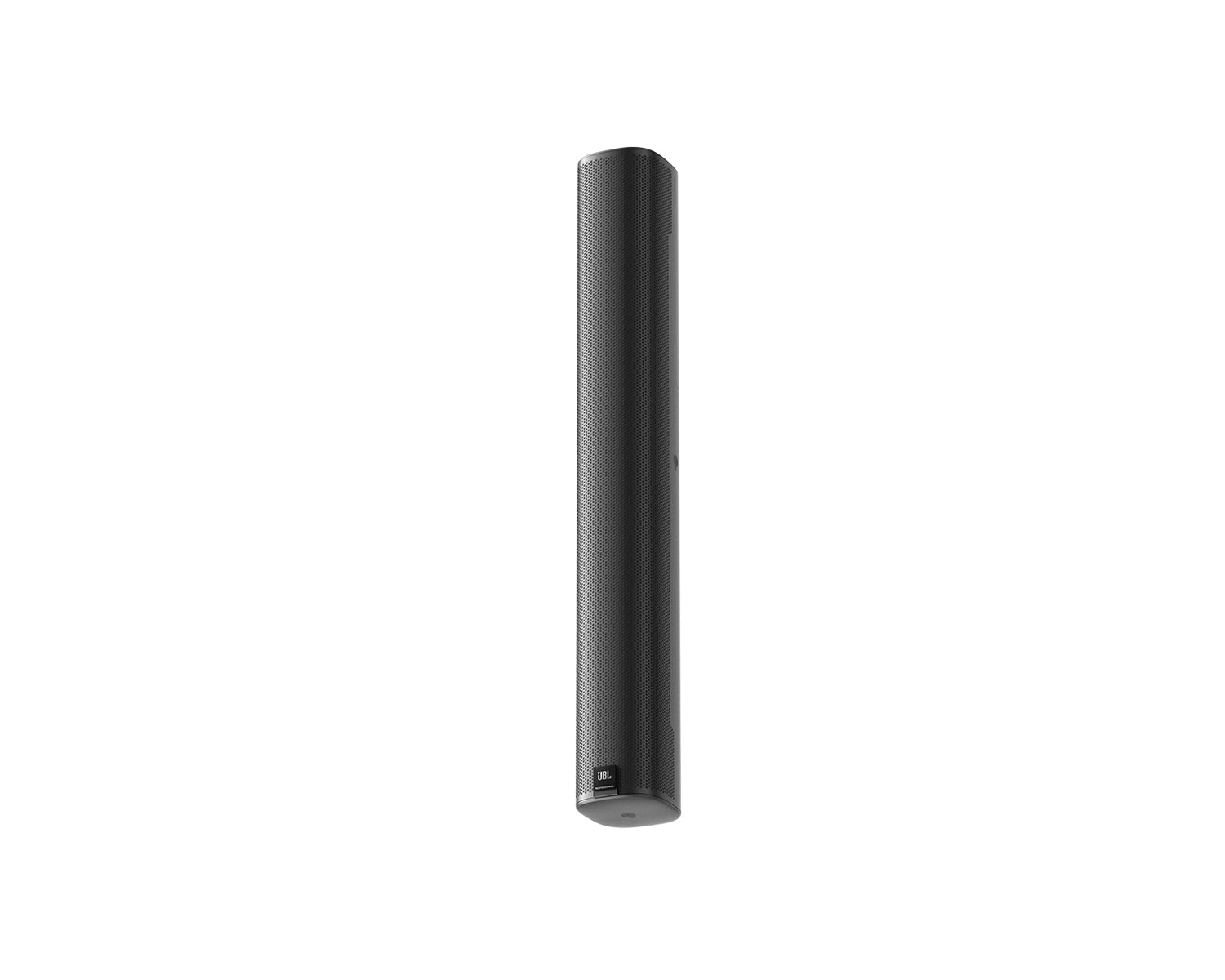

The JBL COL600 is a 600 mm slim column speaker with two racetrack woofers and a 1in tweeter, with a 10° downward aim built in so it can be fitted flat to the wall. It has a 20W transformer for 100V and 70V lines plus an 8 ohm setting, and is rated IP54. It suits meeting rooms, lecture halls, retail, concourses and transport areas.

600 mm
Height
160° x 110°
Coverage
20W
Max 100V tap
IP54
Weather rating

Features

Two 125 x 55 mm (5 x 2.25 in) racetrack woofers and one 25 mm (1 in) tweeter at the top of the column
160° horizontal and 110° vertical coverage, aimed 10° down with the cabinet flat to the wall
Taps at 20W, 10W and 5W on 100V and 70V, plus 2.5W on 70V only
8 ohm direct setting, 80W continuous pink noise (320W peak)
93 mm cabinet depth
IP54 with the supplied terminal cover fitted and no upward tilt

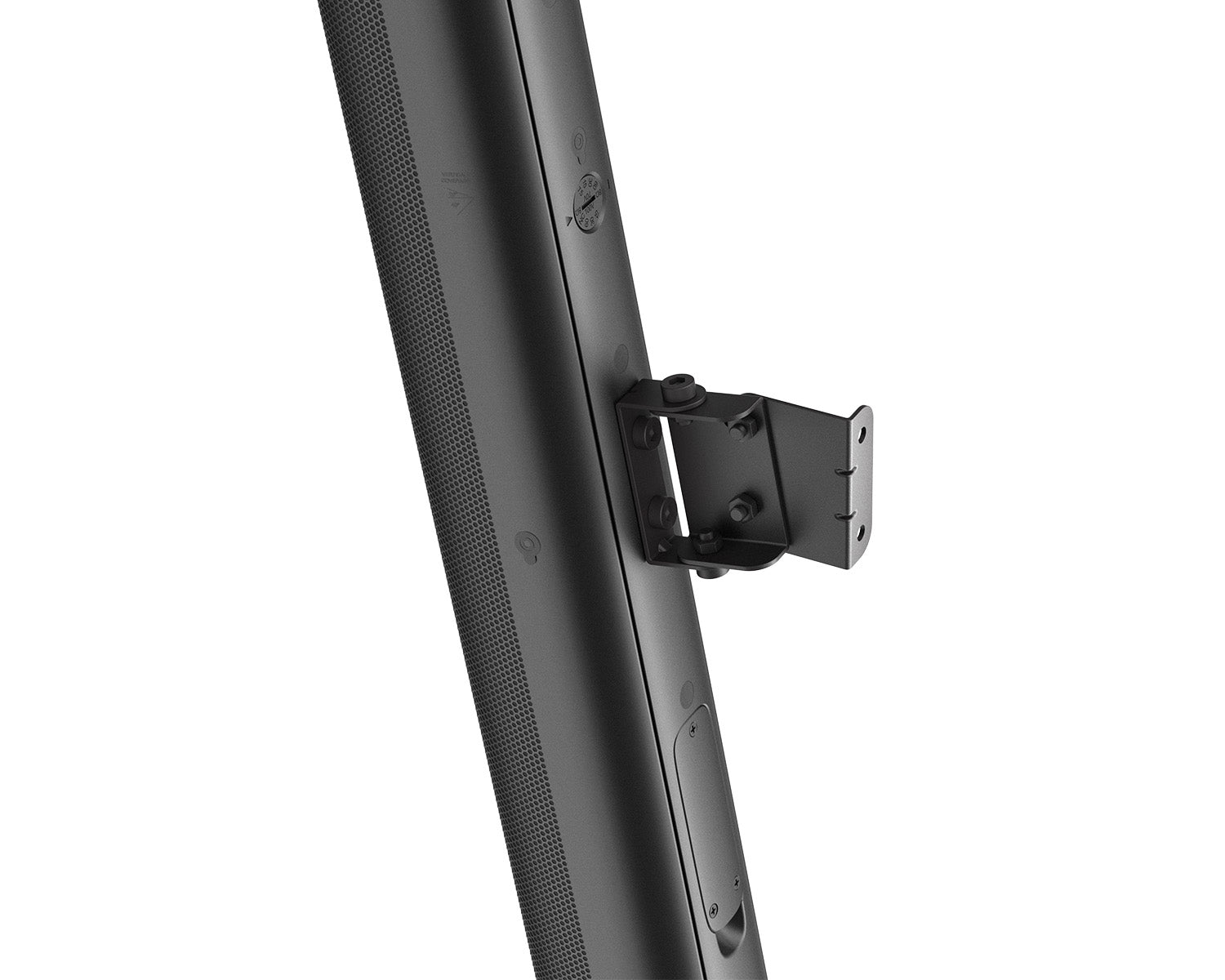

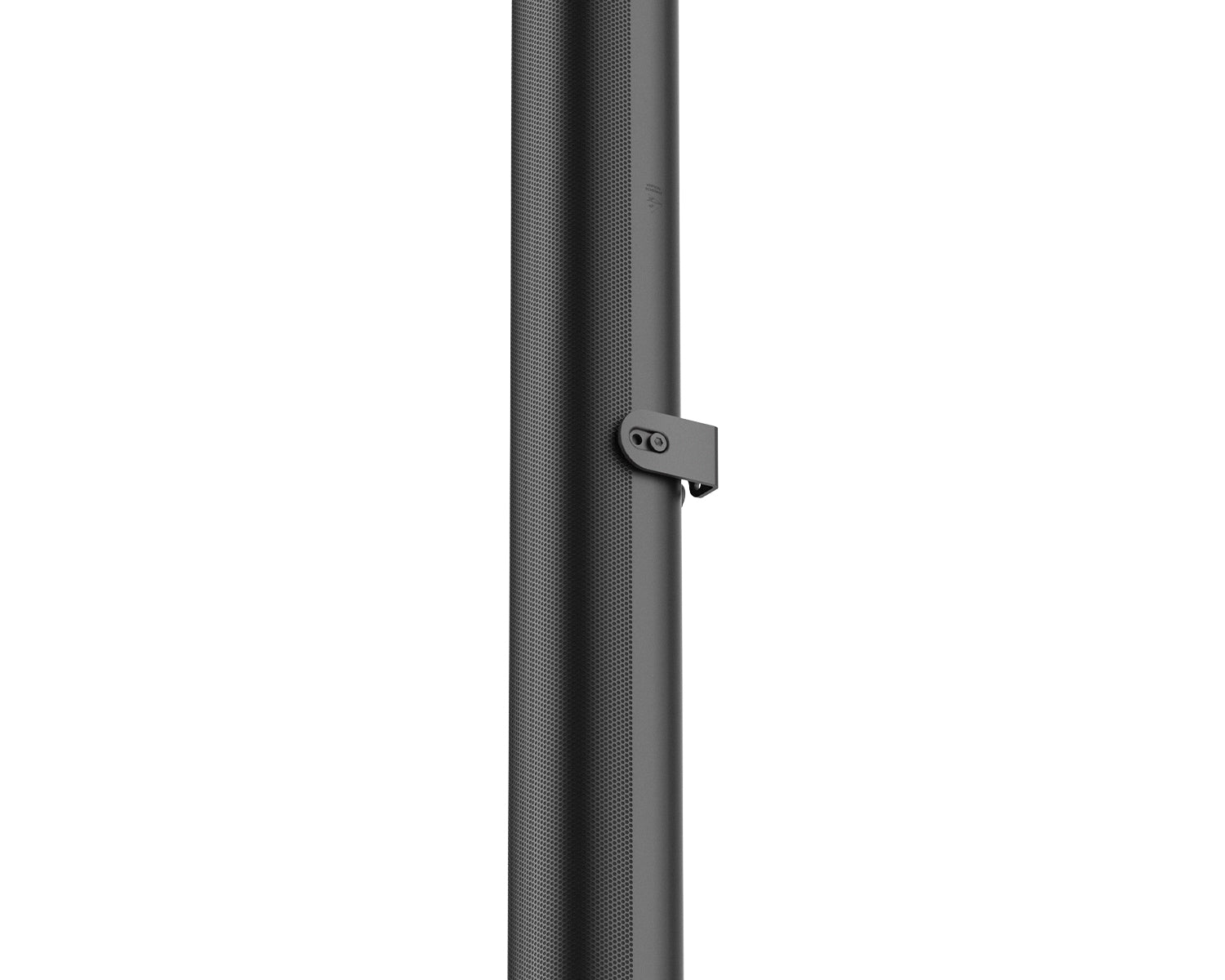

Two L-brackets and a low-profile pan/tilt wall bracket included
4-pin euroblock input, 0.5 to 2.5 mm² wire
Black finish
Sold individually

Specifications

JBL COL600 Slim Column Speaker 0.6m IP54 Black specifications
Frequency range (-10 dB) 70 Hz to 20 kHz
Frequency response (±3 dB) 105 Hz to 20 kHz
Power rating 160W continuous programme, 80W continuous pink noise (2 hrs)
Sensitivity (2.83V, 1 m) 86 dB
Maximum SPL 105 dB continuous, 111 dB peak at 1 m
Coverage 160° horizontal x 110° vertical
100V taps 20W, 10W, 5W
70V taps 20W, 10W, 5W, 2.5W
Low-impedance setting 8 ohms
Enclosure PC and ABS, UL94-V0
Environmental IP54
Dimensions (H x W x D) 598 x 102 x 93 mm
Weight 3.5 kg

Full features

  • Two 5 x 2.25 inch racetrack woofers & one 1 inch tweeter
  • 24 inch tall with shallow 3.7 inch cabinet depth
  • Wide 160° horizontal and focused 110° vertical coverage
  • 10° downward tilt to aim for covering most listening areas without requiring physical down- tilting of the cabinet
  • 80W continuous pink noise power handling (320W peak)
  • 70 Hz – 20 kHz frequency range
  • Built-in 20W 70V/100V multi-tap transformer, plus 8 ohm direct input.
  • 111 dB peak SPL (105 dB continuous), 2 hrs
  • Tweeter near top of column for unobstructed coverage of listening space
  • Versatile mounting brackets included – both

Full specifications

System

  • Frequency Range (-10 dB): 70 Hz – 20 kHz
  • Frequency Response (±3 dB): 105 Hz – 20 kHz
  • Power Rating:
    • 160W Continuous Program (2 hrs)
    • 80W (320W peak) Continuous Pink Noise (2 hrs)
    • 60W (240W peak) Continuous Pink Noise (100 hrs)
  • Sensitivity (2.83V @ 1m): 86 dB
  • Coverage Pattern:
  • Vertical 110° [1kHz-4 kHz average]
  • 10° down-tilt to aiming access for+45°/-65° coverage in relation to physical cabinet aim
  • Horizontal 160° [1kHz – 4 kHz average]
  • Directivity (Q): 7.8
  • Directivity Index (DI): 8.9 dB
  • Rated Maximum SPL: 105 dB Continuous (111 dB peak) @ 1m
  • Nominal Impedance: 8Ω (in Thru/direct mode)
  • Minimum Impedance: 7.0 Ω@ 275 Hz
  • Transformer Taps: 20W, 10W, 5W @ both 70V & 100V (plus 2.5W @ 70V), and 8Ω thru, selectable via switch
  • Transformer Insertion Loss: Less than 1 dB for all taps
  • Maximum Input Voltage: 21 V RMS (2 hrs), 42 V peak
  • Recommended Protective High-Pass: 70 Hz for 8 Ω operation; 60 Hz for all transformer tap settings (20W, 10W, 5W and 2.5W

Transducer

  • Drivers:
    • Two 125 x 55 mm (5 x 2.25 in.) racetrack LF drivers
    • One 25 mm (1 in.) tweeter (tweeter located at top of array for better coverage of listening space)

Enclosure

  • Enclosure Material: PC + ABS, UL94-V0 flammability rating
  • Grille: Plated SPCC with polyester powder coat finish
  • Environmental: IP-54 rated per IEC60529, dust and water protected when installed with included cover for input terminal compartment and no physical up-tilt cabinet aiming. UV resistant. [Cycle 1 per ISO 4892.3-2006]
  • Agency ratings: Transformer UL recognized. RoHS, REACH compliance. LVD for CE.
  • Terminals: 4-pin Euroblock connection for bare wire, accepts 20 to 14 AWG gauge wire (0.5 to 2.5 sq mm). Rain cover allows for one or two 2-wire cables, with max cable jacket diameter of 8 mm (0.3 in)
  • Dimensions (H x W x D): 598 x 102 x 93 mm (23.6 x 4.1 x 3.7 inches)
  • Net Weight: 3.5 kg (7.8 lbs)
