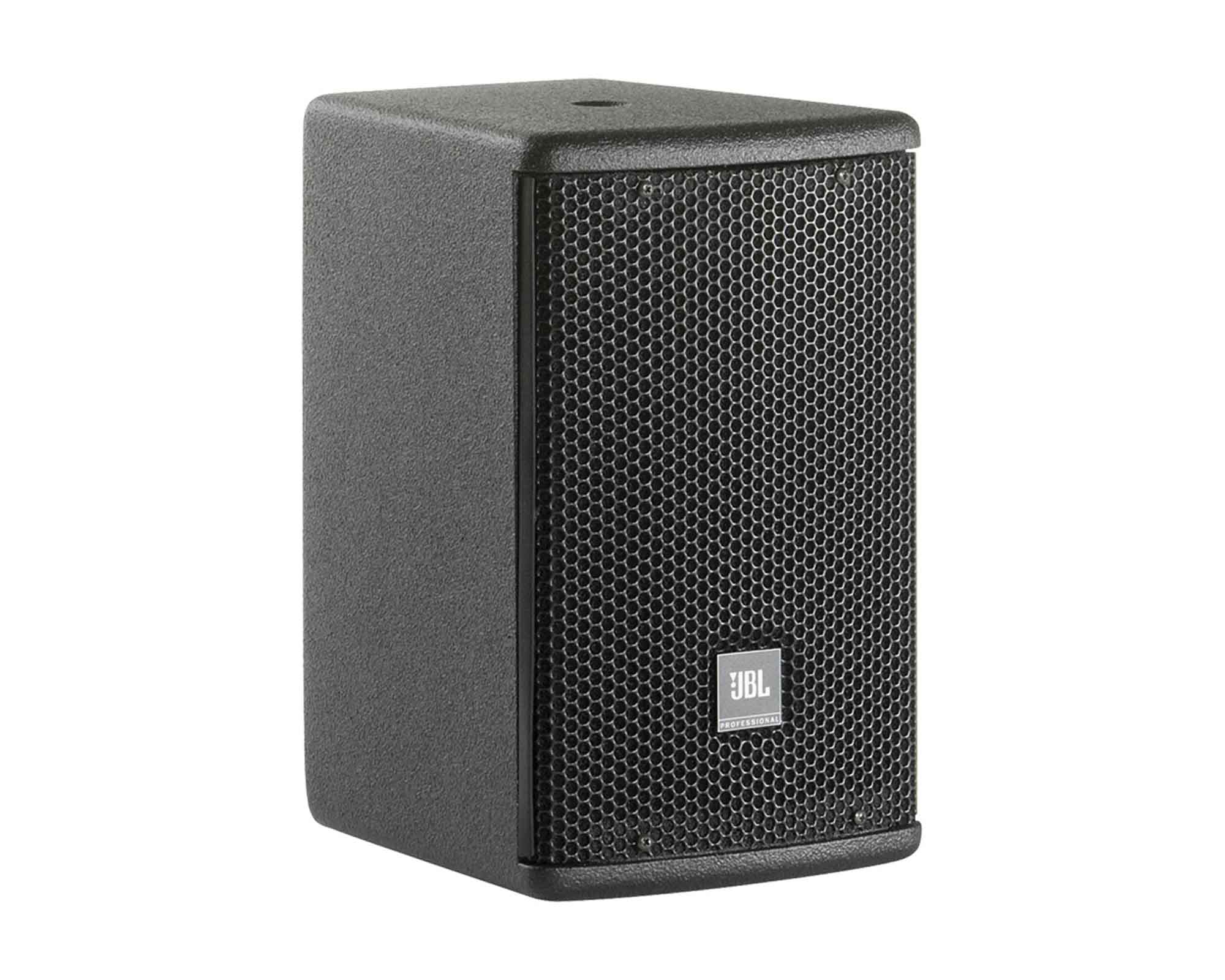

The JBL AC15 is a compact two-way loudspeaker with a 5.25in woofer and 1in dome tweeter on a 90° x 90° waveguide, rated at 150W continuous into 16 ohms. The plywood cabinet can be mounted vertically or horizontally close to walls and ceilings. It suits under-balcony fill, theatres, houses of worship, bars and conference spaces.
5.25in
2-way
90° x 90°
Coverage
150W
Continuous
16 ohm
Impedance
16 ohm, no transformerThe AC15 is a low-impedance speaker with no 100V/70V transformer. It needs a low-impedance amplifier output. Brackets are optional and not included.
Features

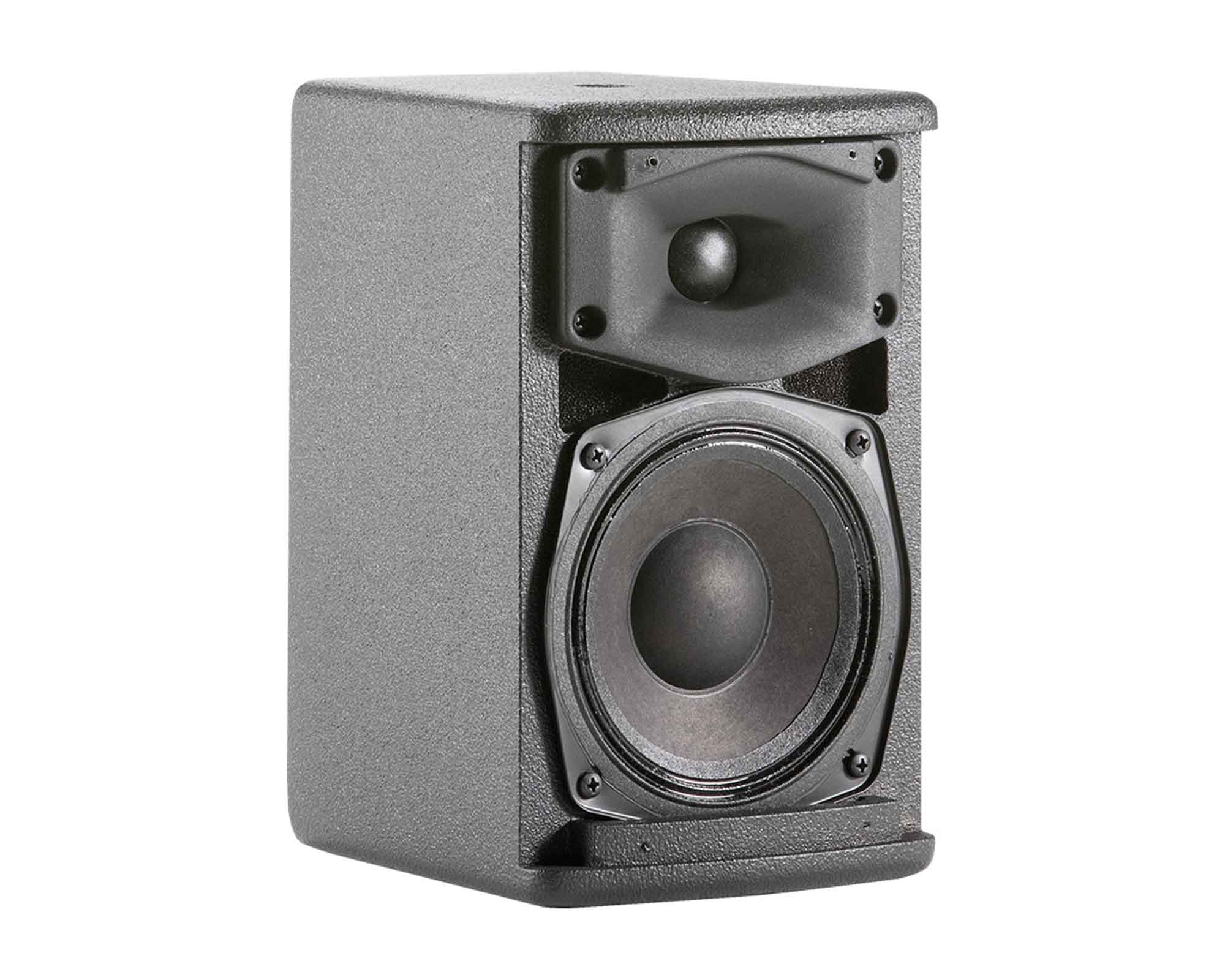

135 mm (5.25 in) SFG woofer with 38 mm (1.5 in) edge-wound voice coil
25 mm (1 in) dome tweeter on a 90° x 90° waveguide
150W continuous pink noise, 300W programme, 600W peak
16 ohm impedance, passive crossover
Two Neutrik NL4 connectors plus screw terminals
12 mm multi-ply plywood enclosure in textured DuraFlex finish with powder-coated steel grille
Four M8 points (top, bottom, two rear) plus two M6 points for OmniMount 20.5 type brackets
Black finish
Sold individually
Specifications
| Frequency range (-10 dB) | 80 Hz to 20 kHz |
| Frequency response (±3 dB) | 90 Hz to 18 kHz |
| Power rating | 150W continuous pink noise, 300W programme, 600W peak |
| Sensitivity | 86 dB SPL (1W, 1 m) |
| Maximum SPL | 108 dB at 1 m |
| Coverage | 90° x 90° |
| Nominal impedance | 16 ohms |
| Connectors | 2x Neutrik NL4, screw terminals |
| Enclosure | 12 mm multi-ply plywood |
| Dimensions (H x W x D) | 241.3 x 150.3 x 177.8 mm |
| Weight | 4.7 kg |
