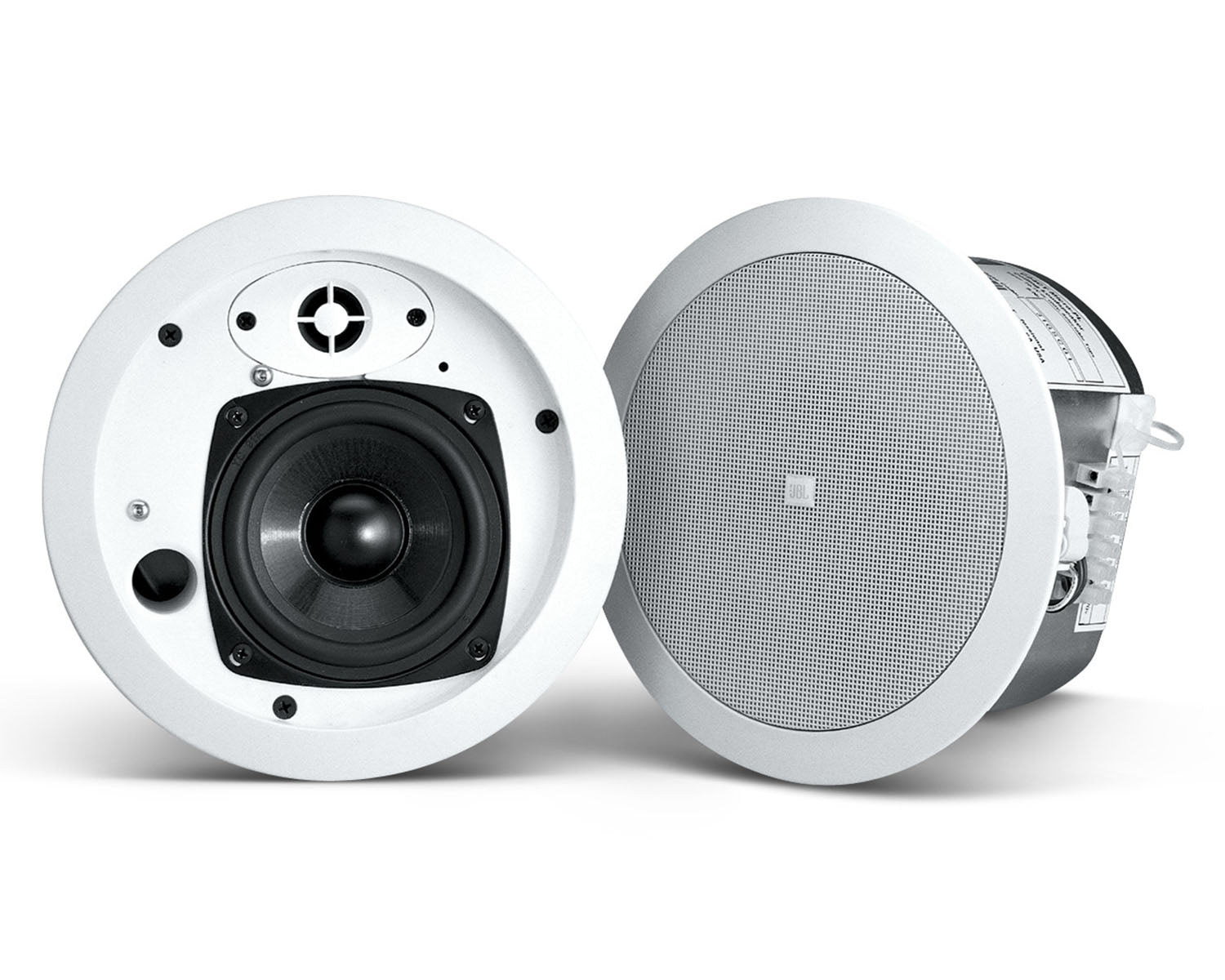

JBL Control 24CT Micro Plus 4.5" Shallow Ceiling Speaker 100V

Product code: 191930

£120.00 inc VAT
£100.00 ex VAT

SKU: C24CT MICROPLUS

30 in stock (more available subject to additional lead time)

31 available online
More available from supplier in 1–3 weeks
Delivered by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
1 Year Manufacturer Warranty Included

About this Product

Connection: 100V line (taps 25 / 12W).

The JBL Control 24CT MicroPlus is a 4.5in two-way ceiling speaker with a shallow 105 mm depth, for background music and paging. It has a 25W transformer for 100V and 70V lines and 150° coverage, so fewer speakers can cover an area. Typical uses are shops, cafes, offices, hotels and schools, including ceilings with limited void depth.

4.5in
2-way
150°
Conical coverage
25W
Max 100V tap
105 mm
Depth

Features

115 mm (4.5 in) injection moulded graphite cone woofer with butyl rubber surround
12 mm (0.5 in) polycarbonate tweeter
100V taps at 25W and 12W; 70V taps at 25W, 12W and 6W
150° conical coverage
105 mm depth from back of baffle
Supplied with grille, back can and tile rails
Sold individually

Specifications

JBL Control 24CT Micro Plus 4.5″ Shallow Ceiling Speaker 100V specifications
Frequency range 80 Hz to 25 kHz
Power capacity 25W maximum (top transformer tap)
100V taps 25W, 12W
70V taps 25W, 12W, 6W
Sensitivity 85 dB SPL at 1 m
Maximum SPL 99 dB at 1 m (25W tap)
Crossover 3.5 kHz, 3rd order
Coverage 150° conical
LF driver 115 mm (4.5 in) graphite cone, 24 mm voice coil
HF driver 12 mm (0.5 in) polycarbonate
Depth 105 mm

Full features

  • Extremely wide 150° coverage.
  • Smooth frequency response.
  • Advanced crossover network provides very even coverage throughout listening area.
  • Components:
  • 115 mm (4.5 in) woofer, injection molded graphite cone with butyl rubber surround.
  • 12 mm (.5 in) polycarbonate tweeter for extended response.
  • Includes 25 W multi-tap transformer for 70 V/100 V systems.
  • Shallow 105 mm (4.1 inch) depth from back of baffle.
  • Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking.

Full specifications

General

  • Frequency Range: 80 Hz - 25 kHz
  • Power Capacity: 25 W maximum (top transformer tap)
  • Transformer Taps:
    • 70 V: 25 W, 12 W, 6 W taps
    • 100 V: 25 W, 12 W taps
  • Nominal Sensitivity: 85 dB SPL @ 1 m (3.3 ft)
  • Crossover Frequency: 3.5 kHz, 3rd order low-pass plus 3rd order high-pass with conjugate
  • Rated Maximum SPL: 99 dB @ 1 m (3.3 ft), 25 W tap
  • Low Frequency: 115 mm (4.5 in) IMG (injection molded graphite), 24 mm (1 in) voice coil
  • High Frequency: 12 mm (0.5 in) polycarbonate

Physical & Dimensions

  • Depth: 105mm
