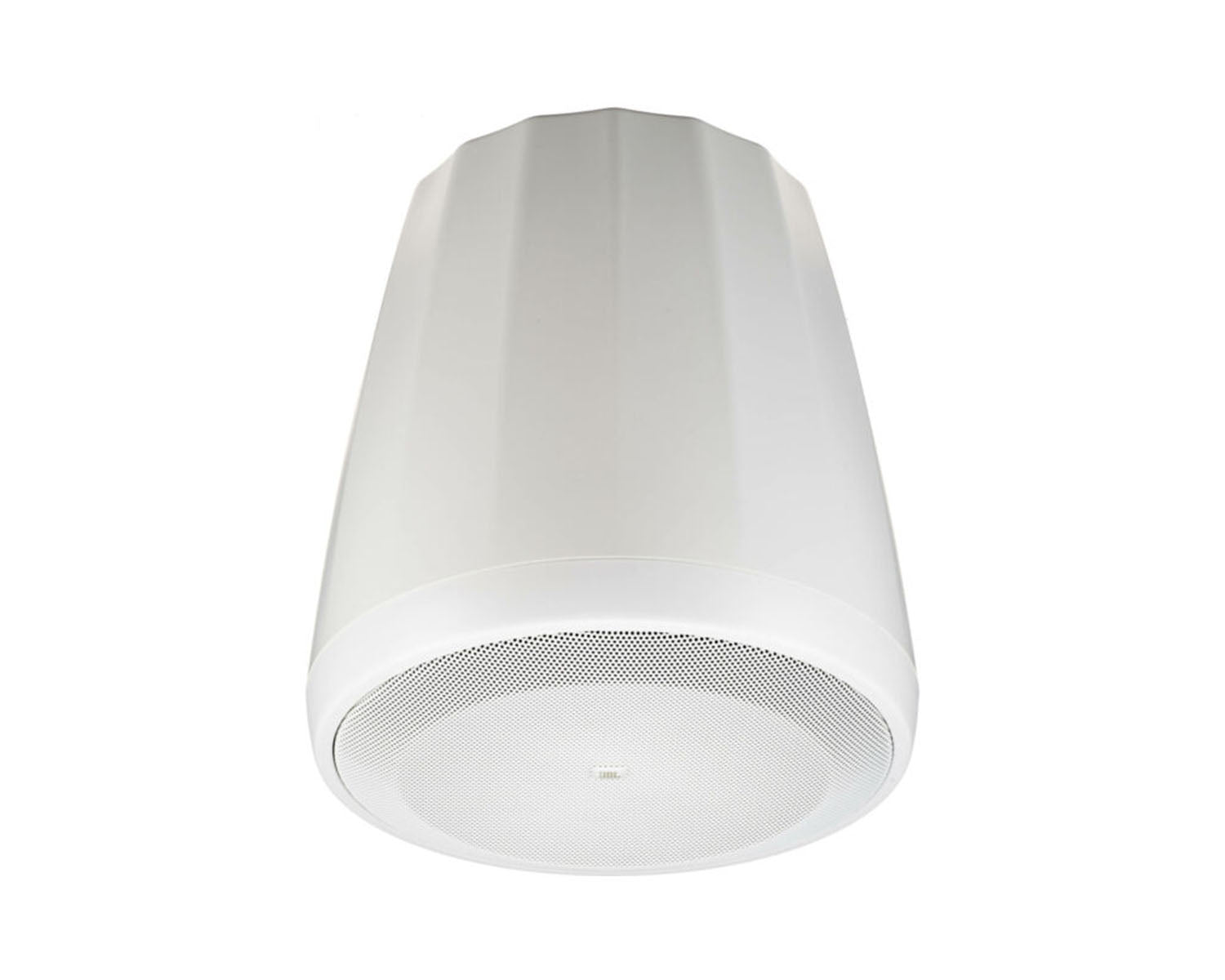

JBL Control 64P/T 4" Pendant Speaker 100V White

Product code: 192021

£260.00 inc VAT
£216.67 ex VAT

SKU: C64P/T-WH

1 in stock

Ordered from supplier, allow 1–3 weeks
FREE delivery by Tue 15th DecOrder by 3pm tomorrow
Click & Collect Mon 14th Dec ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
1 Year Manufacturer Warranty Included

About this Product

Connection: 100V line (taps 30 / 15 / 7.5W) or low impedance (8Ω).

The JBL Control 64P/T is a compact 4in full-range pendant speaker for open or high ceilings. It has a 30W transformer for 100V and 70V lines plus an 8 ohm setting, and 120° coverage. It suits retail, cafes, offices, gyms and atriums with exposed ceilings.

4in
Full-range
120°
Coverage
30W
Max 100V tap
IP44
Splashproof

Features

100 mm (4 in) polypropylene-coated cone full-range driver
100V taps at 30W, 15W and 7.5W; 70V taps at 30W, 15W, 7.5W and 3.7W
8 ohm direct setting, 50W continuous pink noise (2 hrs)
120° coverage
Two 4.5 m galvanised steel suspension cables with Gripple adjusters, one as a safety, rated SWL 45 kg
Two paralleled locking euroblock connectors for input and loop-thru, with rubber covers
IP44 rated
Removable grille and foam for painting
White finish
Sold individually

Specifications

JBL Control 64P/T 4″ Pendant Speaker 100V White specifications
Frequency response (-10 dB) 65 Hz to 15 kHz
Frequency response (±3 dB) 85 Hz to 14 kHz
Power rating 100W continuous programme, 50W continuous pink noise (2 hrs)
Sensitivity 88 dB
Maximum SPL 105 dB continuous, 111 dB peak at 1 m
Coverage 120°
Impedance 8 ohms
100V taps 30W, 15W, 7.5W
70V taps 30W, 15W, 7.5W, 3.7W
Environmental IP44
Dimensions 234 mm diameter, 259 mm to top of cabinet, 279 mm to top of bracket
Weight 2.35 kg

Full features

  • 100 mm (4 in) full-range driver with polypropylene-coated cone and 20 mm (0.8 in) high temperature voice coil.
  • Hanging hardware with 4.5 m (15 foot) galvanized steel cable and easy to adjust clamp.
  • Stylish design, available in black or white (-WH).
  • UL listed (speaker and hanging cable system).
  • 8Ω and 70V/100V operation
  • Coverage: 120°

Full specifications

General

  • Frequency Response (-10dB): 65 Hz - 15 kHz
  • Frequency Response (±3 dB): 85Hz - 14 kHz
  • Power Rating: 100 W Continuous Program (2 hrs) 50 W (200W peak), Continuous Pink Noise (2 hrs) 40 W (160W peak) Continuous Pink Noise (100 hrs)
  • Maximum Input Voltage: 18.2 V RMS (2 hrs), 36.4 V peak
  • Nominal Sensitivity: 88 dB Nominal
  • Coverage Angle: 120° (averaged 1 kHz to 4 kHz)
  • Directivity Factor (Q): 6.2
  • Directivity Index (DI): 7.3dB (averaged 1kHz – 16kHz)
  • Maximum SPL (1m): 105 dB continuous pink noise, 111 dB peak
  • Impedance: 8Ω
  • Transformer Taps: 70V: 30W, 15W, 7.5W & 3.7W 100V: 30W, 15W, 7.5W
  • Transformer Insertion Loss: 0.94dB @ 3.7W, 0.89dB @ 7.5W, 0.83dB @ 15W, 0.94dB @ 30W
  • Drivers: 100 mm (4 in) polypropylene-coated paper with cloth surround, 20 mm (0.8 in) copper voice coil
  • Outdoor Capability: Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 – splash-proof rating.
  • Input Connectors: Two removable locking euro-block 2-pin connectors with screw-down terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included.
  • Suspension: Two identical suspension systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanised-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple™ brand adjustable-height cable fasteners for infinitely adjustable height. Cables have SWL rating of 45 kg (99 lb).
  • Safety Agency: Speaker listed per UL1480, transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple®-brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81.

Physical

  • Dimensions (H x W x D): 234 mm (9.3 in) diameter x 259 mm (10.2 in) height to top of cabinet. 279 mm (11.0 in) to top of suspension bracket.
  • Net Weight (each): 2.35 kg (5.2 lbs)
  • Shipping Weight (pair): 6.07 kg (13.4 lbs)
  • Included Accessories: Two suspension cable systems (see “Suspension”, above), two 2-pin removable locking euro-block connectors, two rubber covers for euro-block connectors.
  • Optional Accessories: MTC-PC60 top panel / terminal cover
  • Colours: Available in black or white (-WH).
  • Enclosure: High impact polystyrene
  • Grille: Zinc-plated steel grille with powder-coat finish, foam backing (removable for painting)
