Rated 4.9 (120 reviews)

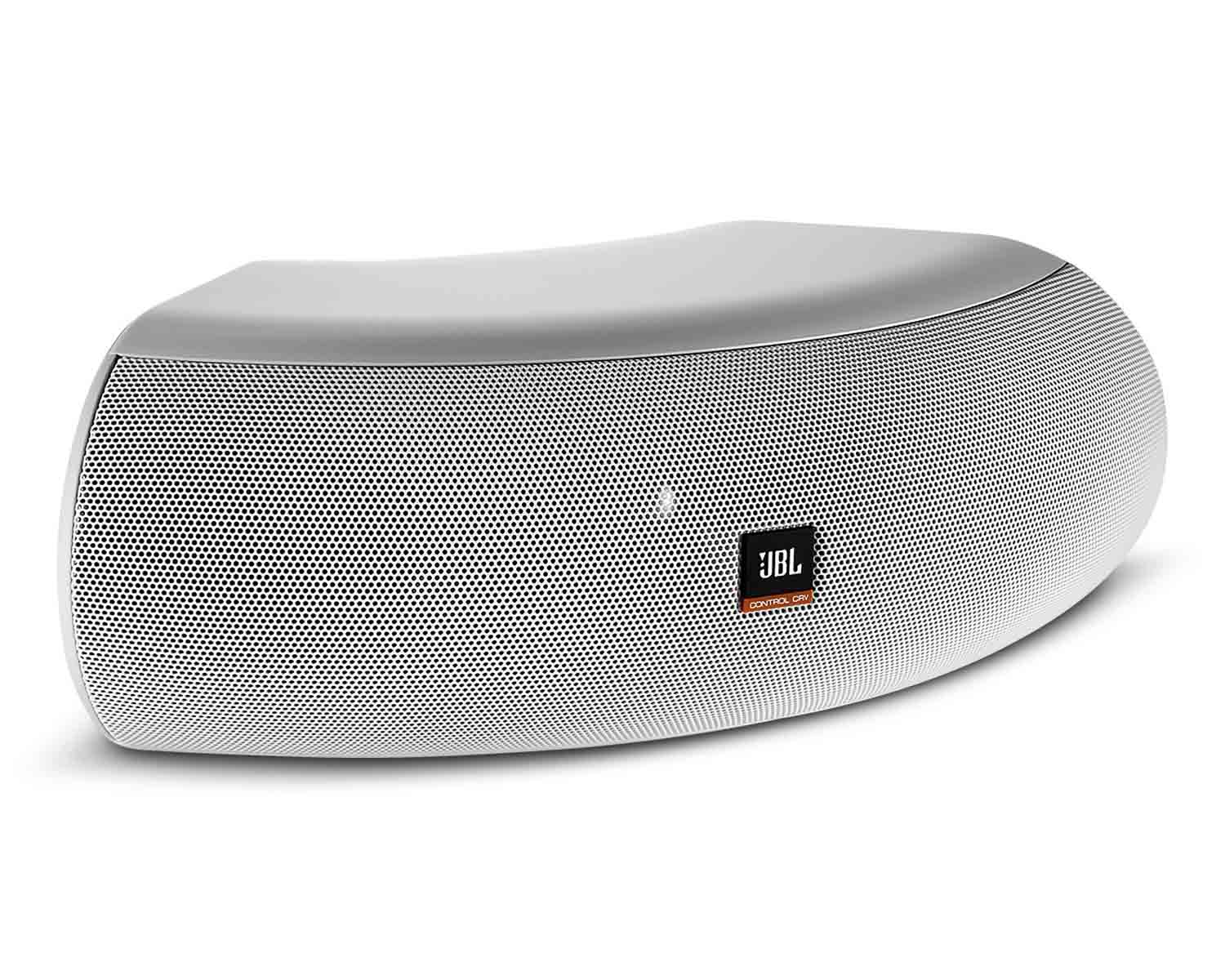

The JBL Control CRV is a curved surface-mount speaker with dual 4in woofers and a 0.75in tweeter, for walls, wall-to-ceiling corners or clusters. It has a 30W transformer for 100V and 70V lines with a 4 ohm thru setting and is rated IP34 for indoor and covered outdoor use. It suits restaurants, bars, retail, hotels and lobbies.
2x 4in
2-way
105° x 80°
Coverage
30W
Max 100V tap
IP34
Weather rating
Features
Two 100 mm (4 in) shielded woofers and a 19 mm (0.75 in) titanium-laminate dome tweeter
Taps at 30W, 15W and 7.5W on 100V and 70V, plus 3.8W on 70V only
4 ohm thru setting, 75W continuous pink noise (2 hrs)
Curved enclosure mounts flat on a wall, angled down 45°, or across a wall-ceiling or wall-wall corner
Two or three units can be joined; four form a 360° pendant cluster with the optional PMB pole-mount bracket
IP34 rated, stainless steel screws and screened ports
Corner/wall-mount bracket with cap, screws and trim covers included
White finish
Sold individually
Specifications
| Frequency range (-10 dB) | 80 Hz to 20 kHz on wall, 60 Hz to 20 kHz in a corner |
| Power handling | 75W continuous pink noise (2 hrs), 150W continuous programme |
| Sensitivity | 89 dB |
| Maximum SPL | 108 dB continuous, 114 dB peak at 1 m |
| Coverage | 105° horizontal x 80° vertical |
| 100V taps | 30W, 15W, 7.5W |
| 70V taps | 30W, 15W, 7.5W, 3.8W |
| Low-impedance setting | 4 ohms |
| Crossover | 2 kHz |
| Enclosure | ABS |
| Environmental | IP34 |
| Dimensions | 364 mm wide x 127 mm high x 262 mm deep |
| Weight | 3.2 kg |
