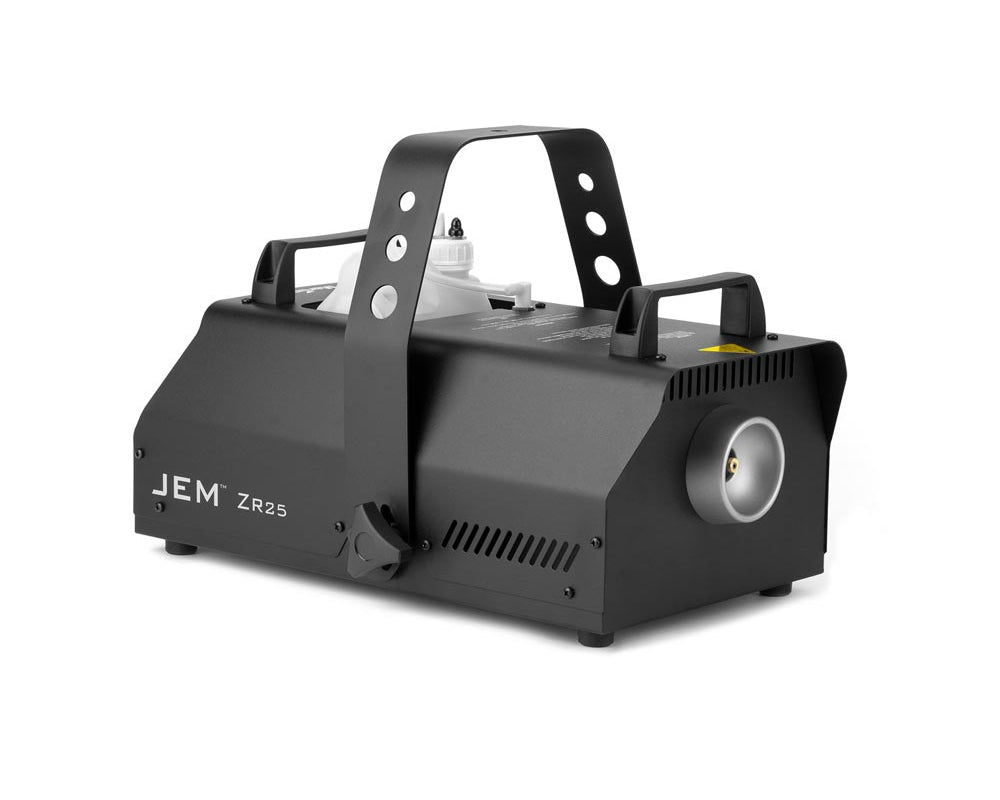

The JEM ZR25 is a compact fog machine with a 1,150 W heat exchanger and a 2.5 litre drop-in fluid tank, rated at 40 ml in 30 seconds peak output. It has variable output, an integrated digital remote, DMX and RDM, and a bracket for floor or truss mounting. It suits small to medium venues and stages in installation and rental use.
1150 W
Heat exchanger
600 m³/min
Fog output
2.5 L
Fluid tank
7-8 min
Warm-up
FluidUse JEM Pro-Fog fluids. Martin lists the ZR range as compatible with JEM Pro fog fluids; C-Plus Haze Fluid is for the Compact Hazer Pro only.
Features
1,150 W heat exchanger, 600 m³/min output, 40 ml in 30 seconds peak
2.5 litre drop-in reservoir with quick-connect fitting
7 to 8 minute warm-up
Variable output 0 to 100%, continuous or timer-controlled

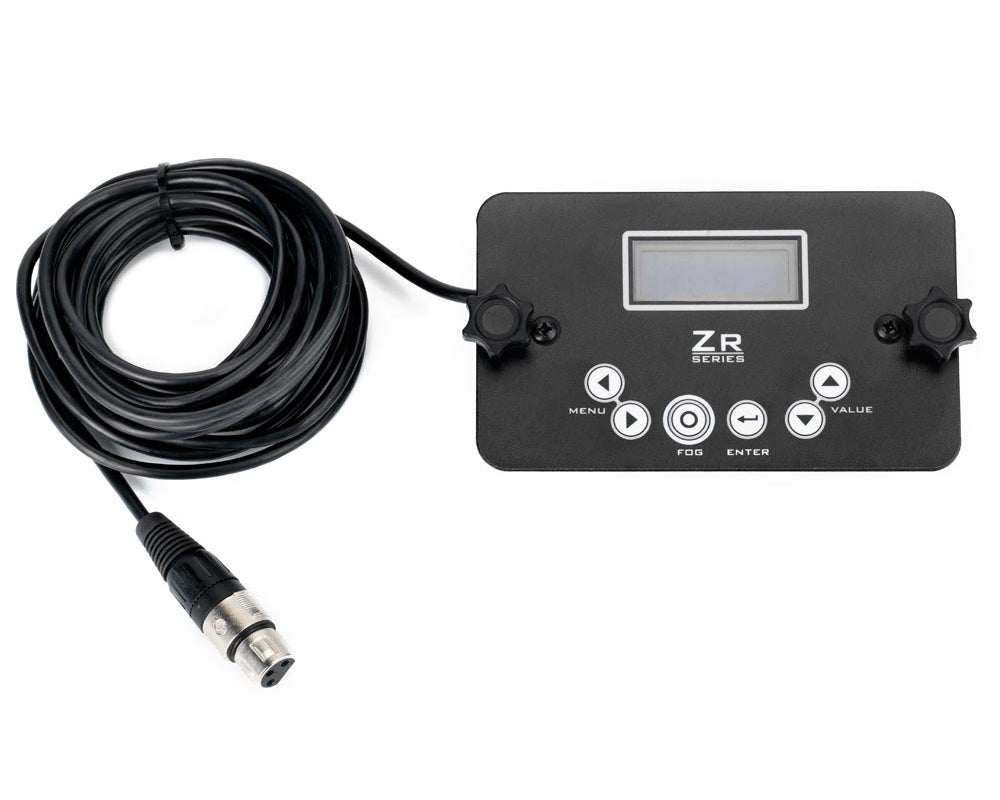

Integrated digital remote with 3 m cable; optional analogue remote
1-channel DMX on 5-pin XLR, RDM, and master/slave link mode
Fluid-out sensing; fluid system sealed for transport
Floor standing or hung from the included bracket, up to ±40° from horizontal
Neutrik powerCON TRUE1 mains connection
Specifications
| Heat exchanger | 1150 W, thermally protected |
| Fog output | 600 m³/min |
| Peak performance | 40 ml in 30 seconds |
| Warm-up time | 7 to 8 minutes |
| Fluid reservoir | 2.5 L drop-in, quick-connect |
| Fluid pump | Oscillating piston, high pressure |
| Control | Integrated digital remote (3 m, 3-pin XLR), DMX, optional analogue remote, master/slave |
| DMX channels | 1 |
| DMX / RDM | ANSI E1.11 DMX512-A; ANSI/ESTA E1.20 RDM |

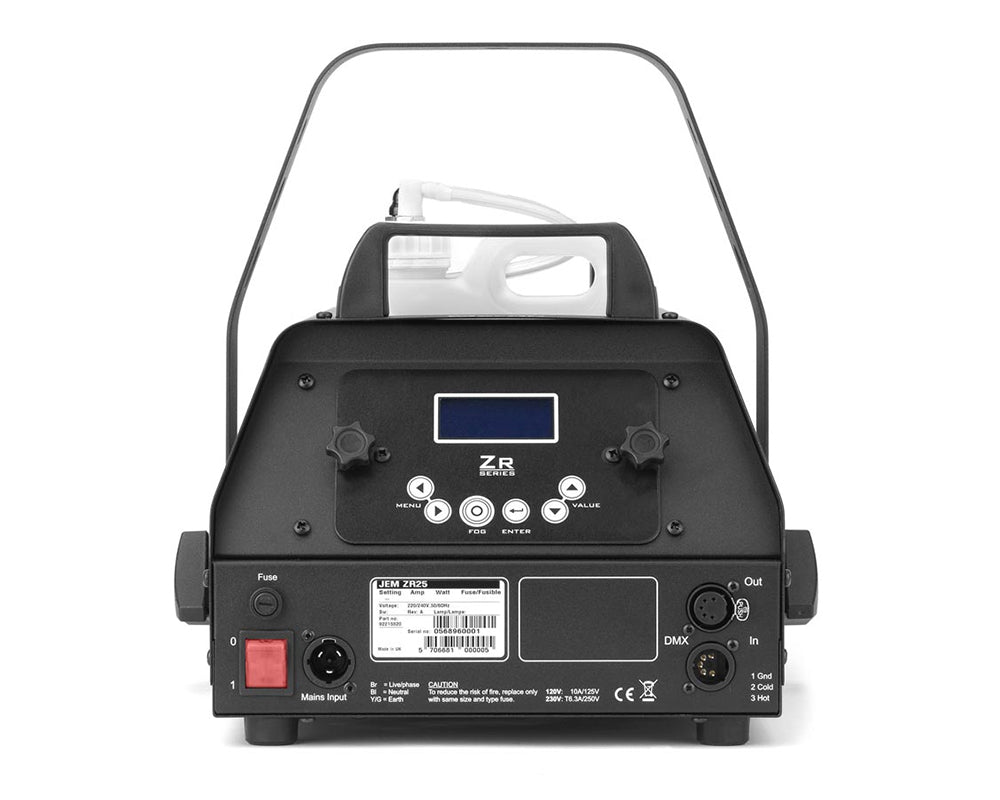

| Connections | powerCON TRUE1; 5-pin XLR DMX/link in and out; 3-pin XLR remote |
| Mounting | Standing or hanging; up to ±40° from horizontal; 100 mm clearance |
| Housing | Steel and aluminium, black |
| Dimensions (L x W x H) | 485 x 335 x 242 mm (333 mm high with bracket) |
| Weight | 11.2 kg dry, 13.7 kg filled |
