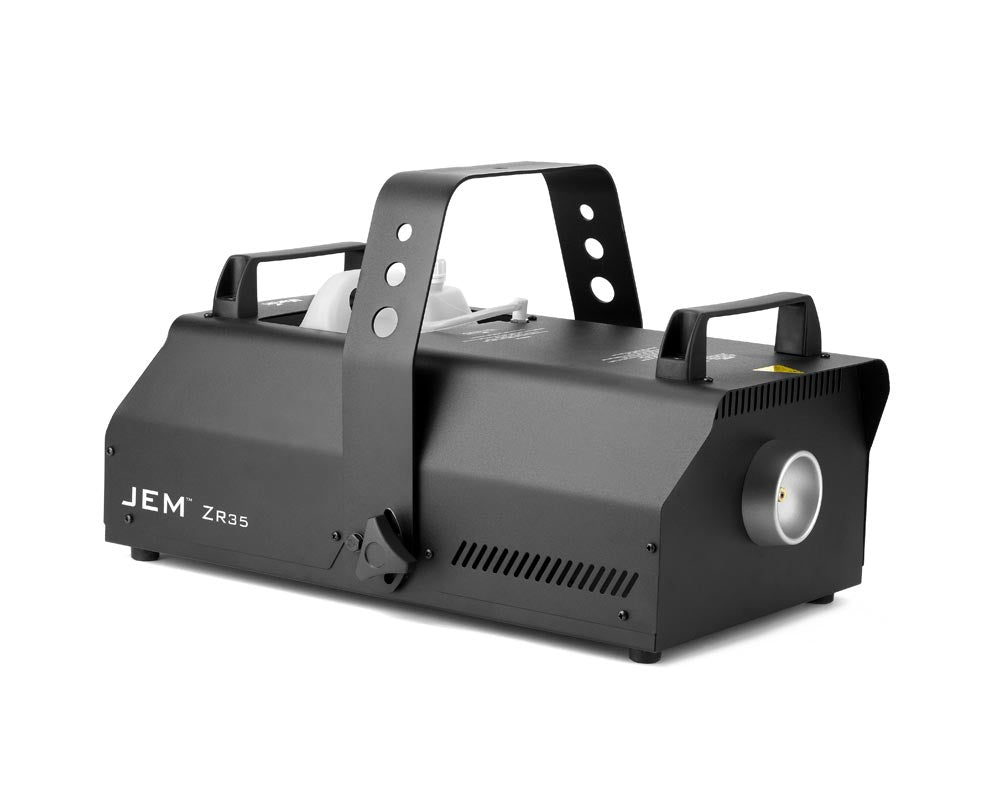

The JEM ZR35 is a mid-sized fog machine with a 1,500 W heat exchanger, rated at 50 ml in 30 seconds peak output, and takes a 4 or 5 litre drop-in fluid container. It has variable output, an integrated digital remote, DMX and RDM, and a bracket for floor or truss mounting. It suits medium to large venues and stages in installation and rental use.
1500 W
Heat exchanger
800 m³/min
Fog output
4 or 5 L
Fluid container
8-9 min
Warm-up
FluidUse JEM Pro-Fog fluids. Martin lists the ZR range as compatible with JEM Pro fog fluids; C-Plus Haze Fluid is for the Compact Hazer Pro only.
Features
1,500 W heat exchanger, 800 m³/min output, 50 ml in 30 seconds peak
4 litre drop-in reservoir, also takes a 5 litre bottle
8 to 9 minute warm-up
Variable output 0 to 100%, continuous or timer-controlled

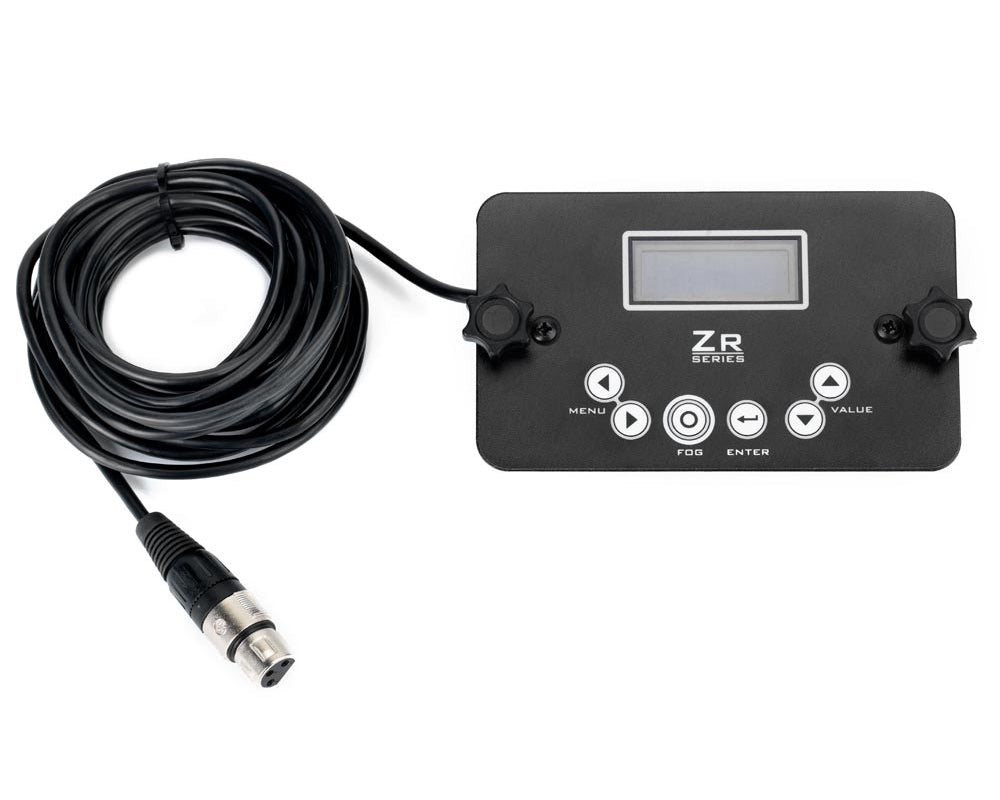

Integrated digital remote with 3 m cable; optional analogue remote
1-channel DMX on 5-pin XLR, RDM, and master/slave link mode
Fluid-out sensing; fluid system sealed for transport
Floor standing or hung from the included bracket, up to ±40° from horizontal
Neutrik powerCON TRUE1 mains connection
Specifications
| Heat exchanger | 1500 W, thermally protected |
| Fog output | 800 m³/min |
| Peak performance | 50 ml in 30 seconds |
| Warm-up time | 8 to 9 minutes |
| Fluid reservoir | 4 or 5 L drop-in, quick-connect |
| Fluid pump | Oscillating piston, high pressure |
| Control | Integrated digital remote (3 m, 3-pin XLR), DMX, optional analogue remote, master/slave |
| DMX channels | 1 |
| DMX / RDM | ANSI E1.11 DMX512-A; ANSI/ESTA E1.20 RDM |

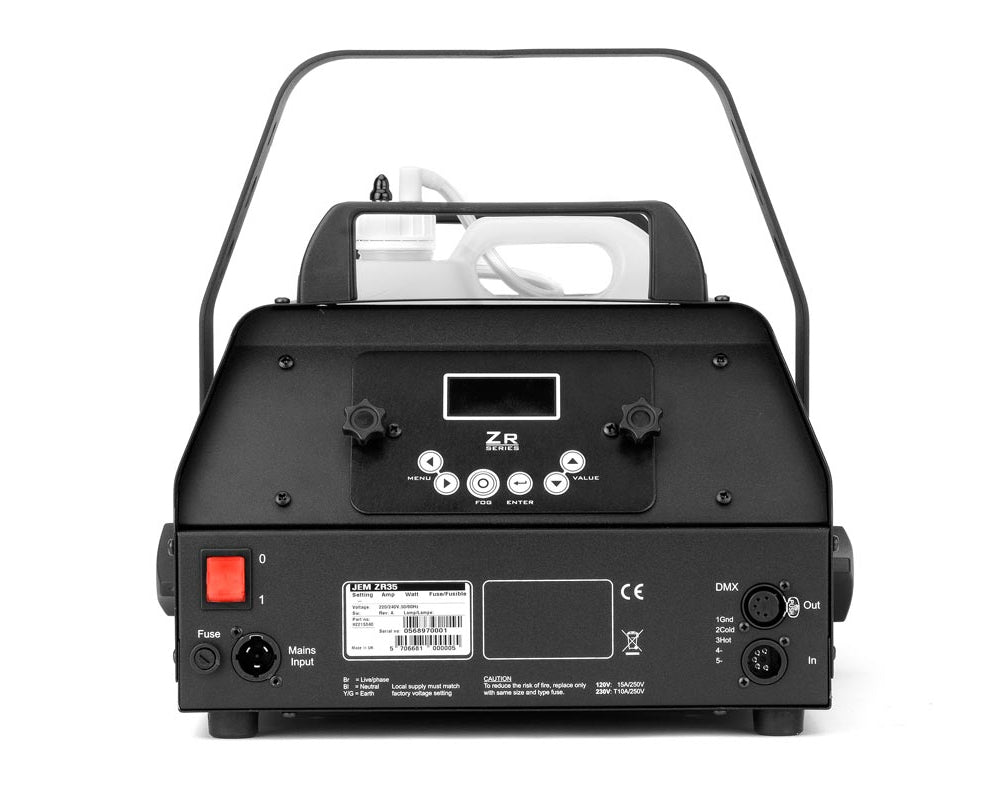

| Connections | powerCON TRUE1; 5-pin XLR DMX/link in and out; 3-pin XLR remote |
| Mounting | Standing or hanging; up to ±40° from horizontal; 100 mm clearance |
| Housing | Steel and aluminium, black |
| Dimensions (L x W x H) | 590 x 395 x 264 mm |
| Weight | 15.1 kg dry, 19.1 kg filled |
