Lab Gruppen CA2401 Commercial Amplifier, Energy Star, 1x240W 100V

Product code: 180345

£369.00 inc VAT
£307.50 ex VAT

SKU: 000-DAD04-00010

11 in stock

In stock with Lab Gruppen - ordered on demand
FREE delivery by ThursdayOrder by 3pm tomorrow
Click & Collect Wednesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
1 Year Manufacturer Warranty Included
Optional Add-Ons

About this Product

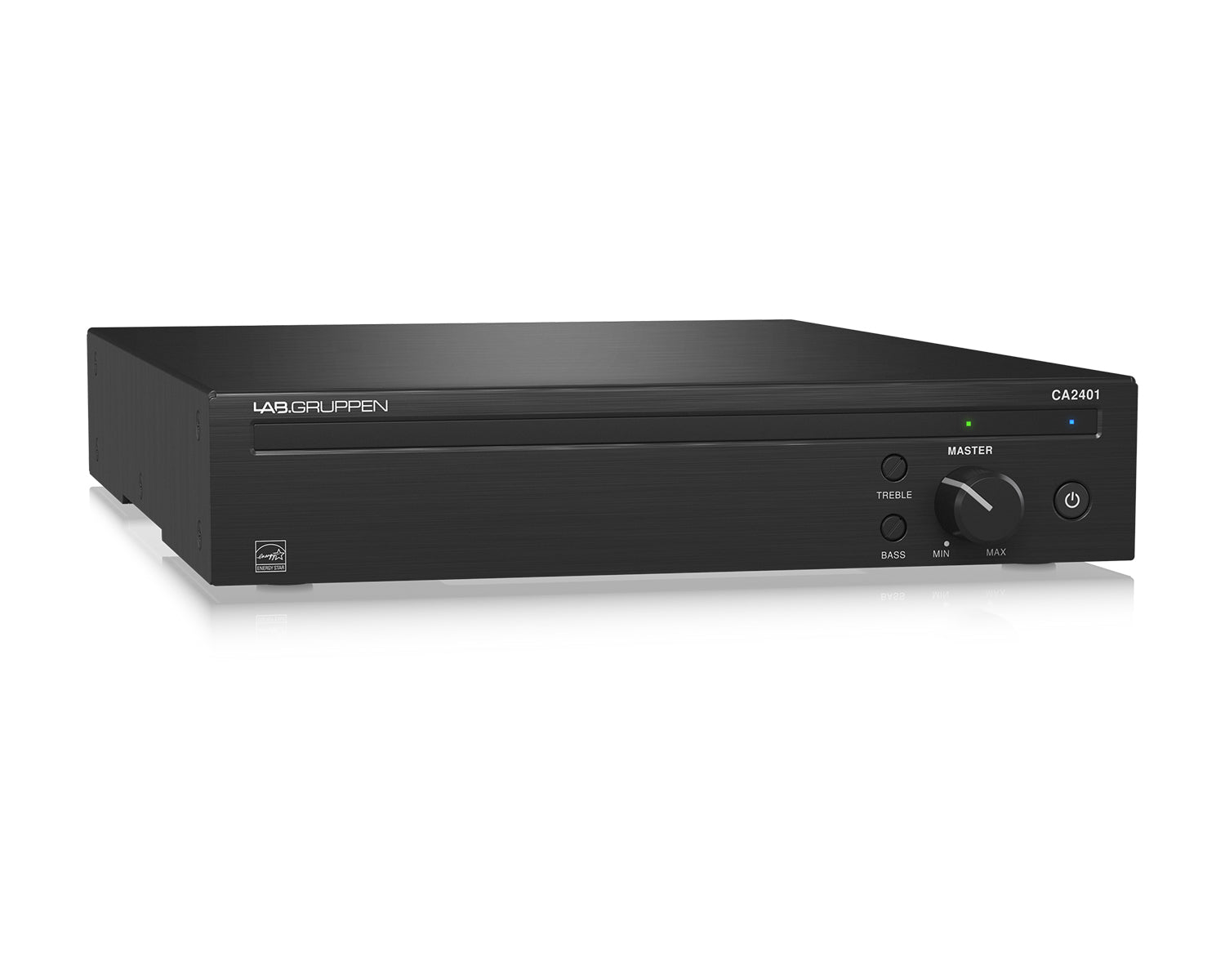

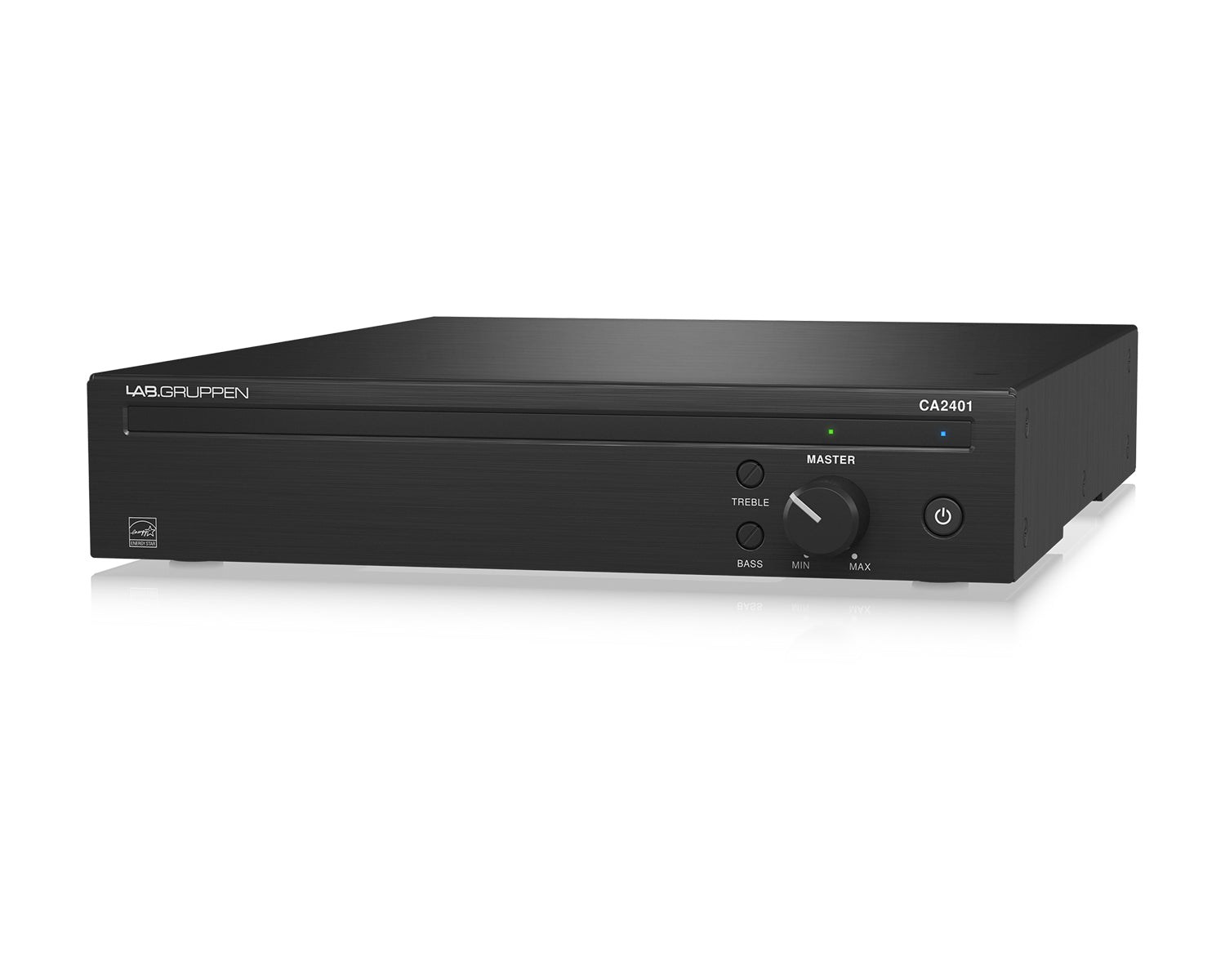

The Lab Gruppen CA2401 is a single-channel 240 W commercial amplifier for distributed audio in bars, restaurants, retail, hotels, corporate and education spaces. It drives either low-impedance 4/8 Ω loudspeakers or high-impedance 70/100 V line systems, the standard approach for install runs where many ceiling speakers share one cable, and its direct drive design delivers constant power without an output transformer. Fanless convection cooling, active power factor correction, Energy Star certification and simple front-panel controls make it straightforward to install and operate.

240 W
Output power
4/8 Ω + 100 V
Low-Z and High-Z modes
Fanless
Convection cooled
1U half
Rack width

Features

240 W amplifier for commercial and industrial applications
Low-Z (4/8 Ω) and High-Z (70/100 V) operation with switchable 80 Hz high-pass filter
Direct drive, constant power technology for audio performance and reliability
Energy Star certified design cuts energy use and running cost
GPI remote volume control via standard RJ-45 and Ethernet cable
Front panel master volume, bass/treble controls and power button
Auto Ramp circuitry for quiet, fast power up/down
1U half-rack enclosure with brackets for rack, table and wall mounting
Euroblock input and output connectors
Convection-cooled, fanless design for low noise
10-Year Warranty Program
Designed and engineered in Sweden

Specifications

Lab Gruppen CA2401 Commercial Amplifier, Energy Star, 1x240W 100V specifications
Maximum output power 240 W into 4 Ω, 8 Ω, 70 V or 100 V
Output channels 1
Minimum load impedance 4 Ω (4 Ω mode), 8 Ω (8 Ω mode), 20 Ω (70 V mode), 40 Ω (100 V mode)
Output circuit type Class D, direct drive
Inputs 1 × 3-pin 5.08 mm Euroblock (balanced), 1 × RCA stereo summed
Input sensitivity 1.23 V (+4 dBu) balanced; 0.62 V (-2 dBu) per side, RCA mono sum
Maximum input level 9.75 V (+22 dBu)
Output connector 1 × 2-pin 5.08 mm Euroblock
Tone controls Bass ±10 dB at 100 Hz, treble ±10 dB at 10 kHz
Distortion (1/8 rated power) <0.05%
Frequency response 20 Hz to 20 kHz, +0.5/-1 dB
Signal-to-noise ratio >97 dBA
Remote control GPI via 1 × RJ45 connector
Protection Thermal, over-current, DC, high-frequency; controlled start/shutdown
Mains 100-240 V, 50/60 Hz with active PFC, IEC inlet; fuse T 6.3 A L 250 V
Power consumption (1/8 rated power, 4 Ω) 70 W
Dimensions (H × W × D) 44 × 218 × 299 mm
Weight 2.4 kg
Approvals CE, cTUVus, PSE, CCC, RoHS, FCC Part 15 Class B, Energy Star 3.0

Full features

  • 240 Watt amplifier for commercial and industrial applications
  • Low-Z (4/8 Ohm) and High-Z (70/100 V) operation with switchable high-pass filter
  • Energy Star* certified design conserves energy and drastically reduces operational cost
  • Direct drive, constant power technology for superior audio performance and reliability
  • GPI remote volume control using standard RJ-45 connector and Ethernet cable
  • Individual front panel master volume and bass/treble controls
  • Auto Ramp circuitry for quiet and fast power up/down enables real-world energy savings
  • Front panel power control button for direct access
  • Rack-mountable 1U, half-rack width enclosure with joining brackets for rack, table and wall mounting
  • Euroblock type amplifier input and output connectors
  • Convection-cooled, fan-less amplifier technology for low noise
  • 10-Year Warranty Program*
  • Designed and engineered in Sweden

Full specifications

Maximum Output Power

  • 4 Ω per channel: 240 W
  • 8 Ω per channel: 240 W
  • 70 V per channel: 240 W
  • 100 V per channel: 240 W

Number of Output Channels

  • Number: 1

Minimum Load Impedance

  • 4 Ω mode: 4 Ω
  • 8 Ω mode: 8 Ω
  • 70 V output mode: 20 Ω
  • 100 V output mode: 40 Ω

Controls

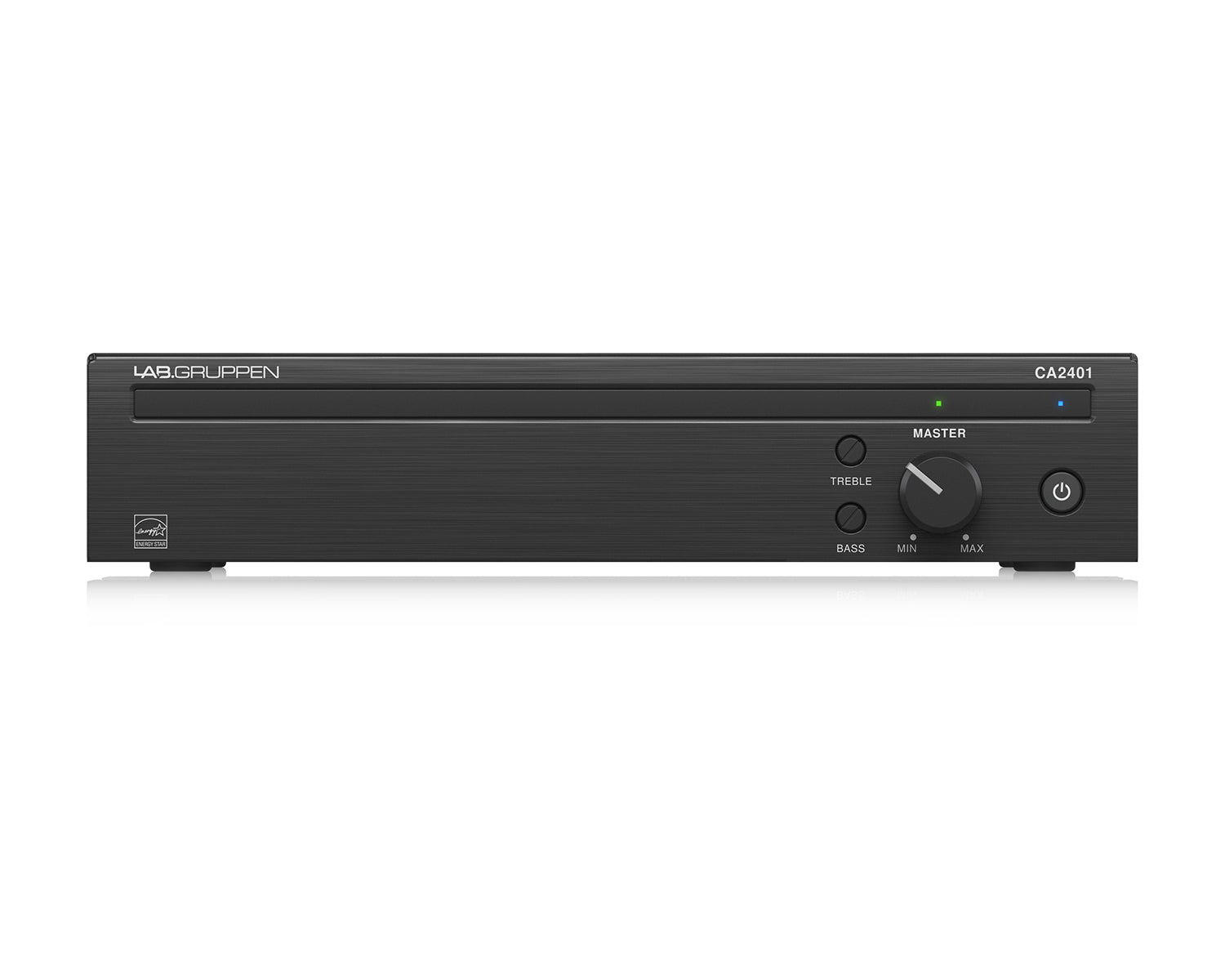

  • Front: Power standby button, gain control, tone controls - bass and treble

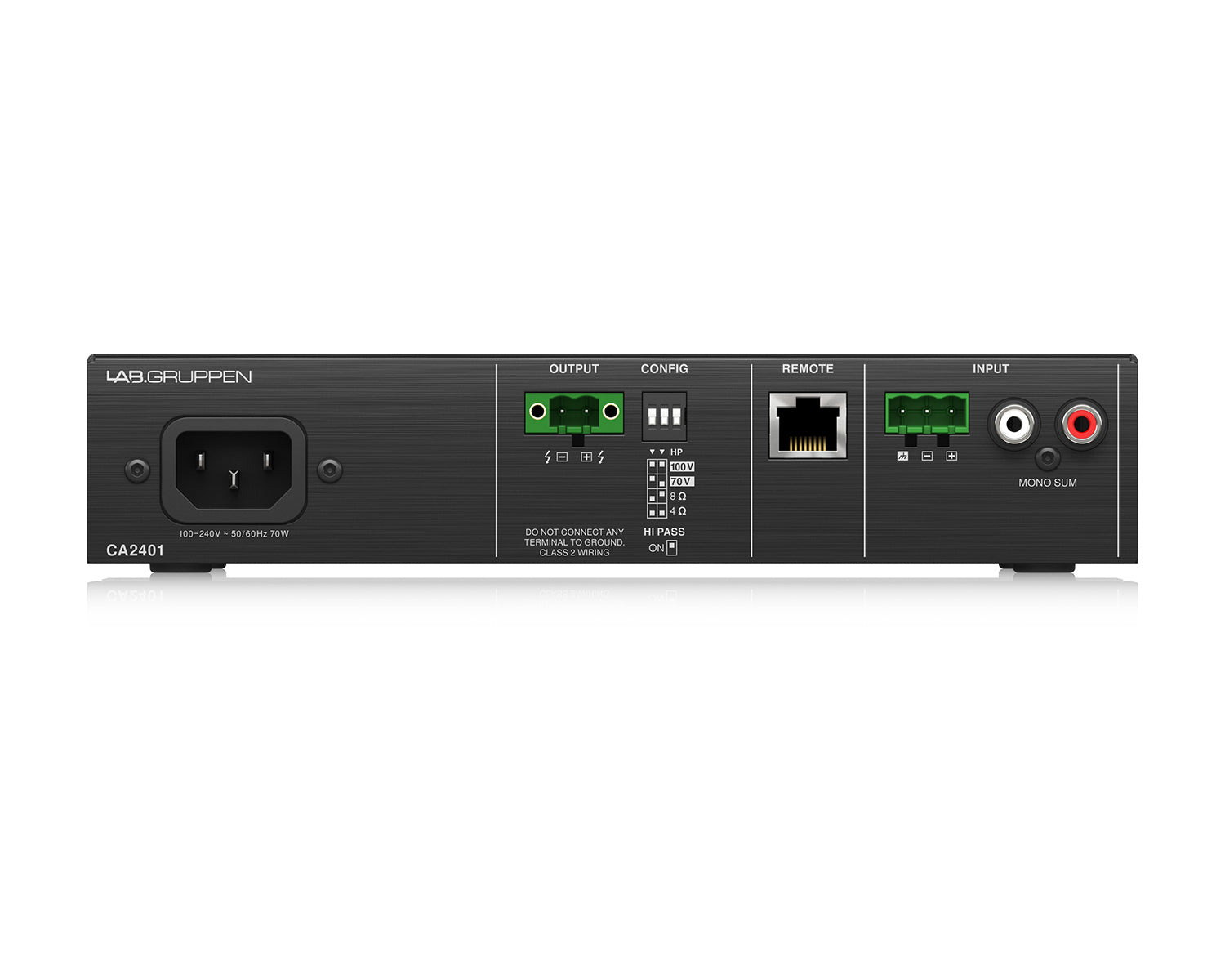

  • Rear: Load config - (4 Ω / 8 Ω / 70 V / 100 V), switchable 80 Hz high-pass filter

Tone Controls

  • Bass: ±10 dB @ 100 Hz
  • Treble: ±10 dB @ 10 kHz

Indicators

  • Power: On (blue), force standby (red), sleep (yellow)
  • Master
    • Signal (green LED): >12.3 mV (-36 dBu)
    • Limit (red LED): Input clip, output limit
    • Fault (red LED): Overheat, DC fault, over current, etc

System

  • Inputs:
    • 1 x 3-pin 5.08 mm Euroblock connector
    • 1 x RCA stereo summed
  • Input impedance: 10 kΩ unbalanced and RCA, 20 kΩ balanced
  • Input sensitive: Balanced: 1.23 V (+4 dBu)
  • RCA: 0.62 V (-2 dBu) each for mono sum RCA
  • Maximum input level: 9.75 V (+22 dBu)
  • Outputs: 1 x 2-pin 5.08 mm Euroblock connector
  • Output circuit type: Class D
  • Remote connector: 1 x RJ45 connector

Performance

  • Distortion, 1/8 rated power: <0.05%
  • Frequency response: 20 Hz to 20 kHz, +0.5 / -1 dB
  • Crosstalk (2 channel models): >85 dB
  • Signal-to-noise: >97 dBA
  • High-pass filter: 80 Hz HPF

Circuit Protection

  • Cooling: Convection-cooled, fanless
  • Amplifier protection: Thermal protection, over current protection, DC protection, high frequency protection
  • Load protection: Controlled start and shutdown behaviour, DC-fault protection

Power Supply, Voltage (Fuse)

  • Main voltage: 100-240 V~, 50/60 Hz with active power factor correction
  • Fuse: T 6.3 A L 250 V
  • Power consumption 1/8th rated power @ 4 Ω: 70 W
  • Mains connector: Standard IEC connector

Physical and Dimensions

  • Dimensions (H x W x D): 44 x 218 x 299 mm (1.7 x 8.6 x 11.8")
  • Weight: 2.4 kg (5.3 lbs)
  • Finish: Brushed black anodised aluminium chassis with black painted steel bottom
  • Approvals: CE, cTUVus, PSE, CCC, RoHS, FCC part 15 Class B and Energy Star 3.0
Compare the Range
Lab Gruppen CA2401 Commercial Amplifier with Direct Drive 1×240W 100V
Lab Gruppen CA2401 Commercial Amplifier, Energy Star, 1x240W 100V
£369.00 inc VAT
£307.50 ex VAT
  • Maximum output power: 240 W into 4 Ω, 8 Ω, 70 V or 100 V
  • Power consumption (1/8 rated power, 4 Ω): 70 W
Viewing Now

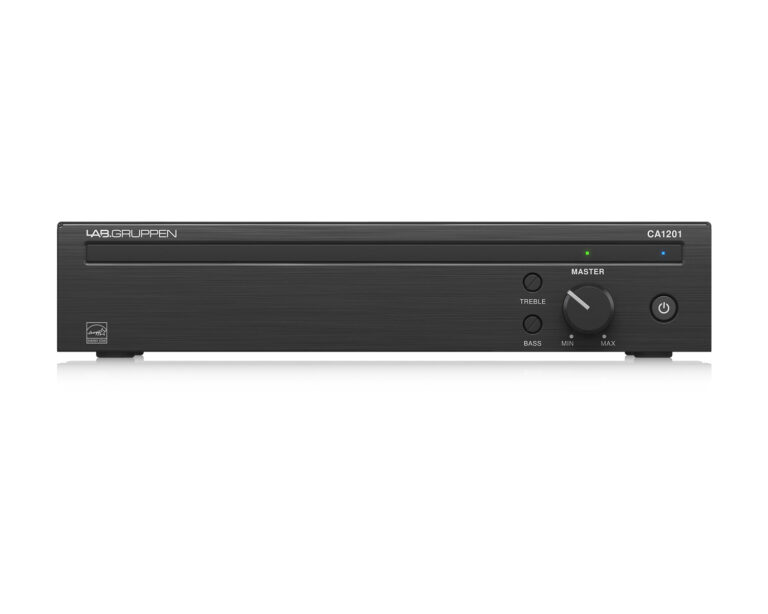

Lab Gruppen CA1201 Commercial Amplifier with Direct Drive 1×120W 100V
£322.00 inc VAT
£268.33 ex VAT
  • Maximum output power: 120 W into 4 Ω, 8 Ω, 70 V or 100 V
  • Power consumption (1/8 rated power, 4 Ω): 50 W
View →
