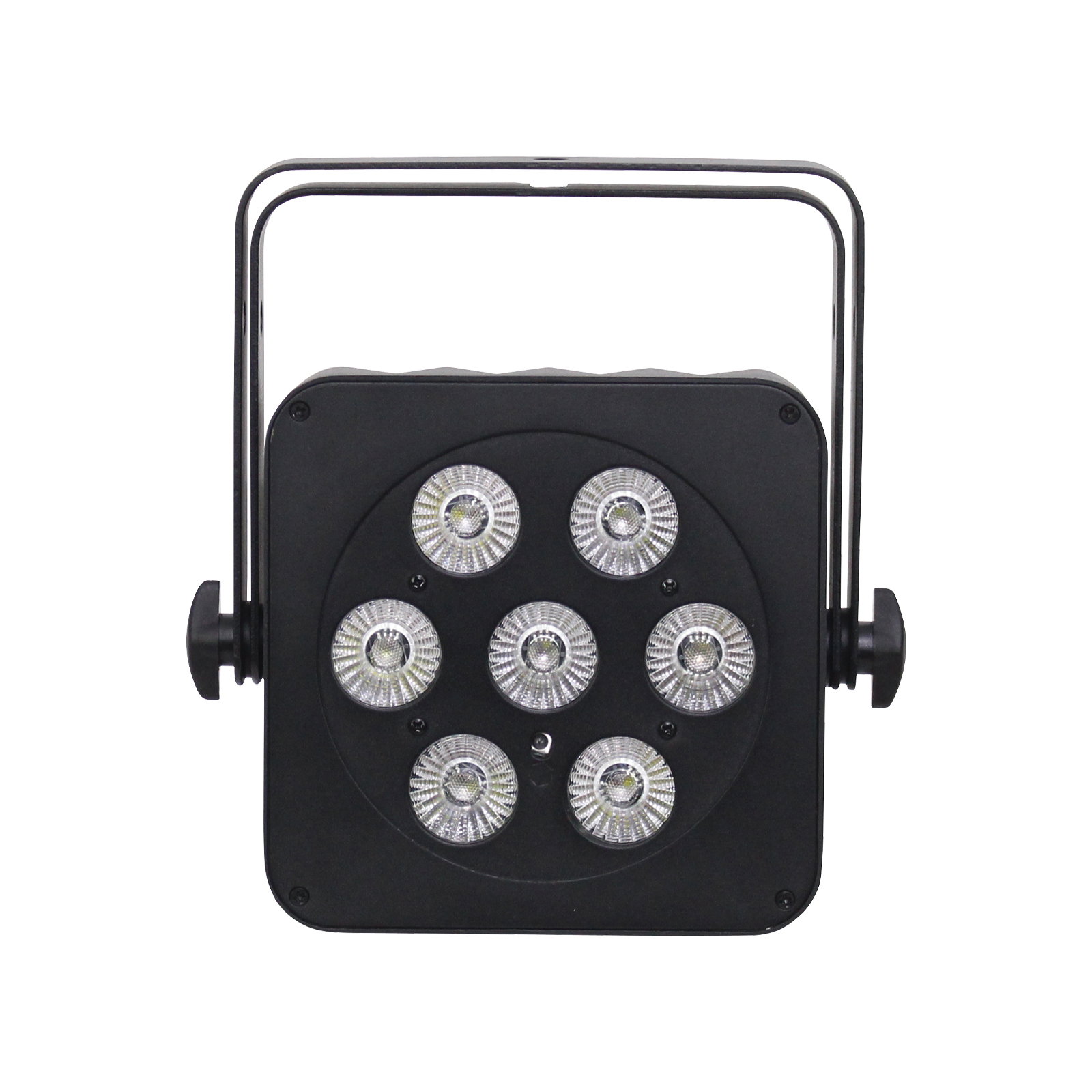

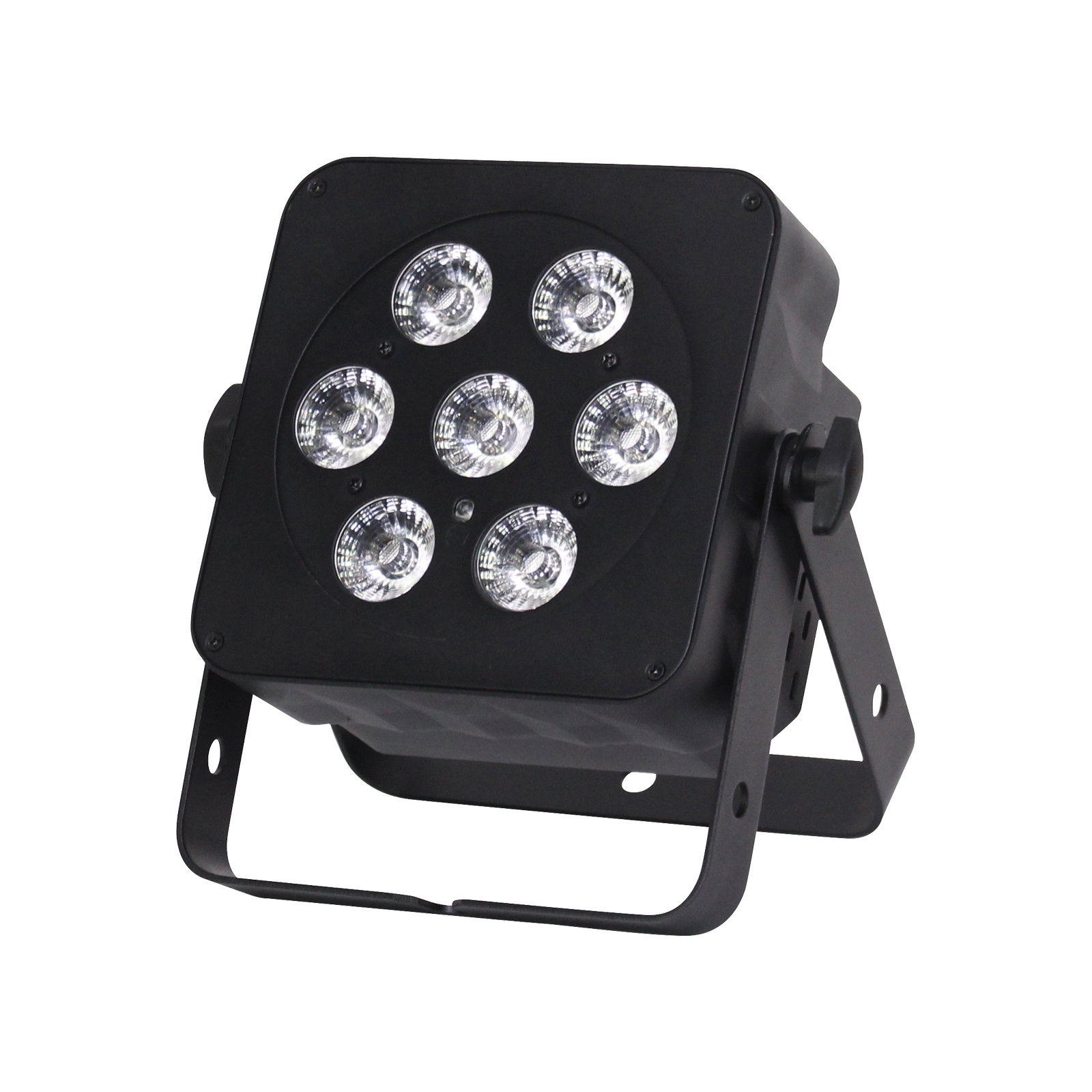

The LEDJ Slimline 7Q5 RGBL is a compact par fixture using 7 x 5W quad-colour LEDs with a lime emitter in place of the more common amber or white. The lime chip gives a wider achievable colour-temperature range — macros span 2400K to 8500K — making this fixture useful for mobile DJs and lighting designers who need flexible white tuning alongside saturated colour from a single fixture.
LED Source
7 x 5W
RGBL quad-colour
CCT Range
2400–8500K
White macros
Beam Angle
25°
Narrow wash
Depth
105mm
Slimline body
Connectors

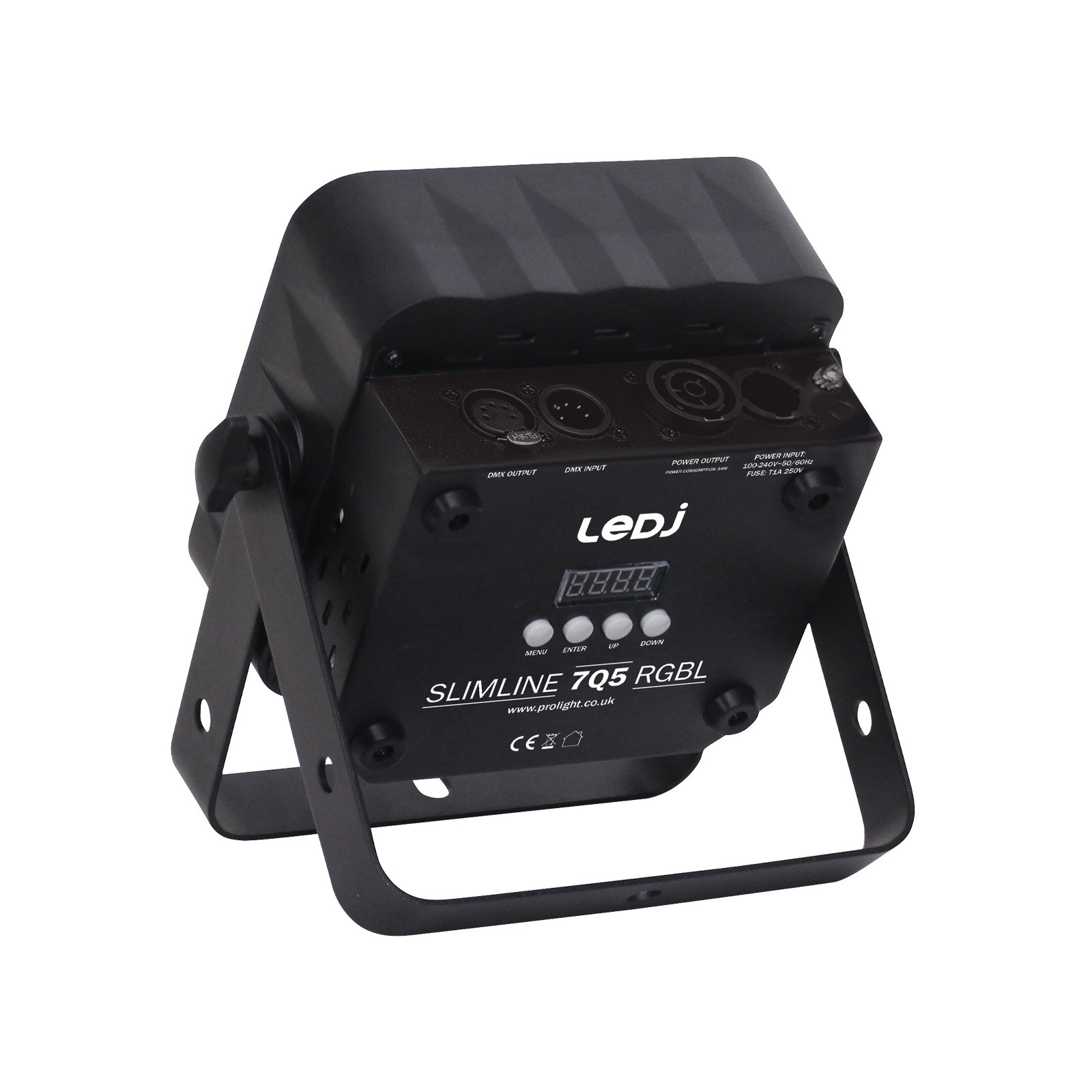

Fitted with 5-pin DMX in/out and Seetronic PowerTwist TR1 power in/out for daisy-chaining multiple fixtures from a single power and data feed.
Features
✓
7 x 5W RGBL quad-colour LEDs
7 x 5W RGBL quad-colour LEDs
✓
Lime chip extends CCT range from 2400K to 8500K
Lime chip extends CCT range from 2400K to 8500K
✓
25° beam angle for tight washes and uplighting
25° beam angle for tight washes and uplighting
✓
5-Pin DMX in/out
5-Pin DMX in/out
✓
Seetronic PowerTwist TR1 power in/out
Seetronic PowerTwist TR1 power in/out
✓
Convection cooled — no fan noise
Convection cooled — no fan noise
✓
105mm-deep all-metal housing
105mm-deep all-metal housing
✓
DMX, sound-active, primary/secondary and stand-alone modes
DMX, sound-active, primary/secondary and stand-alone modes
Specifications
| LEDs | 7 x 5W RGBL quad-colour |
| CCT macro range | 2400K – 8500K |
| Beam angle | 25° |
| Depth | 105mm |
| DMX | 5-Pin in/out |
| Power | Seetronic PowerTwist TR1 in/out |
| Cooling | Convection (silent) |
| Operating modes | DMX, sound-active, primary/secondary, stand-alone |
| Brand | LEDJ |
