Listen Technologies LT-84-D ListenIR 2-Channel Infrared Transmitter and Radiator with Dante

Product code: 192117

£1,047.00 inc VAT
£872.50 ex VAT

SKU: Z-LT-84-02-D

1 in stock (more available subject to additional lead time)

1 available online
More available from supplier in 1–3 weeks
FREE delivery by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
1 Year Manufacturer Warranty Included

About this Product

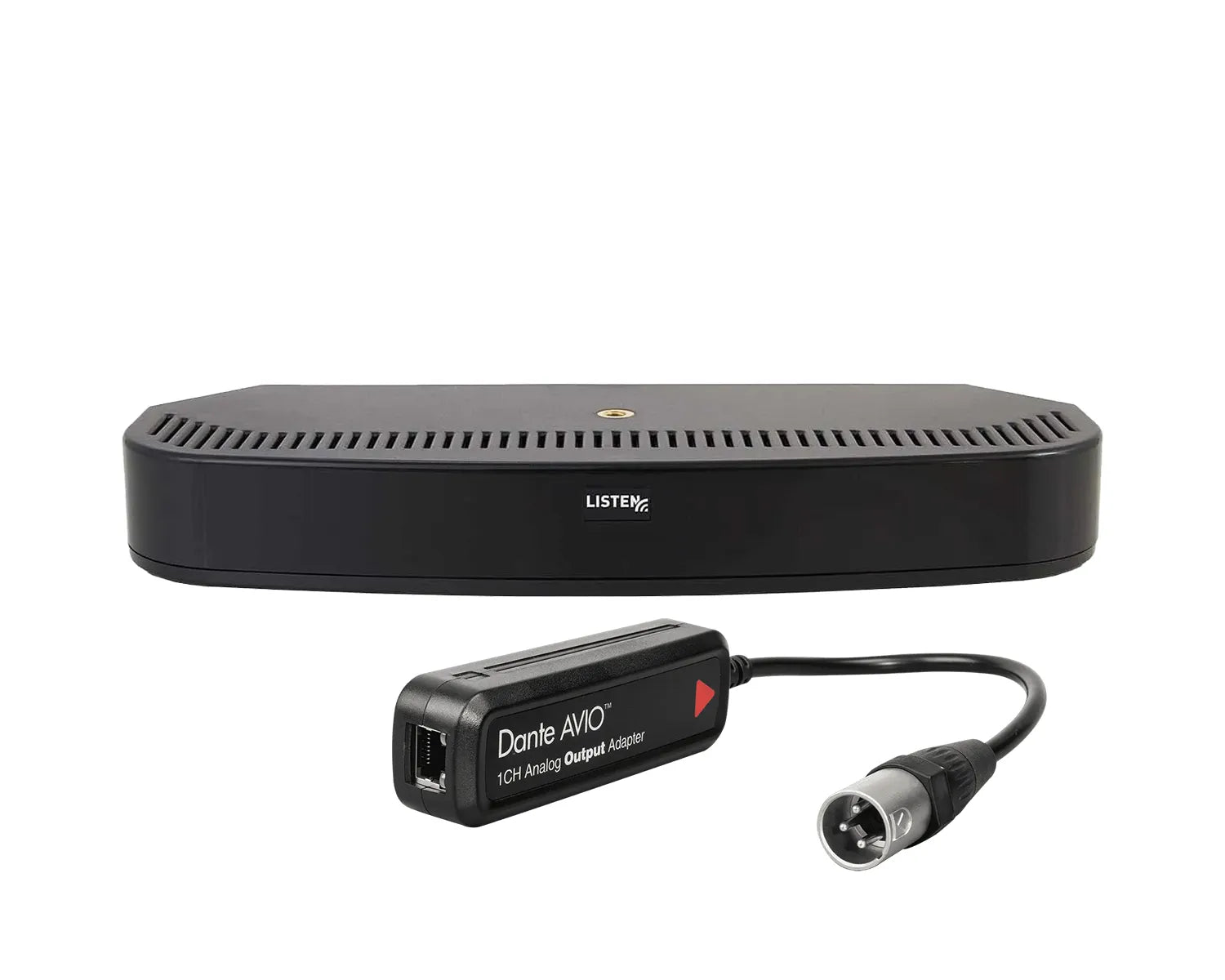

The Listen Technologies LT-84-D is the LT-84 ListenIR two-channel infrared transmitter and radiator supplied with a Listen LA-465 one-channel Dante output XLR adapter (PoE required) and an LA-507 XLR to terminal block cable, so one Dante channel can feed the LT-84’s balanced input. One channel covers up to 2,787 m² with LR-4200-IR receivers, and up to four LA-141 expansion radiators can be added. It suits courtrooms, council chambers, boardrooms, theatres and lecture rooms where the audio system is already on Dante.

2
Channels
2,787 m²
Coverage, 1 channel
Dante
LA-465 included, 1 ch
Up to 4
LA-141 expansions
Coverage figuresThe 2,787 m² figure is for one channel with LR-4200-IR or LR-5200-IR receivers. Older LR-42/LR-44 receivers give 697 m², and two-channel use or obstructions reduce usable coverage.
Infrared needs line of sightIR light stays inside the room, which keeps audio private and lets adjacent rooms run separate systems, but receivers need a view of a radiator. Plan radiator positions for large or obstructed rooms.

Features

LA-465 Dante adapter included: one Dante channel to XLR, PoE required
Transmitter and radiator in one unit
Two channels, each set to one of four carrier frequencies
Each channel accepts mic, stereo RCA (summed) and balanced Phoenix line inputs
Front level controls with audio presence and peak LEDs
Up to four LA-141 expansion radiators, with delay compensation to avoid dropouts
Single CAT-5e cable carries power and signal to each expansion radiator
Power save mode switches the carrier off after 15 minutes of silence
Mounting hardware for wall, ceiling or table supplied

Specifications

Listen Technologies LT-84-D ListenIR 2-Channel Infrared Transmitter and Radiator with Dante specifications
Dante LA-465 1-channel Dante to XLR adapter (PoE required) and LA-507 XLR to terminal block cable, included
Channels 2, each on a selectable carrier: 2.3, 2.8, 3.3 or 3.8 MHz
Coverage 2,787 m² single channel with LR-4200-IR/LR-5200-IR; 697 m² with LR-42/LR-44
IR emitter power 1.49W
Mic inputs 2x 3.5 mm TS, -30 dBu nominal, 4.4 kohm, 5V bias
Unbalanced line inputs 2x stereo RCA pairs, -10 dBu nominal, 10 kohm
Balanced line inputs 2x Phoenix, +4 dBu nominal, 100 kohm
Frequency response 20 Hz to 20 kHz (±1 dB) line input; 63 Hz to 15 kHz (±3 dB) system
Signal-to-noise ratio >70 dB line input; >60 dB system
Modulation Wideband FM, ±50 kHz deviation, 50 µs pre-emphasis
Expansion outputs 2x RJ45 (power and RF), CAT-5e 24 AWG, 30 m max, 2 LA-141 per output
Power save Carrier off after 15 minutes without audio on both channels
Power supply 100 to 240V AC in, 12V DC 4 A out, UK Type G line cord
Mounting Wall, ceiling or table (hardware supplied); LA-347 back box plate optional
Operating temperature -10 to 40°C

Full features

  • Affordable, effective, and expandable solution ideal for small to mid-size spaces such as classrooms, courtrooms, boardrooms, and more
  • Multiple frequency options offer additional flexibility and simplicity during installation and setup
  • Supplied with LA-465 1-channel Dante output XLR adapter (PoE required) and LA-507 XLR to terminal block cable
  • Offers gapless coverage up to 2,787 square meters (30,000 square feet)
  • Can be expanded with up to four (4) LA-141 expansion radiators for additional coverage area
  • One-cable design utilizes a single CAT-5e to carry both power and signal to LA-141 expansion radiators
  • Multiple input options for easier setup and operation

Full specifications

General

  • Audio
    • Frequency Response: 20 Hz - 20 kHz (+/- 1 dB) Line Input63 Hz - 15 kHz (+/- 3 dB) System Specification (wireless end-to-end with LR-4200)
    • Signal-to-Noise Ratio: > 70 dB (SNR) Line Input> 60 dB (SNR) System Specification (wireless end-to-end with LR-4200)
    • Microphone Input: Two (2) 3.5 mm (0.14 in.) Tip/Sleeve connector, -30 dBu nominal input, +14 dB headroom, impedance 4.4k Ohms, 5 VDC bias supply
    • Total Harmonic Distortion: < 0.1% (THD) Line Input< 2% (THD) System Specification (wireless end-to-end with LR-4200)
    • Unbalanced Line Input: Stereo/Mono Input. Two (2) Dual (RCA) Phono connectors, unbalanced, -10 dBu nominal input, +14 dB headroom, impedance 10k Ohms
    • Balanced Line Input: Mono Input. Two (2) Phoenix Type connector, balanced, + 4 dBunominal input, +14 dB headroom, impedance 100k Ohms
  • Controls
    • Power Switch: Three (3) position switch - Power OFF, Power ON-Indicator Lights OFF, Power ON-Indicator Lights ON
    • Carrier Frequency Selection: Two (2), four (4) position rotary switches (2.3 MHz, 2.8 MHz, 3.3 MHz, 3.8 MHz)
    • Level Control Knob: Two (2) audio taper rotary potentiometer, counter-clockwise decreases input mix level, clockwise increases input mix level
  • Indicators
    • Power Supply LED: Green LED on in-line power supply indicates AC power is applied
    • Audio Level IndicatorsTwo (2) Green LEDs, two (2) Red LEDs, Green LED indicates Audio presence and Red LED indicates peaks in the audio
    • RJ-45 Amber LED: Solid Amber indicates carrier is present and IR is being transmitted
    • RJ-45 Green LED: Solid Green indicates power is applied to unit, flashing indicates unit has entered power save mode
  • RF
    • Carrier Frequencies: 2.3 MHz, 2.8 MHz, 3.3 MHz, 3.8 MHz, Selectable
    • Number of Channels: Two (2) channels, Selectable carrier frequency
    • Frequency Accuracy: +/- .005% stability 0 to 50 °C
    • Transmitter Stability: 50 PPM
    • Modulation: FM Wideband, ±50kHz deviation max, 50 ?S pre-emphasis
    • Power Save Mode: Carrier will shut off when no audio is present for 15 minutes on both channels to preserve radiator life
    • Expansion Link Output: Two (2) RJ-45 connectors - Provides RF Signal and Power, CAT-5e cable 24 AWG, 100 ft. maximum cable length, two (2) LA-141s per output connector
  • IR
    • Coverage Area: 2,787 m² (30,000 ft²) single channel with LR-4200-IR/LR-5200-IR receivers or 697 m² (7,500 ft²) single channel with LR-42/LR-44 receivers
    • IR Emitter Power: 1.49 W
  • Power
    • Power Supply Input: 100-240 VAC, 50-60 Hz
    • Power Supply Output: 12 VDC, 4 A, 48 W
    • Power Supply Connector: 2.5 mm ID barrel connector, center positive
    • Power Output: Two (2) RJ-45 connectors. providing Power and RF signal for up to two (2) LA-141 expansion radiators on each output
    • Power Supply Type: In-line switching mode power supply, Listen part number LA-210
    • Power Supply Line Cord: IEC line cord, North America Type B (LT-84-01), Asia and UK Type G (LT-84-02), Euro Type C (LT-84-03), Australia Type I (LT-84-04)
  • Environmental
    • Temperature - Operation: 14 °F (-10 °C) to +104 °F (40 °C)
    • Temperature - Storage: -4 °F (-20 °C) to +122 °F (50 °C)
    • Relative Humidity: 0 to 95% relative humidity, non-condensing
  • Compliance
    • Standards: FCC part 15, ICS-03, CE, UL, CUL, C-Tick, CCC, PSE, KC, GS, RoHS, WEEE
    • Power Supply Compliance Marks: CUL, UL, CE, CCC, C-Tick, KC, PSE, GS, FCC, RoHS
  • Mounting
    • Can be mounted on a wall, ceiling, or table with provided hardware (screws and hollow wall anchors not provided). Optional LA-347 Wall Box Mounting Plate is available for mounting to a standard single gang electrical box.
