The BSS BLU120 is a modular Soundweb London signal processor supplied as a chassis only, with four card slots for configurable I/O and access to a 256-channel fault-tolerant digital audio bus. It gives AV integrators a flexible, format-agnostic processing node for fixed-install systems, populated with exactly the analogue, digital, AEC or telephone I/O each project requires in a single 1U frame.
4 slots
Card Slots · 4 channels per card
256 channels
Digital Audio Bus · Low latency
Chassis only
Configuration · Cards sold separately
1U
Form Factor · Rack mount
Modular I/OFour card slots accept any of six available I/O cards: Analogue Input, Analogue Output, Digital Input, Digital Output, AEC Input and Telephone Hybrid. Each card supports four channels. Digital cards process AES/EBU and/or S/PDIF audio with a range of clocking and syncing options. I/O cards are ordered separately.
Features
Four card slots for configurable I/O, four channels per card
Six card types: Analogue In/Out, Digital In/Out, AEC In, Telephone Hybrid
256-channel low-latency, fault-tolerant digital audio bus
Digital cards handle AES/EBU and/or S/PDIF audio
Analogue input cards: gain in 6dB steps up to +48dB, phantom power per channel
Open architecture, configured in HiQnet London Architect

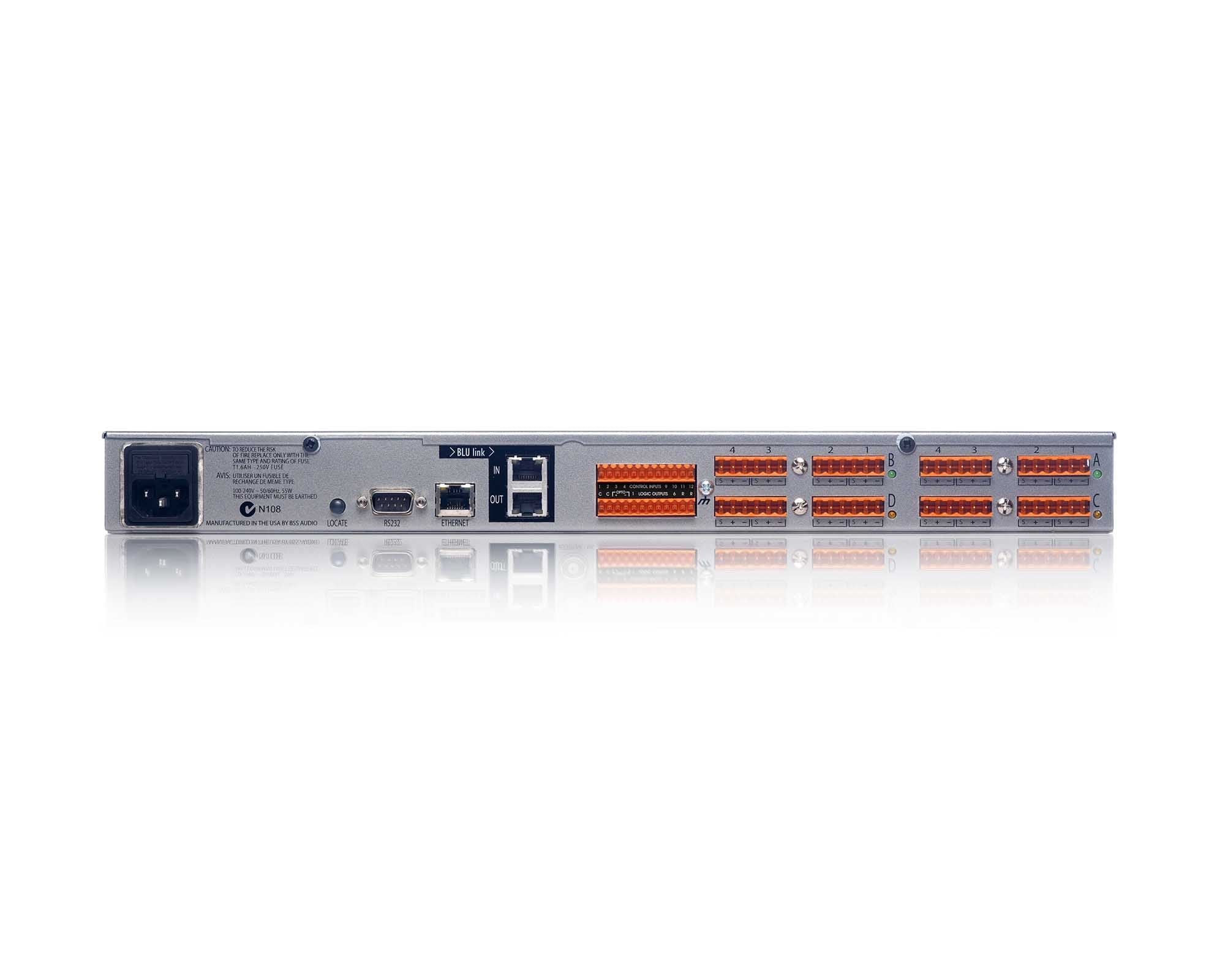

12 control inputs and 6 logic outputs for GPIO integration

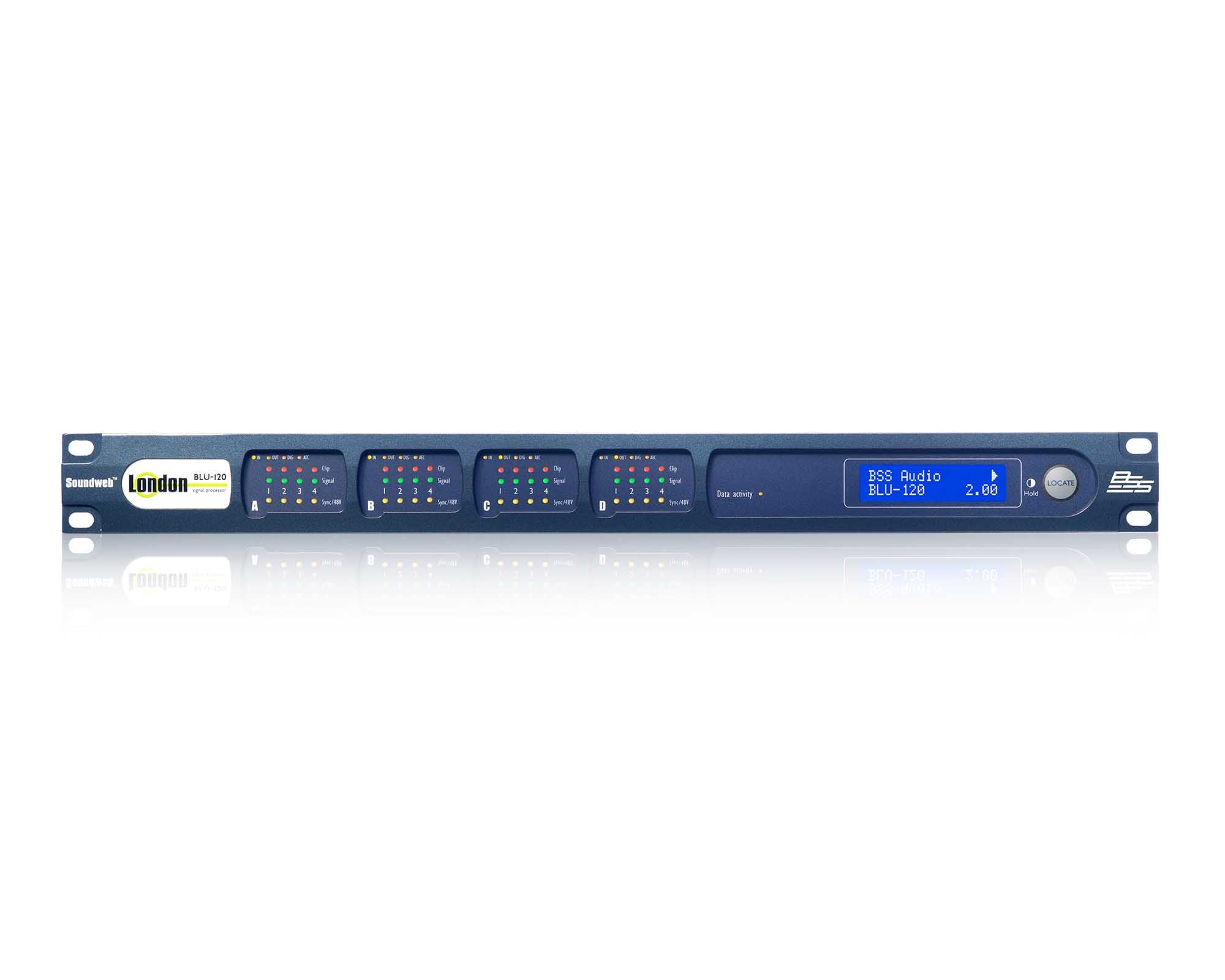

Front-panel display of device name, type, firmware, IP and subnet
Bi-directional locate function within London Architect
Compatible with the entire Soundweb London family
NoteSupplied as chassis only – I/O cards are not included and must be ordered separately to suit your channel count and format requirements.
Specifications
| Supplied as | Chassis only (cards not included) |
| Card slots | 4, four channels per card |
| Available card types | Analogue In, Analogue Out, Digital In, Digital Out, AEC In, Telephone Hybrid |
| Digital audio bus | 256 channels, low latency, fault tolerant |
| Cabling / distance | Cat5e, 100m device-to-device; over 40km via fibre media converters |
| Analogue input gain | Software configurable in 6dB steps up to +48dB per channel |
| GPIO | 12 control inputs, 6 logic outputs |
| Configuration software | HiQnet London Architect |
| Rack size | 1U |
