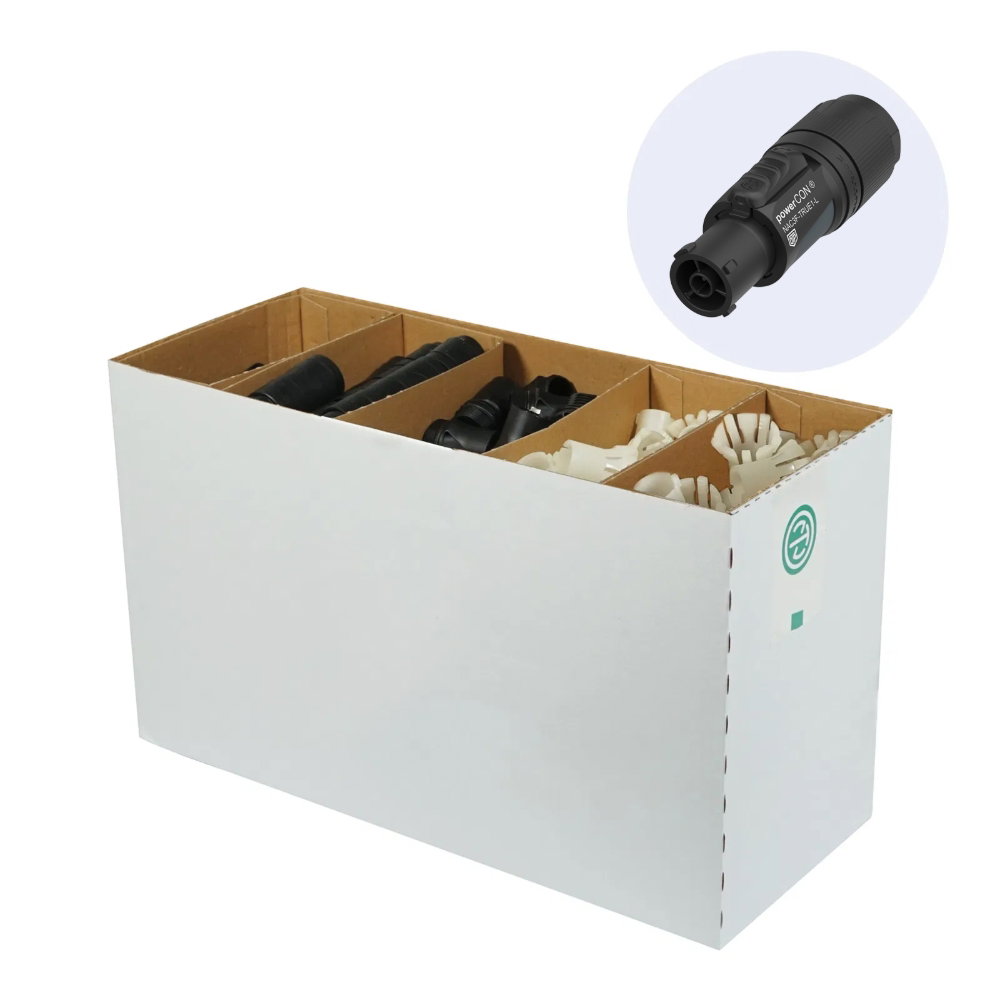

Trade pack of 50 Neutrik NAC3F-TRUE1-L-D cable connectors – the female cable connector from the powerCON TRUE1 locking mains system. TRUE1 connectors can be connected and disconnected under load, making them the standard choice for powering staging, lighting rigs, LED walls and PA where a rugged, lockable IEC-alternative is needed. This bulk box suits install contractors and fabrication shops terminating power tails in volume.
Rated Current
20 A
250 V AC
Cable Range
10-16 mm
outer diameter
Poles
3
L / N / PE
Pack
50
connectors
TRUE1 vs original powerCON
TRUE1 is the load-breaking generation of powerCON – it can be connected and disconnected under load and is rated IP65 when mated or capped. The female cable connector (NAC3F-TRUE1) mates with the NAC3MPX chassis power-out. Note that TRUE1 and the original powerCON are not intermateable.
Features
✓Female cable connector, powerCON TRUE1 system
✓Connect and disconnect under load
✓Secure locking latch resists accidental disconnection
✓IP65 sealing when mated or capped
✓Screw terminals for L, N and PE
✓Chuck-type strain relief for 10-16 mm cable
✓Trade pack of 50 for volume termination
✓Genuine Neutrik build quality and approvals
Specifications
| Model | NAC3F-TRUE1-L-D |
| Type | Female cable connector (line socket) |
| System | powerCON TRUE1 |
| Rated current | 20 A |
| Rated voltage | 250 V AC |
| Poles | 3 (L / N / PE) |
| Cable diameter | 10-16 mm |
| Termination | Screw terminals |
| Protection | IP65 (mated or capped) |
| Pack quantity | 50 |
