Rated 4.9 (98 reviews)

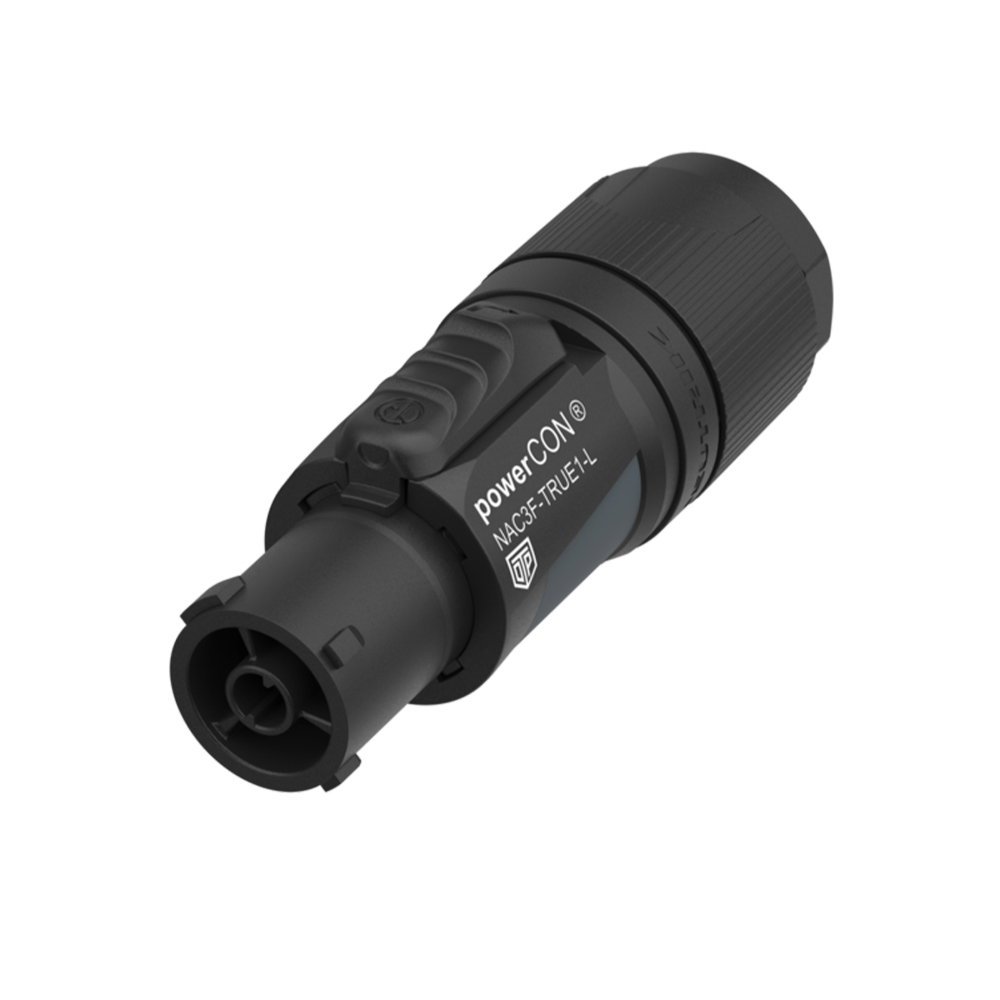

The Neutrik NAC3F-TRUE1-L is the female cable connector from the powerCON TRUE1 locking mains system. TRUE1 connectors can be connected and disconnected under load, making them the standard choice for powering staging, lighting rigs, LED walls and PA where a rugged, lockable IEC-alternative is needed. This variant terminates cable of 10-16 mm outer diameter.
20 A
Rated Current · 250 V AC
10-16 mm
Cable Range · outer diameter
3
Poles · L / N / PE
TRUE1 vs original powerCONTRUE1 is the load-breaking generation of powerCON – it can be connected and disconnected under load and is rated IP65 when mated or capped. The female cable connector (NAC3F-TRUE1) mates with the NAC3MPX chassis power-in. Note that TRUE1 and the original powerCON are not intermateable.
Features
Female cable connector, powerCON TRUE1 system
Connect and disconnect under load
Secure locking latch resists accidental disconnection
IP65 sealing when mated or capped
Screw terminals for L, N and PE
Chuck-type strain relief for 10-16 mm cable
Genuine Neutrik build quality and approvals
Specifications
| Model | NAC3F-TRUE1-L |
| Type | Female cable connector (line socket) |
| System | powerCON TRUE1 |
| Rated current | 20 A |
| Rated voltage | 250 V AC |
| Poles | 3 (L / N / PE) |
| Cable diameter | 10-16 mm |
| Termination | Screw terminals |
| Protection | IP65 (mated or capped) |
| Pack quantity | 1 |
