NEXO DPU Digital Patch Unit - Intelligent Output Patch for NXAMP, 6 Speakon, 1U (01NX.DPU)

SKU: 01NX.DPU

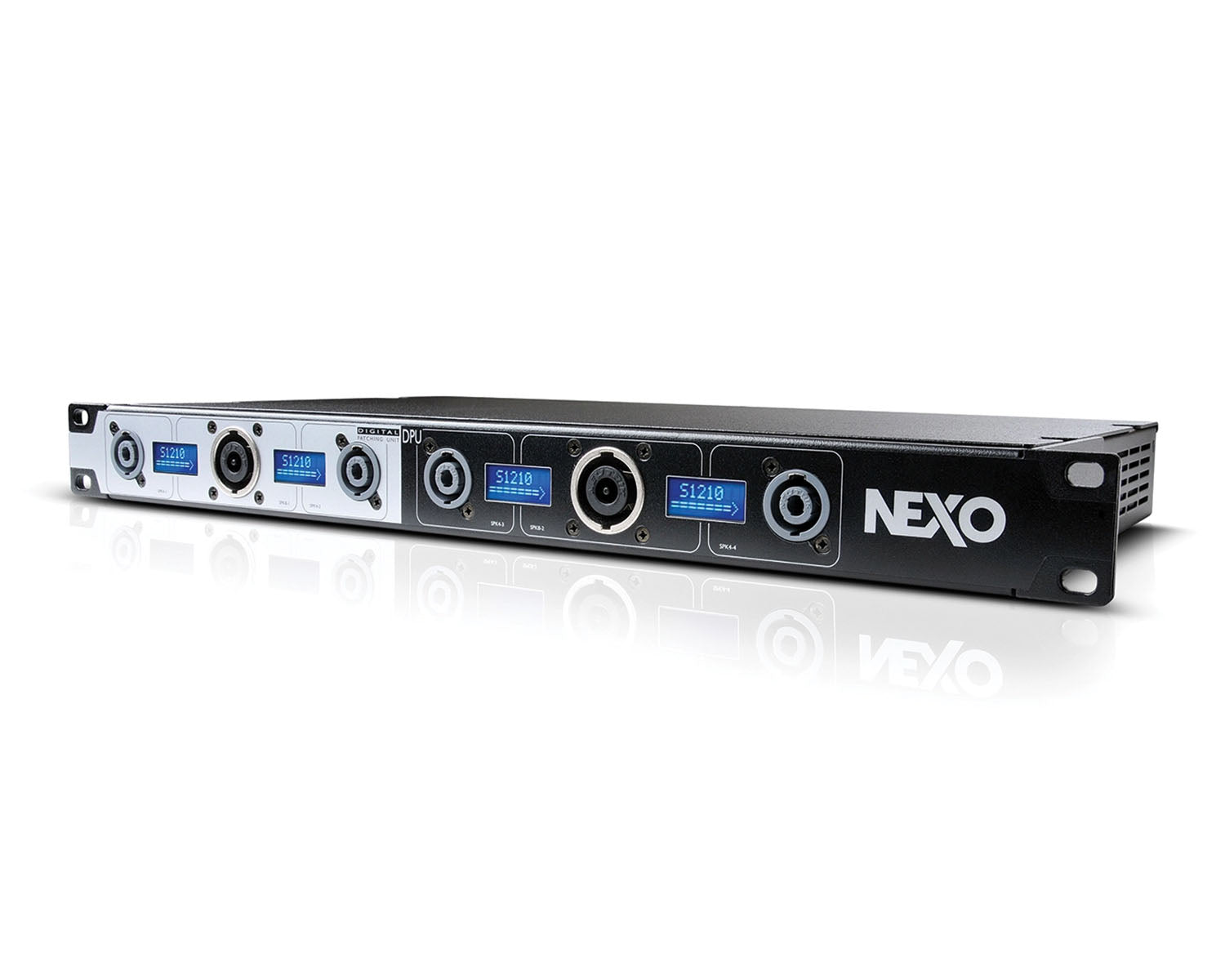

NEXO DPU Digital Patch Unit - Intelligent Output Patch for NXAMP, 6 Speakon, 1U (01NX.DPU)
Click to enlarge

    £1,746.00 inc VAT
    £1,455.00 ex VAT

    Ordered from supplier, allow 1–3 weeks
    FREE delivery by Wed 23rd SepOrder by 3pm Tuesday
    Click & Collect Tue 22nd Sep ›Collect from our warehouse in Wembley, London
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    1 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

    The NEXO DPU (Digital Patch Unit) is a 1U intelligent output patch panel that automates loudspeaker output routing for NXAMP and NXAMP MK2 amplifiers. Designed for touring and rental engineers, it communicates directly with the NXAMP and routes the amplifier’s power outputs to the correct front-panel Speakon connectors based on the currently loaded loudspeaker setup, removing the guesswork and sticky-tape labelling of a static patch panel.

    1U
    Format · rackmount panel
    6
    Outputs · front-panel Speakon
    Dual PSU
    Power · fully redundant
    Zero-config
    Setup · auto-routing
    Intelligent output patchThe DPU knows which loudspeaker setup the NXAMP is running and automatically routes each amplifier output to the correct Speakon, in bridge mode or not. Two NXAMPs can be linked on the same output for systems that need more than one amplifier.
    Features
    Automatic channel-by-channel output routing to six front-panel Speakon outputs
    Communicates directly with the NXAMP to follow the loaded loudspeaker preset
    Cabinet names and bridging status shown alongside each output
    Links two NXAMPs on the same output for high-power systems
    Dual medical-grade redundant power supply with lockable power cords
    Either power cord can be unplugged with no drop on the audio signal
    Heavy-duty ultra-low impedance switching matrix, also redundant by design
    Zero configuration – routing is automatic and connections to the NXAMP are self-tested
    LCD displays show speaker name, pin-out and NXAMP inputs when muted; output meters when live
    Specifications
    Type Digital Patch Unit – intelligent output patch panel
    Compatibility NEXO NXAMP and NXAMP MK2 amplifiers
    Outputs 6 front-panel Speakon connectors
    Power supply Dual medical-grade redundant, lockable power cords
    Rack size 1U
    Model DPU (01NX.DPU)

    Product Reviews

    No reviews yet — be the first to review this product.

    Bought this? It takes a minute.
    Review this product

    Reviews are checked by our team before they appear.

    More Information

    • Intelligent output patch panel offering digital communication with NXAMPs.
    • Provide automatic output speakons wiring regarding the configuration of the NXAMP.
    • Four individual LCD for easy labelling of the outputs speakons.
    • Fully redundant design for maximum safety, including dual power socket and dual universal power supplies.
    • Plug and play operation, totally driven by the host NXAMP.
