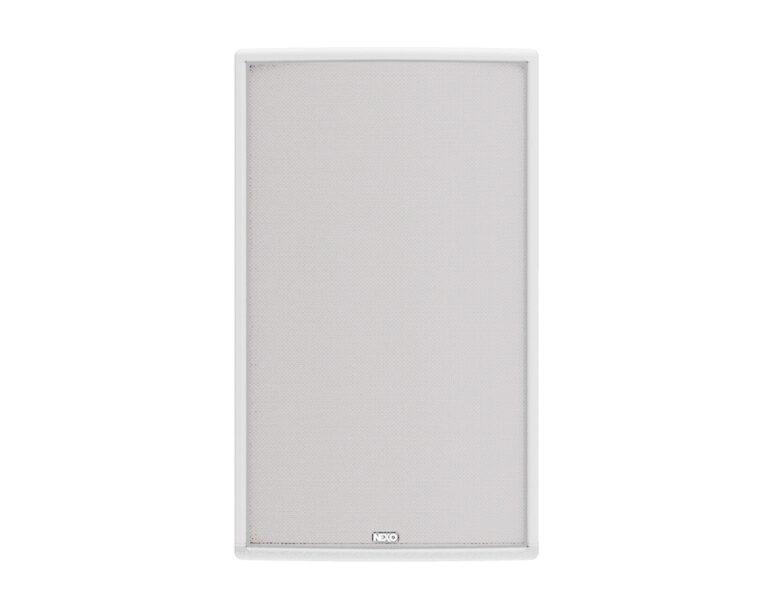

The NEXO ePS10 in white finish is a 2-way 10″ installation loudspeaker from NEXO’s ePS series, designed for medium to large fixed installations where the loudspeaker needs to blend into lighter architectural surroundings. Suitable for theatres, performance venues, houses of worship, and large corporate AV systems. It pairs a 10″ high-efficiency LF driver with a 1.4″ voice coil HF driver in a bass-reflex trapezoidal enclosure, delivering 130dB peak SPL across a 70Hz–20kHz bandwidth. Designed for use with NEXO’s nanoNXAMP and DTD controller/amplifier platforms.
Peak SPL
130 dB
Maximum output
Frequency Range
70Hz–20kHz
Usable bandwidth
LF Driver
10″
High-efficiency cone
Weight
14.8 kg
Cabinet only
Features
✓
2-way design with 10″ HE LF and 1.4″ voice coil HF driver
2-way design with 10″ HE LF and 1.4″ voice coil HF driver
✓
White finish for light-coloured architectural environments
White finish for light-coloured architectural environments
✓
Bass-reflex trapezoidal enclosure design
Bass-reflex trapezoidal enclosure design
✓
15mm baltic birch plywood construction
15mm baltic birch plywood construction
✓
Rotatable asymmetric horn for flexible orientation
Rotatable asymmetric horn for flexible orientation
✓
Multiple rigging points (top, bottom, and back)
Multiple rigging points (top, bottom, and back)
✓
2x In/Out on pitch screw terminal blocks with IP cover
2x In/Out on pitch screw terminal blocks with IP cover
✓
Compatible with NEXO nanoNXAMP and DTD controllers
Compatible with NEXO nanoNXAMP and DTD controllers
Specifications
| Loudspeaker Type | 2-way passive installation loudspeaker |
| LF Driver | 10″ high-efficiency cone |
| HF Driver | 1.4″ voice coil |
| Frequency Range | 70Hz–20kHz |
| Peak SPL | 130 dB |
| Enclosure Design | Trapezoidal, bass-reflex |
| Cabinet Material | 15mm baltic birch plywood |
| Connections | 2x In/Out pitch screw terminal blocks with IP cover |
| Dimensions (H x W x D) | 531 x 316 x 285 mm |
| Weight | 14.8 kg |
| Finish | White |
