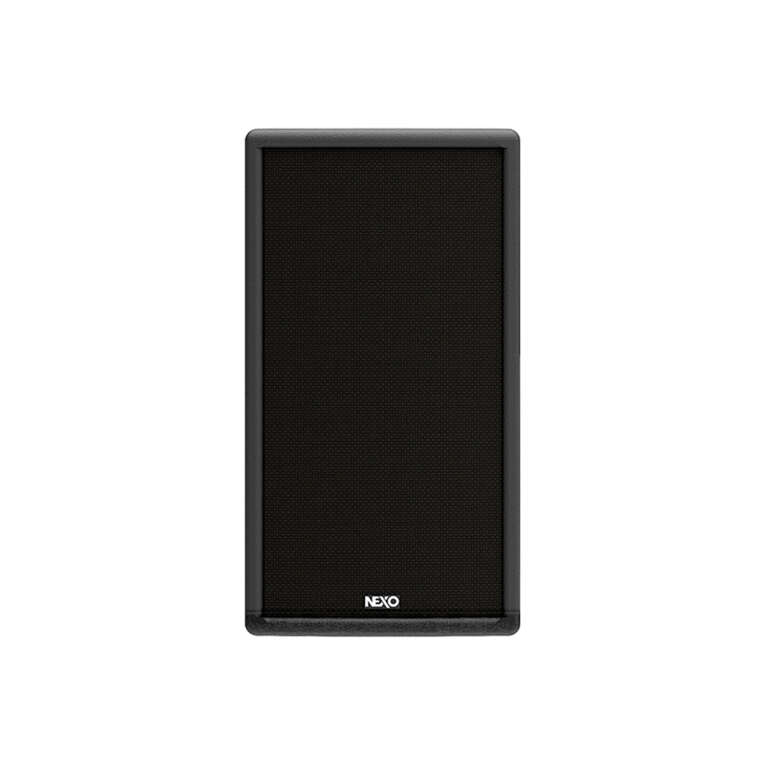

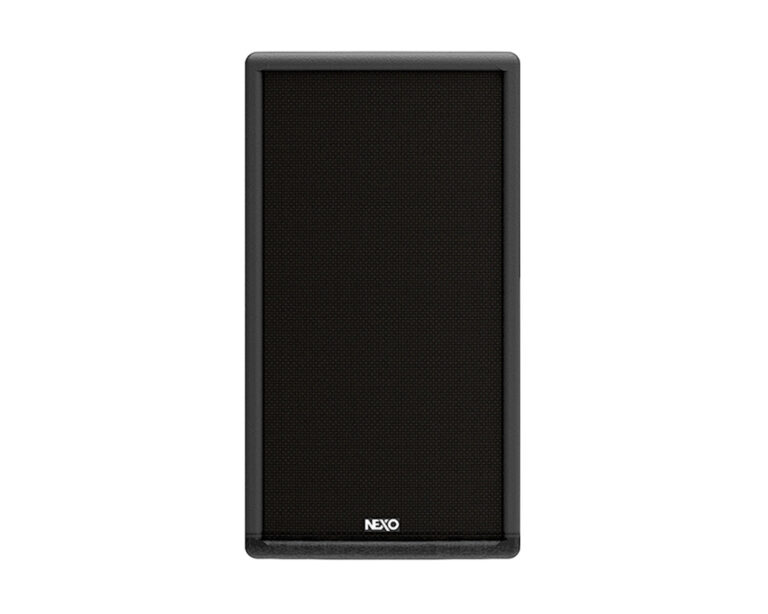

The NEXO ePS6 is a compact 2-way installation loudspeaker built for venues, houses of worship, corporate spaces, and any fixed-install environment where consistent coverage and discreet mounting matter. Part of NEXO’s ePS installation series, it pairs a 6″ low-frequency driver with a 1.4″ voice coil HF driver in a trapezoidal baltic birch plywood enclosure, delivering 125dB peak SPL across a 90Hz–20kHz bandwidth. Designed for use with NEXO’s nanoNXAMP and DTD controller/amplifier platforms.
Peak SPL
125 dB
Maximum output
Frequency Range
90Hz–20kHz
Usable bandwidth
LF Driver
6″
High-efficiency cone
Weight
7.1 kg
Cabinet only
Features
✓
2-way design with 6″ LF and 1.4″ voice coil HF driver
2-way design with 6″ LF and 1.4″ voice coil HF driver
✓
Trapezoidal closed acoustic enclosure design
Trapezoidal closed acoustic enclosure design
✓
15mm baltic birch plywood construction
15mm baltic birch plywood construction
✓
Rotatable asymmetric horn for flexible orientation
Rotatable asymmetric horn for flexible orientation
✓
Multiple rigging points (top, bottom, and back)
Multiple rigging points (top, bottom, and back)
✓
2x In/Out on pitch screw terminal blocks with IP cover
2x In/Out on pitch screw terminal blocks with IP cover
✓
125dB peak SPL from a compact enclosure
125dB peak SPL from a compact enclosure
✓
Compatible with NEXO nanoNXAMP and DTD controllers
Compatible with NEXO nanoNXAMP and DTD controllers
Specifications
| Loudspeaker Type | 2-way passive installation loudspeaker |
| LF Driver | 6″ high-efficiency cone |
| HF Driver | 1.4″ voice coil |
| Frequency Range | 90Hz–20kHz |
| Peak SPL | 125 dB |
| Enclosure Design | Trapezoidal, closed acoustic |
| Cabinet Material | 15mm baltic birch plywood |
| Connections | 2x In/Out pitch screw terminal blocks with IP cover |
| Dimensions (H x W x D) | 365 x 198 x 181 mm |
| Weight | 7.1 kg |
| Finish | Black |
