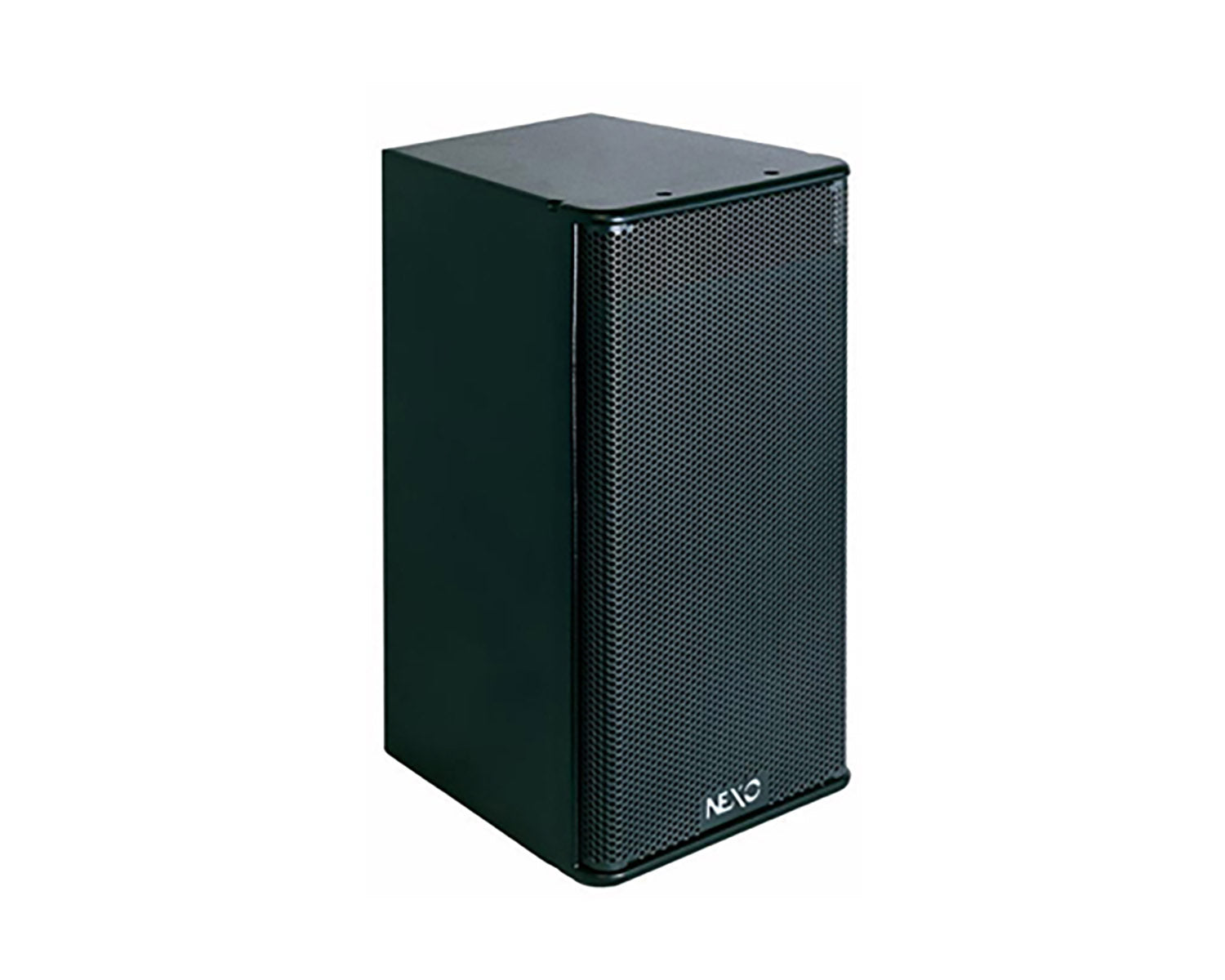

The NEXO GEO S1210-ST STADIUM is a high-output, long-throw version of the standard GEO S1210 cabinet, engineered for stadium-scale installations. A narrow-Q 10° line array module in single-source mode, it delivers exceptional MF-LF output from a single 12″ driver and couples into coherent horizontal or vertical arrays for precise, venue-specific coverage.
Configuration
2-Way
Long-throw module
LF Driver
12″
Single
Vertical Dispersion
10°
Single-source mode
Nominal Sensitivity
105 dB
SPL, 1W @ 1m
Stadium Long-Throw
The STADIUM variant raises nominal sensitivity to 105 dB SPL (1W @ 1m) over the standard S1210, extending throw for large-format stadium and arena installations. Coupled MF/HF pattern control is array-dependent, designed in NS-1 array software and configured to venue-specific geometry.
Features
✓High-output, long-throw STADIUM version of the GEO S1210
✓Single 12″ driver with exceptional MF-LF output
✓Narrow-Q 10° device in single-source mode
✓Directivity Phase Device (DPD) for high sensitivity
✓Hyperboloid Reflective Wavesource (HRW) for coherent wavefronts
✓Horizontal or vertical arrayable design
✓Non-coupled MF/HF coverage configures at 80° or 120°
✓Designed for stadium and arena installations
Specifications
| Type | 2-way long-throw line array module |
| LF driver | Single 12″ |
| Vertical dispersion | 10° (single-source mode) |
| Non-coupled coverage | 80° or 120° |
| Nominal sensitivity | 105 dB SPL (1W @ 1m) |
| Finish | Black |
