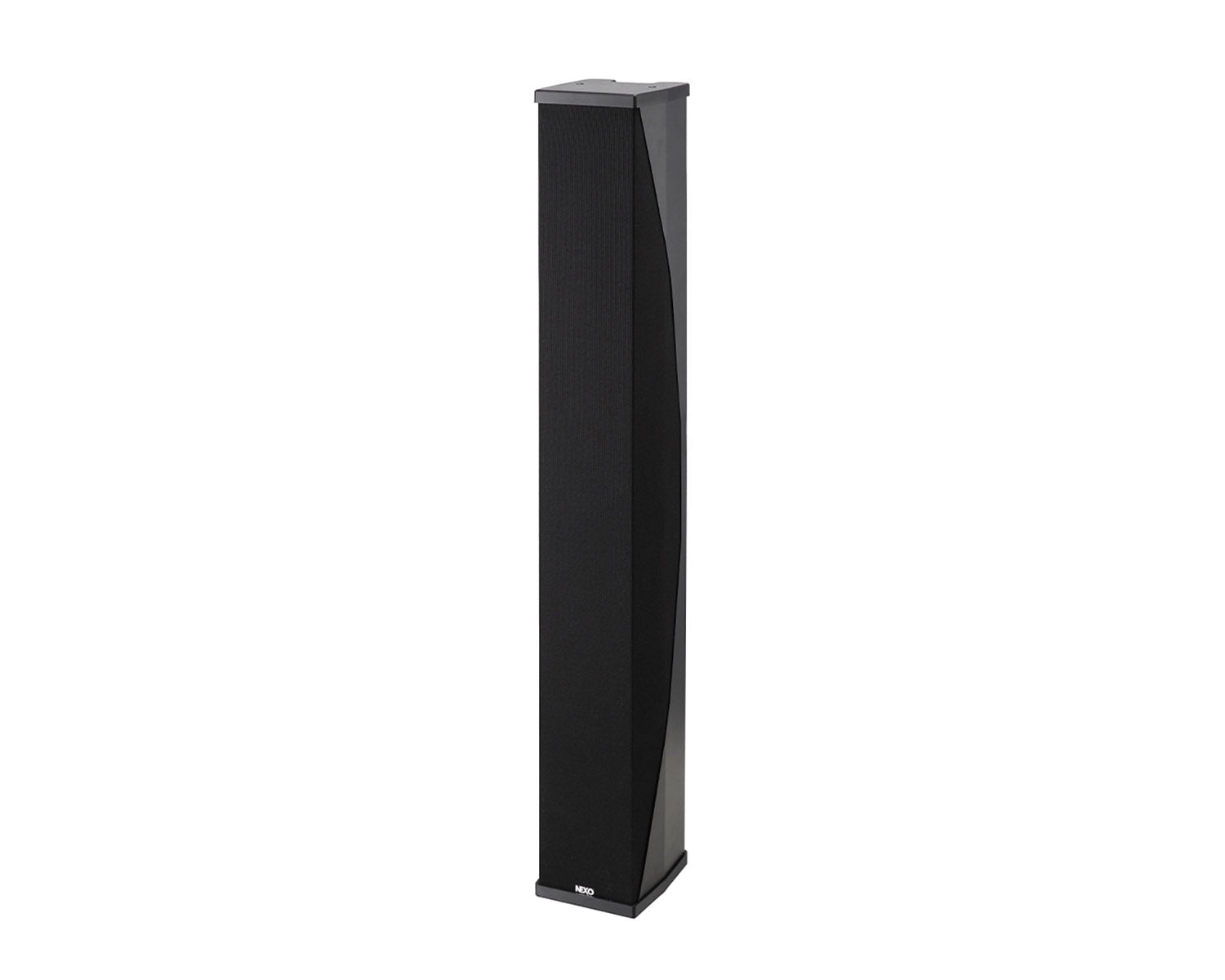

The NEXO ID84L is a low-frequency extension cabinet for the ID Series, sharing the same aesthetic design and sonic signature as the rest of the range while adding low-end reach and tighter vertical directivity. It extends the applications of the ID84 main module, making it a natural choice for production companies and AV installers building scalable NEXO column arrays.
8×4″
Format · LF extension
990 x 150 x 163mm
Dimensions · H x W x D
14 kg
Weight · per cabinet
Neodymium
Drivers · as used in ID24
Installation version – IP54This is the Installation (-I) variant. It keeps the same acoustic design but uses a grille covered with acoustic cloth, with connectivity via cable gland and captive two-core cables. The Installation version is IP54 rated for permanent fixed-install use.
Features
Low-frequency extension for the ID84 main module
Latest-generation Neodymium drivers as used in the ID24
Increasing line length narrows vertical directivity in frequency
Column lengths from 2 m up to 4 m (2x ID84 + 2x ID84L)
Shared phase response with all NEXO speakers – no comb filtering
Ideal for side fill, front fill or pairing with NEXO subs
IP54 rated with cable gland and captive two-core cabling
Deployments simulate in NEXO NS-1 software
High NEXO size-to-power ratio in an elegant slim format
Available in black, white or custom RAL colour on request
NoteThis is the Installation (-I) black finish. The Touring (-T) version instead uses a front Magnelis grille with NL4 connectors, and the TIS version is a Touring build with the acoustic cloth added in front.
Specifications
| Model | NEXO ID84L-I (Installation) |
| Type | Low-frequency extension cabinet |
| Drivers | Neodymium (as used in ID24) |
| Dimensions (H x W x D) | 990 x 150 x 163 mm |
| Weight | 14 kg |
| Connectivity | Cable gland with captive two-core cables |
| Ingress protection | IP54 |
| Finish | Black (white / custom RAL on request) |
| SKU | 01ID.84L-I |
