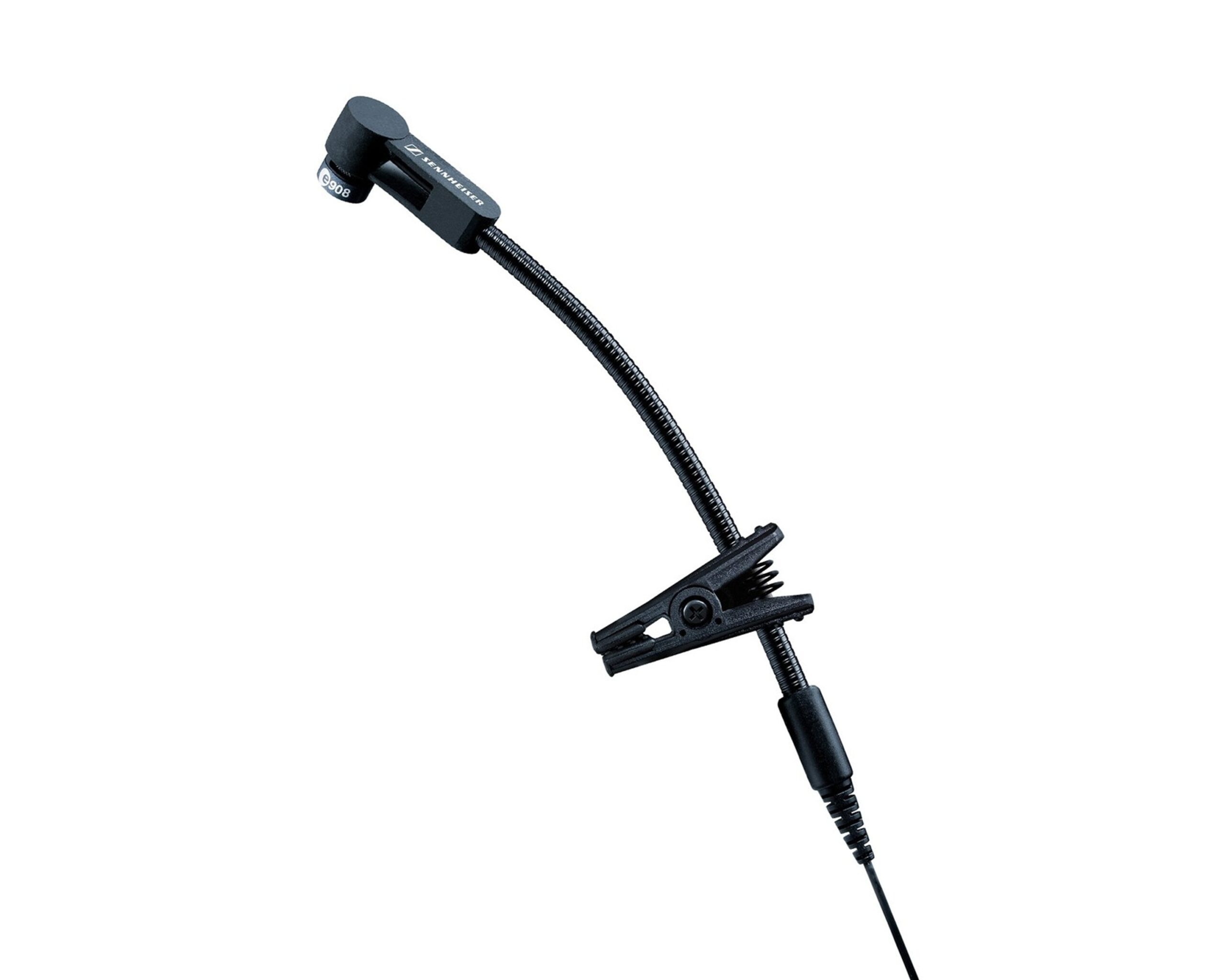

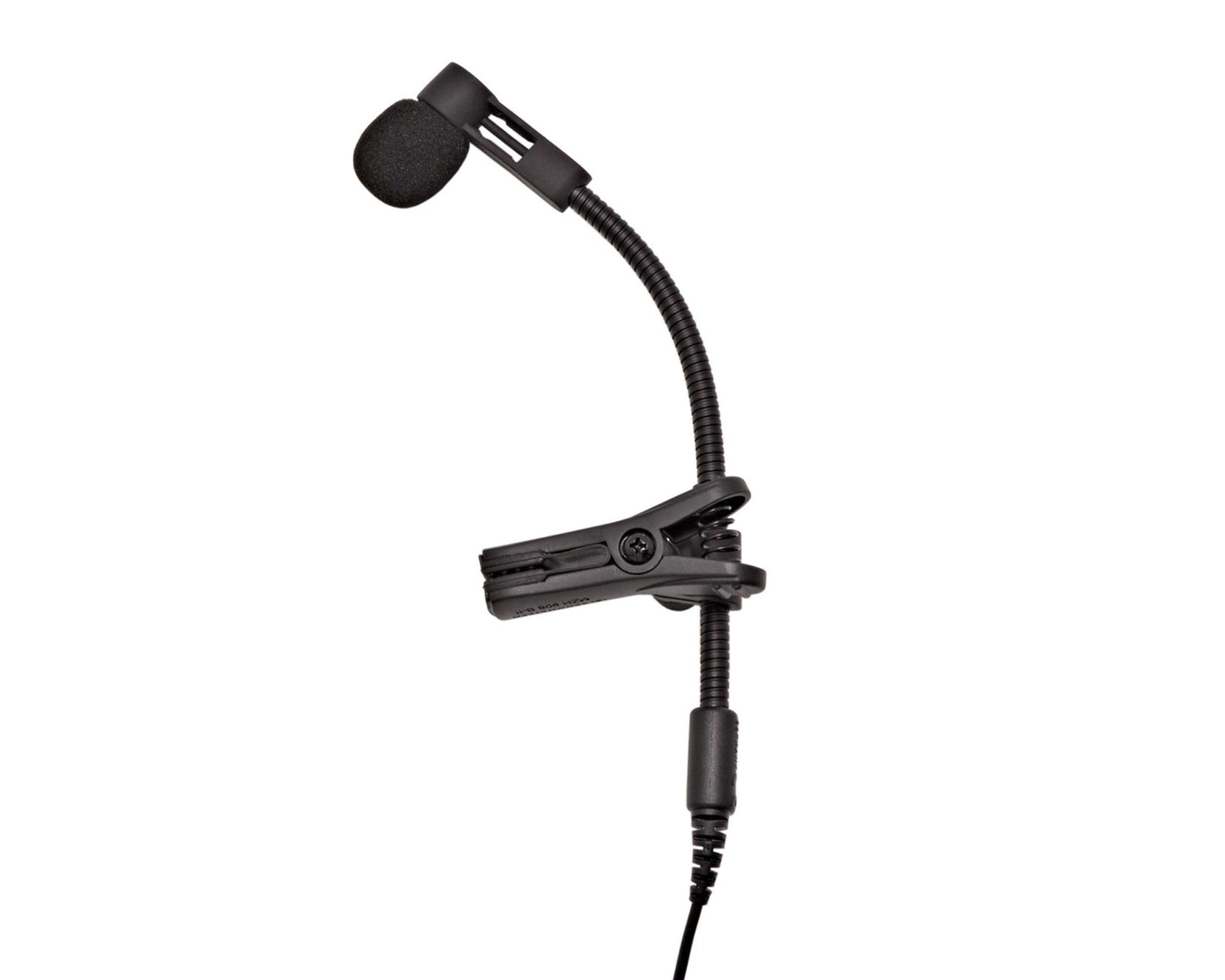

Sennheiser e 908 B ew cardioid condenser instrument microphone with a flexible gooseneck, spring clamp and locking 3.5 mm jack for direct connection to an ew-series bodypack transmitter. Designed for horns and brass.
Key Features
Audio frequency response: 40 … 20 000 Hz
Specifications
| General: Transducer principle (Microphone) | pre-polarised condenser microphone |
| General: Pick-up pattern | cardioid |
| General: Frequency response | 40 … 20 000 Hz |
| General: Sensitivity in free field, no load (1kHz) | 4 mV/Pa, 0,56mV/Pa (e 908T-ew) |
| General: Nominal impedance | 100 Ohm (e908B & e908D) |
| General: Min. terminating impedance | 2000 Ohm (e908B & e908D) |
| General: Equivalent noise level | e908B-ew = 30 dB(A); e908B & e908D = 35 dB(A), e908T-ew = 39 dB (A) |
| General: Max. Sound pressure level (active) | 147 dB |
| General: Phantom powering | 12 – 48 V / 3 mA (e908B & e908D) |
| Physical & Dimensions: Connector | e 908 B & D = XLR-3; e908 B ew & T ew = 3.5mm mini jack |
| Physical & Dimensions: Dimensions | 47 x 193 mm |
| Physical & Dimensions: Weight | 140 g |
| Sennheiser part number | 500204 |
